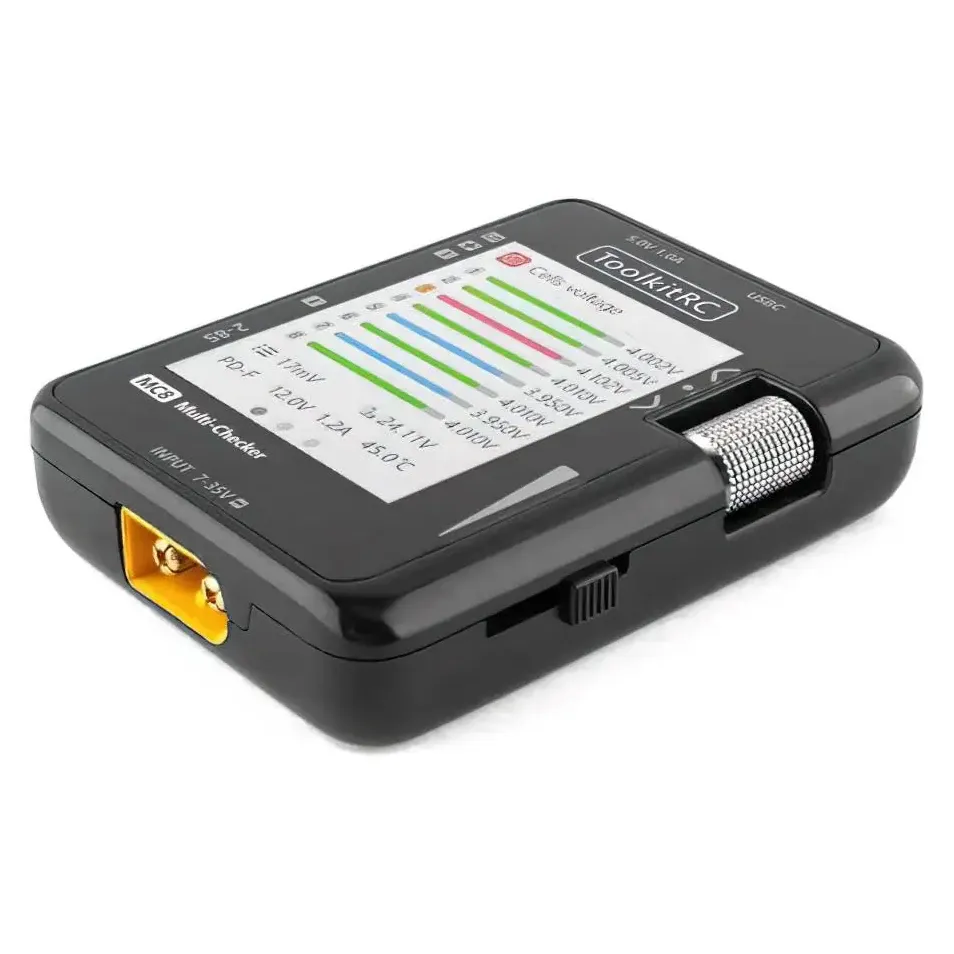

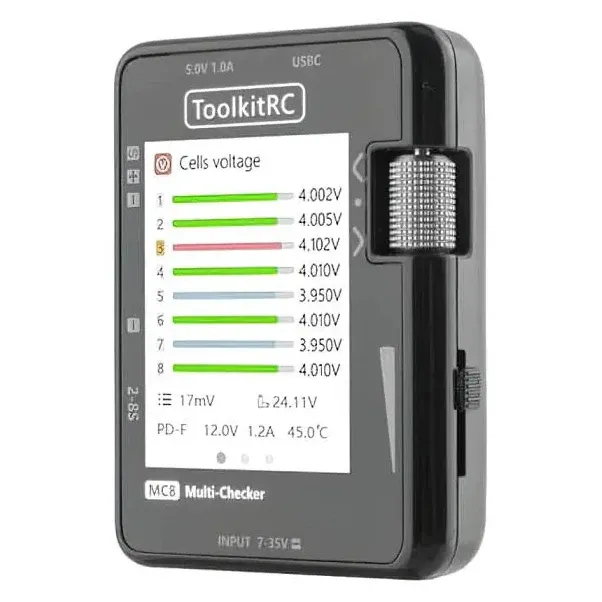

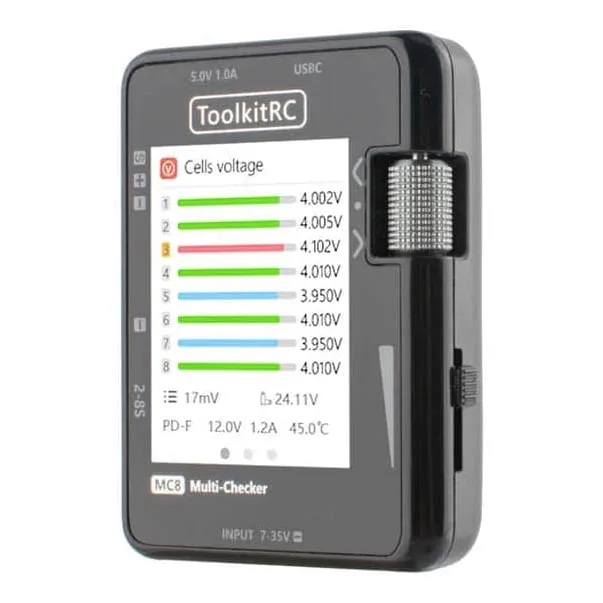

ToolkitRC MC8 Multi-Functional 2–8S Battery Checker

The ToolkitRC MC8 is a pocket-sized, multi-role battery checker and diagnostic tool designed for FPV pilots and drone builders. Beyond basic cell balancing and voltage monitoring, this device doubles as a signal tester and a field power bank, making it an essential diagnostic tool for track days and remote bando sessions.

Key features

• Supports voltage reading and balance checking for 2-8S LiPo, LiHV, LiFe and Li-ion packs directly via the balance port.
• Integrated signal diagnostic tool reads and outputs PWM, PPM and SBUS protocols, ideal for testing servos and checking receiver links without a flight controller.
• The USB Type-C port delivers up to 20W of fast charging to top up phones, radio transmitters or action cameras using your flight packs; the USB Type-A port (5 V / 1 A) is used for firmware upgrades.
• Bright 2.0-inch colour IPS display navigated by a tactile metal scroll wheel for rapid menu access.

Specifications

• Supported batteries: LiPo, LiHV, LiFe, Li-ion (2-8S)
• Main input: XT60, 7-35 V
• Balance current: up to 60 mA (2-8S)
• Balance accuracy: <0.005 V at 4.2 V
• Signal protocols: PWM, PPM, SBUS (Read and Output)
• USB-C output: 5-12 V, max 20W (PD3.0, QC3.0, AFC, SCP, FCP)
• USB-A output: 5 V / 1 A (firmware upgrade)
• Display: 2.0-inch IPS LCD (320x240)
• Dimensions: 68 x 50 x 15 mm
• Weight: 50 g

Whether you need to quickly check pack degradation after a freestyle session, calibrate an analogue servo for a custom gimbal, or rescue a dying GoPro on the flight line, the MC8 condenses three distinct bench tools into a single 50-gram unit.
