CubeMars RI80 KV75 Motor with Hall Sensor

The CubeMars RI80 V2.0 KV75 is a frameless torque motor with an integrated Hall sensor, built for robotic joints, exoskeletons and other high-torque, direct-drive actuator projects.

Key features

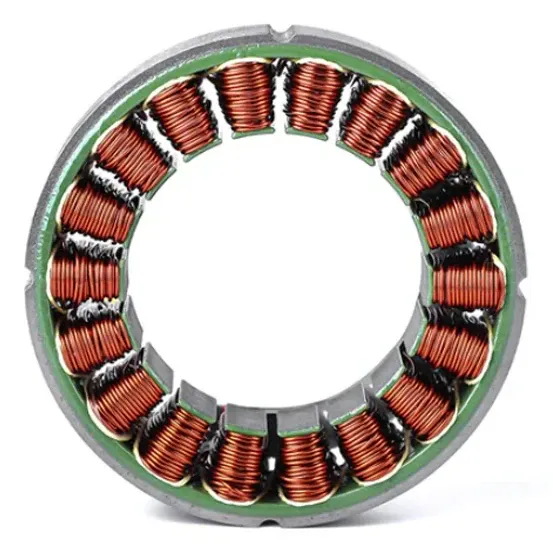

• Frameless inner-rotor design lets the rotor couple directly to a shaft or turntable, removing the need for gears or belts.

• Delta-wound, 8 pole-pair motor rated at 24-48V, with a rated torque of 1.45Nm and a peak of 4.1Nm.

• 75 RPM/V (KV) rating suits low-speed, high-torque direct-drive control.

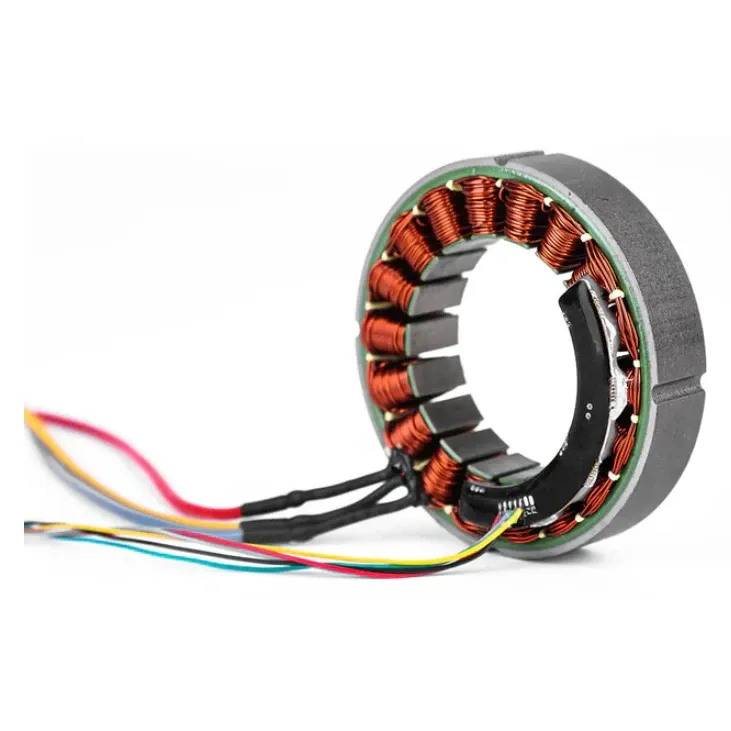

• Integrated Hall sensor gives rotor-position feedback for sensor-based FOC control.

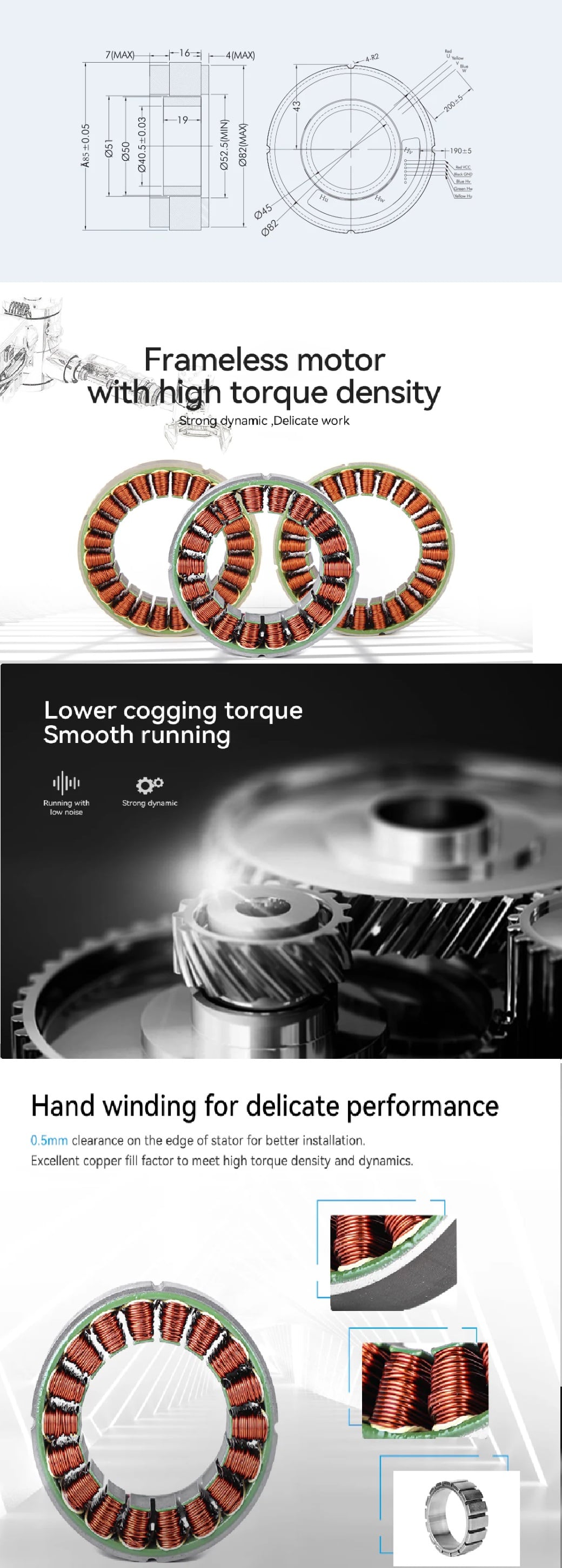

• 85mm-diameter, 27mm-tall frameless housing weighing 411g, with a 40.5mm hollow shaft bore.

Specifications

• KV: 75 RPM/V

• Rated voltage: 24-48V

• Rated torque: 1.45Nm

• Peak torque: 4.1Nm

• Rated current: 9.4 A

• Peak current: 27.6 A

• Torque constant (Kt): 0.155 Nm/A

• Back EMF (Ke): 15.5 V/krpm

• Phase resistance: 330 mOhm

• Phase inductance: 510 uH

• Weight: 411g

• Winding: Delta, 8 pole pairs

• Operating temperature: -20 to 50 C

• Insulation class: C

Confirm your motor controller supports Hall-sensor feedback and field-oriented control before wiring this motor into a robotic joint, exoskeleton or other direct-drive actuator assembly.
