Robot Actuators
CubeMars RI100 KV105 Robot Joint Motor with Hall Sensor
₹22,099Incl. GST
SKU TMOTOR-CUBEMARS-RI100-KV105
Brand: CubeMarsKV: 105 KVWeight: 500 gProduct Type: Joint Motor
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

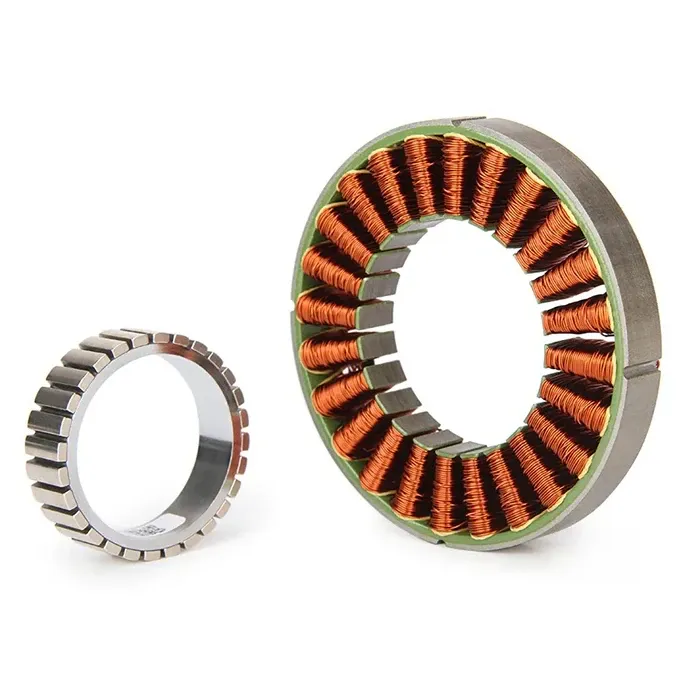

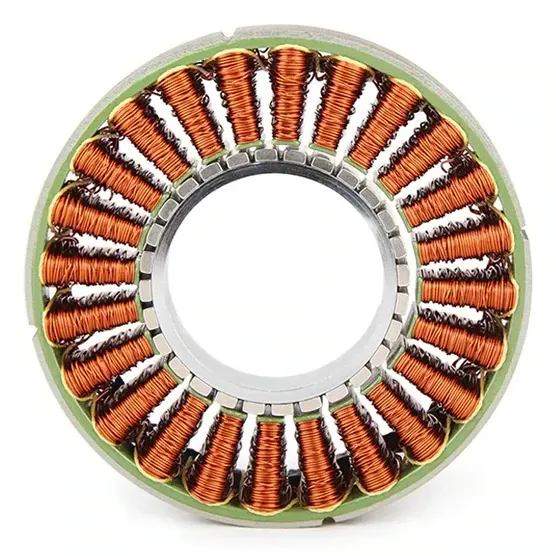

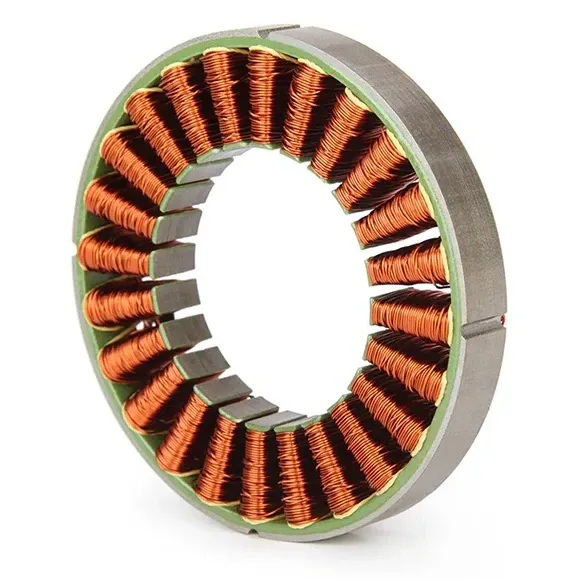

The T-Motor CubeMars RI100 KV105 is a frameless brushless inrunner motor built for high-precision robot joints, such as cobots, exoskeletons, quadruped robots and robotic arms, where compact torque density matters more than raw speed.
Key features

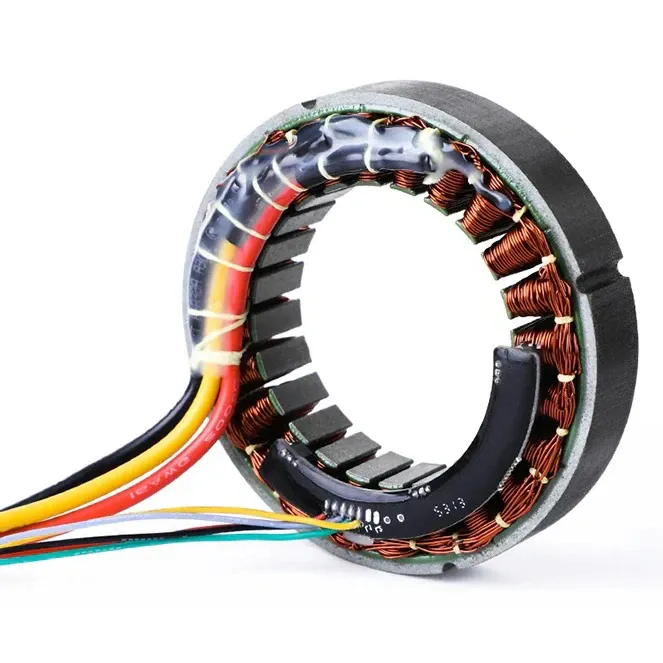

- Integrated Hall sensor gives precise position feedback for FOC (field-oriented control) drives.
- Delivers 1.76 Nm rated torque and 4.95 Nm peak torque at 13.6 A rated / 38.6 A peak current.
- Runs from 24V, 36V or 48V supplies, with rated speeds of 1370, 2100 and 2825 RPM respectively.
- 14 pole pairs and a delta winding give smooth, low-noise, efficient operation.
- Compact frameless format: 104 mm diameter x 26 mm length, 500 g.
Specifications
- Motor type: Frameless brushless inrunner, with Hall sensor
- KV: 105 RPM/V
- Rated / peak torque: 1.76 Nm / 4.95 Nm
- Rated / peak current: 13.6 A / 38.6 A
- Voltage range: 24-48 V
- Size: Ø104 x 26 mm
- Weight: 500 g
Pair it with an FOC motor driver rated for its current and voltage, and confirm the joint's mechanical interface and the sensor cable pinout before integration.
| Brand | CubeMars |
|---|---|
| KV | 105 KV |
| Weight | 500 g |
| Product Type | Joint Motor |
| Torque | 50.5 kg-cm |
| Input Voltage | 6–12S |
| Made in India | No |
