CubeMars AK70-10 KV100 Robot Actuator

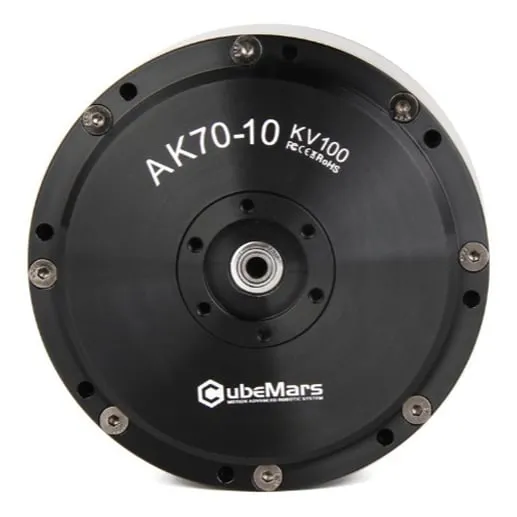

The CubeMars AK70-10 KV100 is a robot-joint actuator that combines a brushless motor, a 10:1 planetary reducer, a 14-bit magnetic encoder and, in the With Driver version, its driver board in one Ø89 × 50.25 mm unit. It suits legged robots, robotic arms, exoskeletons and lab test rigs where a single bolt-on joint is simpler than pairing a separate motor, gearbox and controller.

Key features

• 24.8 N·m peak torque — 8.3 N·m rated, at 310 rpm on 48 V or 148 rpm on 24 V.

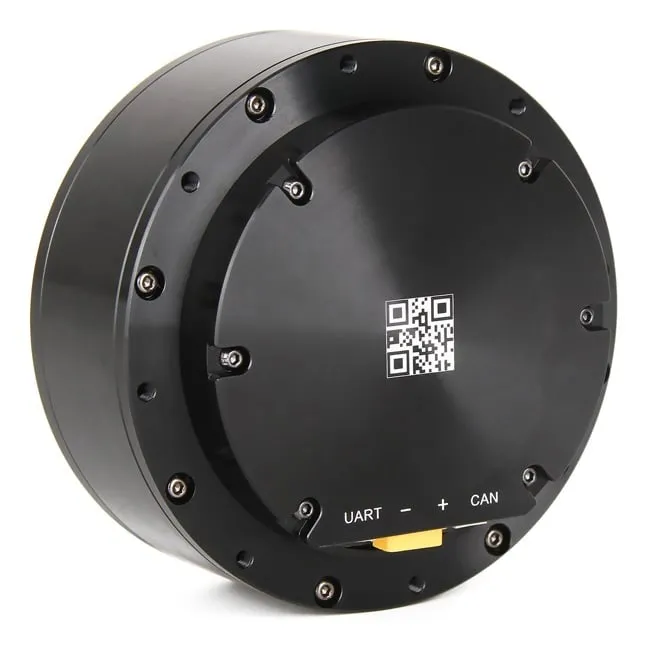

• Driver on board (With Driver version; the Without Driver version needs an external driver) — takes DC power plus CAN or UART commands directly, with no external motor controller to wire in.

• Four control modes — position, speed, torque and MIT hybrid mode, which sends position, velocity, feed-forward torque and gains in one command.

• 0.2° backlash — low joint play from the planetary stage for repeatable positioning.

• Closed-loop feedback — the 14-bit magnetic encoder reports position to the driver.

Specifications

• Rated voltage: 24 V / 48 V

• Rated power: 230 W

• Rated torque: 8.3 N·m

• Peak torque: 24.8 N·m

• Rated current: 7.2 A

• Peak current: 23.2 A

• Rated speed: 148 rpm (24 V) / 310 rpm (48 V)

• No-load speed: 240 rpm (24 V) / 480 rpm (48 V)

• KV: 100 rpm/V

• Reduction ratio: 10:1 planetary

• Pole pairs: 21

• Backlash: 0.2°

• Encoder: 14-bit magnetic

• Interfaces: CAN, UART

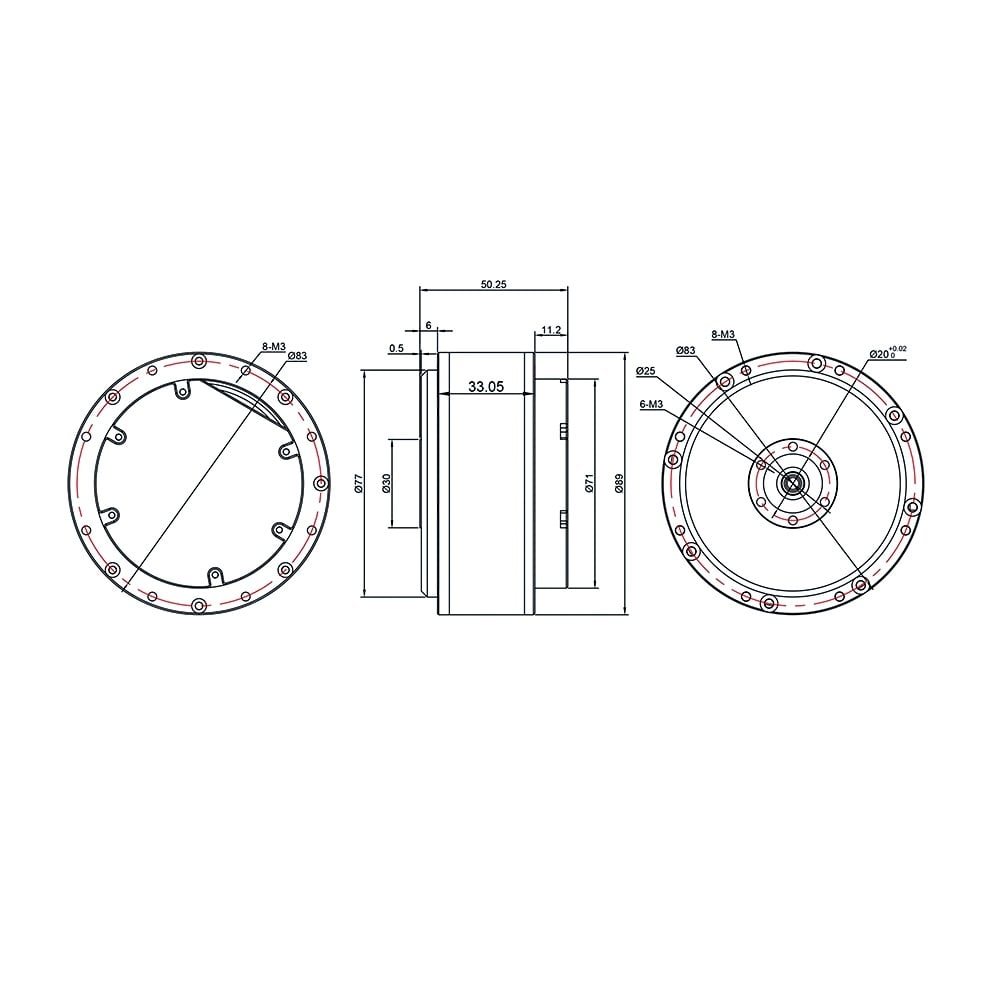

• Dimensions: Ø89 × 50.25 mm

Set the CAN ID, calibrate the encoder and tune the control loops with the CubeMars RUBIK LINK V2.0 debugger and CubeMars' PC software. Size the power supply for the 23.2 A peak draw of each joint.
