CAPUF EC200U GPS Modem

₹2,619Incl. GST

SKU CAPUF-EC200U-GPS

Brand: CAPUFAntenna Connector: U.FLProduct Type: Cellular Modem

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

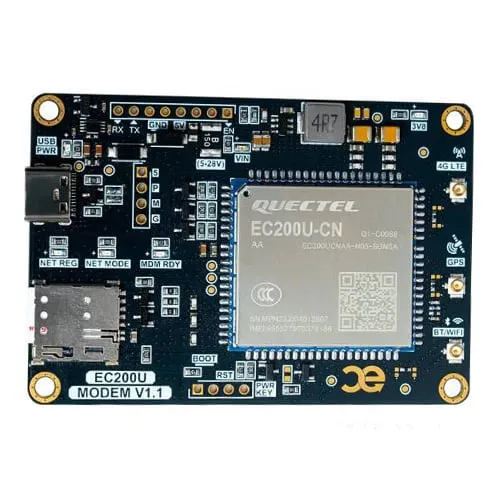

The CAPUF EC200U is a Quectel EC200U-based 4G (with 2G fallback) cellular modem board with an integrated GNSS receiver, aimed at telemetry and connected-drone projects that need mobile-network data alongside position data.

Key features

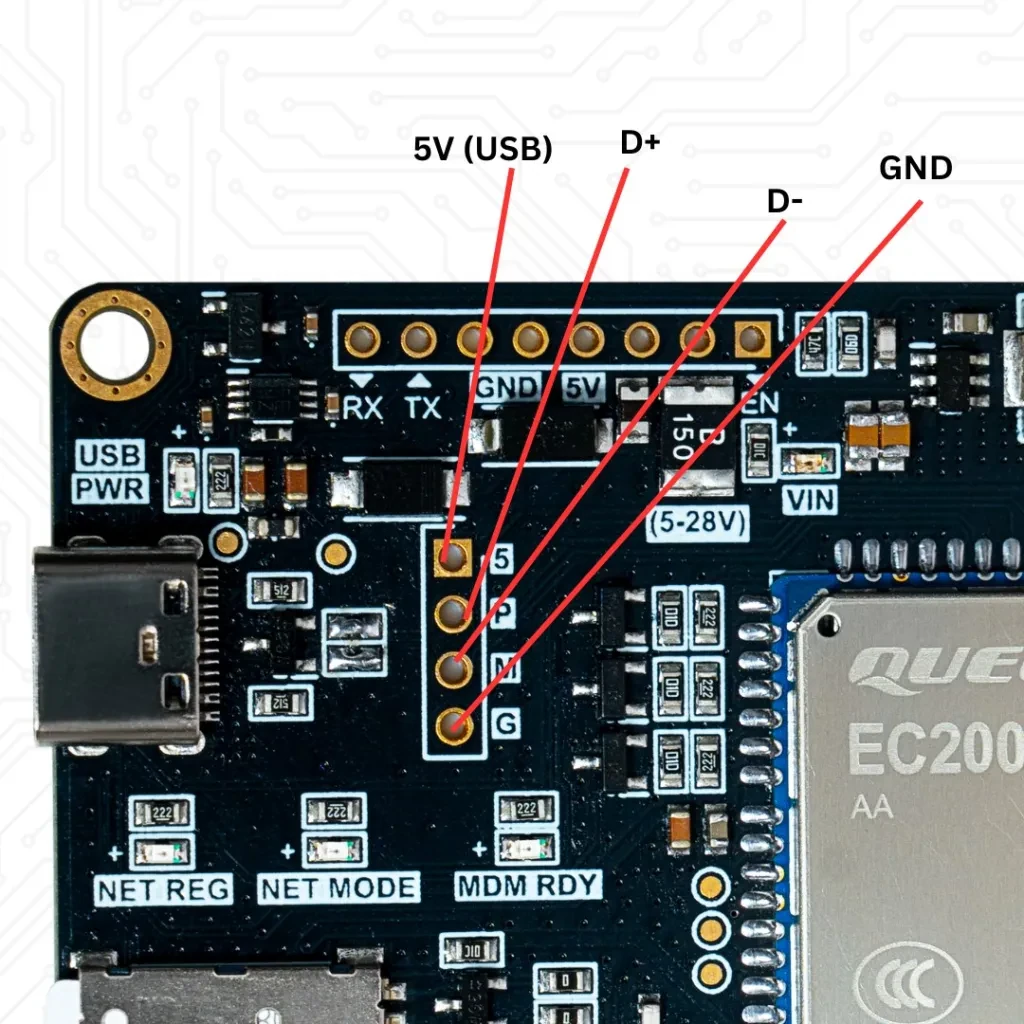

  • Connects over a 3.3V-compatible UART or USB-C, with the same USB signals also broken out on a 4-pin header.

  • Accepts a 5V or any 5-28V DC supply, with overvoltage and overcurrent protection built in.

  • Separate U.FL connectors are provided for the 4G/LTE, GPS and Bluetooth antennas; the 4G antenna is included, while GPS and Bluetooth antennas are bought separately.

  • Nano SIM card slot with ESD-protected signal lines.

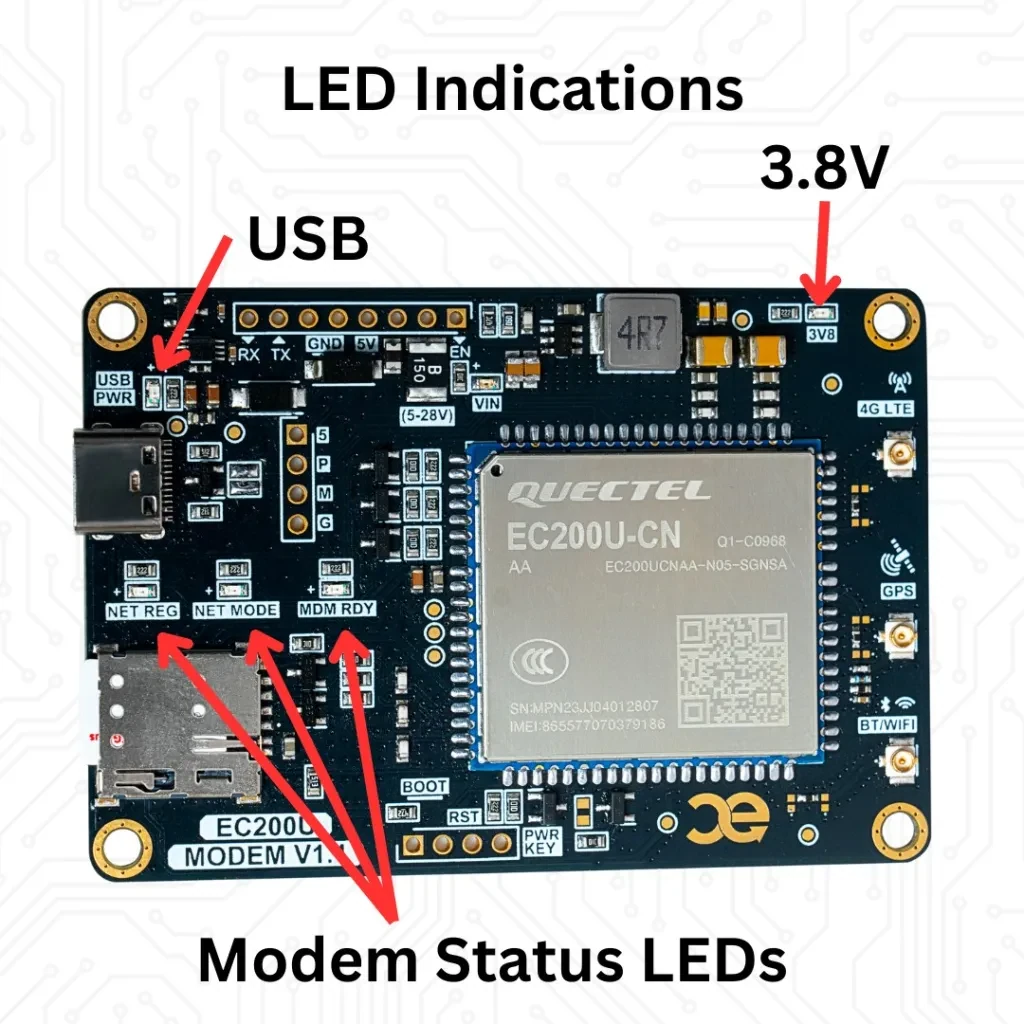

  • Status LEDs report USB power, supply voltage, modem-ready state and network registration.

  • Board measures 73 x 50mm, with a solid ground-plane layer for RF performance.

Specifications

  • Modem: Quectel EC200U (4G, 2G fallback)

  • Positioning: Integrated GNSS receiver

  • Interfaces: UART, USB-C, 4-pin USB header

  • Power input: 5V or 5-28V DC

  • Board size: 73 x 50mm
