BT 2.0 Connectors (Male/Female Set)

Upgrade your 1S tiny whoop with the BT2.0 connector, the established standard for high-performance micro drones. Designed to replace the electrical bottleneck of traditional PH2.0 plugs, the BT2.0 standard significantly reduces internal resistance to deliver sustained voltage, minimise sag, and provide longer flight times on modern 1S brushless builds.

Key features

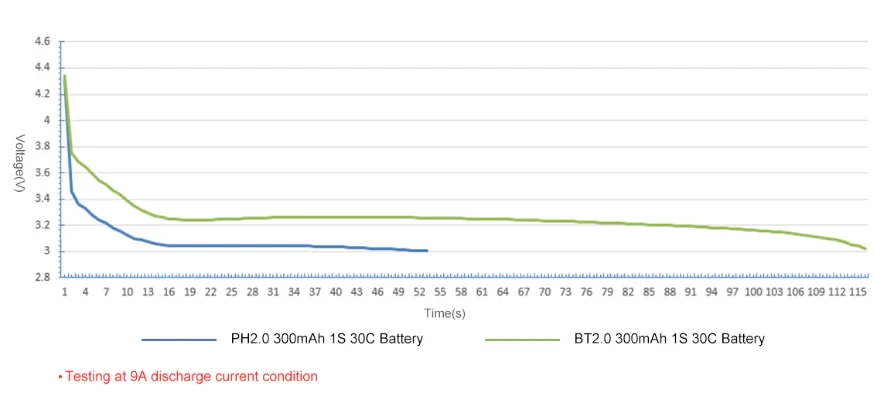

• Replaces high-resistance PH2.0 connectors to prevent voltage sag during heavy punch-outs.

• Features 1.0mm solid banana pins that provide a much larger contact area for efficient power transfer.

• Built to safely handle the amp draw of high-discharge 1S LiHV batteries without overheating.

• Available in separate male and female options for building custom flight controller pigtails or converting existing battery stock.

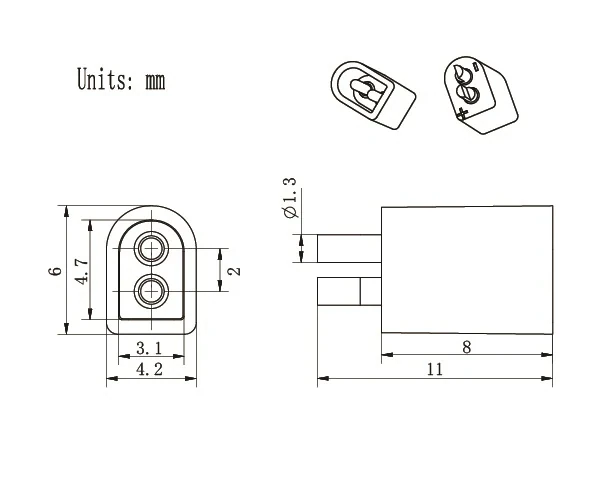

Specifications

• Connector standard: BT2.0

• Pin diameter: 1.0mm

• Continuous current: 9A

• Burst current: 15A

• Contact plating: Gold

Choose the male connector for your drone's flight controller power pigtail, and the female connector when upgrading the leads on your 1S batteries.
