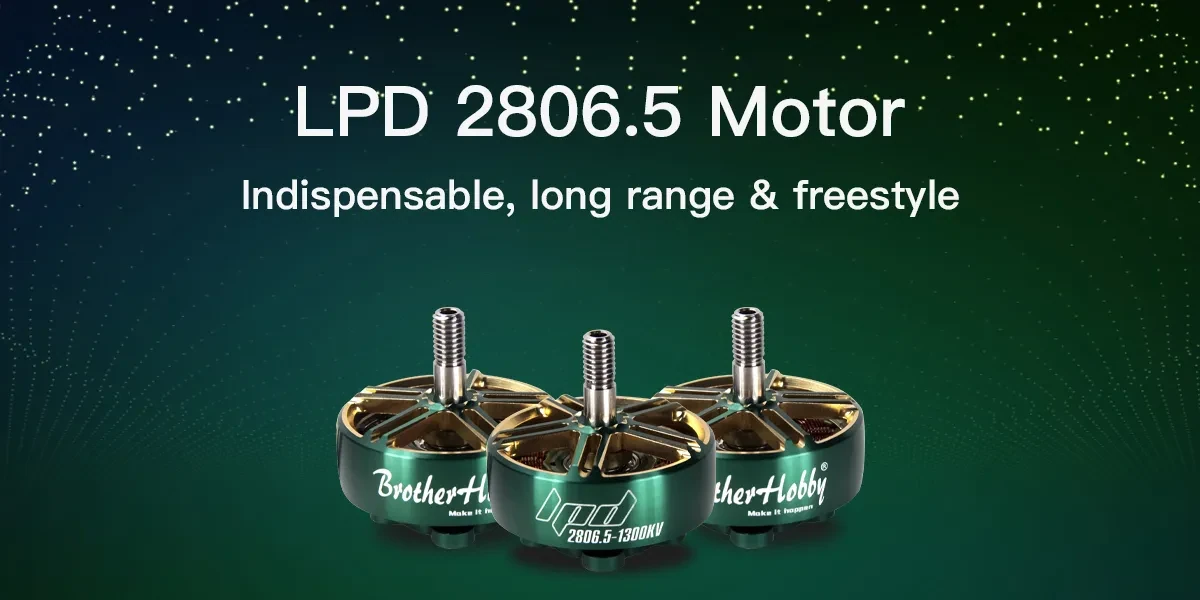

BrotherHobby LPD 2806.5 1300KV Motor

The BrotherHobby LPD 2806.5 1300KV motor is engineered specifically for 7-inch to 8-inch long-range cruisers, cinematic platforms, and heavy-lift FPV rigs running on 6S LiPo power. Featuring a wide 2806.5 stator, this motor produces immense low-end torque to smoothly spin aggressive 7-inch propellers or carry large payloads without voltage sag or excessive heat build-up.

Key features

• Optimised 6S Long-Range Powerplant: The 1300KV winding paired with a 2806.5 stator delivers exceptional efficiency and cruise endurance on 6S setups using 7-inch to 8-inch propellers.

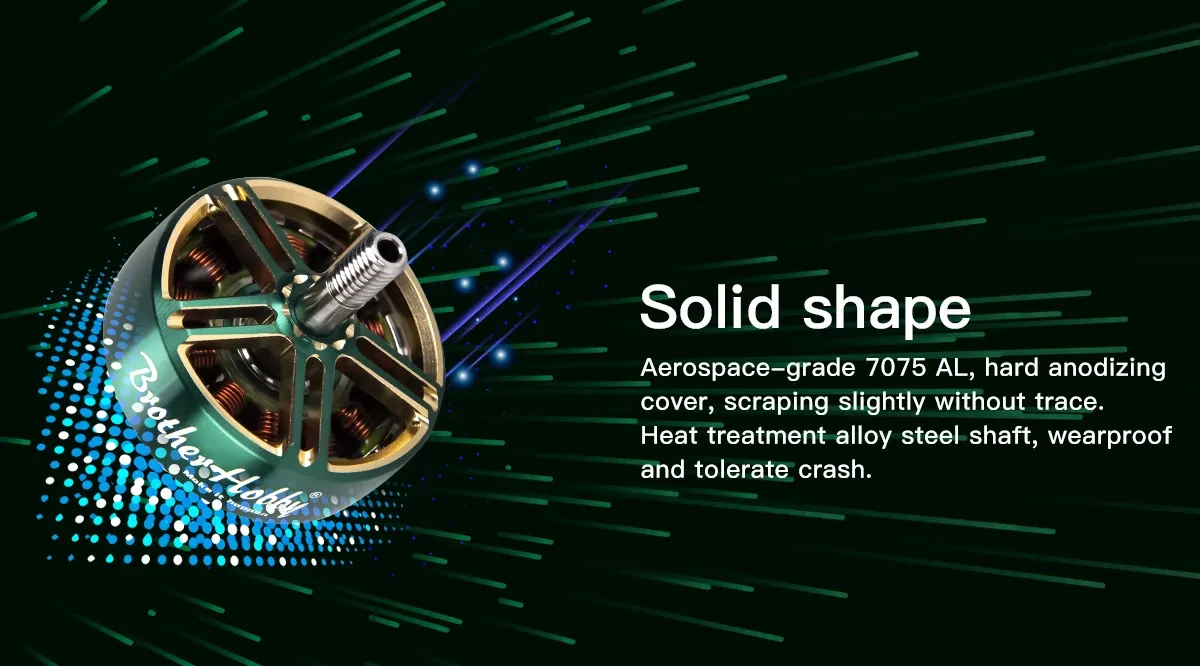

• High-Durability Construction: Built with high-strength 7075 aluminium end bells and a precision hollow titanium alloy shaft for maximum impact resistance.

• Thermal & Magnetic Efficiency: Uses N52H arc magnets and high-temperature NSO Japanese Kawasaki silicon steel laminations for consistent torque output during extended flights.

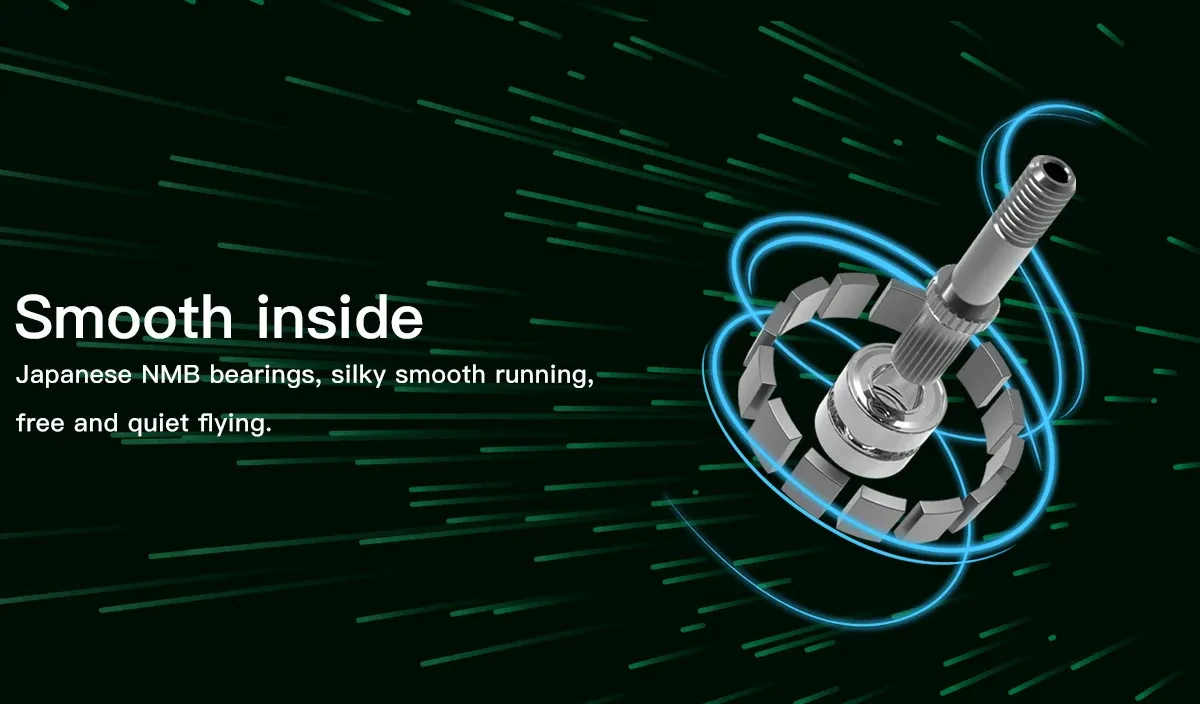

• Smoother Operation: Equipped with Japanese NMB bearings that minimise high-frequency vibrations directly at the source, ensuring cleaner gyro data for flight controllers and HD footage.

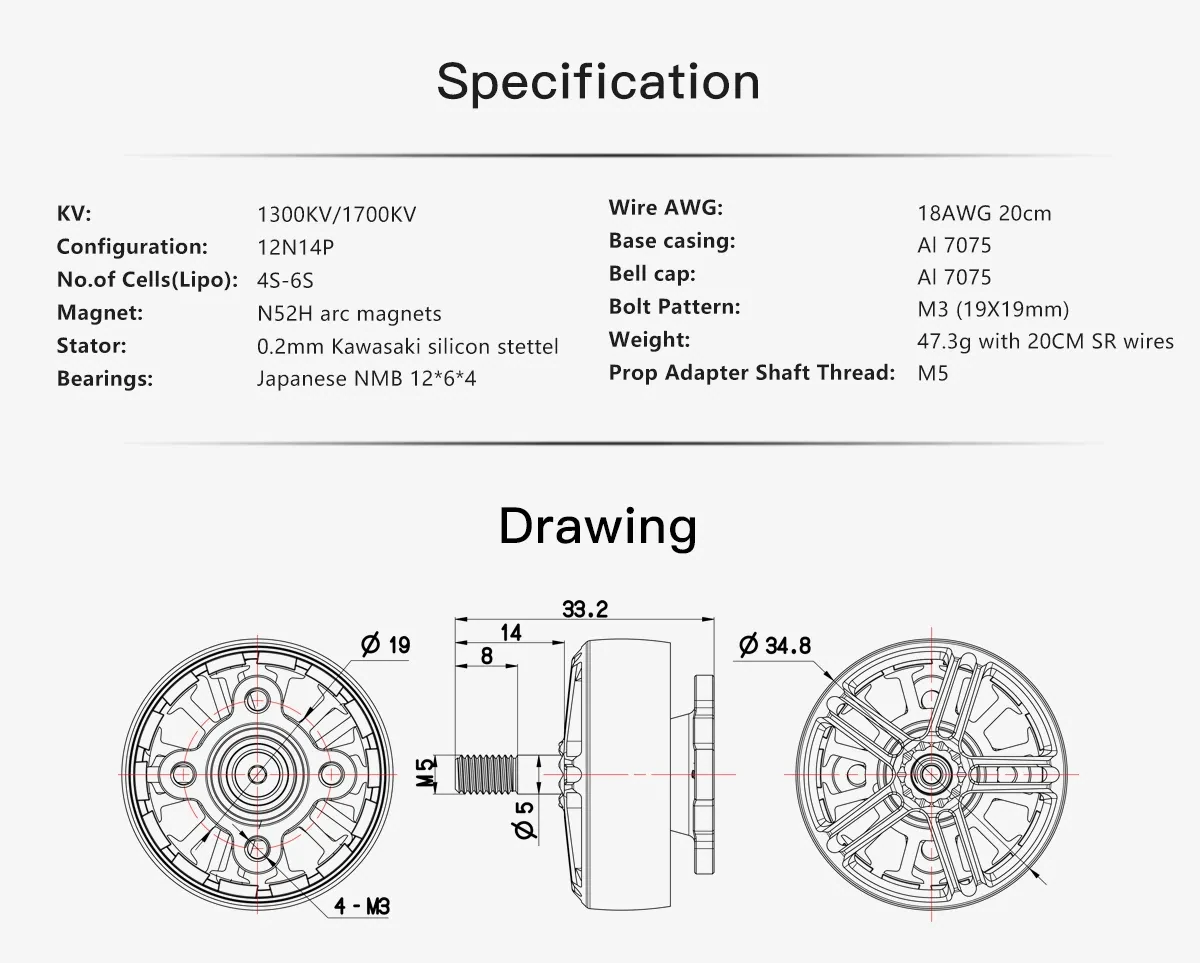

Specifications

• KV: 1300 KV

• Configuration: 12N14P

• Stator Size: 2806.5

• Shaft Material: Hollow Titanium Alloy

• Propeller Shaft Diameter: M5

• Base Mounting Pattern: 19x19 mm (M3)

• Supported Voltage: 4-6S LiPo

• Bearings: Japanese NMB 12x6x4 mm

• Magnets: N52H Arc

• Motor Wire: 18AWG, 200 mm

• Internal Resistance: 55.6 mΩ

• Weight: 47.5 g (including silicone wire)

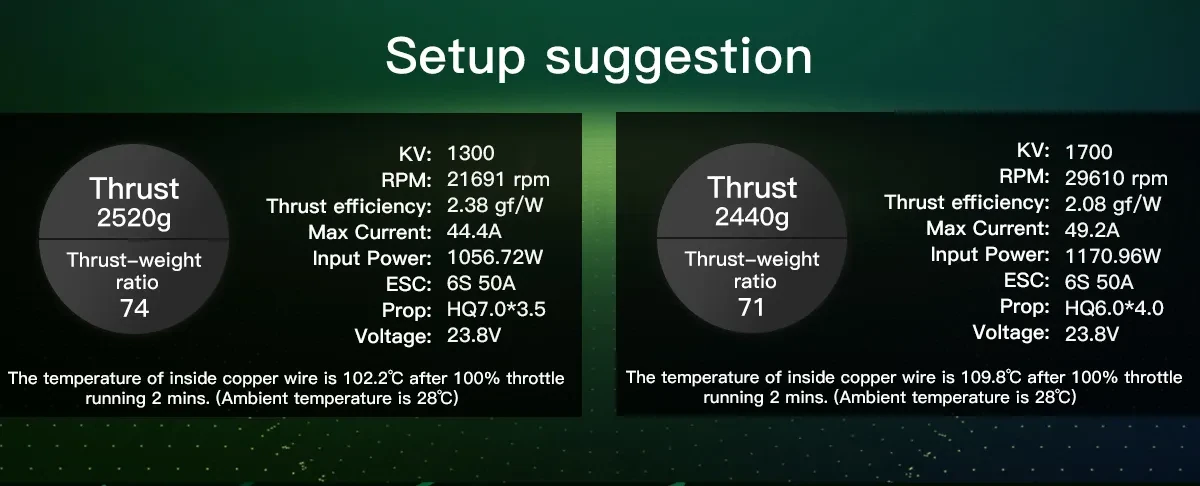

Use standard 16 AWG or thicker motor wiring directly to a 50A+ 6S-capable ESC. For 7-inch builds, pairing with bi-blade or low-pitch tri-blade props yields optimal flight times, while heavier cinelifters benefit from higher-pitch 7-inch propellers.
