HGLRC Specter 2806.5 1350KV Brushless Motor

The HGLRC Specter 2806.5 1350KV is a high-torque brushless motor built for 7-inch long-range cruisers and heavy X8 cinelifter builds. Its oversized 28mm-wide stator and 12N14P winding deliver the low-end torque needed to swing large propellers smoothly across 4S to 6S power systems, from efficient long-range cruising through to heavier payload lifting.

Key features

• N52H curved magnets and a Kawasaki silicon steel stator improve magnetic efficiency and reduce heat build-up under sustained load.
• 200°C heat-resistant copper winding and a 7075 aluminium one-piece rotor support long cruising sessions without performance loss.
• Alloy steel output shaft keeps weight down while resisting bending on hard cinelifter landings.
• Rated for up to 40A continuous current (5s) and 960W maximum power, matched to a 45A+ ESC.

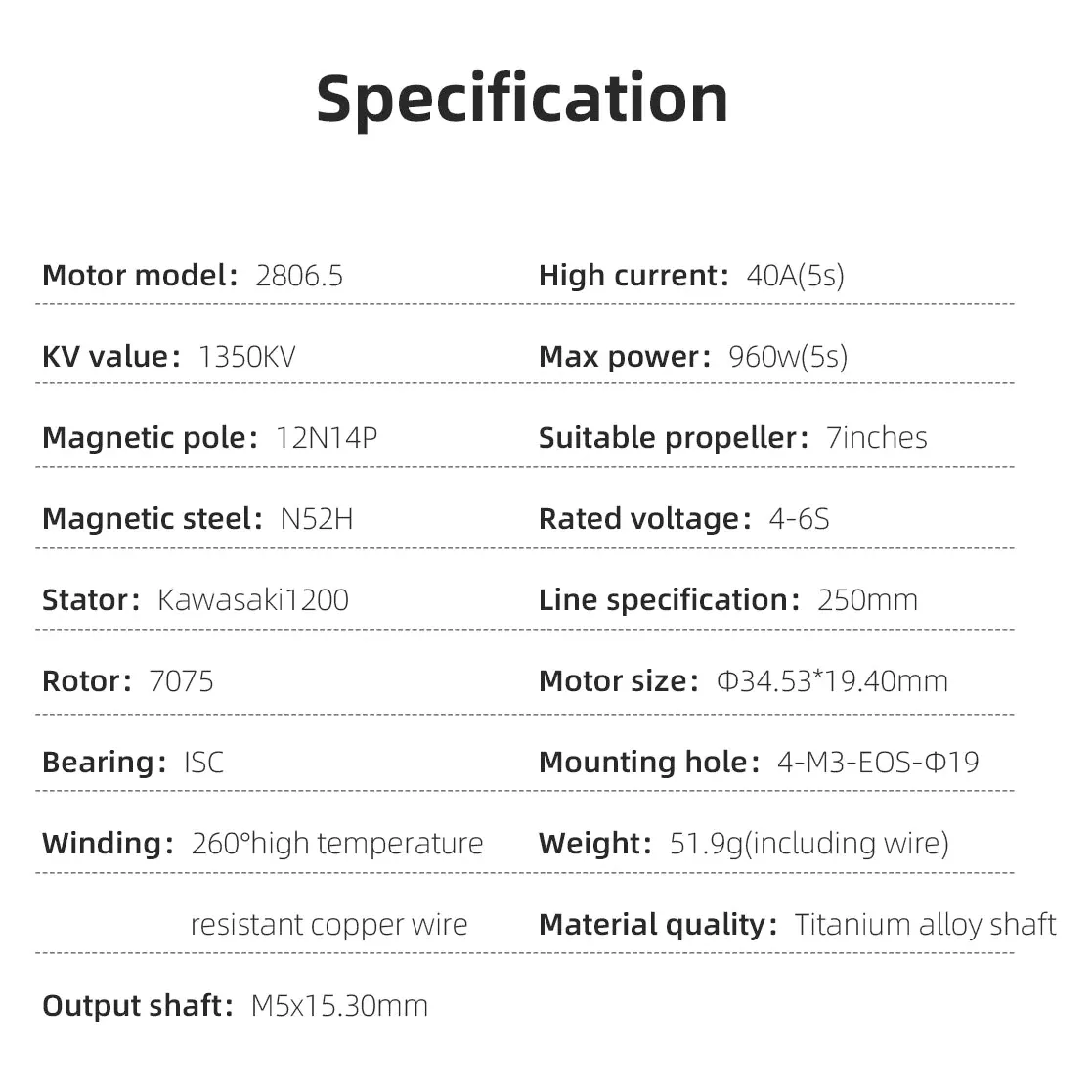

Specifications

• Stator size: 2806.5
• KV: 1350
• Configuration: 12N14P
• Input voltage: 4-6S LiPo (14.8-25.2V)
• Maximum current: 40A (5 seconds)
• Maximum power: 960W

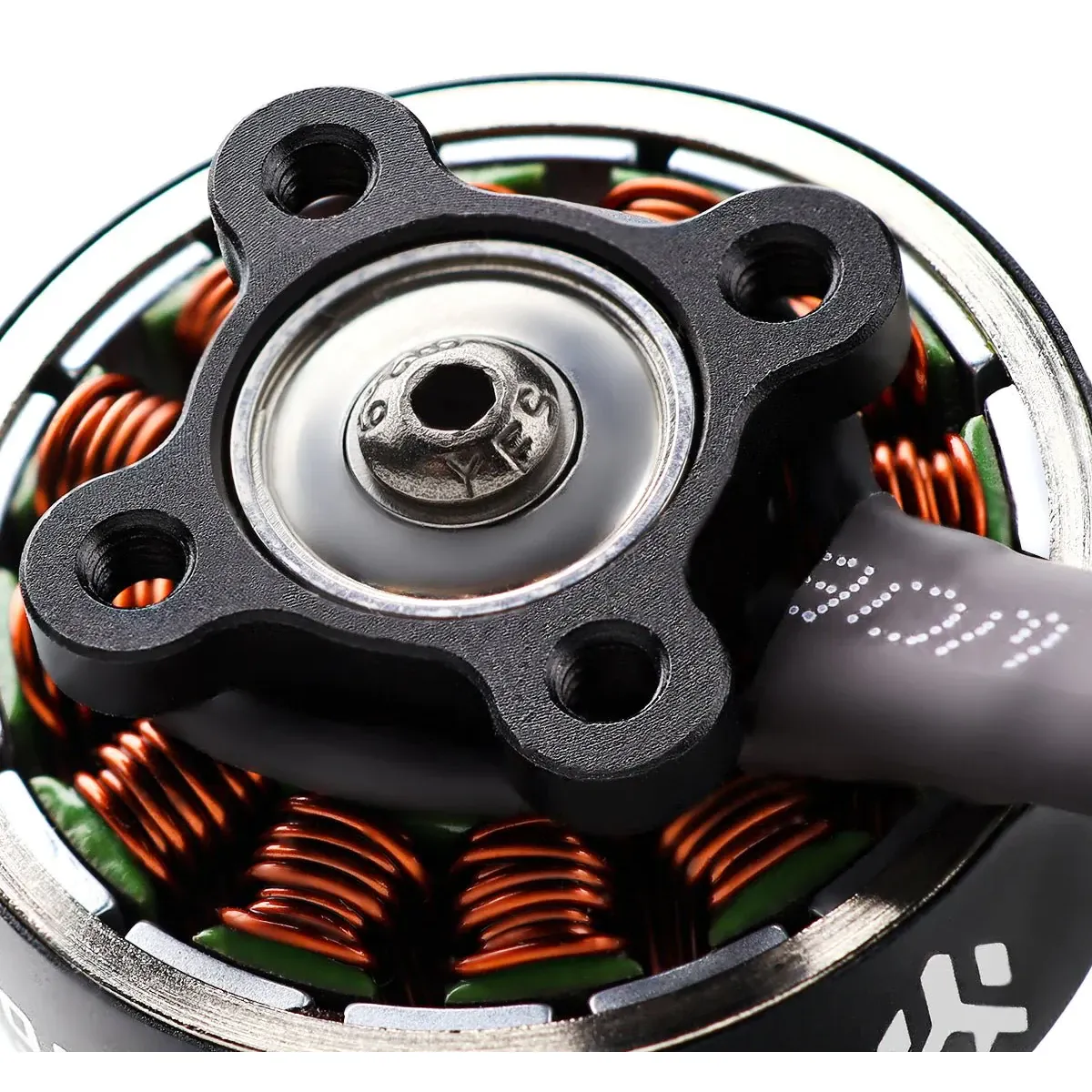

• Mounting pattern: 19x19mm, M3

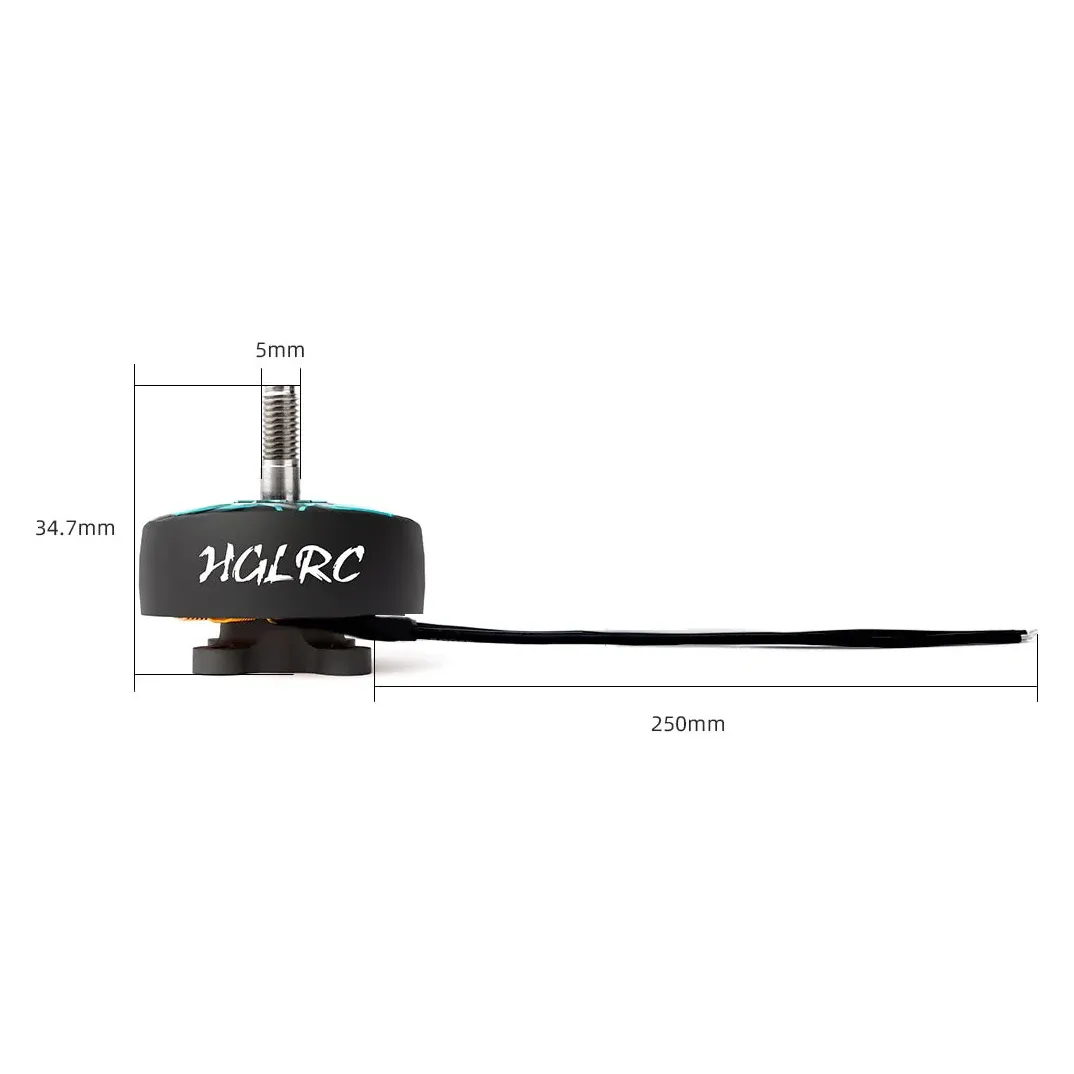

• Dimensions: 34.53 x 19.4 mm
• Weight: 51.9 g (including wire)

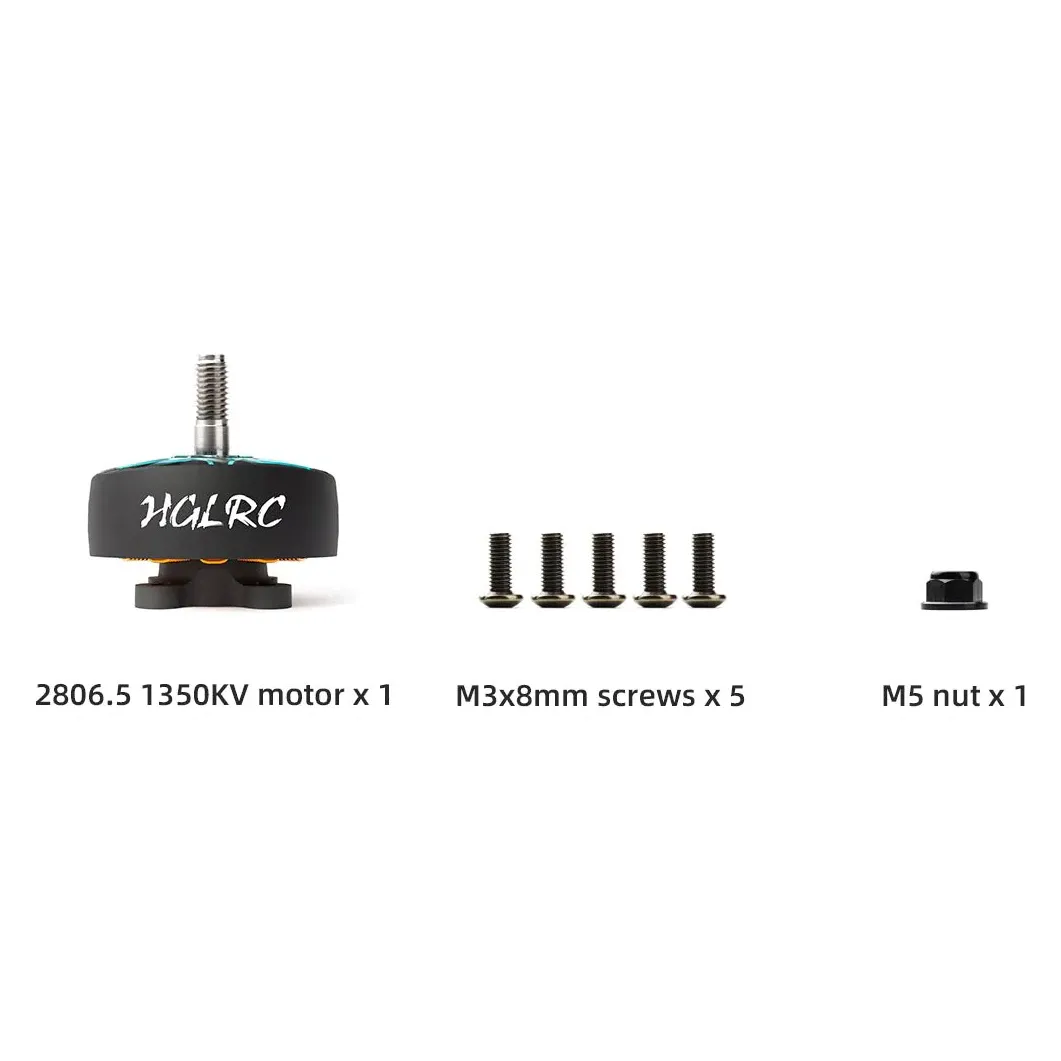

• In the box: 1 x motor, 5 x M3 x 8 mm screws, 1 x M5 nut

Run this motor with 6-7 inch bi-blade or tri-blade propellers on a 6S LiPo for the best balance of cruise efficiency and throttle authority on long-range and cinelifter frames.
