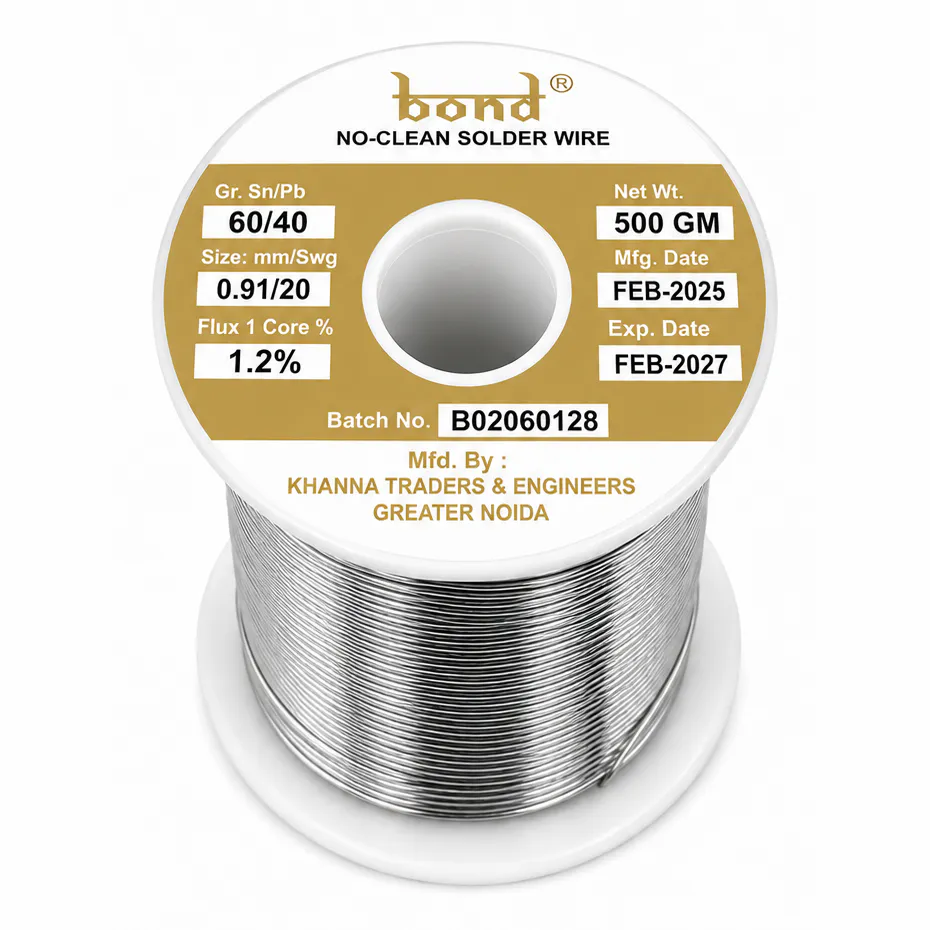

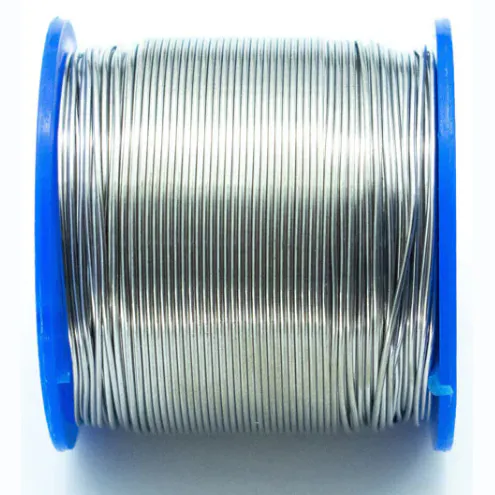

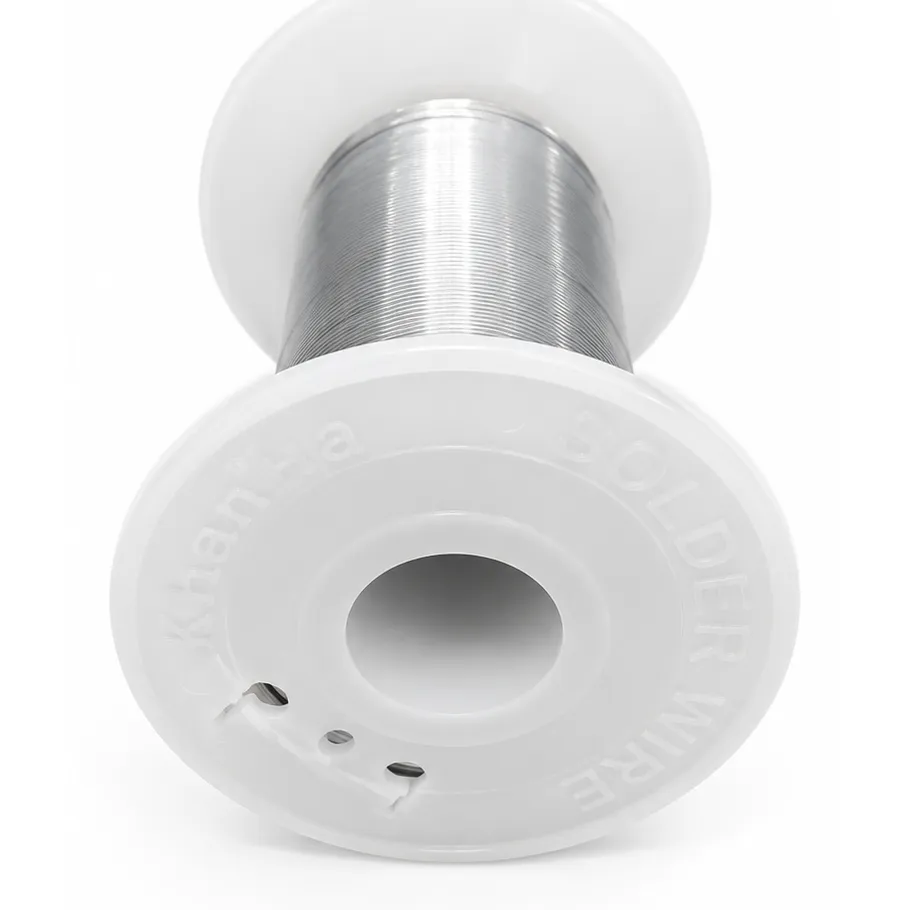

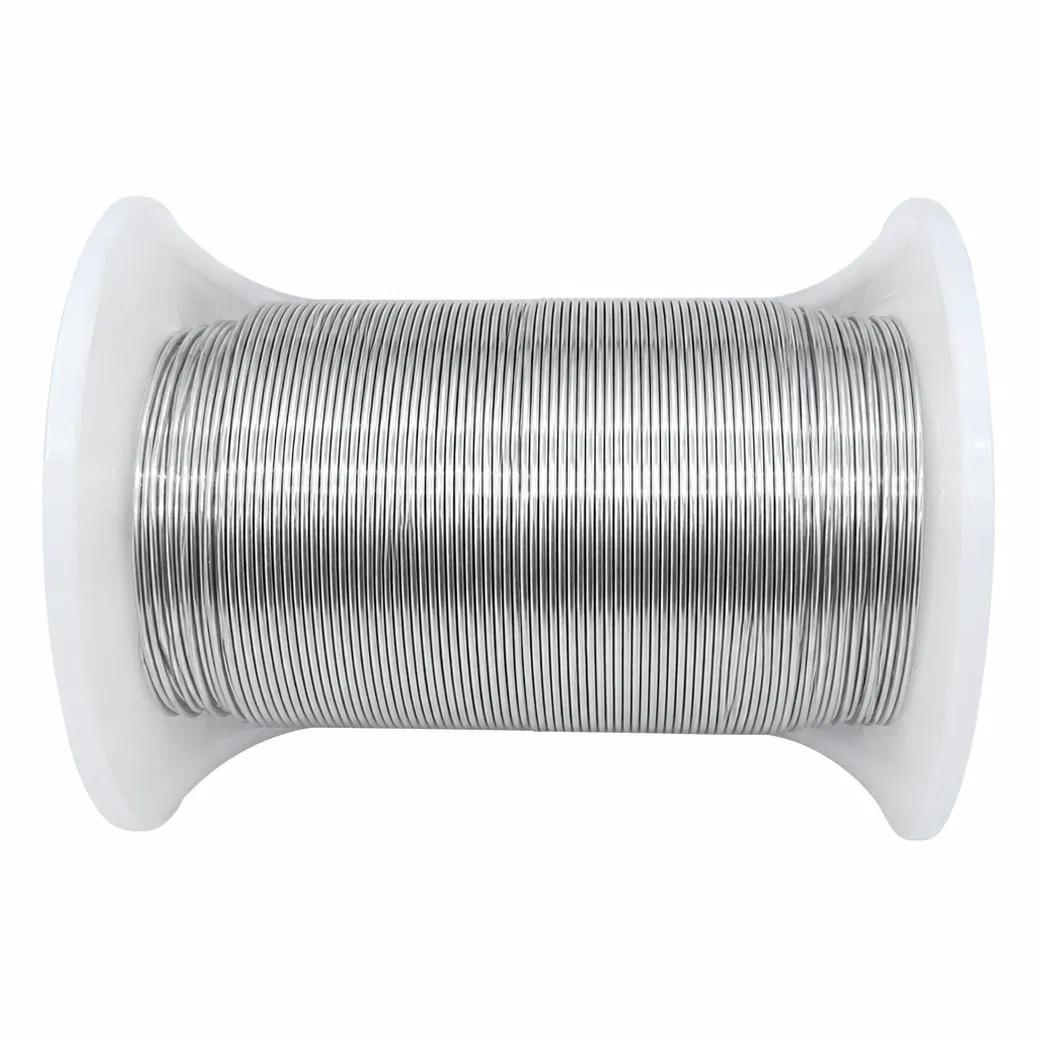

BOND Solder Wire 60/40 (500g)

BOND 60/40 solder wire provides the fast wetting and strong electrical connections required for demanding FPV drone builds. Supplied on a heavy-duty 500g spool, this traditional tin-lead alloy is a staple for the workbench, capable of handling everything from delicate flight controller UART pads to heavy-gauge ESC power leads.

Key features

• 60/40 Tin-Lead (Sn/Pb) composition for smooth flow and reduced risk of cold joints.
• Integrated rosin flux core cleans pads during application, ensuring shiny and secure connections without the need for external flux on simple joins.
• Sub-190°C melting point minimises the time your soldering iron spends heating sensitive PCB components.
• Large 500-gram spool yields a long-lasting supply for frequent builders, repairs and fleet maintenance.

Specifications

• Alloy: 60% Tin (Sn), 40% Lead (Pb)
• Wire diameter: 0.91 mm (20 SWG)
• Weight: 500g
• Flux type: Rosin core

For large joints like XT60 battery leads and heavy stator wires, pair this solder with a broad iron tip running at 350-400°C to ensure adequate thermal mass and proper flow.
