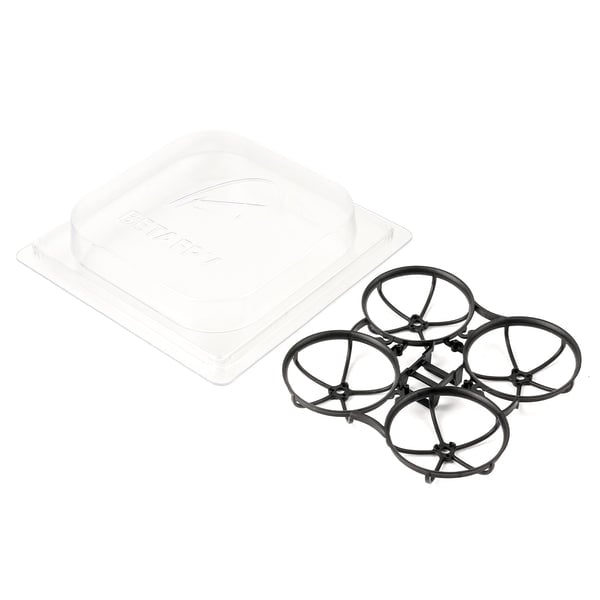

BetaFPV Meteor75 Pro II Brushless Whoop Frame

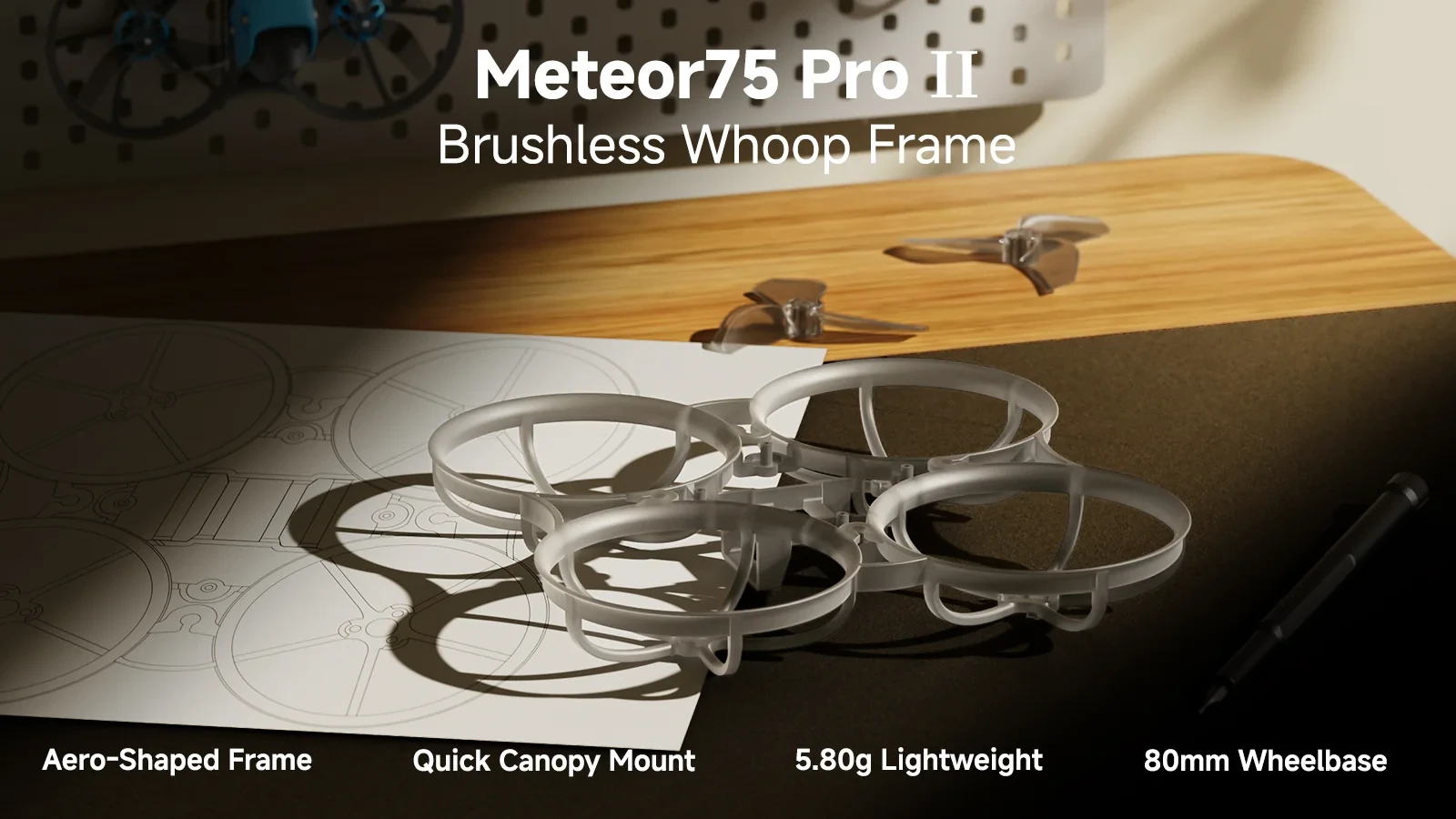

BetaFPV's second-generation Meteor75 Pro whoop frame for 1S brushless builds on 1102 motors and 45 mm props. A lighter, more aerodynamic duct brings it to 5.8 g, nearly 2 g less than the previous version. It is available in transparent grey, black, white, blue and purple.

Key features

• Five arm braces instead of six, plus curved ducts, cut weight and drag

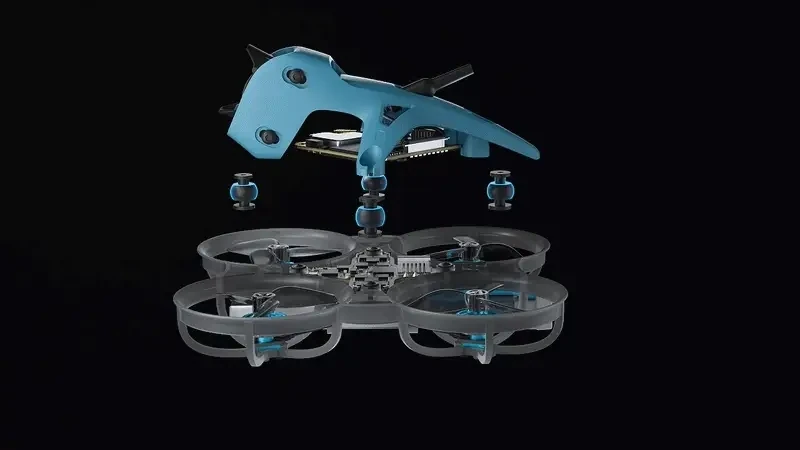

• Four shock-absorbing FC mounting holes help keep jello out of the footage

• Screw protection structure around the fasteners

• Battery slot sized for LAVA II 1S 480, 580 and 680 mAh packs

• Takes Canopy II for the DJI O4 Air Unit, as well as the Air II and Micro canopies

Specifications

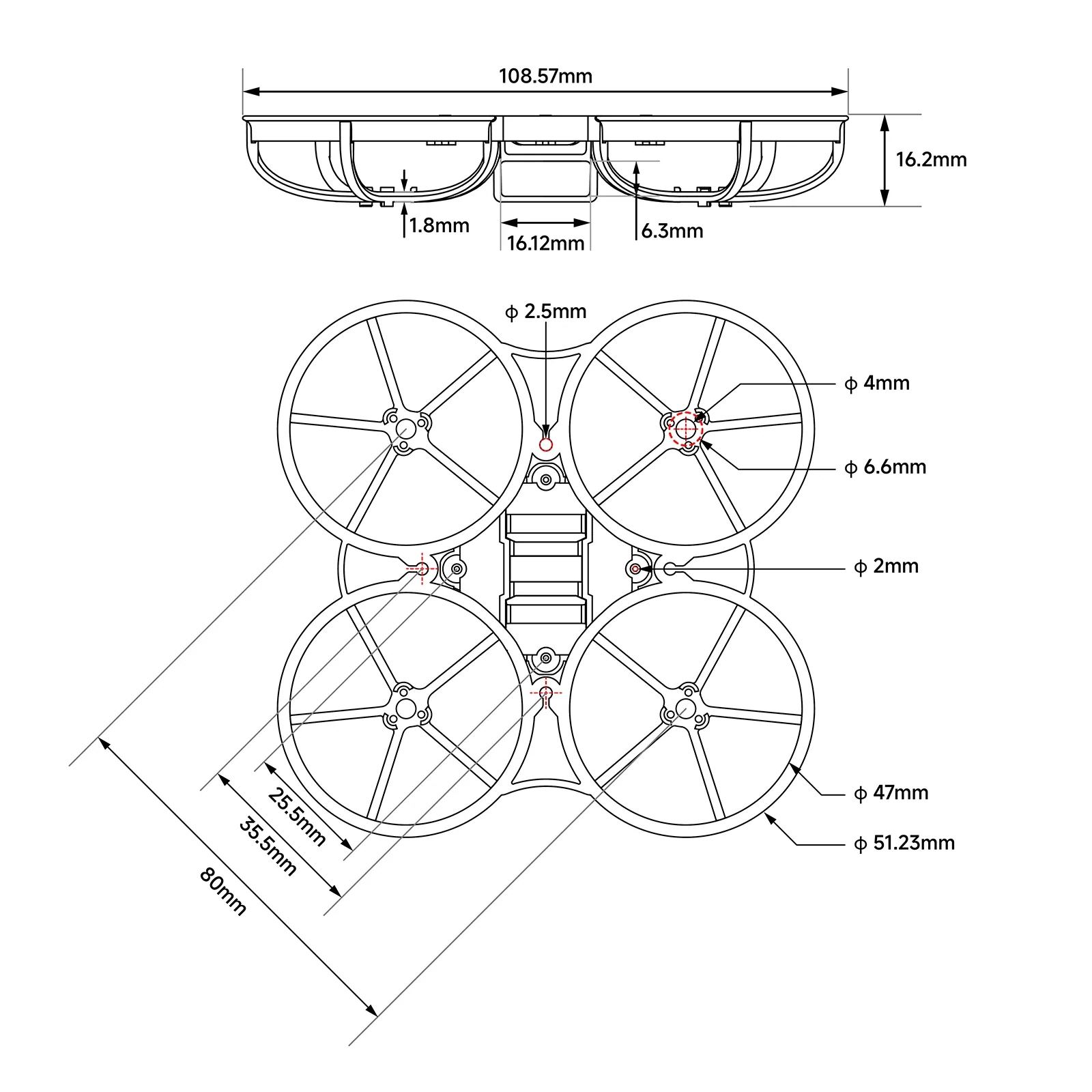

• Wheelbase: 80 mm

• Prop size: 45 mm

• Motor mount: 3 × M1.4 holes on a 6.6 mm circle, for 1102 motors

• FC mounting: 26 × 26 mm

• Compatible FCs: BetaFPV Matrix 1S (3IN1/4IN1, 5IN1, 5IN1 II)

• Battery slot: 16.1 × 6.3 mm

• Overall size: 108.5 × 108.5 × 16.2 mm

• Material: PP (polypropylene)

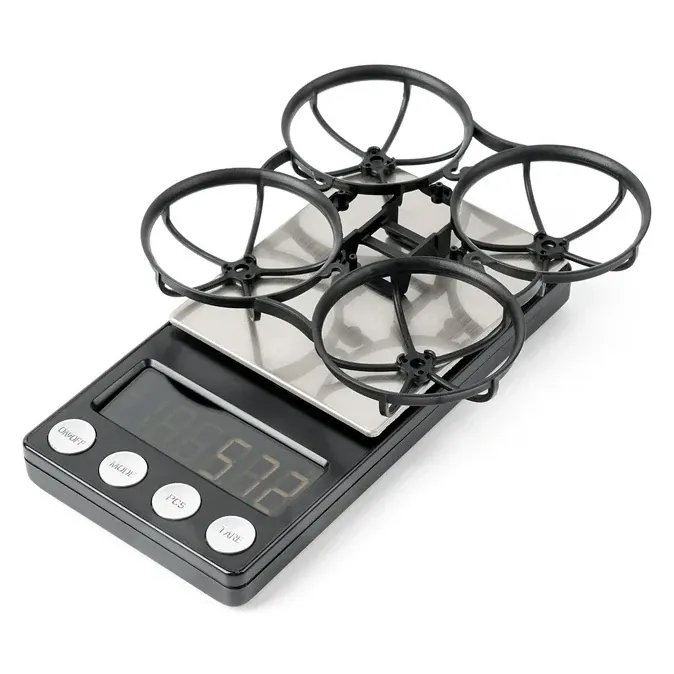

• Weight: 5.8 g

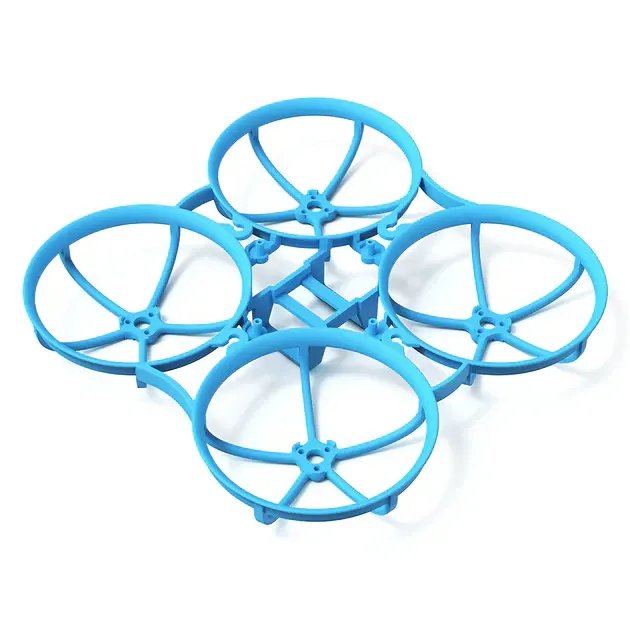

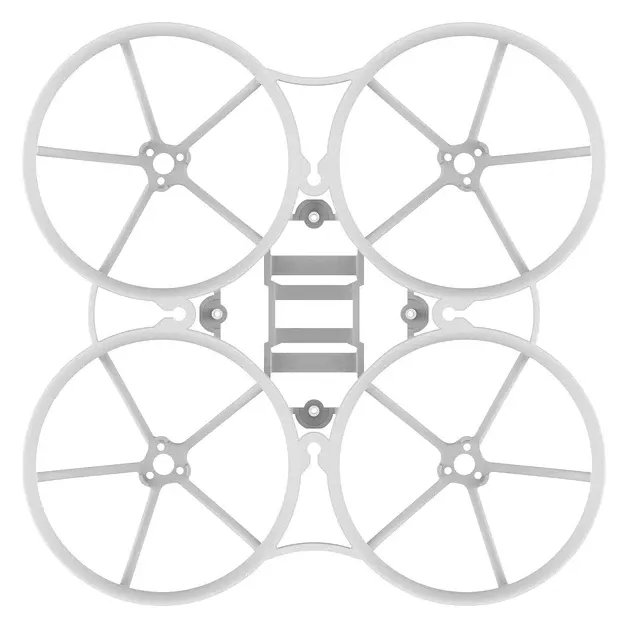

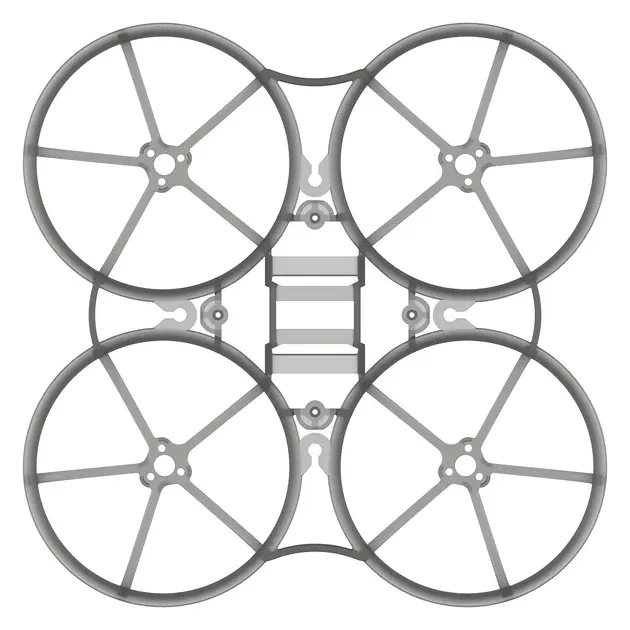

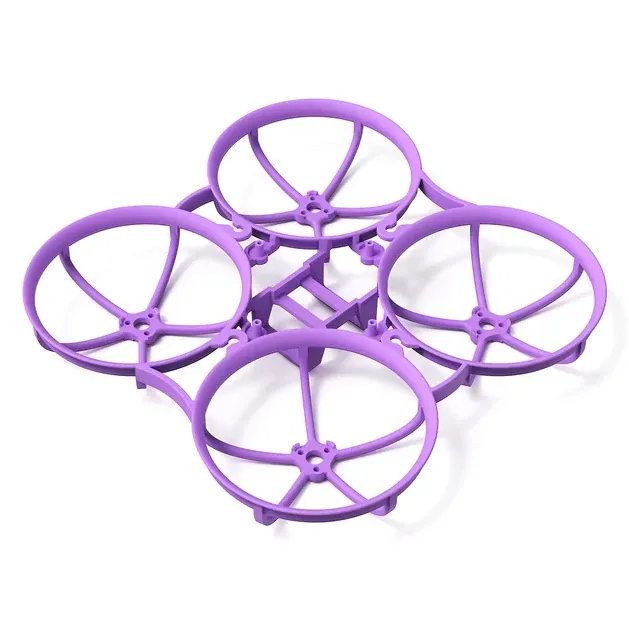

• Colours: transparent grey, black, white, blue, purple

Pair it with a 26 × 26 mm whoop board such as a Matrix 1S, four 1102 motors and 45 mm props for a complete 1S brushless whoop, and pick the canopy that matches your camera or digital air unit.
