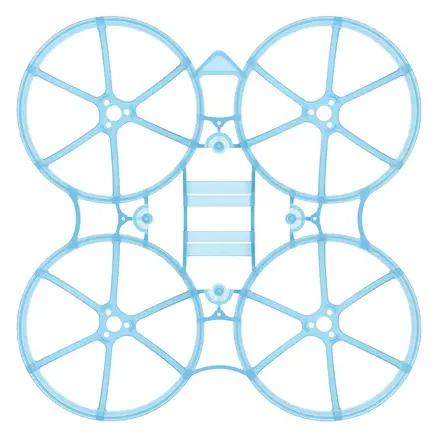

Air75 Brushless Whoop Frame

The BetaFPV Air75 brushless whoop frame is an ultra-lightweight 75mm micro frame engineered for agile 1S indoor racing and freestyle builds. Moulded from impact-resistant modified polypropylene (PP), it provides structural resilience during wall strikes and crashes while keeping dry frame weight down to just 4.48g.

Key features

• Weighs only 4.48g, providing a low-inertia foundation for sub-25g 1S micro whoop builds
• Ducted hoop design sized specifically for 40mm propellers to maximise thrust efficiency
• Standard 26x26mm whoop flight controller mounting pattern compatible with modern 1S AIO boards
• Supports 3-hole micro brushless motors including 0802SE, 0802, and 1102 stator sizes
• Moulded battery tray holds standard and folded stick-style 1S LiPo/LiHV packs securely without heavy straps

Specifications

• Wheelbase: 75 mm
• Weight: 4.48 g
• Material: Modified PP (Polypropylene)
• Supported Propeller Size: 40 mm
• FC Mounting Pattern: 26x26 mm
• Motor Mounting: 3-hole micro brushless (0802SE / 0802 / 1102)

Ideal as a direct replacement frame for the BetaFPV Air75 BNF or for scratch-building a high-performance 75mm 1S whoop with 40mm propellers.
