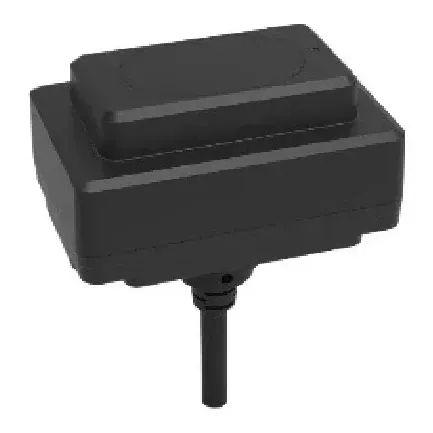

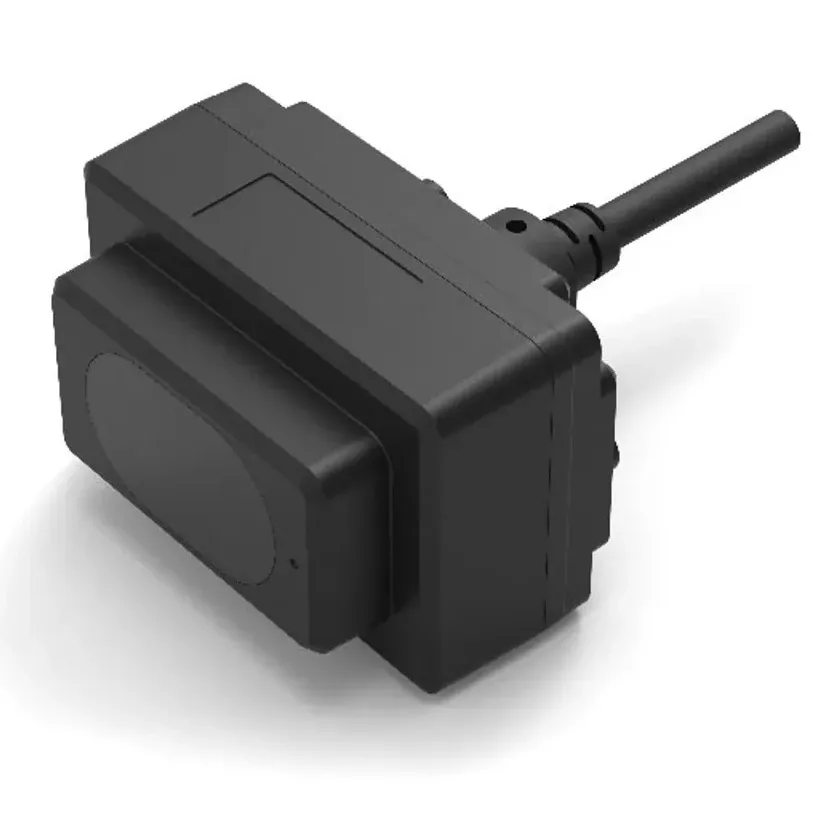

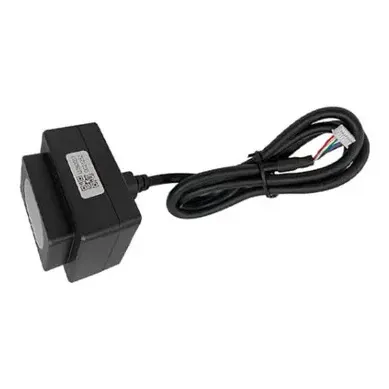

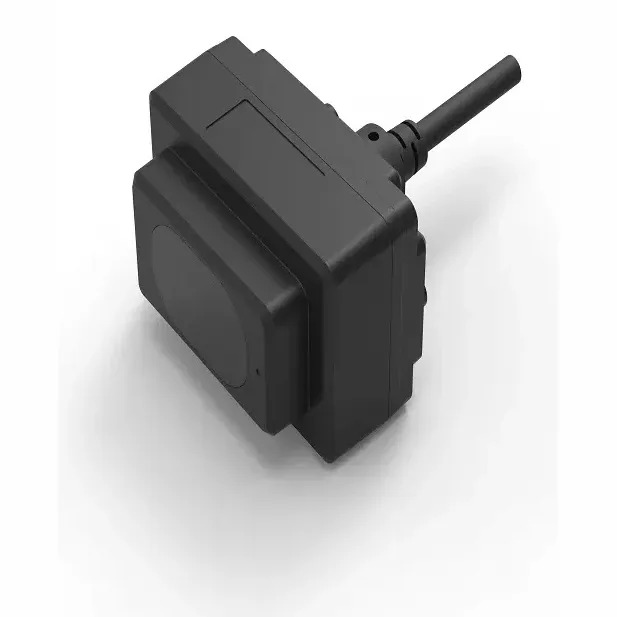

Benewake TFmini-i-CAN 12m LiDAR Distance Sensor (IP65)

The Benewake TFmini-i-CAN is an industrial single-point LiDAR rangefinder with a CAN bus interface, developed from the TFmini-S with a wider supply range and reverse-polarity protection. On UAVs it handles altitude measurement and obstacle sensing; it is also used for pedestrian detection, vehicle testing and level sensing.

Key features

• Measures 0.1–12 m with 1% accuracy
• Adjustable frame rate from 1 to 1000 Hz
• 7–30 V wide-input supply with reverse-polarity protection
• IP65 sealed housing and 70 klux ambient-light immunity for outdoor work in sun, fog and dust
• Low draw: 0.8 W or less at 12 V, about 65 mA average
• Narrow 2° field of view for a tight measurement spot

Specifications

• Range: 0.1–12 m
• Accuracy: 1%
• Frame rate: 1–1000 Hz
• Field of view: 2°
• Interface: CAN
• Supply voltage: 7–30 V
• Power consumption: ≤0.8 W @ 12 V
• Peak current: 100 mA
• Protection: IP65
• Dimensions: 50 × 34 × 41 mm
• Weight: 52 g

This is the CAN version — the TFmini-i also comes with RS-485 — so confirm your autopilot or controller has a CAN port and a driver for Benewake CAN sensors before ordering.
