Holybro ST VL53L1X 4m ToF LiDAR Distance Sensor

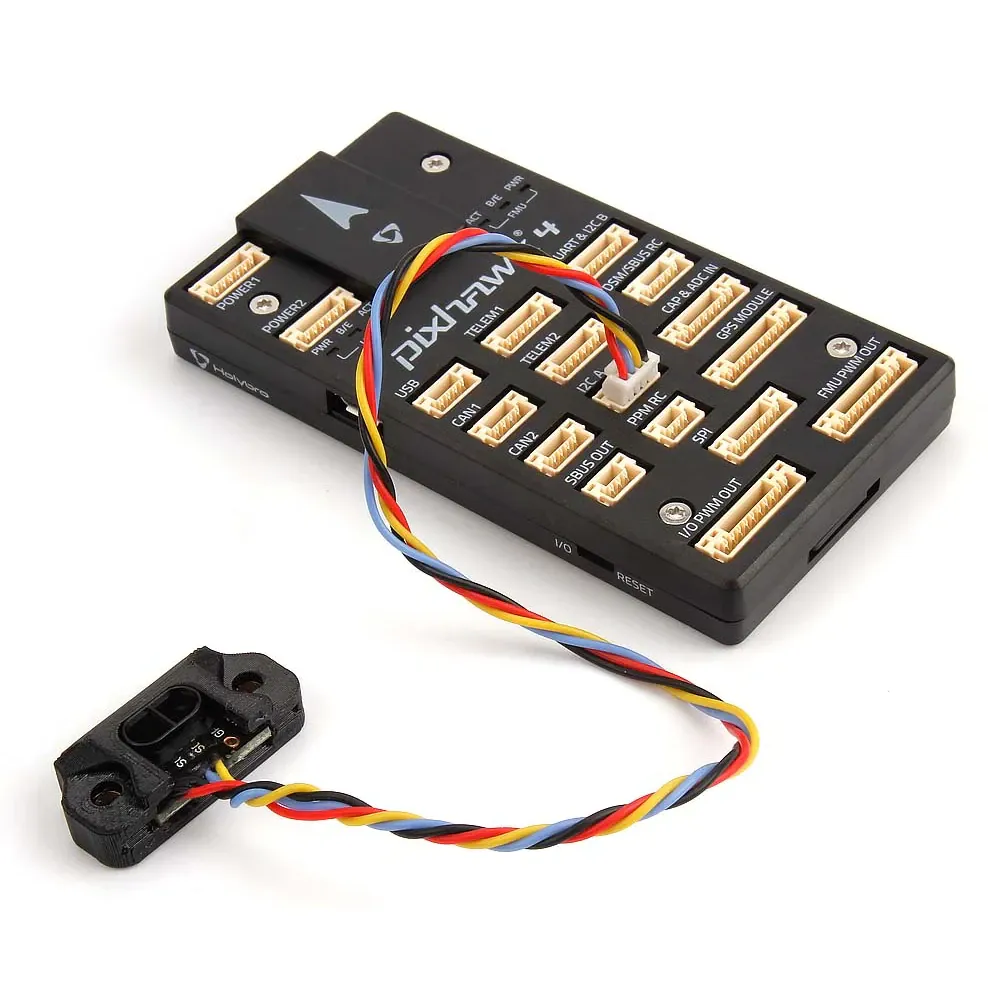

A small time-of-flight rangefinder from Holybro built around ST's VL53L1X sensor, for low-altitude height measurement, landing and obstacle sensing on drones and robots. It measures up to 4 m at up to 50 Hz and talks I2C, and its GH 4-pin lead suits the I2C port on Pixhawk-style flight controllers.

Key features

• 940 nm Class 1 laser emitter with a SPAD receiving array and integrated lens
• Typical 27° field of view, with a programmable region of interest to narrow it or select a zone
• Runs from 3.3–5 V and communicates over I2C at up to 400 kHz
• Pin-to-pin compatible with the earlier VL53L0X

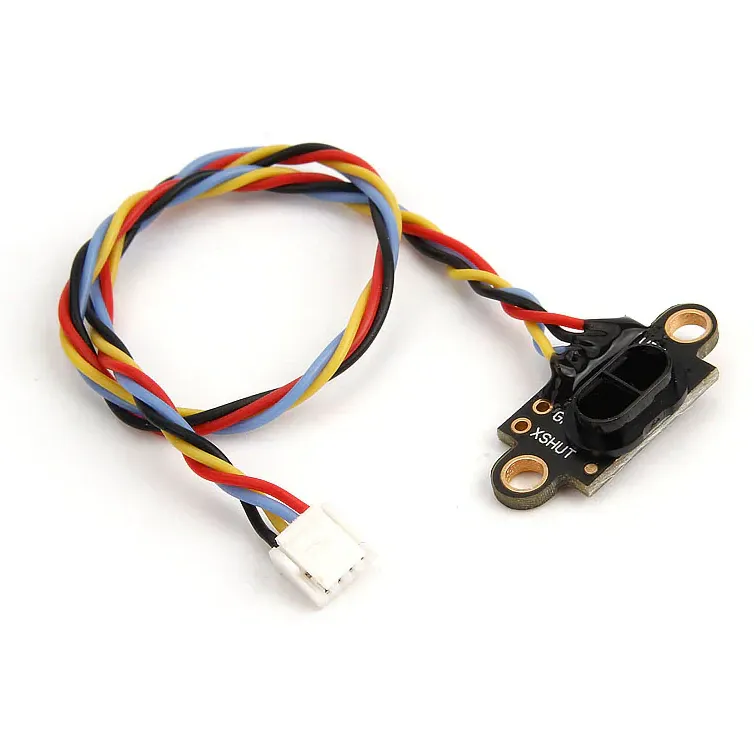

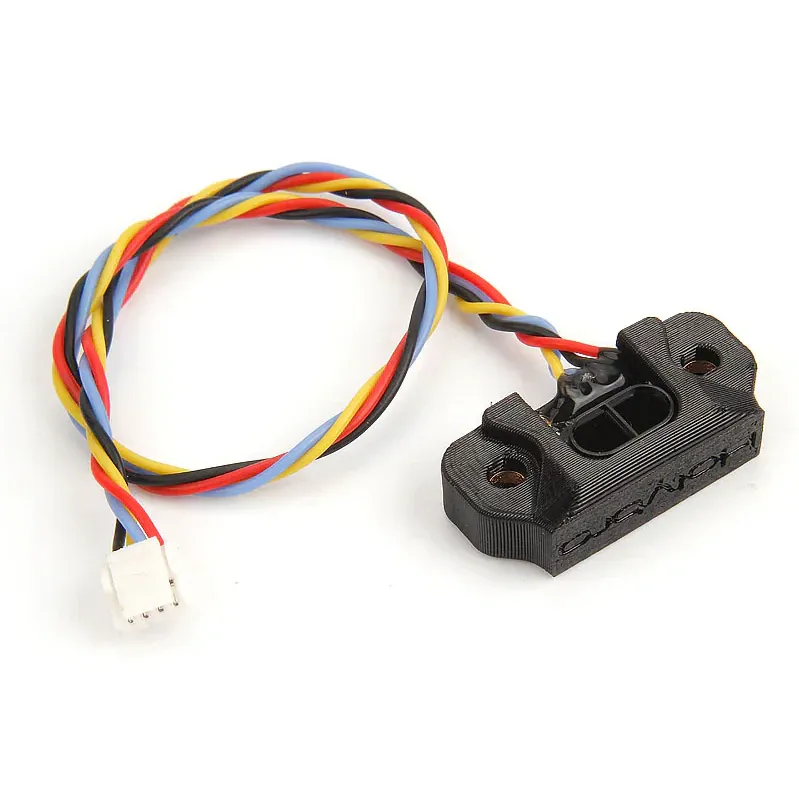

• Comes with a 200 mm GH 4-pin cable fitted and a TPU protective case

Specifications

• Sensor: ST VL53L1X time-of-flight
• Range: up to 4 m
• Ranging frequency: up to 50 Hz
• Field of view: 27° typical
• Emitter: 940 nm, Class 1 laser
• Operating voltage: 3.3–5 V
• Interface: I2C, up to 400 kHz
• Dimensions: 25 × 10.7 × 3.2 mm
• Weight: 2.4 g

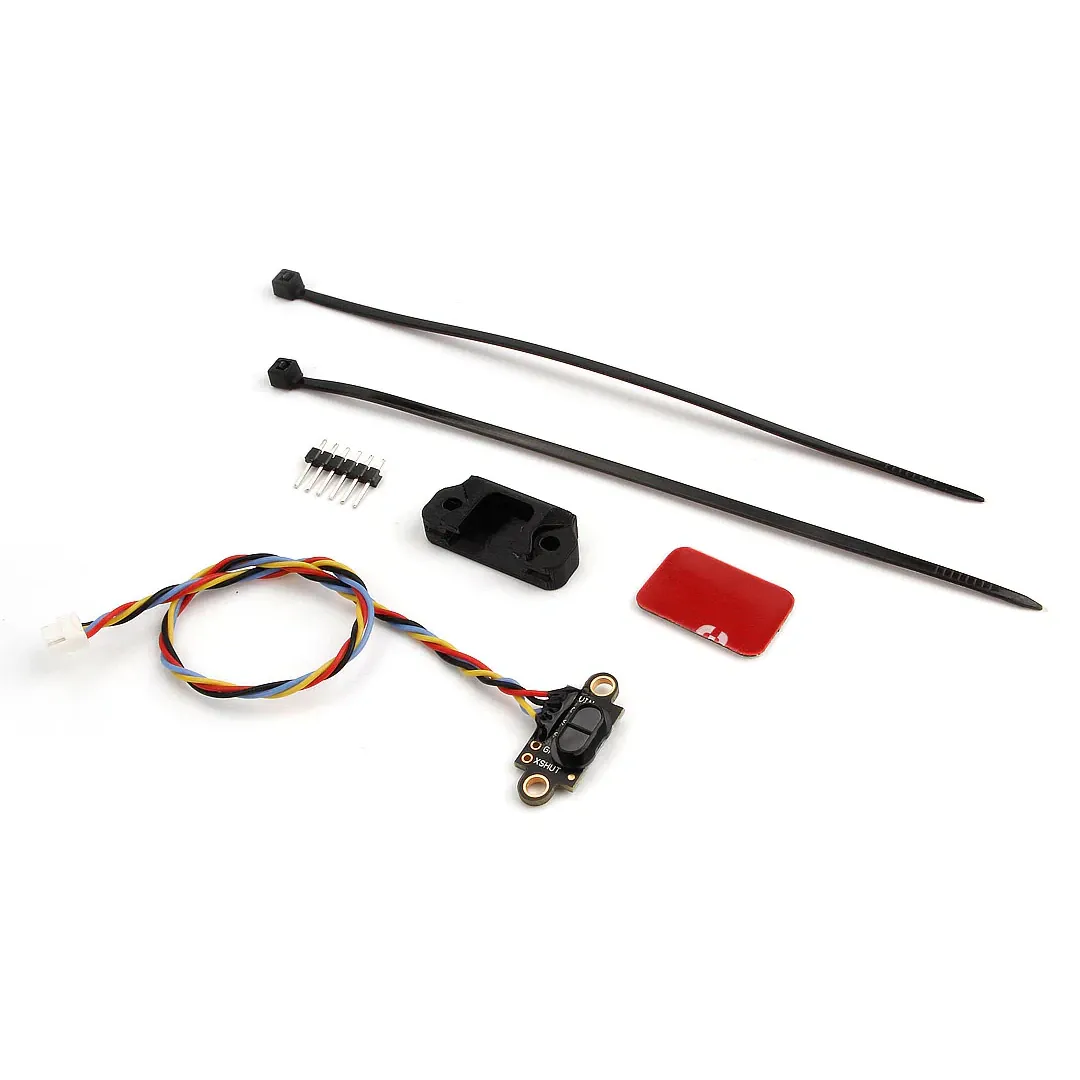

• In the box: VL53L1X board, GH 4-pin 200 mm cable (installed), TPU case

ArduPilot supports the VL53L1X as an I2C rangefinder, set up the same way as the VL53L0X, and PX4 has a driver for it too. Range shortens on dark surfaces and in strong ambient light, so expect less than 4 m outdoors in daylight.
