XH2.54 Balance Lead Connector 2P 3P 4P 5-Pin 2.54mm Pitch Terminal Kit

This JST-XH 2.54mm pitch terminal kit provides the plastic housings and bare crimp pins required for assembling or repairing custom drone wiring. With 2-pin through 5-pin configurations, these connectors are the hobby standard for replacing prop-damaged 2S to 4S LiPo battery balance leads, as well as making secure modular connections for larger peripherals and custom test benches.

Key features

• Includes a selection of 2P, 3P, 4P, and 5P connector housings with matching bare terminal pins.
• Industry-standard 2.54mm pin spacing ensures direct compatibility with all conventional LiPo balance chargers and standard PCB headers.
• Crimp-style connections allow you to trim silicone wire runs to exact lengths for a clean, lightweight build without bulky spliced joints.

Specifications

• Connector series: JST-XH
• Pin pitch: 2.54mm (0.1")
• Current rating: 3A max (when used with 22 AWG wire)
• Voltage rating: 250V AC/DC
• Recommended wire gauge: 22–30 AWG
• Balance lead compatibility: 1S (2P), 2S (3P), 3S (4P), 4S (5P)

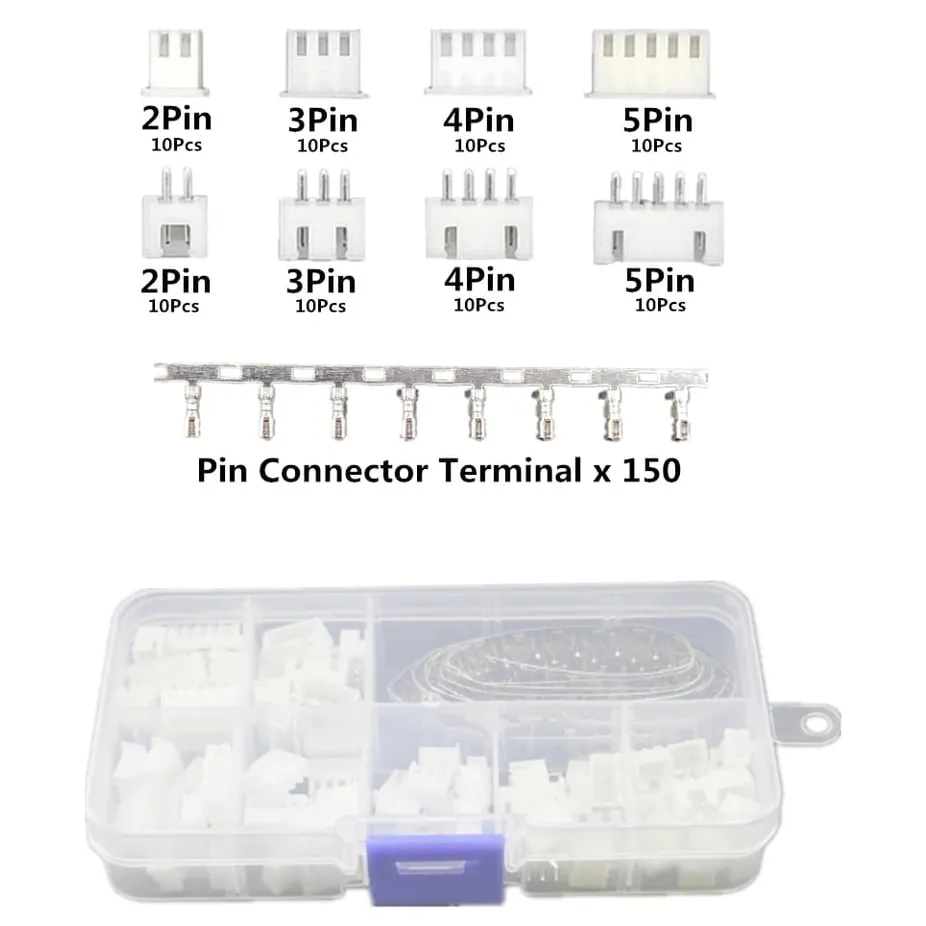

• Contents: 10 housing + pin-header sets each of 2, 3, 4 and 5 pins, plus 150 crimp terminals (230 pieces in total), in a clear storage box

To assemble these connectors, you will need a micro ratcheting crimp tool designed for open-barrel JST terminals. Strip your silicone wire, crimp the metal pins over the core and insulation, and push them into the plastic housing until the retention tabs click into place.
