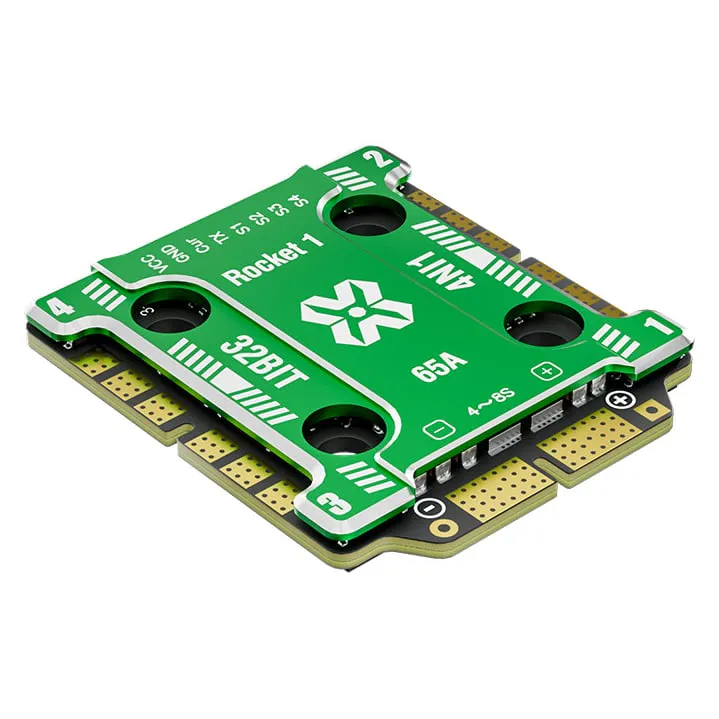

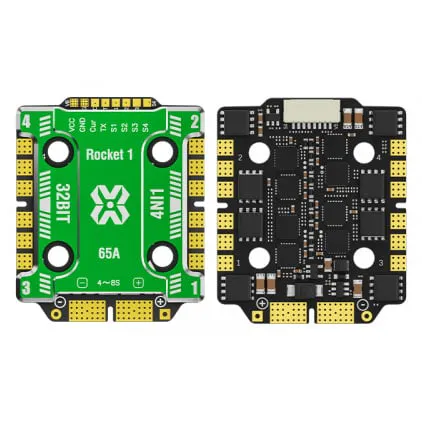

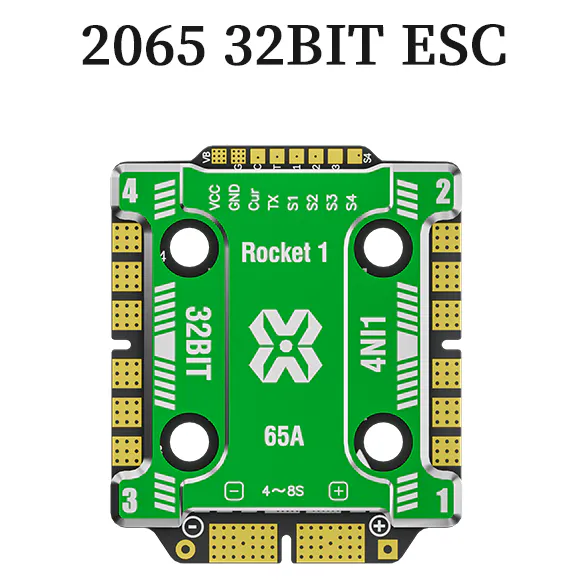

Aocoda-RC 2065 AM32 32-Bit 65A 4-in-1 ESC

The Aocoda-RC 2065 is a high-density 4-in-1 ESC delivering heavy-duty current output for power-hungry 5-inch racing and freestyle builds. Running the 32-bit open-source AM32 firmware, this ESC steps away from legacy closed-source ecosystems to offer exceptionally smooth motor control, dynamic PWM frequency scaling, and accurate telemetry. It handles sustained high-amp draws from modern high-kV 6S motors while keeping your electronics stack responsive during sharp maneuvers.

Key features

• Open-source AM32 architecture allows for dynamic PWM adjustments, significantly reducing the risk of motor desyncs during aggressive throttle punches.
• Native support for bidirectional DShot protocols to ensure low-latency RPM filtering and direct communication with the flight controller.
• Optimised for heavy-lift freestyle or racing setups requiring a space-saving footprint without sacrificing top-end output.

Specifications

• Firmware: AM32
• MCU: STM32G071, 64 MHz
• Continuous current: 65A per channel
• Peak current: 75A per channel
• Input voltage: 4-8S LiPo (9-40 V DC)
• PWM frequency: 24-48 kHz
• Input signal: DShot150/300/600/1200, MultiShot, OneShot, PWM
• Current sensor: Yes (scale 70), telemetry supported
• BEC: None
• Layout: 4-in-1
• Mounting: 20.5 x 20.5 mm (20x20 class), M3
• Dimensions: 44.5 x 40.5 mm
• Weight: 17 g
• In the box: ESC, 35 V 1000 uF capacitor, 8-pin SH1.0 harness, XT60 power lead, 4 x M3 x 25 mm screws with nuts, 4 x M3 x 8 mm damping grommets

This ESC is ideal for pilots migrating to open-source 32-bit hardware who demand maximum current throughput and precise motor authority in a demanding flight environment.
