AMASS XT150 Connector (Red)

The Amass XT150 is a heavy-duty single-pole connector designed for high-voltage and high-current builds, including X-Class racers, heavy-lift cinelifters, and agricultural drones. Built around a massive 6.0mm bullet, it handles power systems drawing up to 150A peak. The external plastic shell features a dovetail slide-and-lock mechanism, allowing you to mechanically link multiple single connectors together to form a custom multi-pin block.

Key features

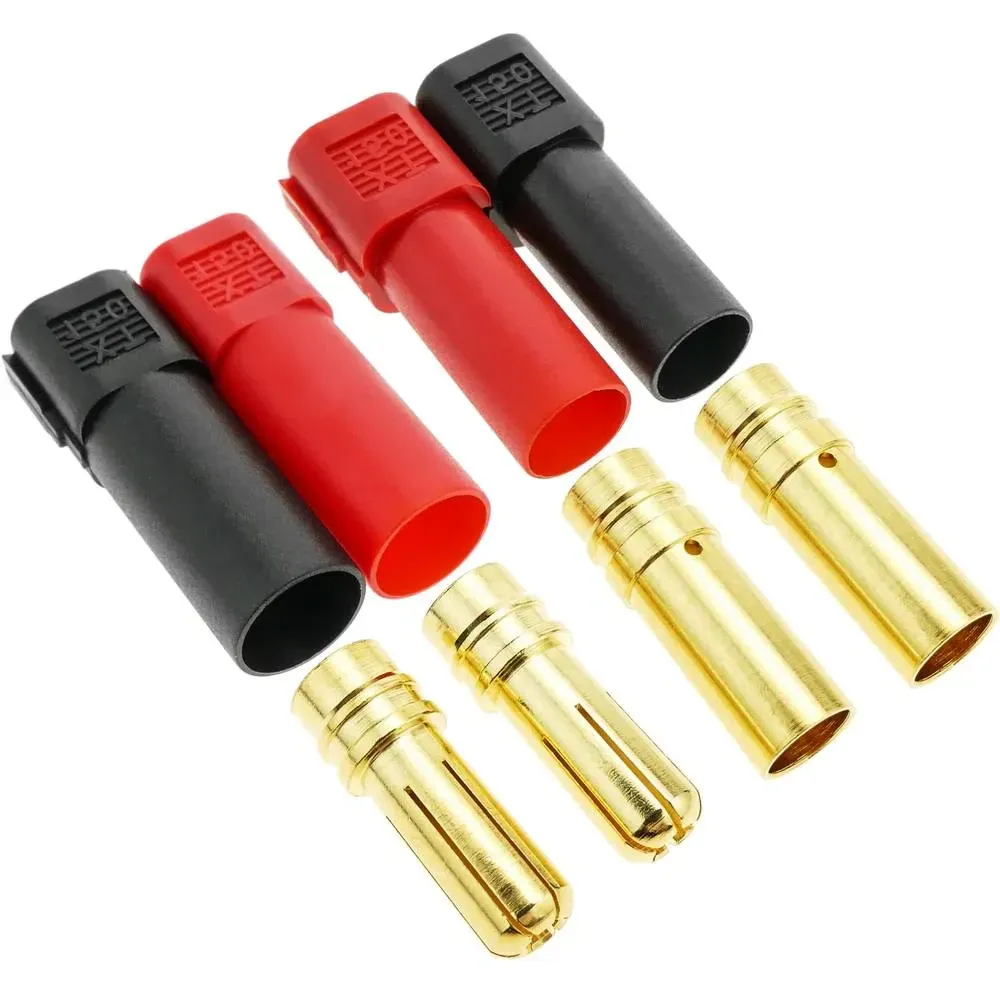

• 6.0mm gold-plated copper contacts ensure minimal electrical resistance.
• Dovetail housing joints allow individual single-pole shells to be locked together side-by-side.
• Deep solder cups comfortably accommodate heavy 8AWG or 10AWG silicone power wire.
• Heat-resistant nylon insulation safely withstands operating temperatures up to 120°C.

Specifications

• Bullet size: 6.0mm
• Continuous current: 130A
• Peak current: 150A
• Max voltage: 500V DC
• Recommended wire gauge: 8-10AWG
• Contact material: Gold-plated copper
• Insulation material: PA (Nylon)
• Colour: Red

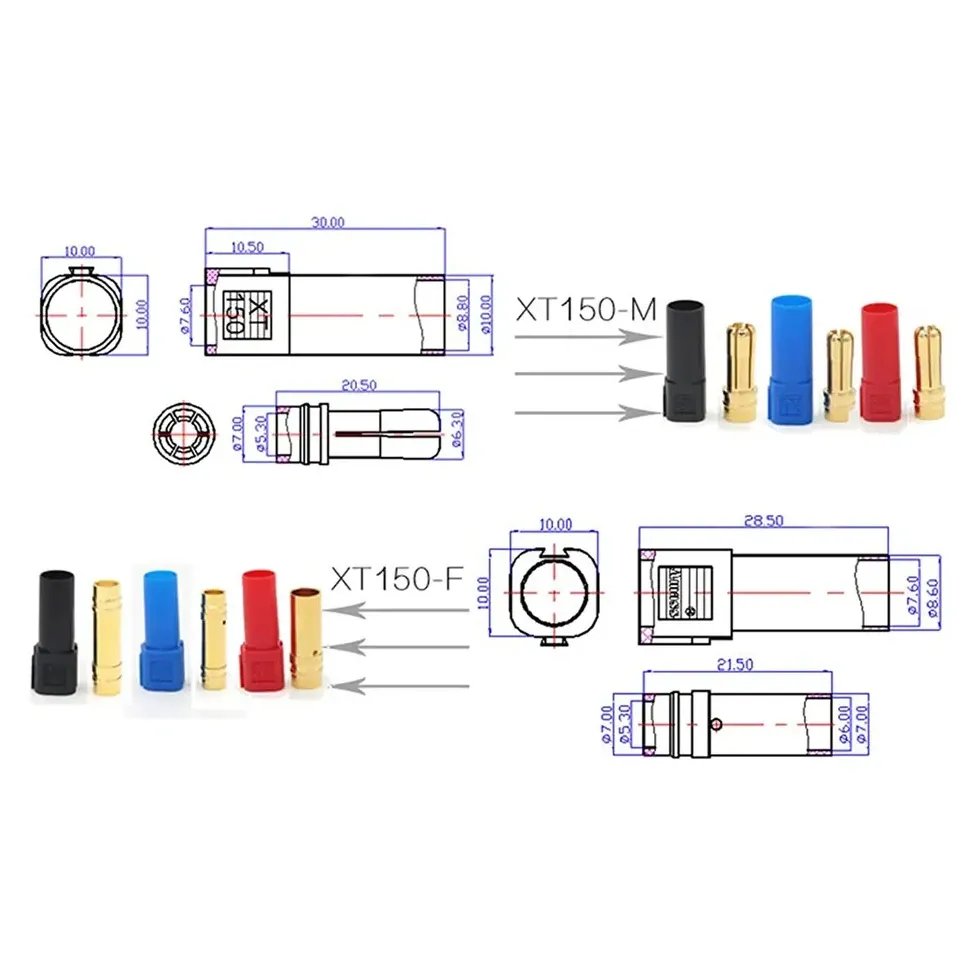

Sold as individual single-pole connectors. Select either the male or female variant to match your battery lead or ESC pigtail requirements.
