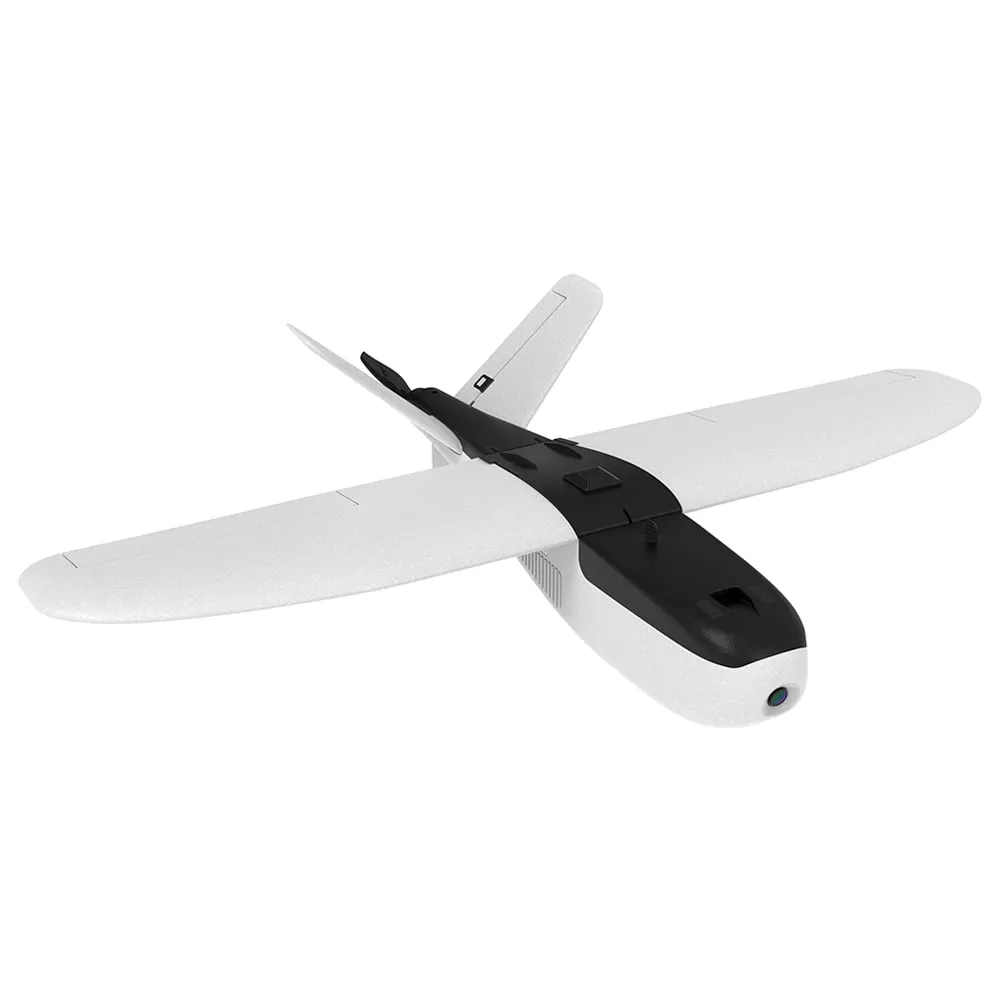

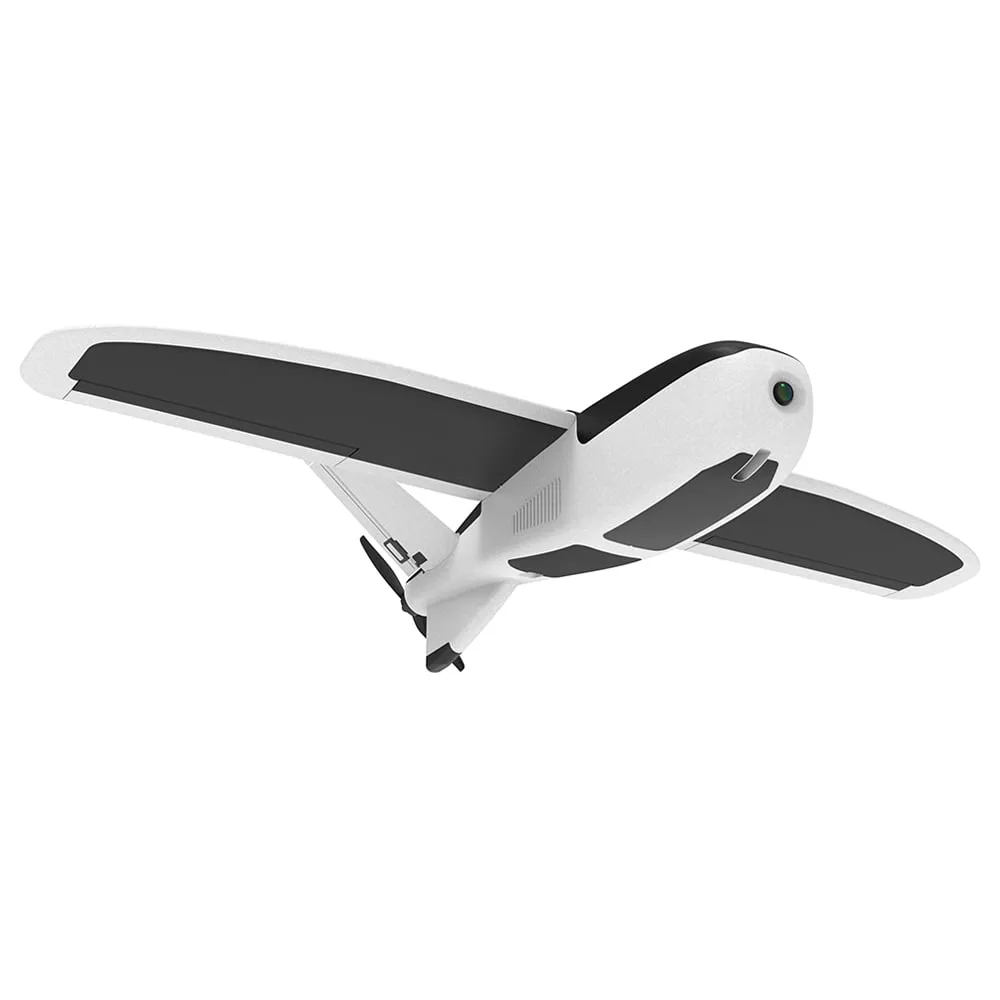

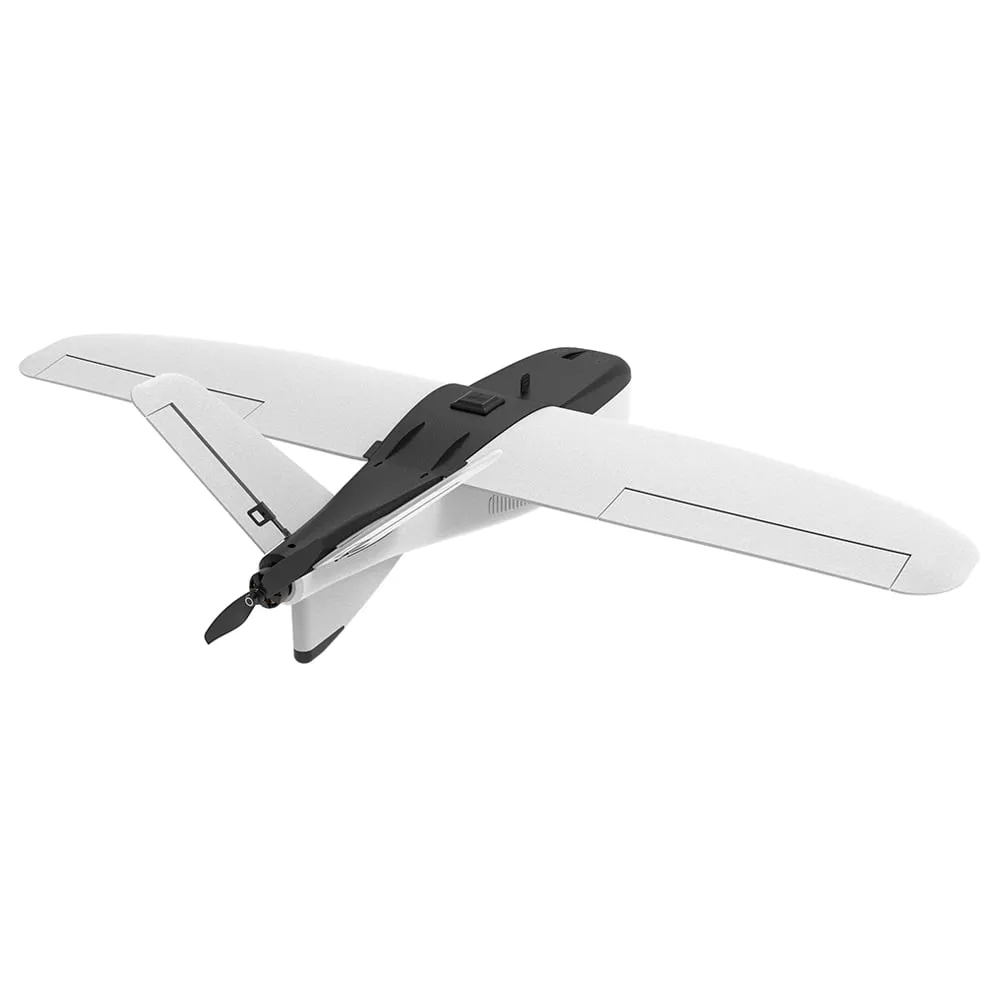

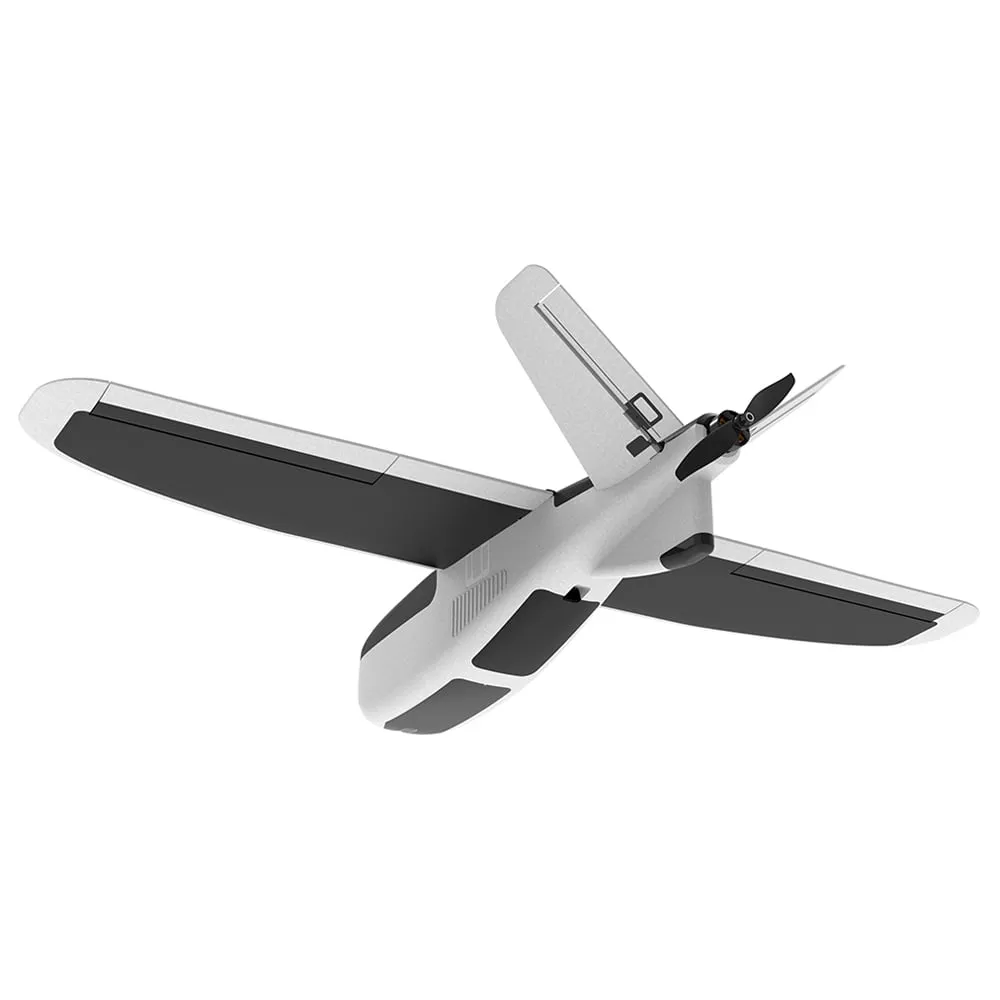

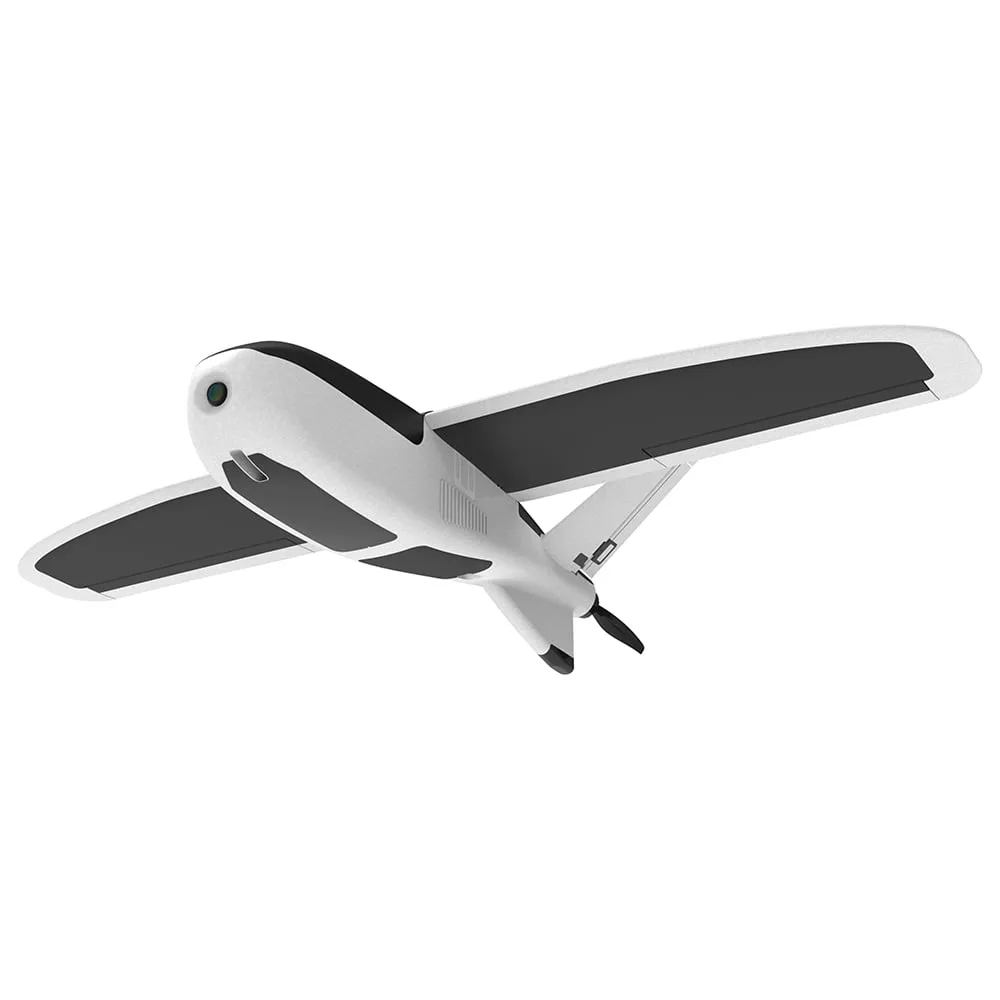

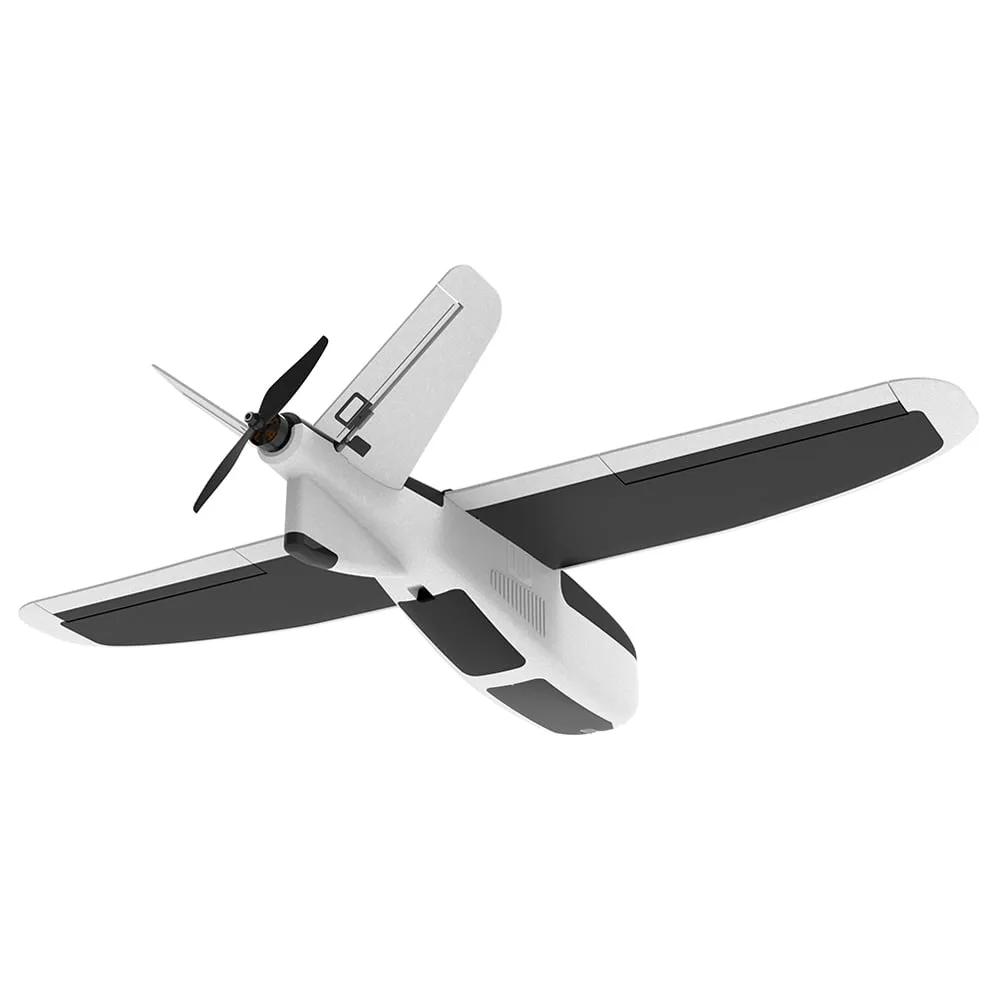

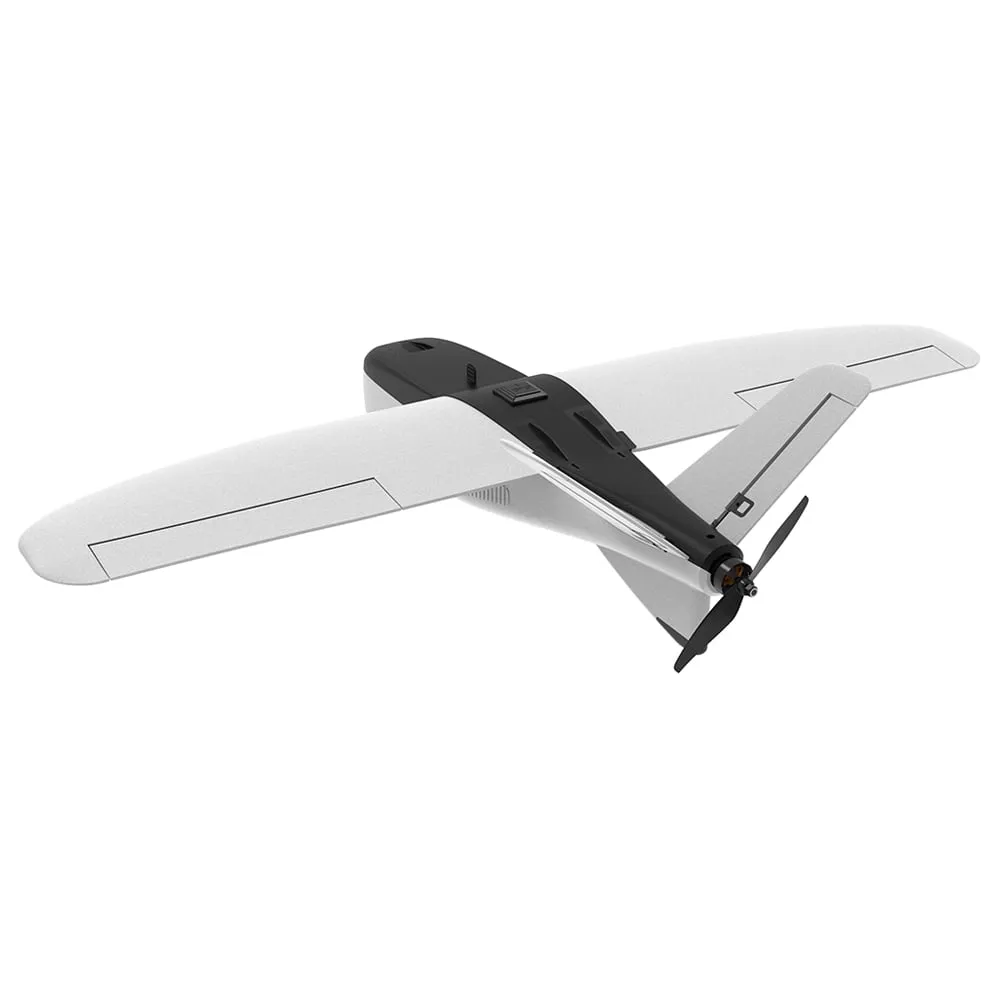

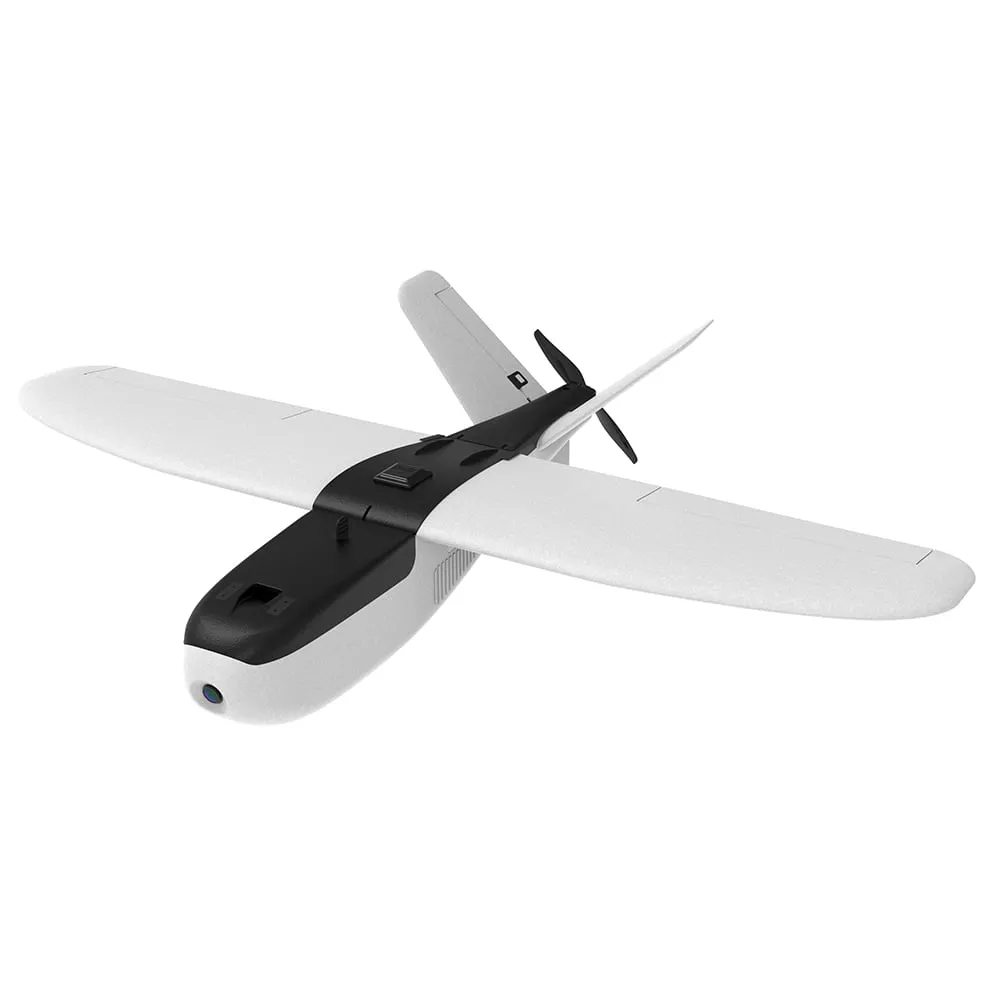

ZOHD Nano Talon EVO 860mm FPV PNP

The ZOHD Nano Talon EVO is an 860mm FPV fixed-wing aircraft for pilots building a compact custom aeroplane. This PNP version includes the power system, while FPV equipment is not included.

Key features

• 860mm wingspan suits transportable fixed-wing builds.
• V-tail layout provides the aircraft configuration described for the Nano Talon EVO.
• EPP moulded construction is used for the airframe.
• PNP format lets you add your preferred radio receiver and FPV system.
• Power system is included for completing the aircraft build.

Specifications

• Wingspan: 860mm
• Length: 570 mm
• Aircraft type: FPV fixed wing
• Tail configuration: V-tail
• Construction: EPP moulded, with built-in carbon fibre spar
• Motor: SunnySky 2204 1870KV (installed)
• ESC: 30A with 5V 2A switching BEC (installed)
• Servos: 9 g metal gear (installed)
• Propeller: 6 x 3
• Flying weight: 361 g without FPV gear
• Recommended battery: 3S-4S 1300-2200mAh LiPo, or 4S 18650 Li-ion
• CG: 35 mm from the wing leading edge (marked under the wing)
• Version: PNP

Choose this model when you need a compact fixed-wing platform and want to select the radio and video equipment separately.
