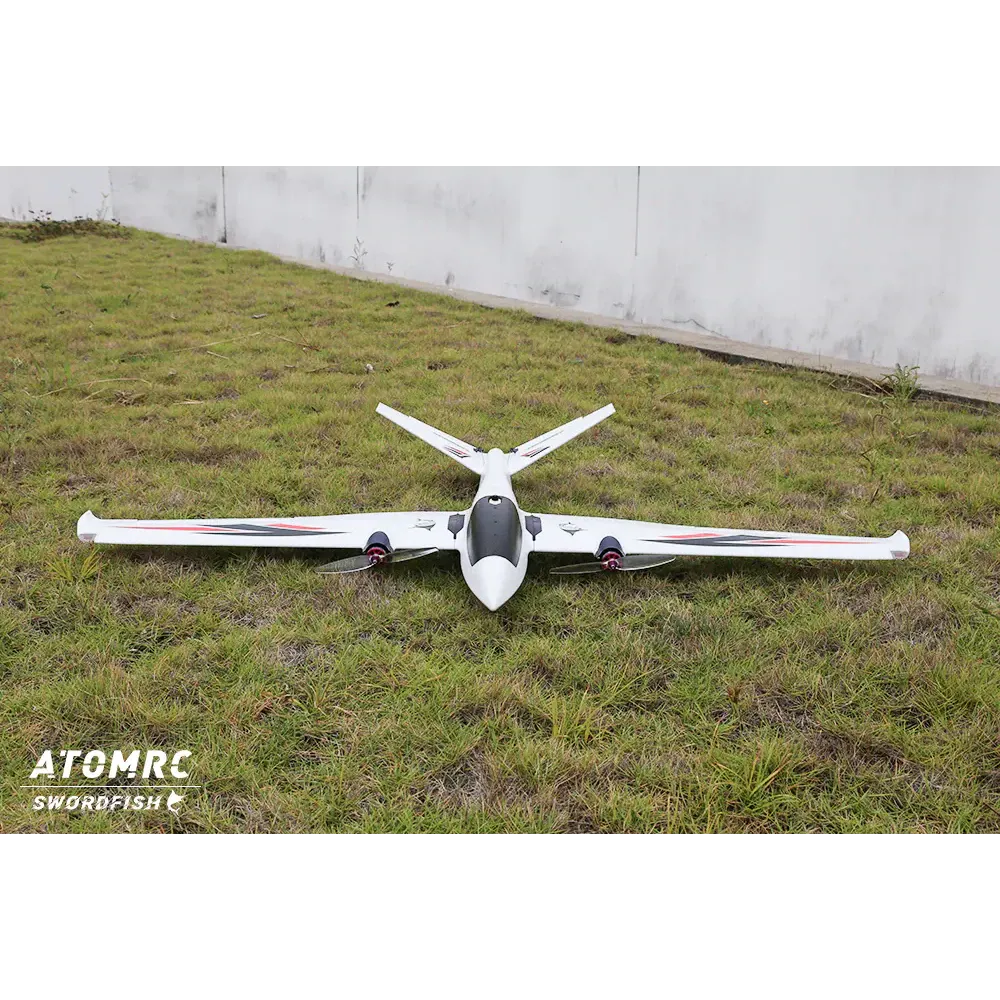

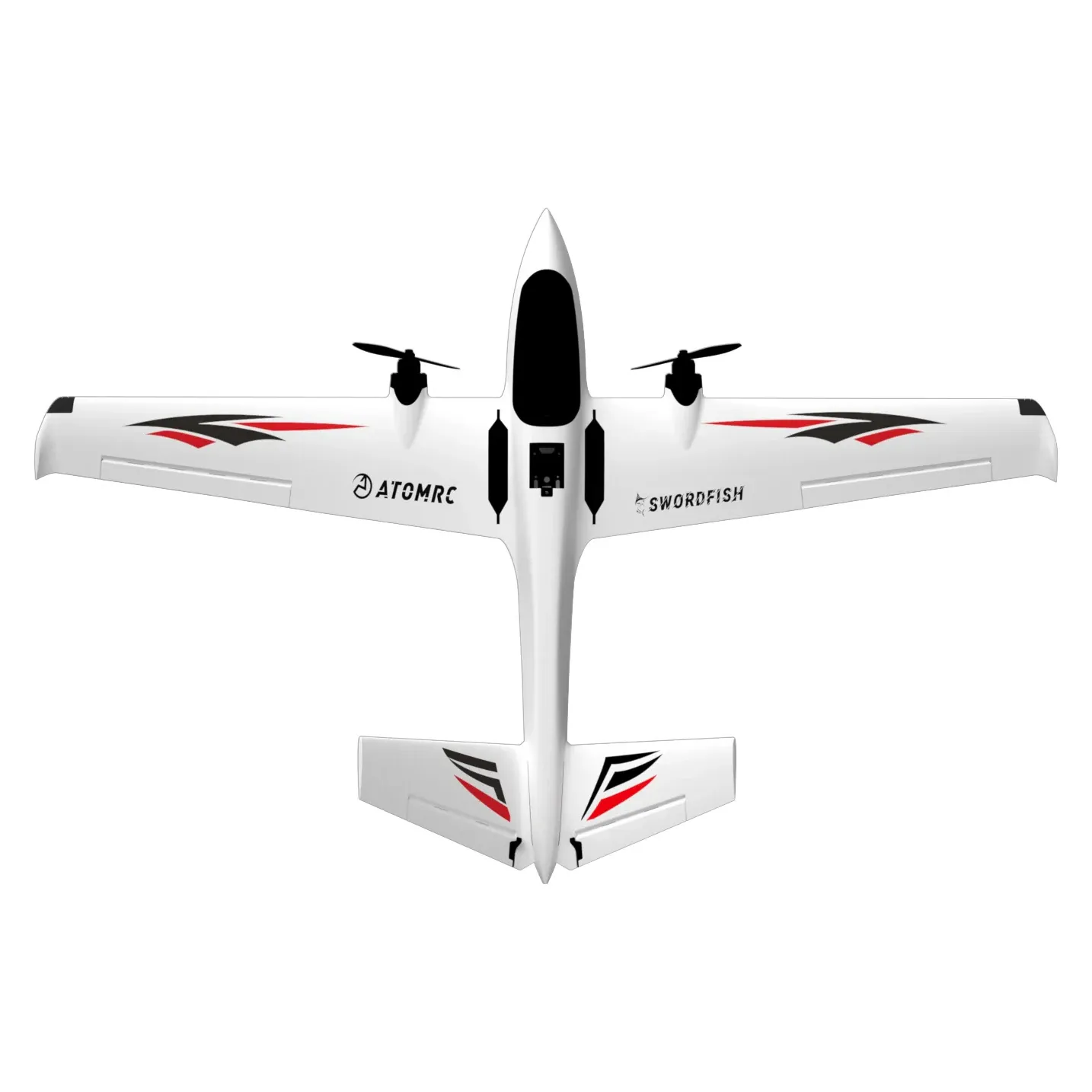

AtomRC Swordfish Fixed-Wing Aircraft PNP+S

The AtomRC Swordfish is a 1200mm-wingspan EPP fixed-wing FPV aircraft supplied in PNP+S configuration, ready for a pilot's own flight controller, transmitter, receiver and battery to complete the setup.

Key features

• 1200mm wingspan, 810mm length, built from lightweight EPP foam
• Designed around the AtomRC F405 NAVI flight controller (not included), with published INAV and ArduPlane settings for the airframe
• With a navigation flight controller fitted, supports auto launch, return-to-home and circle flight modes
• Twin 2306 1600KV motors, two 4S 30A ESCs and two Gemfan 7042-2 propellers included (installation required)
• Four 9g servos handle the control surfaces

Specifications

• Wingspan: 1200mm
• Length: 810mm
• Wing area: 15.35 dm2
• Material: EPP foam
• Weight: 1.4kg
• Recommended battery: 4S 5000mAh LiPo or 4S1P 21700 Li-ion
• Included motors: 2 x 2306 1600KV
• Included ESCs: 2 x 4S 30A
• Included servos: 4 x S09M 9 g metal gear
• Included propellers: 2 x Gemfan 7042-2
• In the box: glued foam airframe, navigation lights, hardware and linkages

Add a flight controller, a 4S 5000mAh pack, a compatible receiver and a 4-channel-plus transmitter to complete the build; INAV or ArduPlane pilots can load the published parameter file before the first flight.
