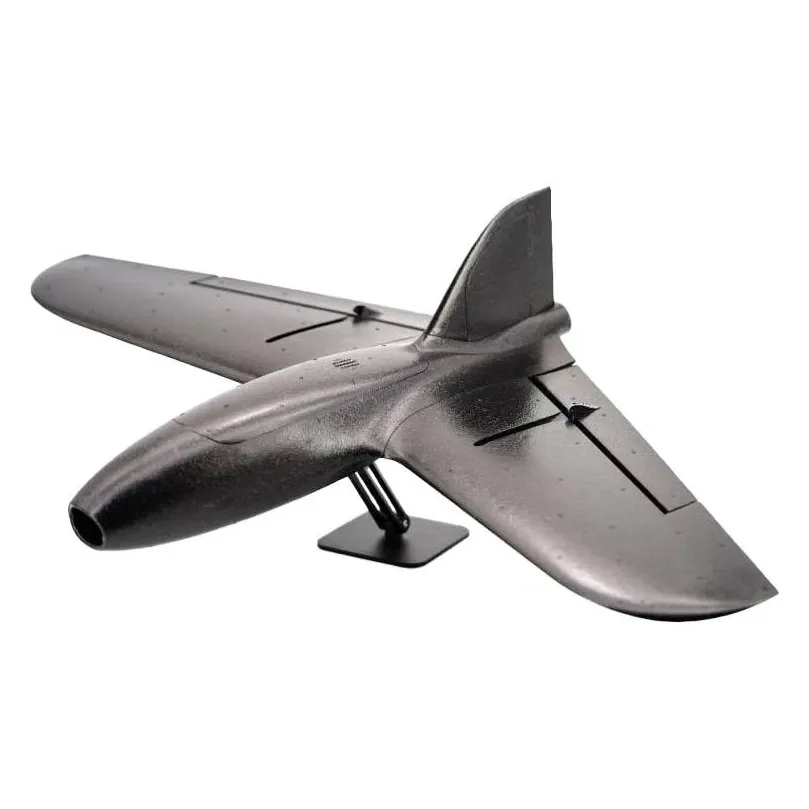

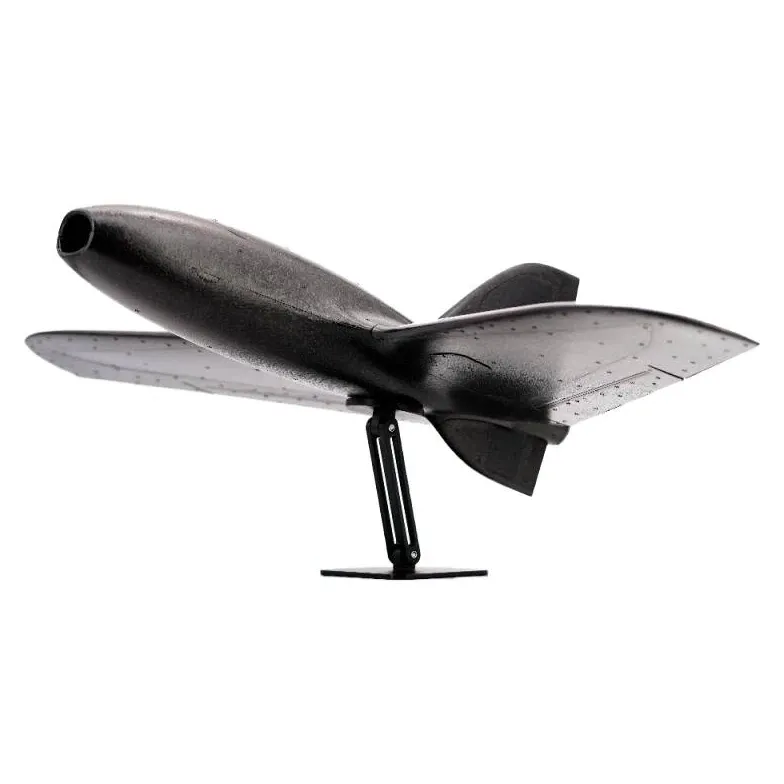

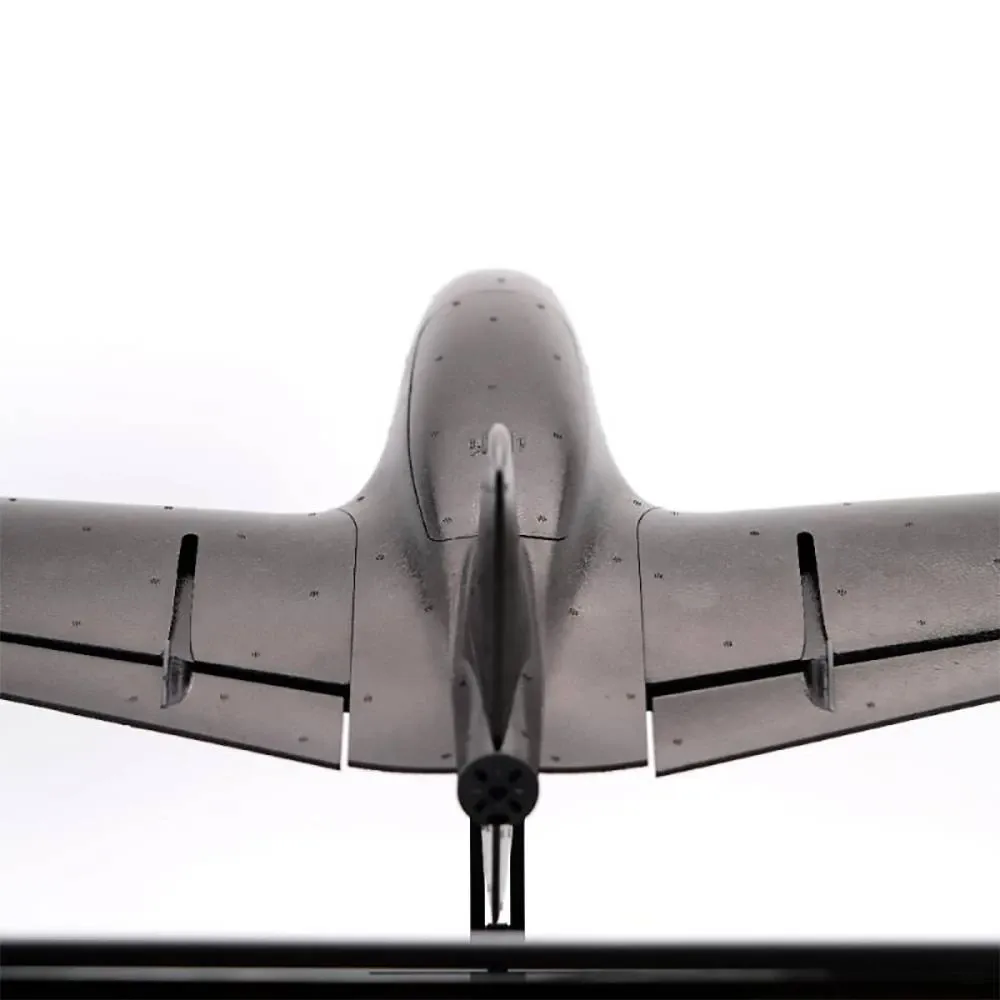

TBS Chupito 800mm FPV Airplane PNP — Crash-A-Lot Kit

The TBS Chupito 800mm is a forward-swept FPV flying wing built for proximity bashing and casual long-range cruising alike. This Crash-A-Lot kit adds a full spare set of foam parts so a hard landing doesn't ground the aircraft.

Key features

• Black EPP foam airframe with glass-fibre camera and motor mounts absorbs impacts and simplifies field repairs.

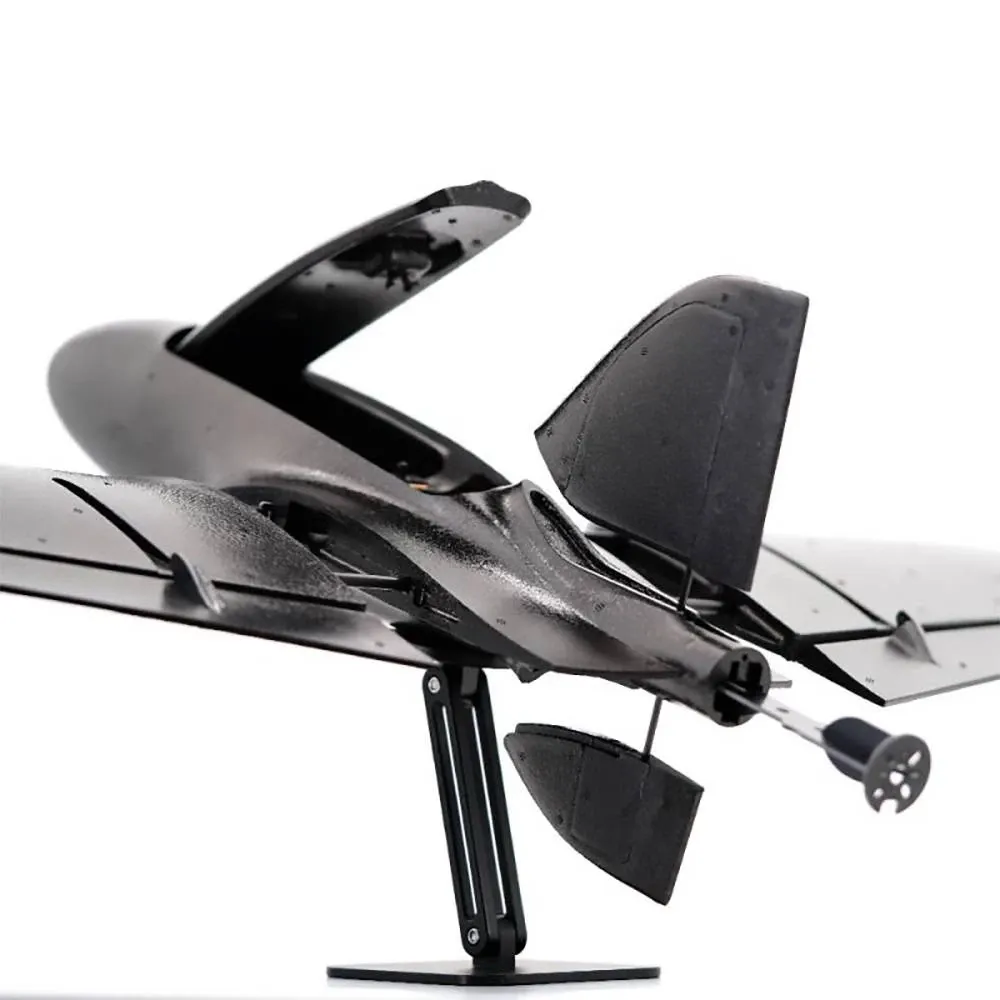

• Pre-cut equipment bay with a push-to-open hatch and slots for the camera, servos, battery, receiver and antenna.

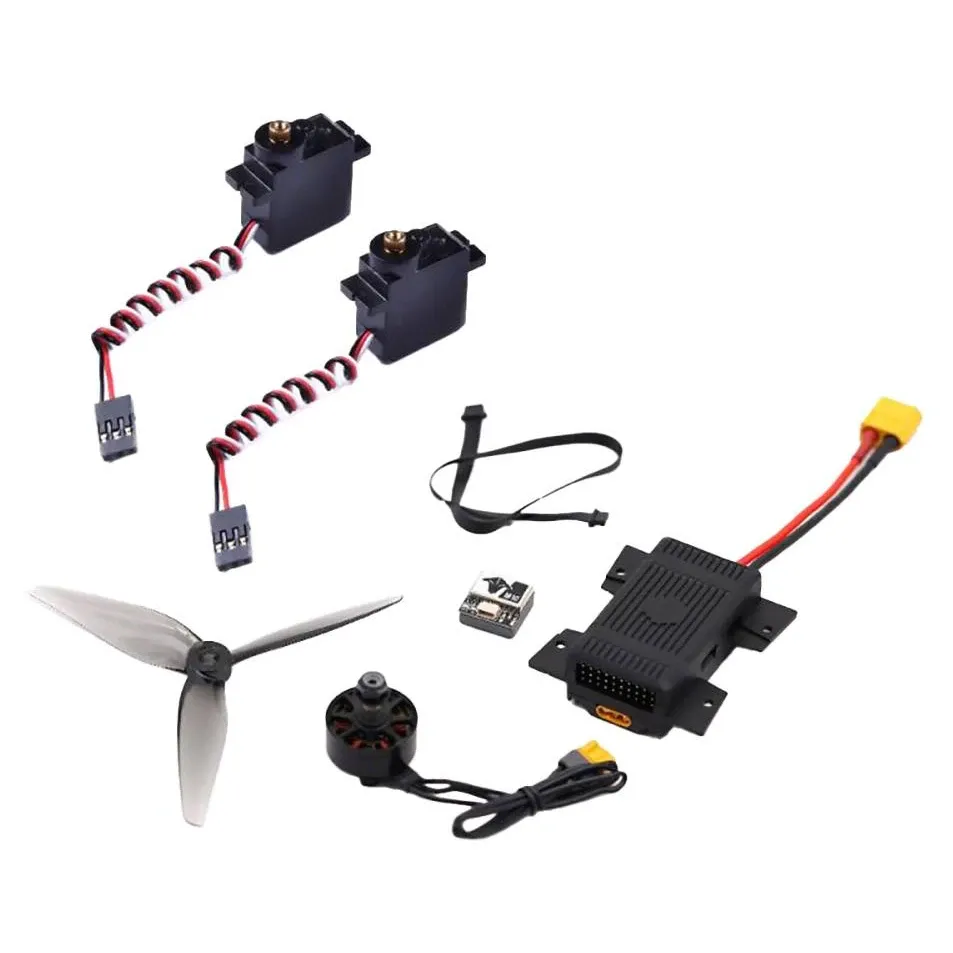

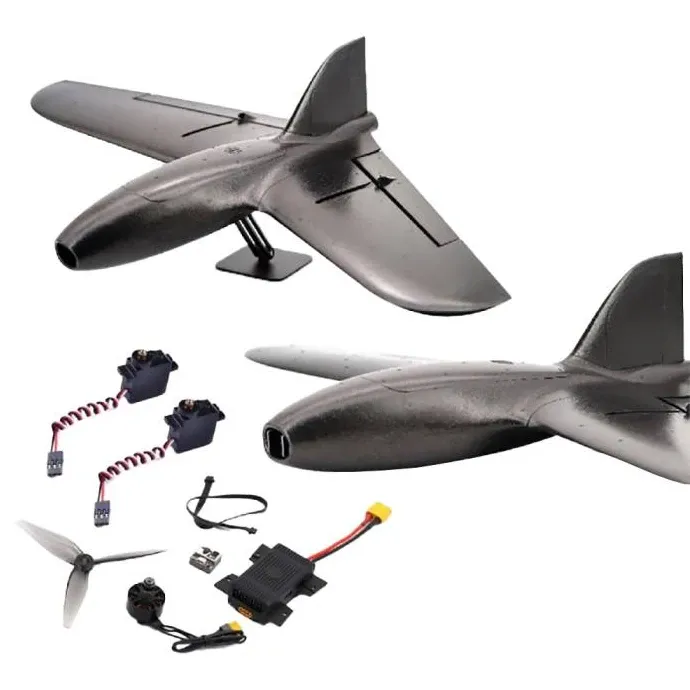

• Ships with a full spare set of two foam body parts and four foam wings, plus a hardware set and a TBS Chupito electronics package covering the motor, servos and propeller.

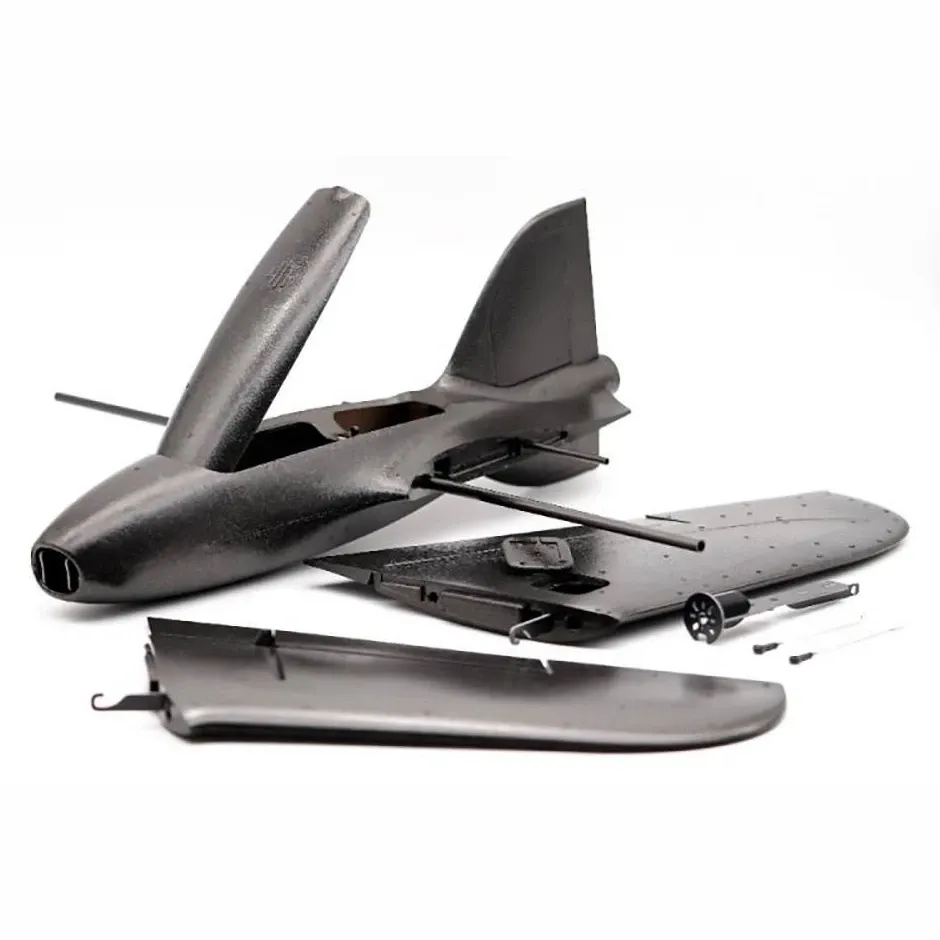

• Folds down into a travel-friendly three-piece layout, or can be permanently glued for a tougher basher build.
• Airframe accepts both analogue and digital HD video systems.

Specifications

• Wingspan: 800mm
• All-up weight: from about 650 g
• Recommended battery: 4S-6S, 800-1800mAh
• Max battery dimensions: 50 x 50 x 150 mm
• Video systems supported: analogue, DJI O3/O4, Walksnail
• Recommended receiver: TBS Crossfire Nano RX or Nano RX Pro
• Included motor: TBS Chupito 2207 2000KV (12N14P, 4 mm hollow shaft, MT30 lead, 29.9 g, up to 6S)
• Included servos: 2 x TBS Chupito servo (13.5 g, 4.8-6 V, 1.3 kgf.cm at 6 V)
• Included propeller: HQ R37

Assembling the included electronics package takes under an hour; expect roughly 20 minutes of cruising flight from a 1300mAh 6S pack.
