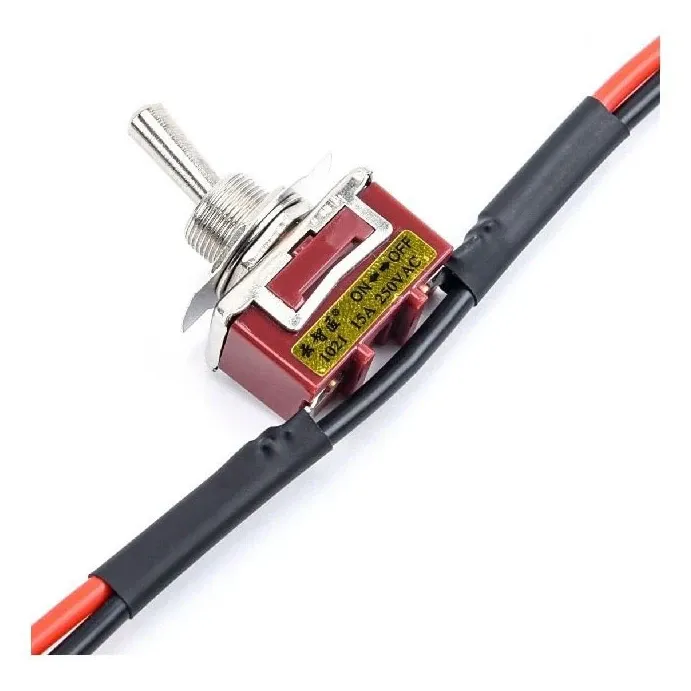

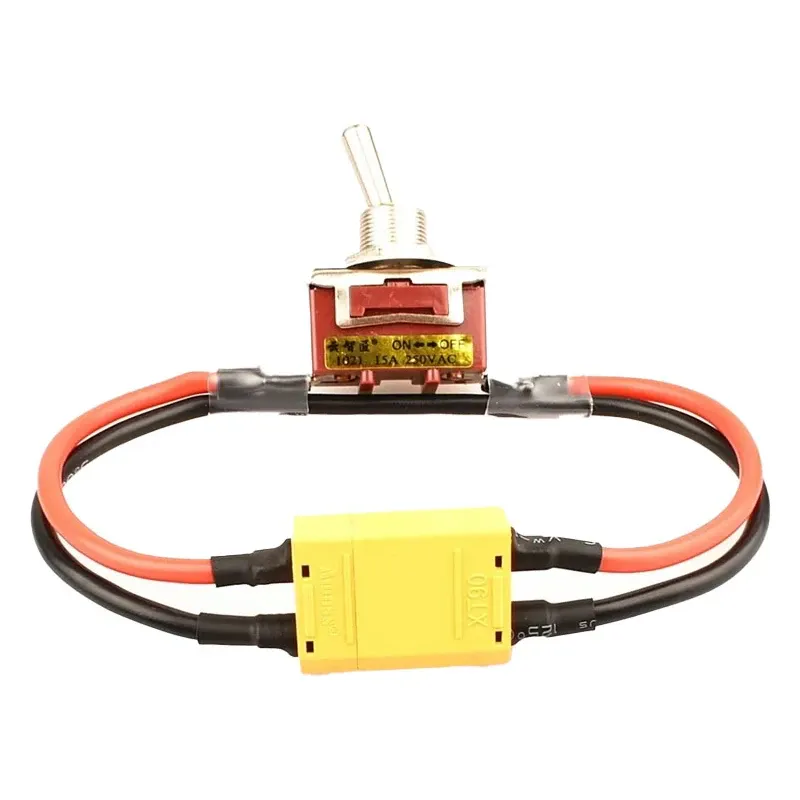

ReadyToSky XT90 Panel-Mount On/Off Toggle Switch for RC Battery Leads

A mechanical on/off toggle switch wired inline between two Amass XT90 connectors, so you can cut battery power to an RC model's electronics without unplugging the pack. It suits RC cars, boats, fixed-wing aircraft, drones and bench setups that already use XT90 leads.

Key features

• XT90 on both the battery and load sides plugs straight into an existing XT90 harness with no adapter leads.
• Switch rated 15 A at 250 V AC.
• Mounts through a 12 mm panel hole for a fixed, easy-to-reach switch position.
• About 35 cm of cable in total across both sides gives room to route it to a hatch or fuselage wall.

Specifications

• Connectors: XT90, battery and load side
• Switch type: Mechanical toggle, on/off
• Switch rating: 15 A at 250 V AC
• Panel hole: 12 mm
• Switch body: 29 × 17 × 50 mm
• Cable length: Approx. 35 cm total

Check your model's continuous current draw against the 15 A switch rating before fitting it in the main battery line.
