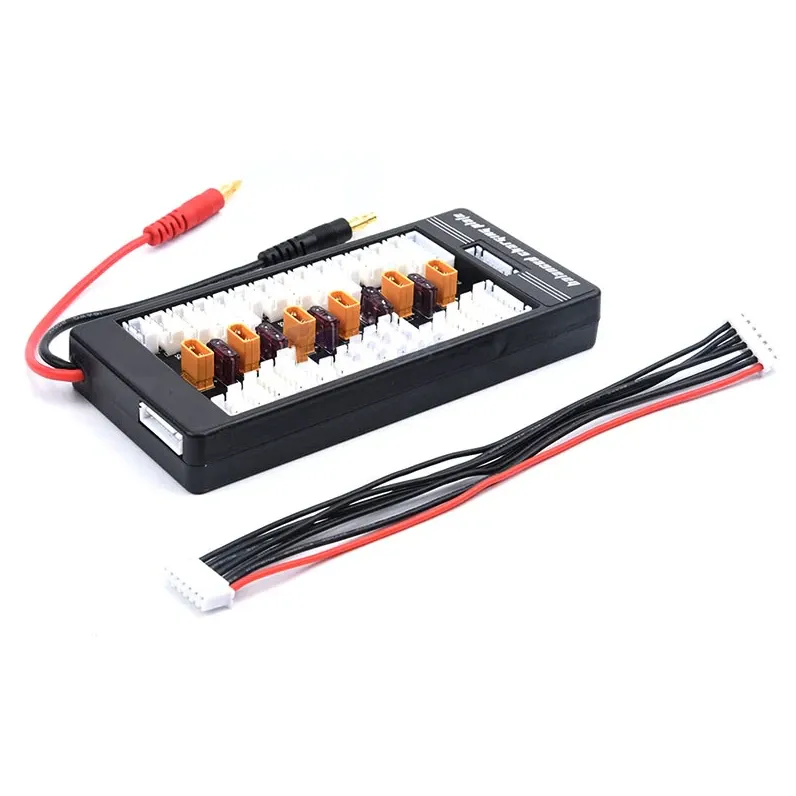

ReadyToSky XT30U Parallel Charging Board with 4mm Banana or T-Plug Lead
SKU GEN-XT30U-PARALLEL-TPLUG
Input Lead: T-Plug
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A six-position XT30U parallel charging board for 2S to 6S LiPo packs, rated for up to 40A of charge current. It suits pilots with a stack of XT30 packs for 3-inch, toothpick and micro long-range builds who want one balance charger to fill them in a single session. Choose the charger-side lead to match your charger: T-Plug or 4mm Banana.
Key features
- Six XT30U battery ports, each paired with a JST-XH balance socket.
- Thick PCB copper foil carries up to 40A in total.
- Cascade port links additional boards when six positions are not enough.
- 12AWG silicone main lead and 22AWG silicone balance lead.
- Input lead options: T-Plug, or 4mm banana plugs for chargers with banana outputs such as IMAX B8-class units.
Specifications
- Battery ports: 6 x XT30U
- Balance sockets: JST-XH
- Supported packs: 2S to 6S LiPo
- Max charge current: 40A
- Main lead: 12AWG silicone
- Balance lead: 22AWG silicone
- Dimensions: 139 x 67 x 16 mm
Parallel only packs with the same cell count and voltages within about 0.1V per cell, then set the charge current to the combined capacity of the connected packs at their rated charge rate, staying under 40A.
| Made in India | No |
|---|---|
| Brand | ReadyToSky |
| Wire Gauge | 12AWG |
| Battery Connector | XT-30 |
| Cell Count | 2–6S |
