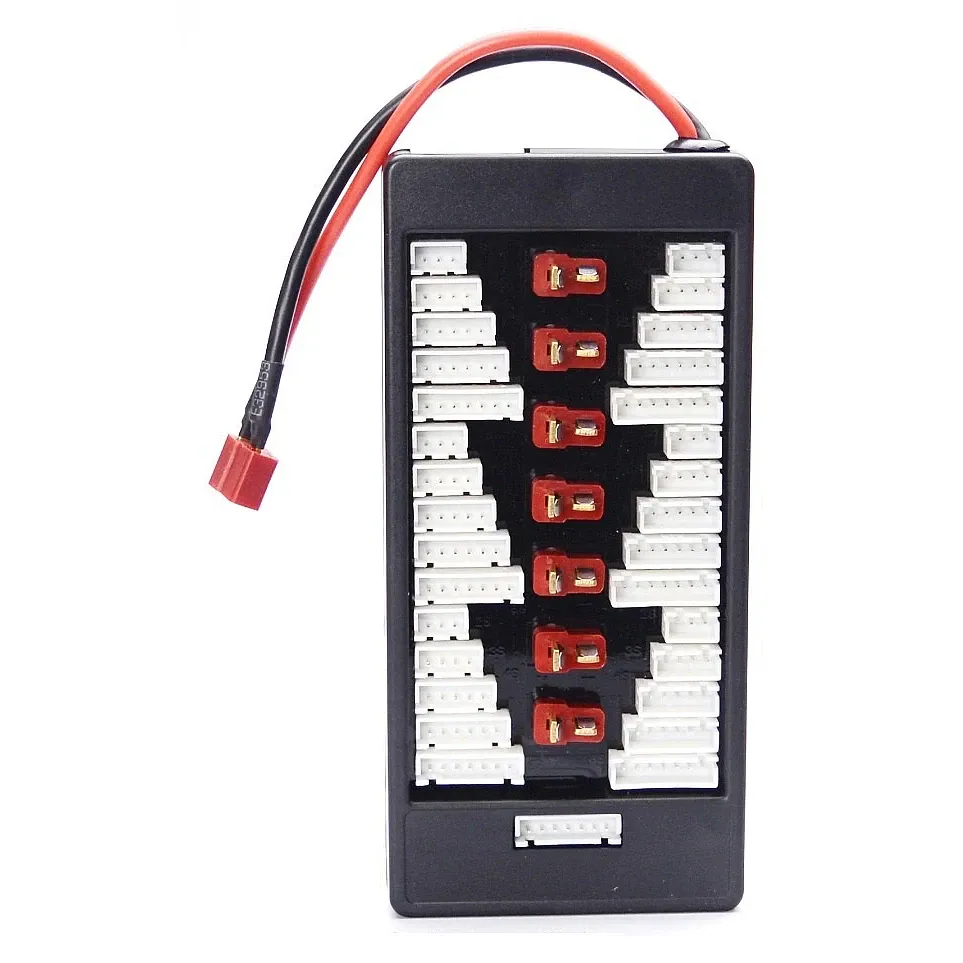

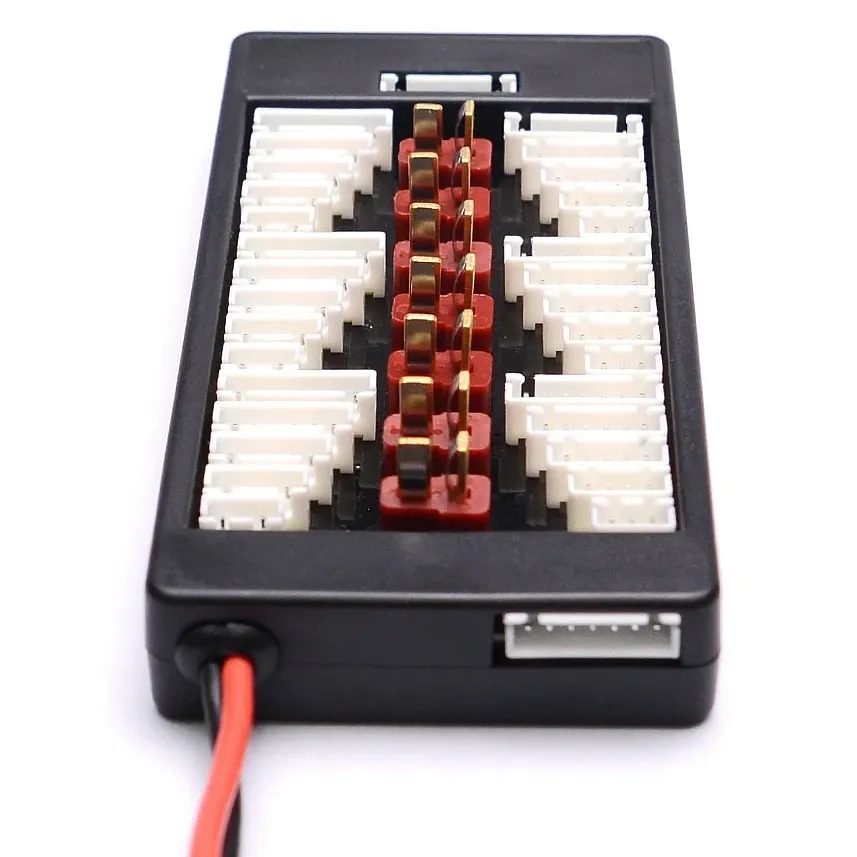

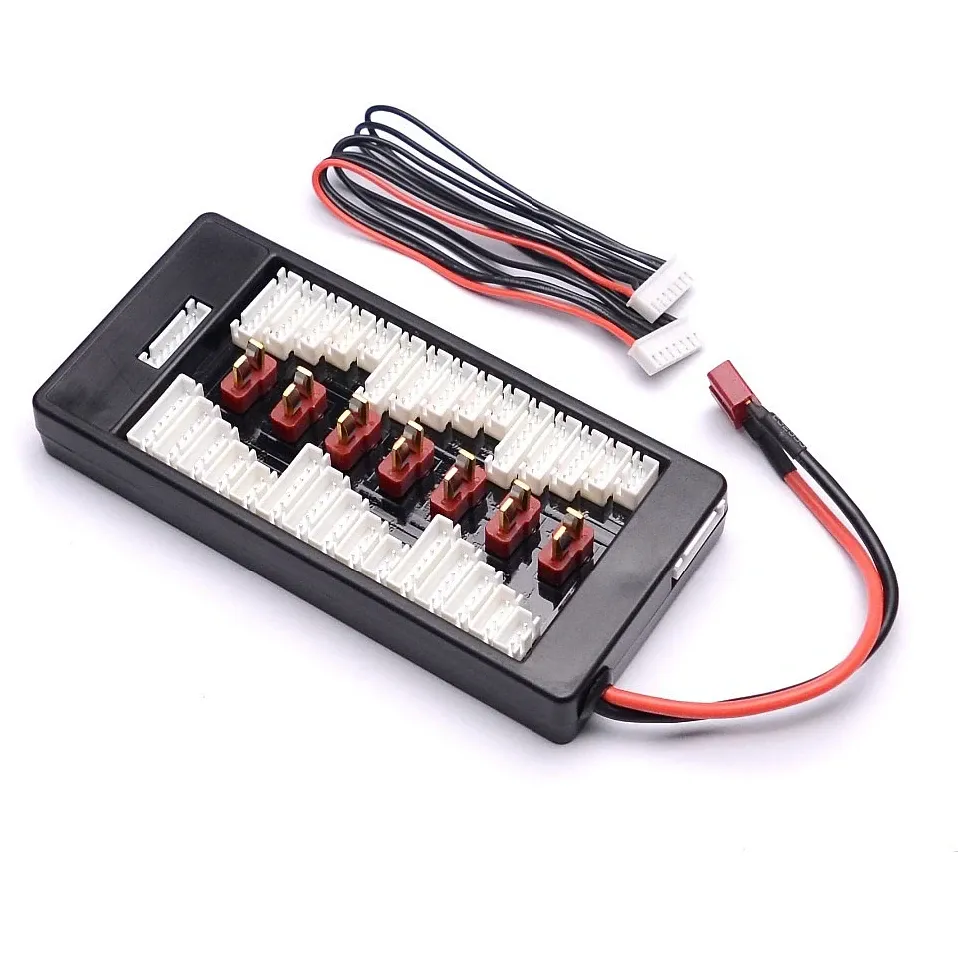

T-Plug 2-6S LiPo Parallel Charging Board for 6 Packs

This parallel charging board lets one balance charger charge up to six 2–6S packs with T-plug (Deans) connectors at the same time. It suits pilots with a set of identical packs and a single charging output, such as an iMAX B6, who want to cut total charging time.

Key features

• Six T-plug ports with matching balance ports for 2S to 6S packs, so every pack connects by both its main and balance leads.
• Short-circuit protection built into the board guards the connected packs if a short occurs.
• Heavy copper: 2 oz copper traces carry up to 30 A of charge current.
• LiPo, LiFe and Li-ion: works with any chemistry your balance charger supports, as long as every pack on the board matches.
• Expandable: up to three boards can be combined to charge 18 identical packs together.

Specifications

• Battery ports: 6 × T-plug
• Cell count: 2–6S
• Max current: 30 A
• Dimensions: 144 × 68 × 29 mm

Only parallel packs of the same cell count, chemistry and capacity, and bring them to close voltages (within about 0.1 V per cell) before connecting. Set the charge current for the combined capacity — six 1500mAh packs at 1C is 9 A — and keep it within both your charger's output and the board's 30 A rating.
