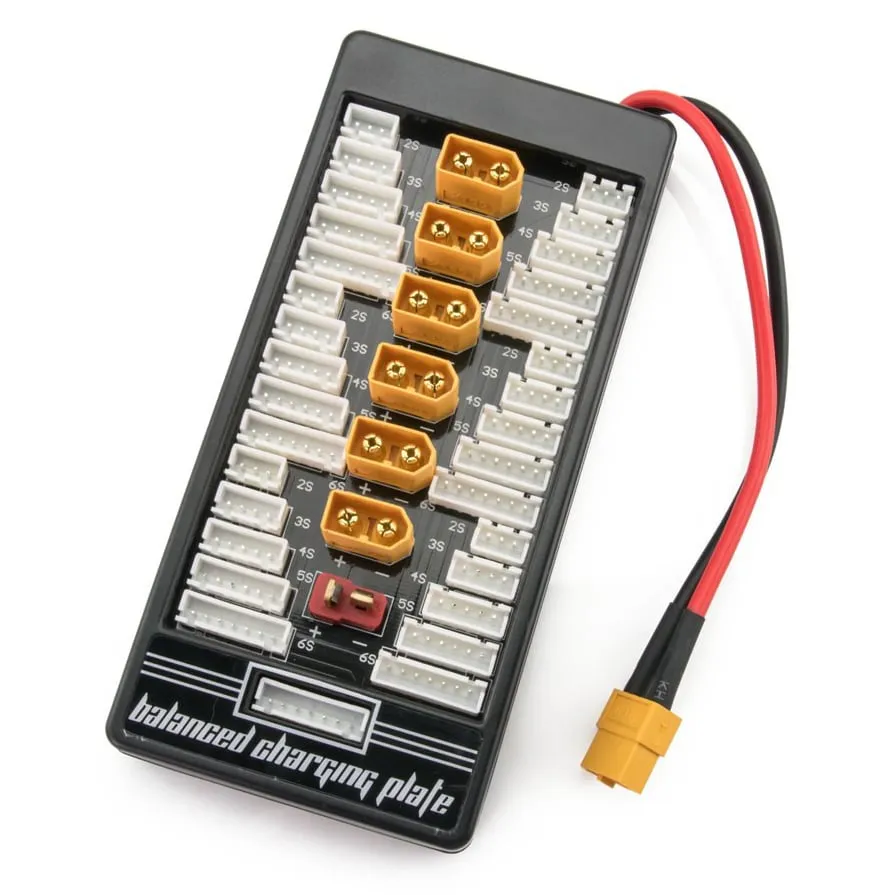

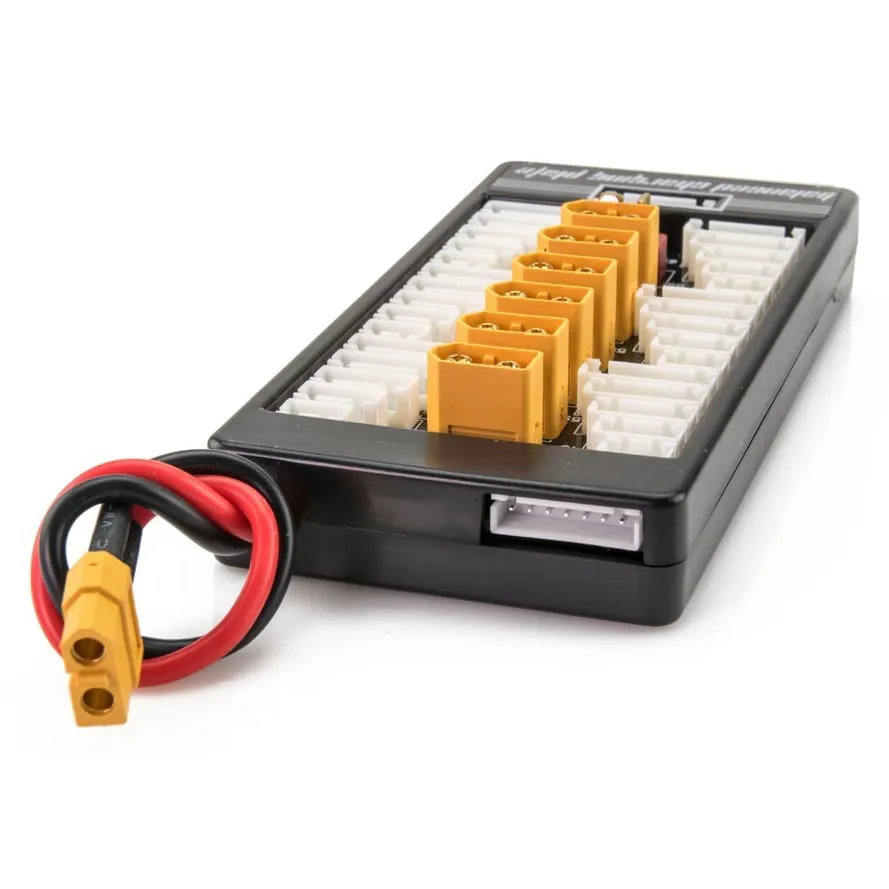

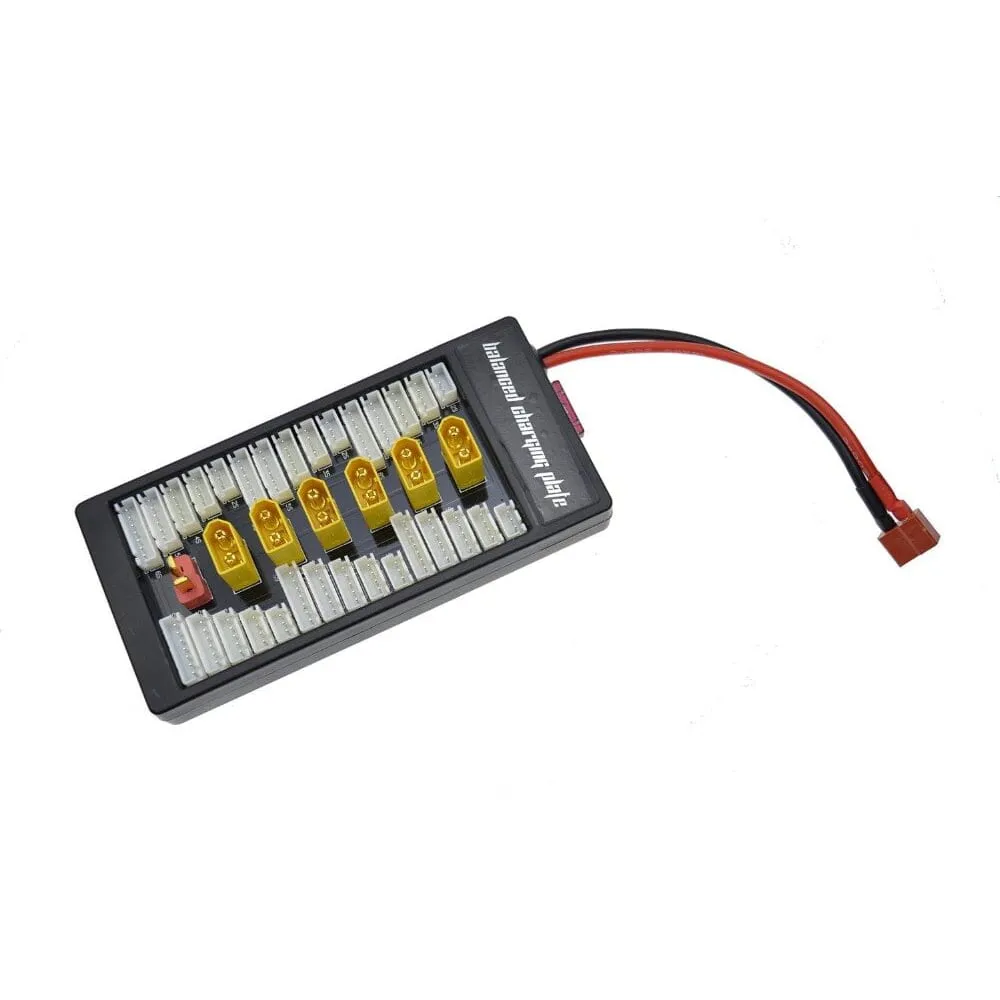

Parallel Balance Charging Board (XH 2-6S)

Speed up your turnaround time at the bench or the field with this 2-6S parallel balance charging board. Designed for FPV pilots managing multiple packs, this board allows you to charge several LiPo, LiHV, or Li-ion batteries of the exact same cell count simultaneously. By treating multiple batteries as a single large-capacity pack, it routes the charge cycle through a single charger channel, drastically reducing overall charging time.

Key features

• Charges multiple batteries concurrently on a single charger output
• Populated with standard JST-XH balance sockets for wide compatibility
• Supports all standard FPV battery cell counts from 2S up to 6S
• Eliminates the need to manually swap batteries during long charging sessions

Specifications

• Supported cell count: 2-6S
• Balance connector: JST-XH
• Battery connector: XT60
• Charger input lead: XT60, T-plug or 4mm banana (choose the option)
• Batteries at once: up to 6
• Current rating: up to 80 A continuous (2 oz copper)
• Expansion: up to 3 boards can be daisy-chained (18 packs of the same cell count)
• Protection: short-circuit prevention

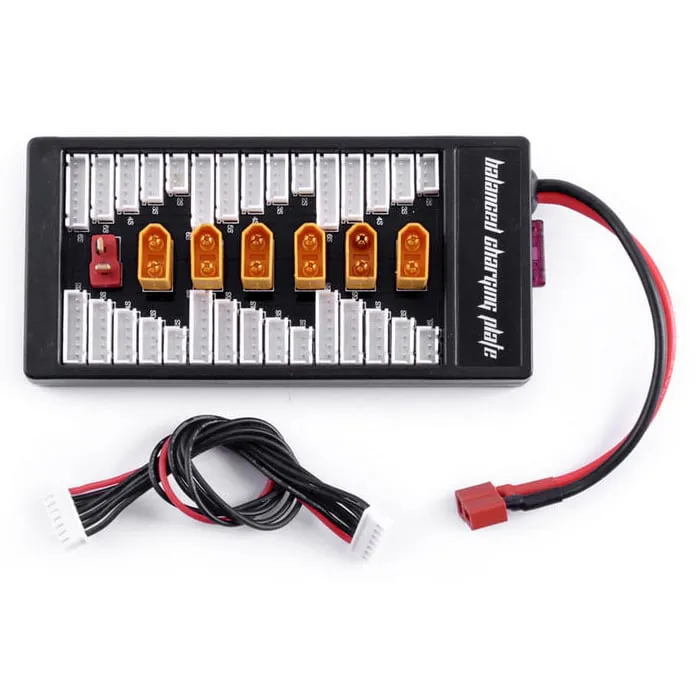

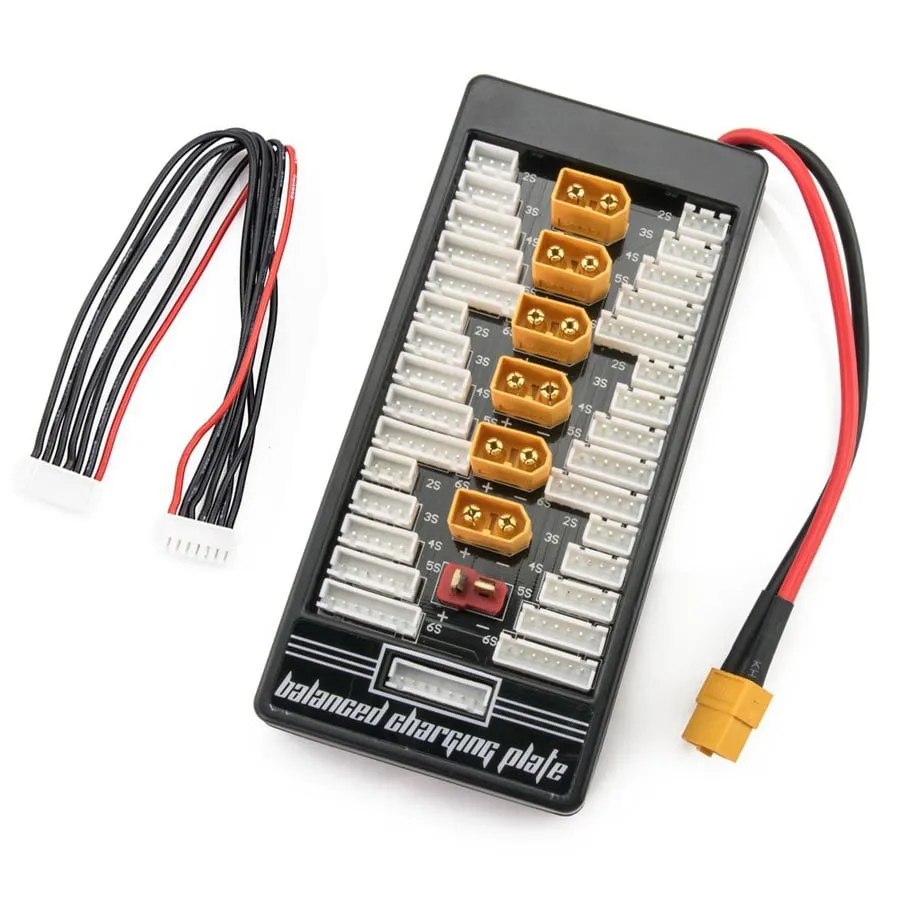

• In the box: 1 x balance charging board, 1 x 7-pin balance cable

Safety note: When parallel charging, all connected batteries must share the identical cell count and must be at a similar resting voltage—ideally within 0.1V per cell of each other—before plugging them into the board. Never mix different cell counts or connect fully charged packs alongside discharged packs.
