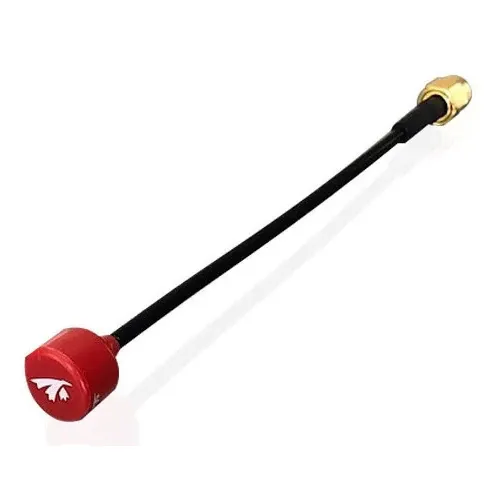

TrueRC Singularity 5.8 120mm RHCP SMA

The TrueRC Singularity 5.8 is a stubby circularly-polarised antenna for 5.8GHz FPV video systems, built in a 120mm SMA form factor that adds almost no weight to the build while covering the full FPV band.

Key features

• 1.9dBic gain with 99% radiation efficiency for a strong, reliable video link.
• Cross-polar rejection of -15 to -30dB helps cut multipath interference and static in the video feed.
• 5.6–6.0GHz bandwidth covers every standard 5.8GHz FPV channel.
• RG405 cable into an SMA connector, with an 11.8mm diameter, 8.2mm-tall head weighing 1–3.5g.
• SWR of 1.5:1 or better across the band.
• Drop-in fit for popular stubby antenna mounts, including Rotor Riot HD1, iFlight Nazgul XL5V5 and Lumenier QAV-S Mini canopies.

Specifications

• Frequency: 5.8GHz (5.6–6.0GHz bandwidth)
• Polarisation: RHCP
• Gain: 1.9dBic
• Connector: SMA
• Cable: RG405
• Length: 120mm

Use it with a matching RHCP antenna at the other end of the video link; the compact head fits most stock and aftermarket antenna mounts.
