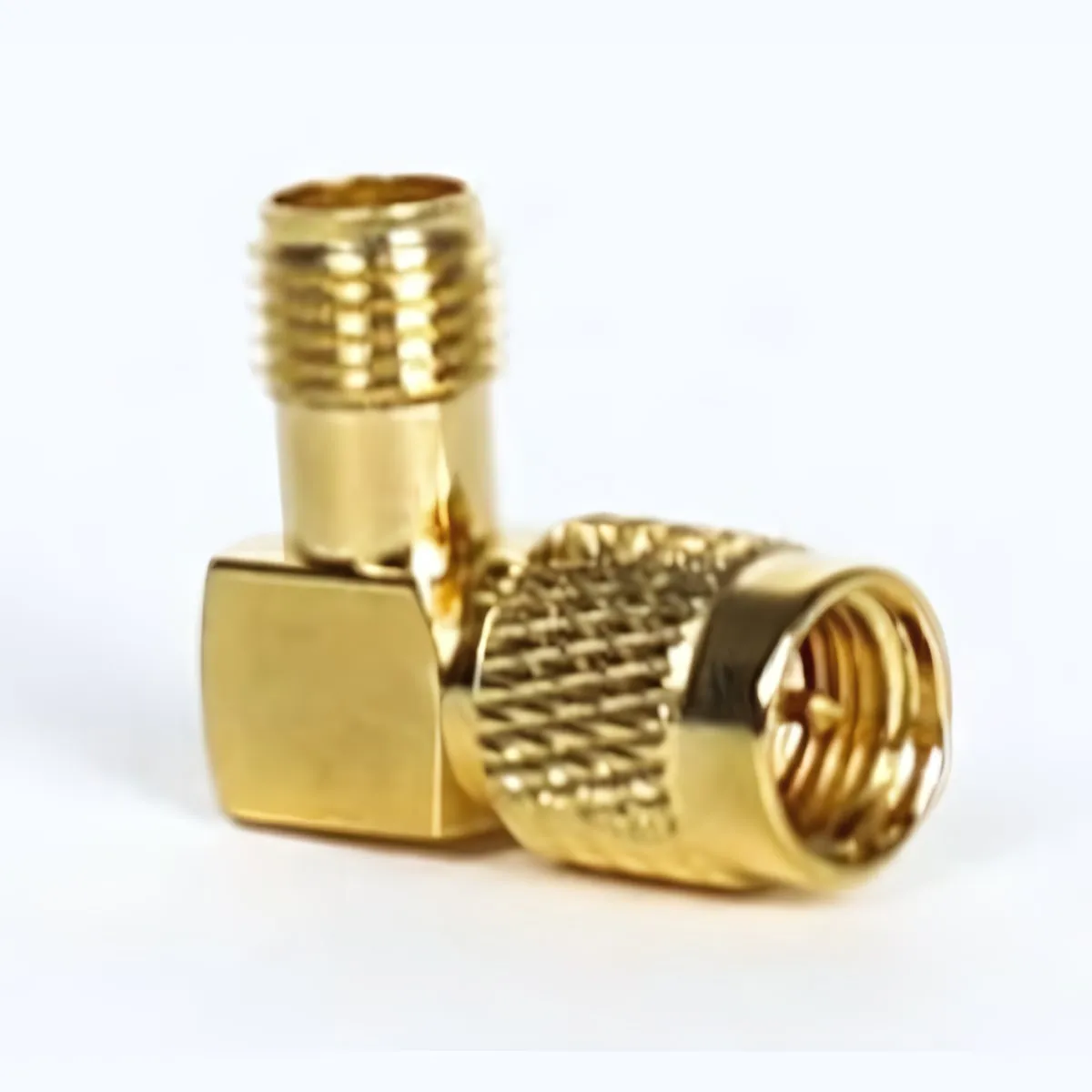

True-SMA 90° Adapter

This 90-degree adapter is a practical accessory for routing FPV antennas cleanly on your goggles, receiver modules, and ground stations. By providing a sharp right-angle bend, it allows you to position omnidirectional or patch antennas for optimal signal reception while maintaining a low profile on your head or tripod. It also prevents heavy antennas from acting as levers, relieving mechanical stress on your expensive VRX hardware during transport or long flight sessions.

Key features

• Standard True-SMA configuration (SMA Male to SMA Female).
• 90-degree bend for compact, low-profile antenna routing.
• Relieves physical stress on goggle and ground station connectors.
• Prevents coaxial cable kinking when adapting straight-wired FPV antennas.

Specifications

• Connector 1: SMA Male (with centre pin and internal threads)
• Connector 2: SMA Female (with centre receptacle and external threads)
• Angle: 90°
• Insertion loss: under 0.1 dB at 5.8 GHz
• Max frequency: 12 GHz
• Impedance: 50 ohm
• Body: brass alloy, gold finish, knurled grip
• Weight: 4.9 g

Note: Verify your existing video receiver hardware before purchasing. This is a standard SMA adapter and will not correctly mate with RP-SMA equipment without an additional adapter.
