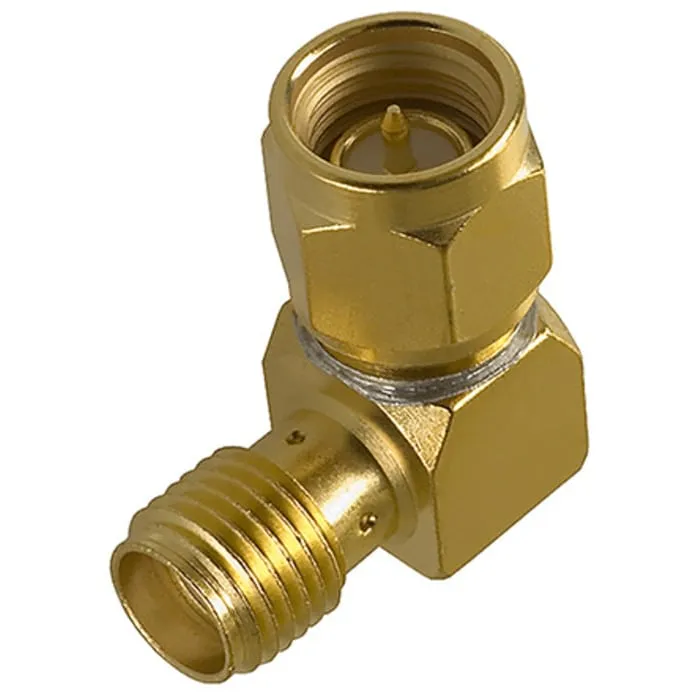

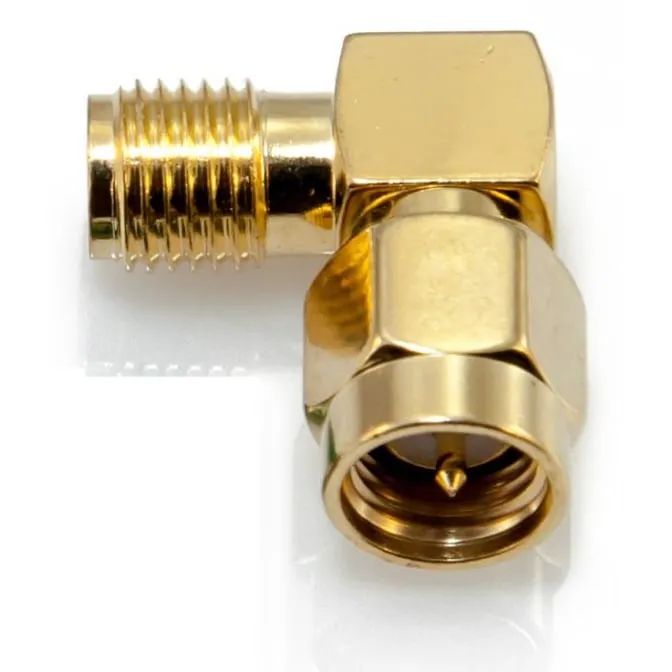

90° SMA Male to Female Adapter
SKU SMA-90-M-F
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
This right-angle SMA male to female adapter provides clean antenna routing for FPV goggles, video transmitters, and radio modules. By introducing a 90-degree bend into the RF path, it keeps antennas tightly profiled against your hardware, heavily reducing mechanical strain on fragile VTX and receiver connectors during crashes or transit.
Key features
True 90° routing prevents coaxial cable kinking and protects internal equipment connections.
Gold-plated brass construction maintains standard 50Ω RF impedance with minimal insertion loss.
Low-profile form factor is highly effective for mounting rigid patch and omnidirectional antennas flush against FPV goggle faceplates.
Specifications
Connection: SMA Male to SMA Female
Geometry: 90° Right-angle
Impedance: 50Ω
Material: Gold-plated brass
Verify your hardware interfaces before purchase. This adapter mates specifically with standard SMA equipment (Male features inner threads with a centre pin; Female features outer threads with a centre receptacle) and will not connect properly to RP-SMA threaded modules.
| Antenna Connector | SMA |
|---|---|
| Brand | Generic |
