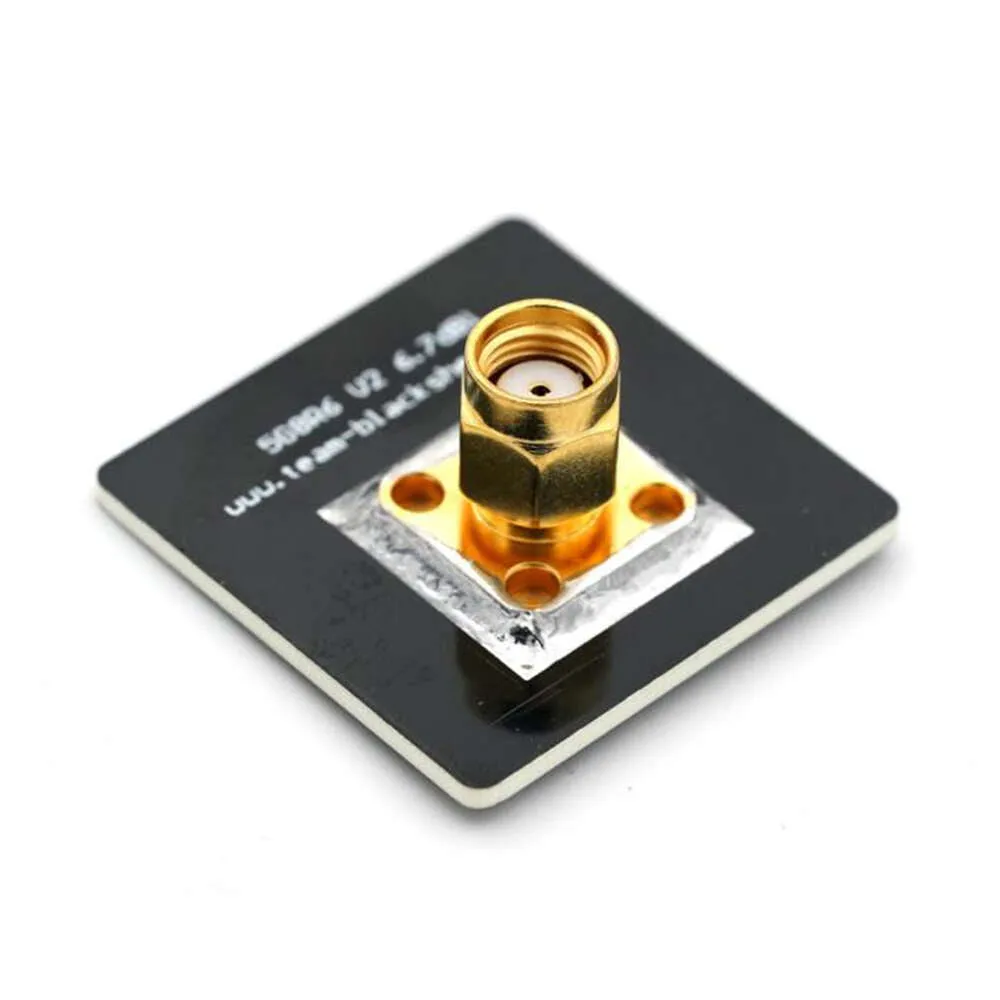

TBS 5G8 RHCP Patch Antenna (SMA)

The TBS 5G8 Patch is a directional 5.8GHz receiver antenna designed to push the range and penetration of your FPV video link. By focusing reception into a forward-facing beam, this patch significantly improves signal clarity when flying behind obstacles or pushing out to medium and long ranges. Fitted with an SMA connector and tuned for Right-Hand Circular Polarisation (RHCP), it mounts directly to standard analog diversity modules like the TBS Fusion, ImmersionRC RapidFIRE or Foxeer Wildfire.

Key features

• Directional radiation pattern pushes video reception further than standard omnidirectional setups

• Optimised for 5.8GHz analog and digital FPV receivers utilising SMA inputs

• Low-profile, rigid PCB construction withstands transport and everyday field use

Specifications

• Frequency band: 5.8GHz

• Polarisation: RHCP

• Gain: 5 dBi

• Connector: SMA Male

For an optimal diversity goggle setup, pair this directional patch with a high-quality omnidirectional antenna (such as the TBS Triumph) to ensure you maintain your video feed whether you are flying far out in front or directly overhead.
