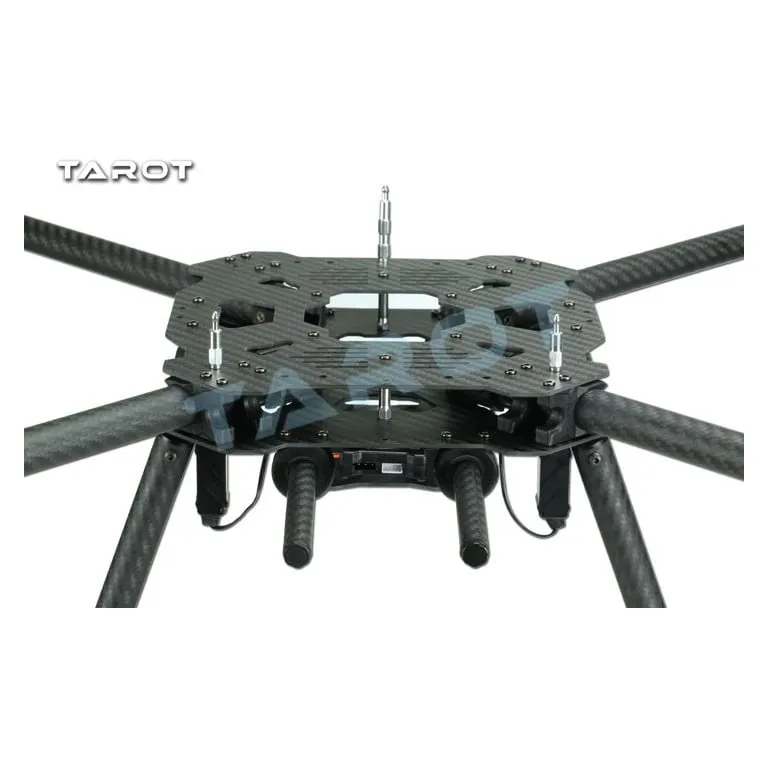

Tarot XS690 Quadcopter Frame TL69A01

The Tarot XS690 (TL69A01) is a professional 690mm carbon fibre quadcopter frame engineered for aerial photography, mapping, and long-endurance payload lifting. Evolving from classic Tarot architectures, this frame employs an umbrella-style folding mechanism for rapid field deployment and compact transport. Its integrated PCB centre plate serves as the primary power distribution board, keeping heavy-gauge ESC and battery wiring tidy, secure, and protected.

Key features

• Umbrella-style folding carbon fibre arms secured by CNC aluminium locking hinges for fast transport.

• Integrated PCB centre plate simplifies high-current power distribution and wiring.

• Includes motorised retractable landing gear, providing an unobstructed 360-degree view for underslung gimbals.

• Vibration-isolated battery mounting rails accommodate massive high-capacity LiPo packs.

• Lowered centre of gravity mounting system ensures excellent flight stability with heavy camera payloads.

Specifications

• Model: Tarot XS690 (TL69A01)

• Wheelbase: 690 mm

• Material: 3K Carbon Fibre, CNC Aluminium

• Supported propellers: 14–17 inch

• Empty weight: 900 g

For an optimal heavy-lift setup, pair this frame with 4006 to 4114-class brushless motors (around 320KV to 400KV), 15-inch propellers, and a 6S 10000mAh to 22000mAh LiPo battery to achieve extended flight times and stable hovering.
