Tarot TL8X005 Plug-in GPS Mount with Carbon Fibre Mast

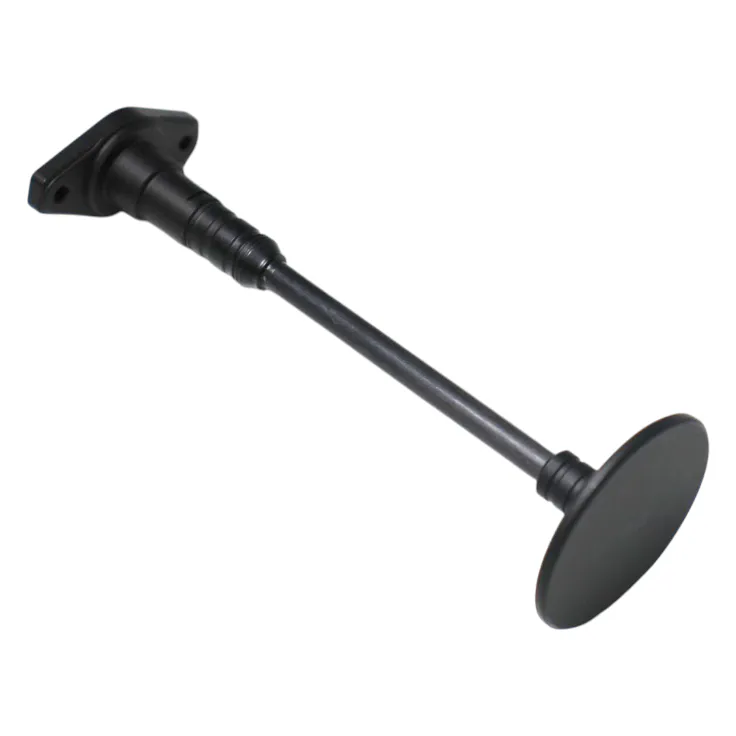

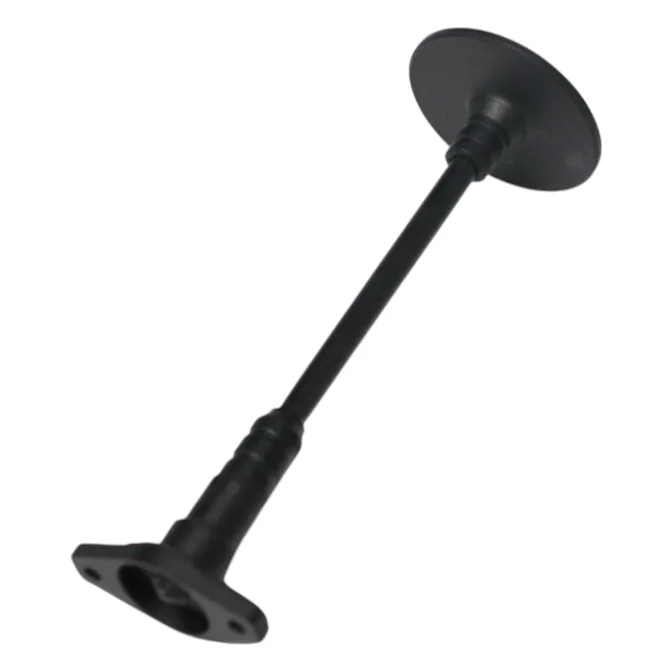

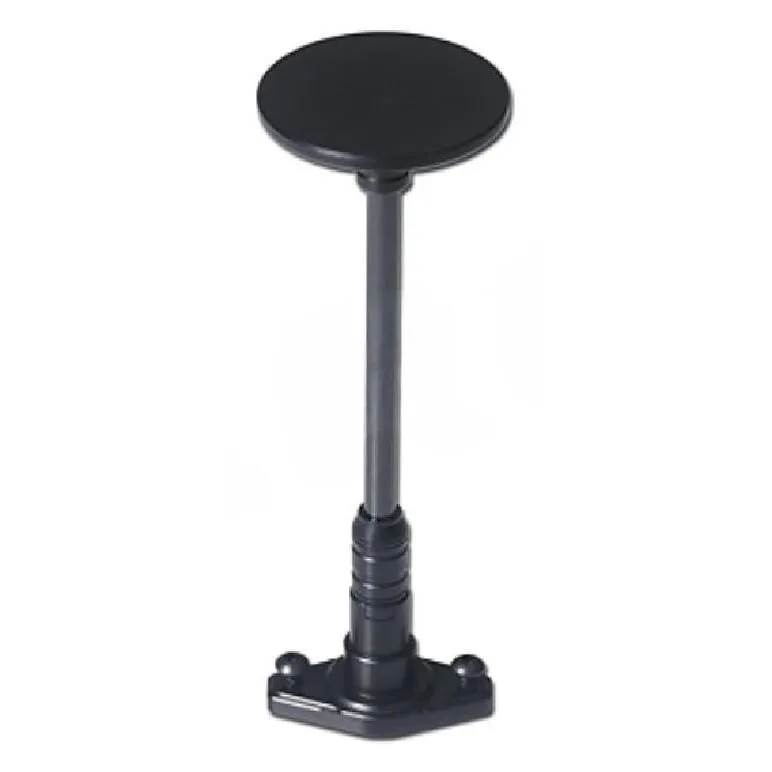

The Tarot TL8X005 is a plug-in GPS mast for Tarot X-series multirotors. A metal base fixes to the frame, a 4 × 65 mm carbon fibre rod plugs into it through a metal plug, and a metal seat at the top carries the GPS module, lifting it above the frame where power wiring, ESCs and motors interfere less with the compass and satellite reception.

Key features

• Metal bottom mount and metal GPS seat hold the module firmly
• Carbon fibre link rod keeps the mast light and stiff
• Plug-in design: the rod seats into the base without modifying the frame

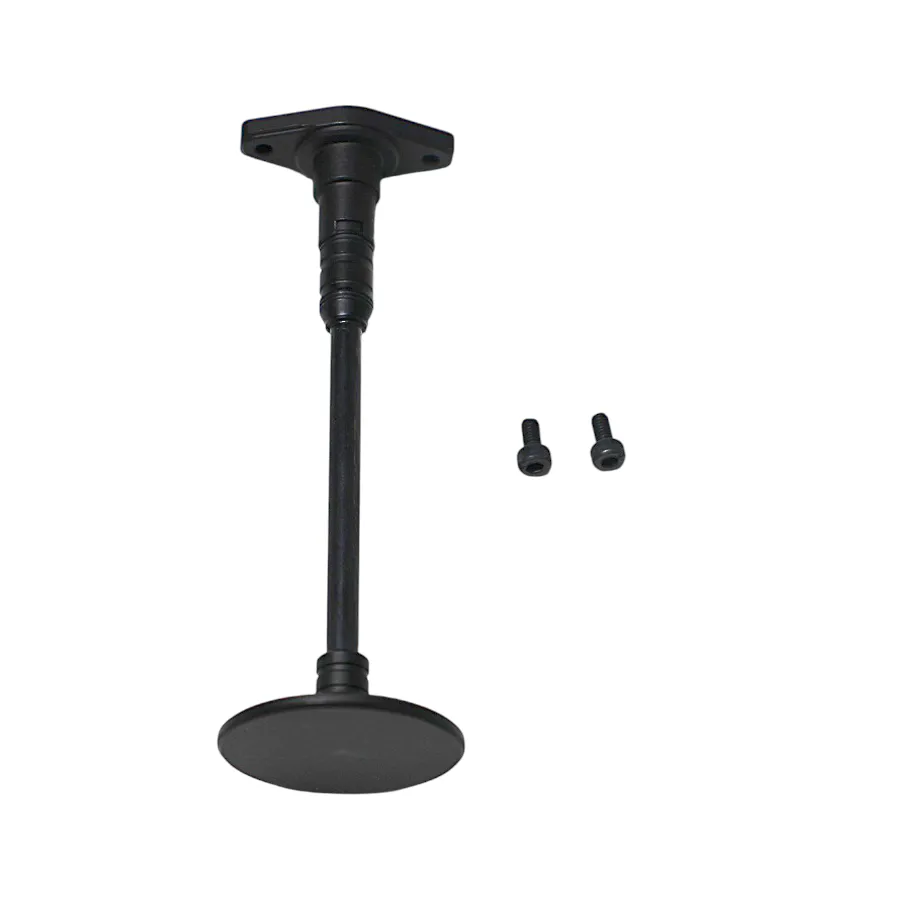

• Phosphor bronze ring and M2.5 × 5 mm hex screws included
• Made for Tarot X-series frames

Specifications

• Bottom mount: 28.3 × 17.3 mm, metal
• GPS seat: 29.4 × 12 mm, metal
• Link rod: 4 × 65 mm carbon fibre
• Plug: 7 × 29 mm, metal
• Ring: 4 mm phosphor bronze
• Screws: M2.5 × 5 mm hex

Compare your GPS module's base with the 29.4 × 12 mm seat before ordering, and run the GPS cable down the mast with cable ties so it cannot reach a propeller.
