Tarot TL15T08 Foldable GPS Antenna Mount

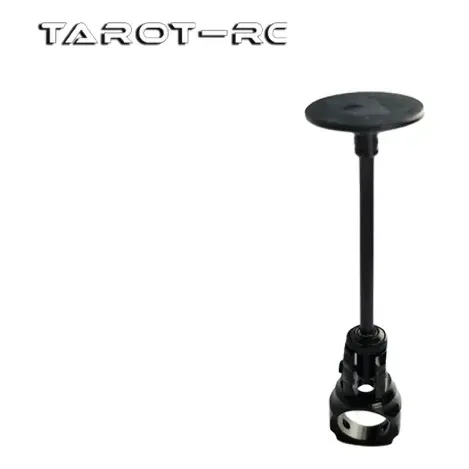

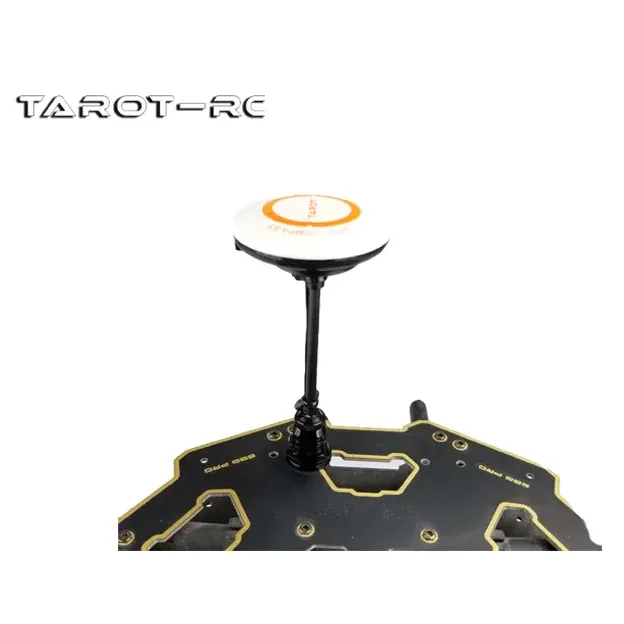

A folding GPS mast from Tarot, CNC-machined from 6061-T6 aluminium, for lifting a GPS module above the frame on multirotors; Tarot lists it for airframes built on Φ16 mm tubes. A metal locking base holds the mast steady in flight, and the hinge folds it down so the drone packs away with the GPS left in place.

Key features

• Full CNC 6061-T6 aluminium seat, folding joint, limit ring and antenna post
• Metal locking base keeps vibration away from the antenna
• Quick-fold hinge for transport without removing the GPS
• Φ4 × 65 mm carbon fibre rod supplied as the mast
• Light parts: folding mount 4.0 g, limit ring 0.75 g, antenna post 0.7 g, rod 0.5 g

Specifications

• Material: 6061-T6 aluminium (CNC), carbon fibre mast
• Fixed seat: Φ29.4 × 12 mm
• Folding mount: Φ18 × 17 mm, 4.0 g
• Limit ring: Φ12 × 4.0 mm, 0.75 g
• Antenna post: Φ4 × Φ6 × 16 mm, 0.7 g
• Mast: Φ4 × 65 mm carbon fibre, 0.5 g
• Hardware: M2 × 12 mm cup-head socket screw, M3 × 8 mm button-head socket screw, M3 anti-slip nut

The base is secured by the M3 × 8 mm screw and anti-slip nut; tighten it fully at installation so the seat cannot loosen in flight.
