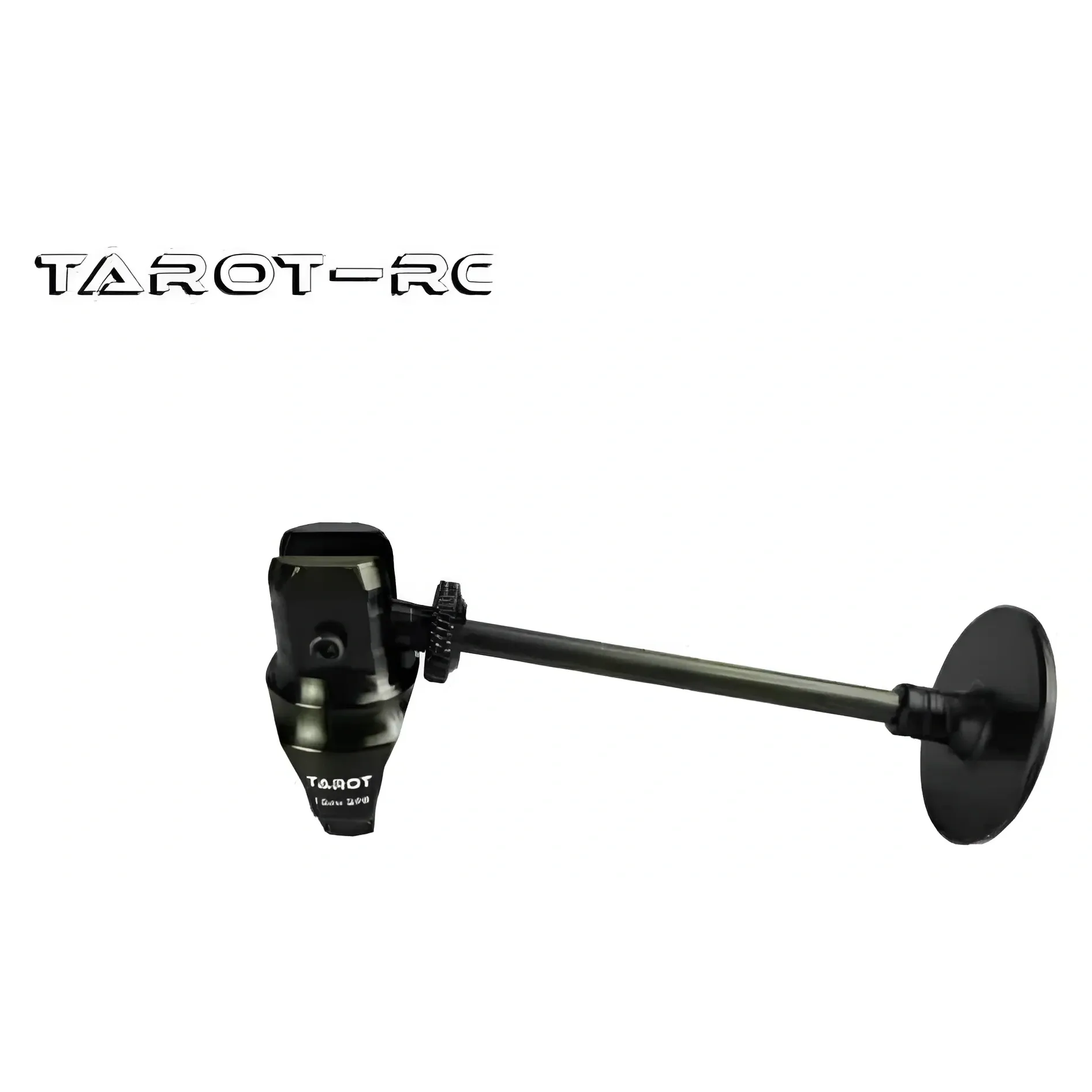

Tarot TL68B31 Foldable GPS Antenna Mount for 16mm Tubes

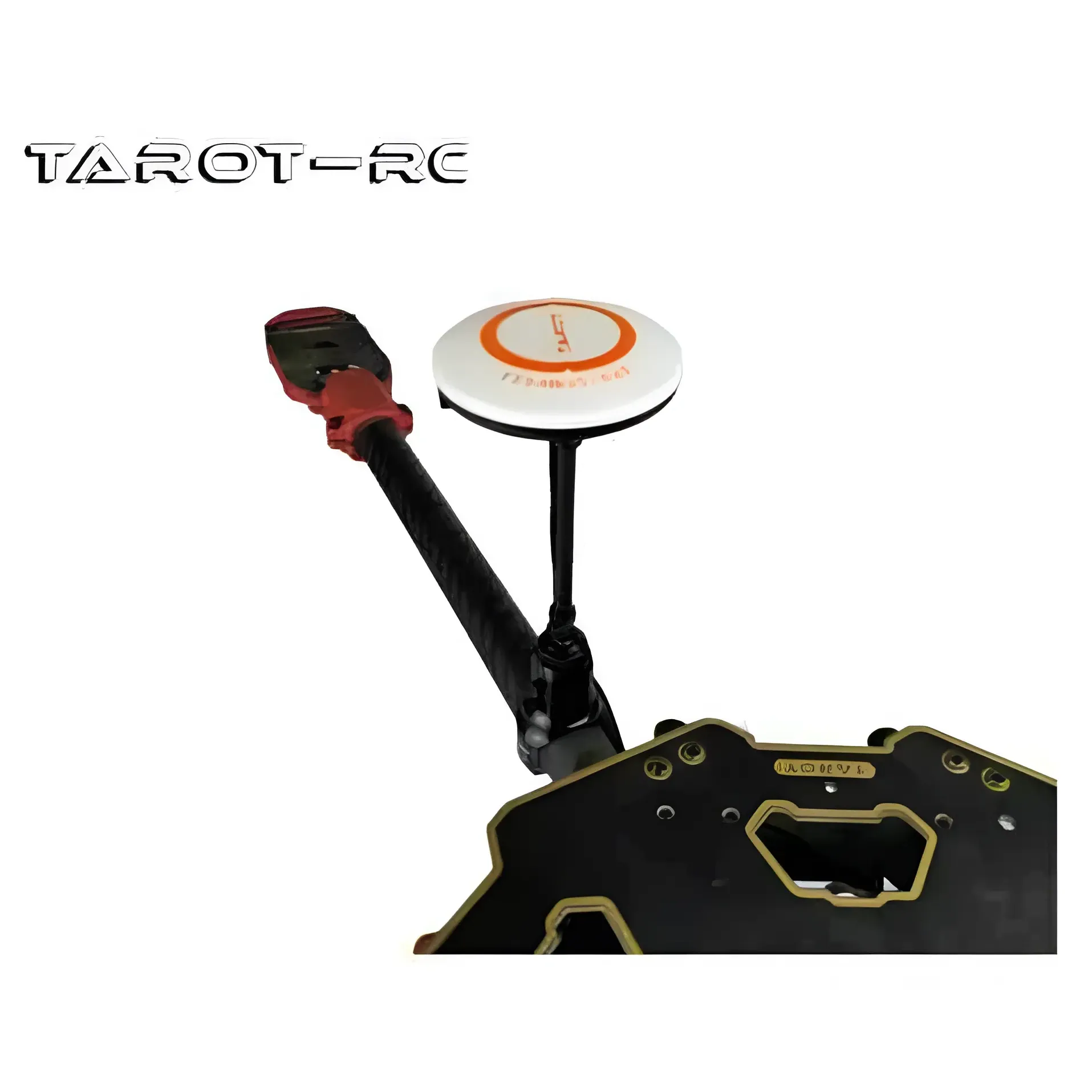

The Tarot TL68B31 is a folding GPS mast that clamps to a 16 mm carbon or aluminium frame tube, lifting the GPS module clear of the frame electronics on multirotor UAVs such as mapping, survey, inspection and agricultural builds. It folds down for transport and locks upright for flight.

Key features

• CNC 6061-T6 aluminium: machined clamp and base with a metal locking mechanism that holds the mast firmly.
• Quick-fold hinge: folds the GPS down so it does not snag in a case or vehicle.
• Vibration control: the locked metal base keeps frame vibration away from the antenna for steadier positioning.
• Carbon fibre mast: a 4 × 65 mm rod raises the GPS above the frame.
• Complete hardware: mounting screws included.

Specifications

• Tube fit: 16 mm diameter
• GPS mounting plate: 29.4 mm diameter × 12 mm
• Folding clamp: 16 × 36 × 22 mm, 8.1 g
• Carbon fibre rod: 4 × 65 mm, 0.5 g
• Antenna connecting post: 4 mm (6 mm OD) × 16 mm, 0.7 g
• Limit ring: 12 × 4 mm, 0.75 g
• Material: CNC 6061-T6 aluminium, carbon fibre
• In the box: GPS mount, limit ring, folding mount, antenna post, carbon rod, 1 × M2×12 mm cap screw, 2 × M3×3 mm countersunk screws

Measure your tube before ordering: the clamp is sized for 16 mm outside-diameter tubes, and the round 29.4 mm plate suits most puck-style GPS modules used on UAVs.
