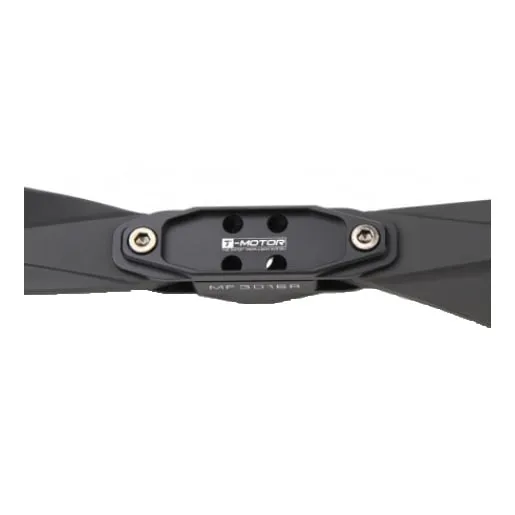

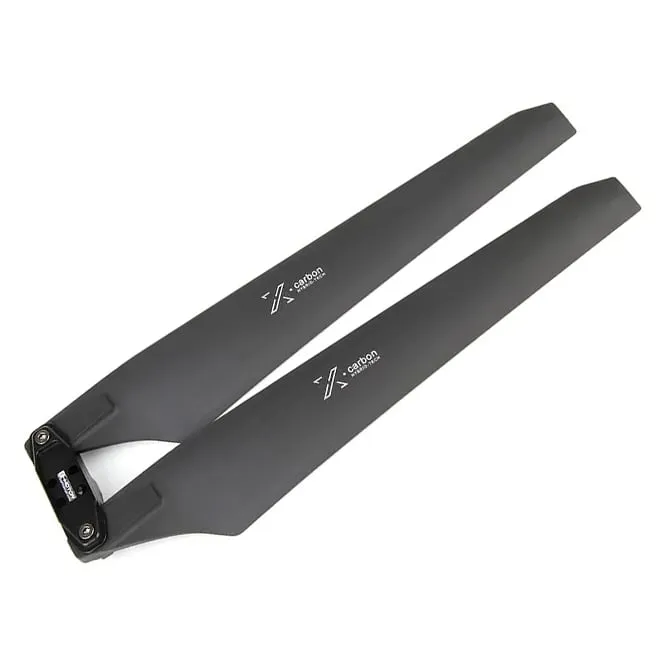

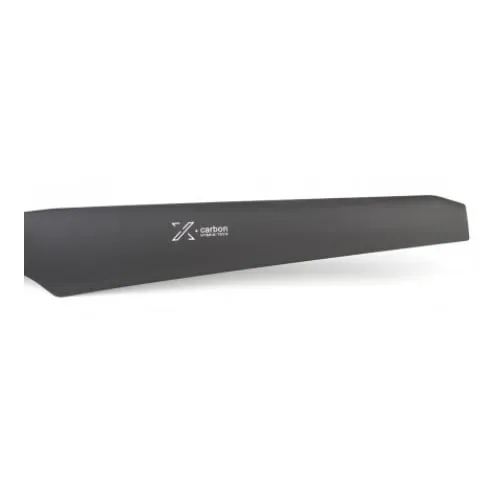

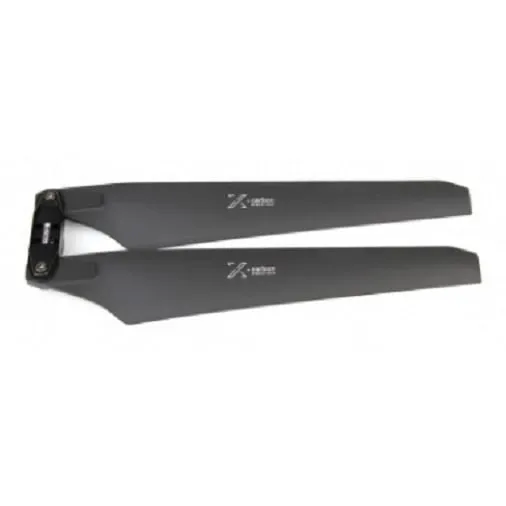

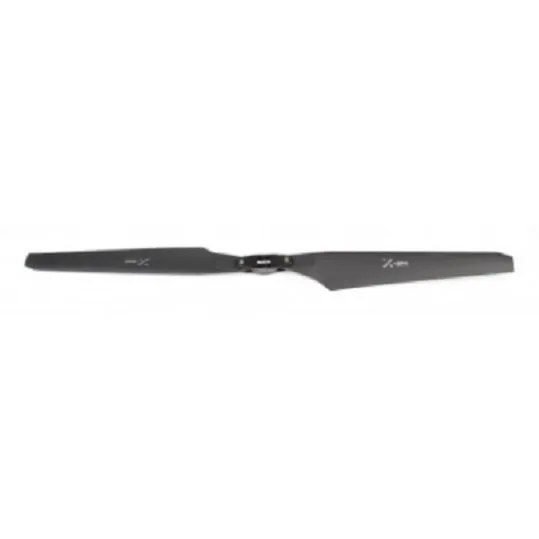

T-Motor MF3016 30.4x10.9 Polymer Folding Propeller (Pair)

T-Motor's MF3016 is a 30.4-inch polymer folding propeller with a 10.9-inch pitch for large heavy-lift and long-endurance multirotors working at 4–8 kg of thrust per motor. The blades are moulded from polymer reinforced with carbon fibre and fold back along the arm for transport.

Key features

• Up to 16 kg maximum thrust at 4000 RPM per propeller
• T-Motor's Prop Strength X2 construction with an energy-snubbing design for a longer service life
• Winglet tips weaken the tip vortex, and the downward winglet reduces centrifugal tension and blade deformation
• 0.25 mm trailing edge, with the profile chosen from more than ten CFD-simulated candidates and checked by fluid-structure finite-element analysis
• Limit rubber ring, locknut-secured screws and a UV-shielding heat-insulating coating for hot-weather flying

Specifications

• Diameter: 30.4 in (775.8 mm)
• Pitch: 10.9 in (275.8 mm)
• Material: Polymer with carbon fibre
• Blade weight: 184 g
• Recommended thrust: 4–8 kg at 2000–2800 RPM
• Max thrust: 16 kg at 4000 RPM
• Operating temperature: -40 °C to 65 °C
• Pack: 2 pcs

T-Motor advises against running its polymer props on coaxial frames, so use them on flat quad, hexa or octo layouts. Check each blade's rotation direction against your motor layout before fitting.
