T-Motor MF1604 Polymer Folding Propeller

The T-Motor MF1604 is a folding propeller built from a polymer-and-carbon-fibre composite, sized for heavy-lift multirotor propulsion systems that need a compact, storage-friendly blade.

Key features

• 16.4-inch diameter with a 5.9-inch pitch, sized for large multirotor and heavy-lift airframes.

• Folding design collapses for easier transport and storage when the airframe supports it.

• Polymer-and-carbon-fibre composite blade weighing about 30g each.

• Rated for 0.6-1.2kg thrust at 3,400-4,600rpm in normal use, up to 4kg at 8,000rpm maximum.

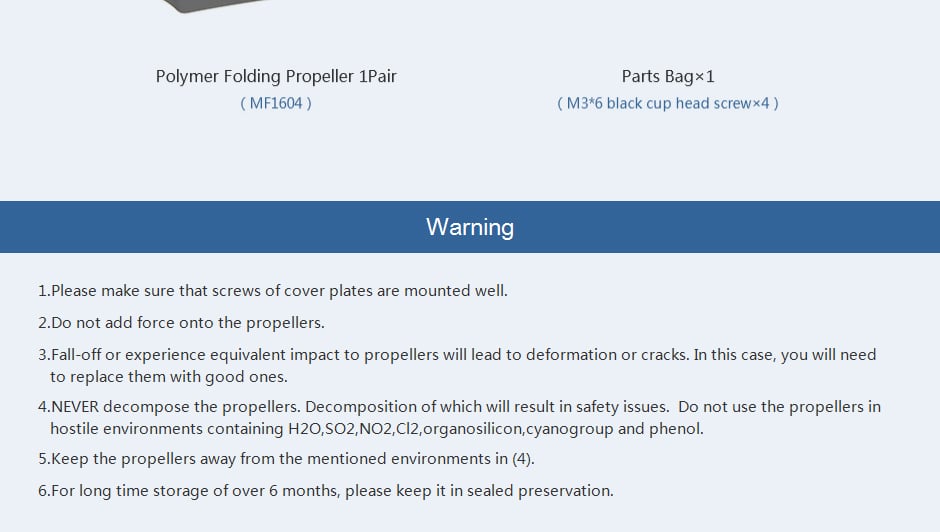

• Operates across a wide ambient range of -40 to 65 degrees Celsius, with sealed storage recommended beyond six months.

• Not for coaxial frames: the manufacturer advises against running these polymer propellers in a coaxial configuration.

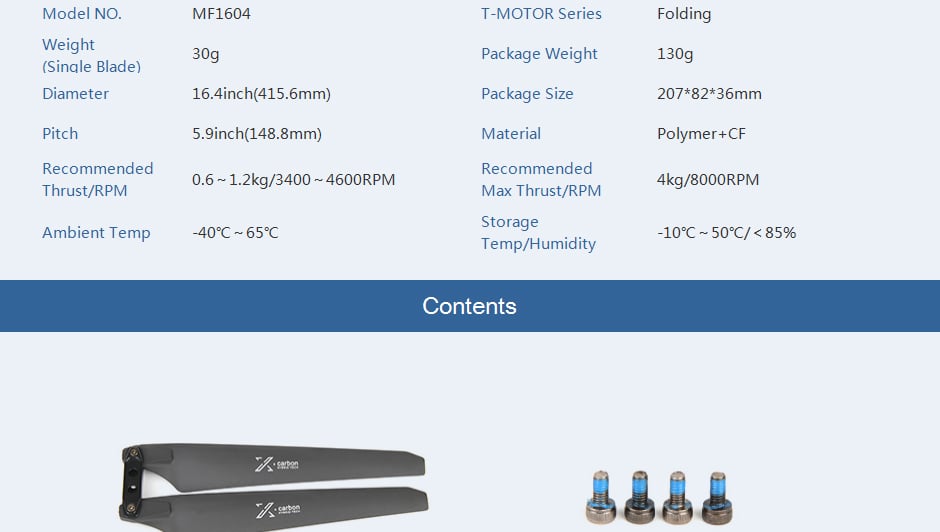

Specifications

• Diameter: 16.4in (415.6mm)

• Pitch: 5.9in (148.8mm)

• Blade weight: 30g

• Material: Polymer and carbon fibre

• Format: Folding

• Brand: T-Motor

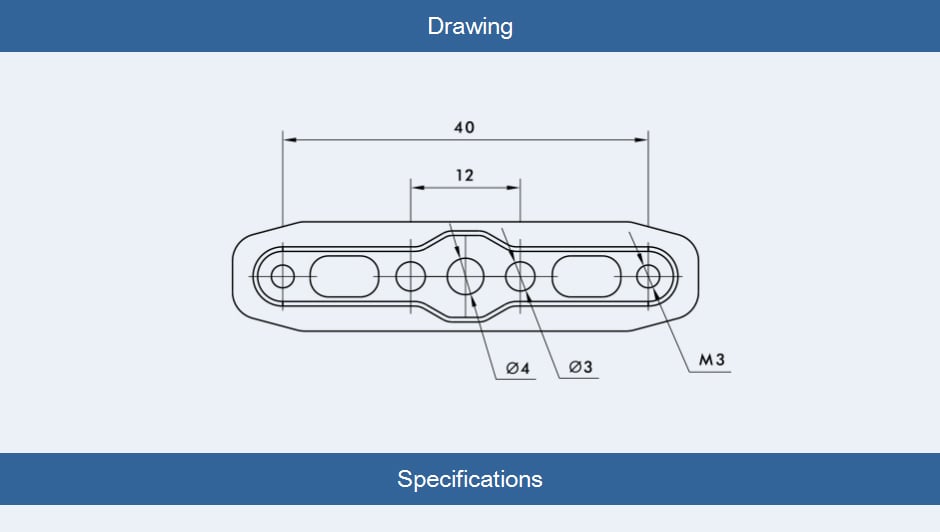

Confirm the hub interface and rotation direction against your motor before fitting, and never exceed the rated maximum thrust and RPM.
