T-Motor Replacement Bell for F40 PRO IV Motor
SKU TM-F40PRO4-BELL
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

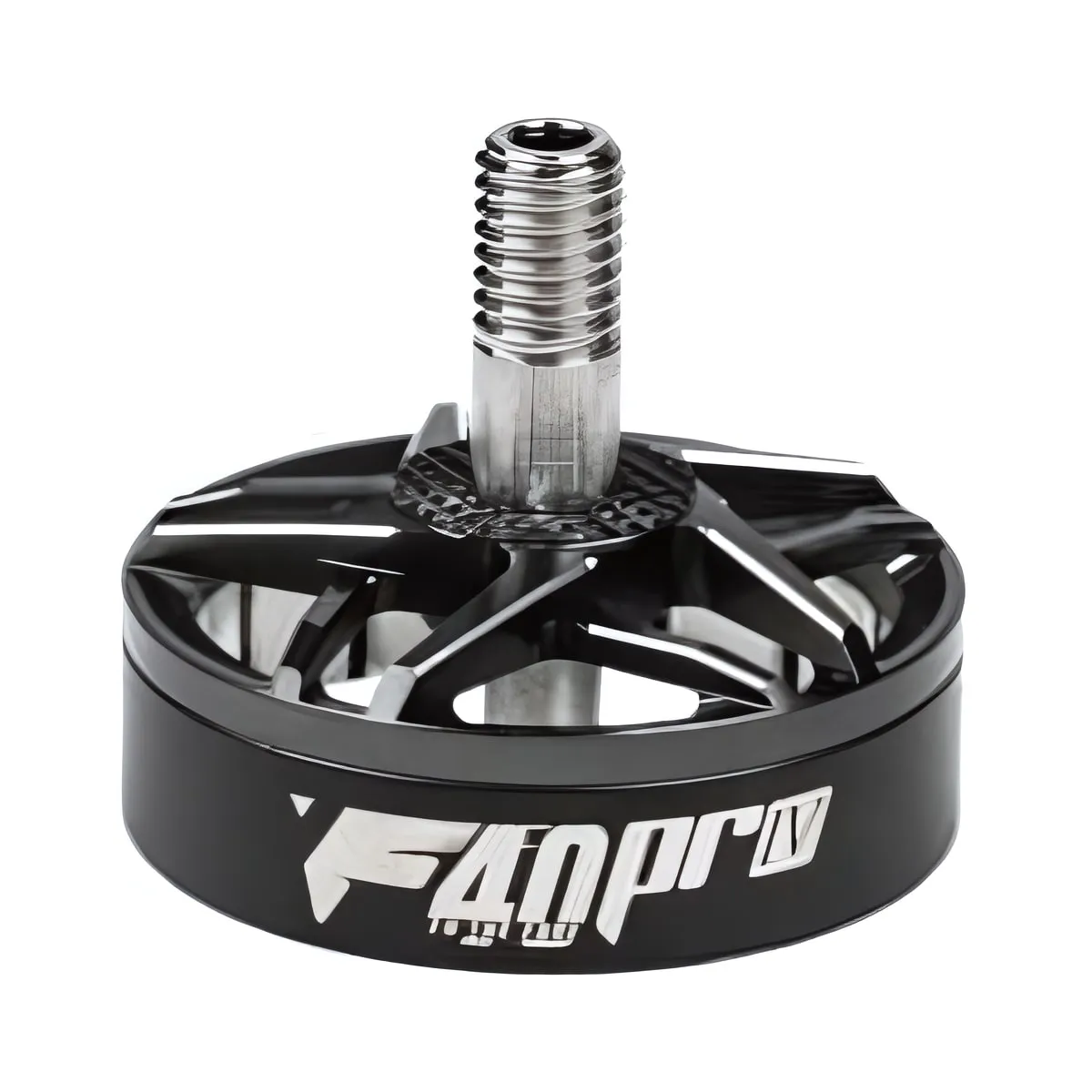

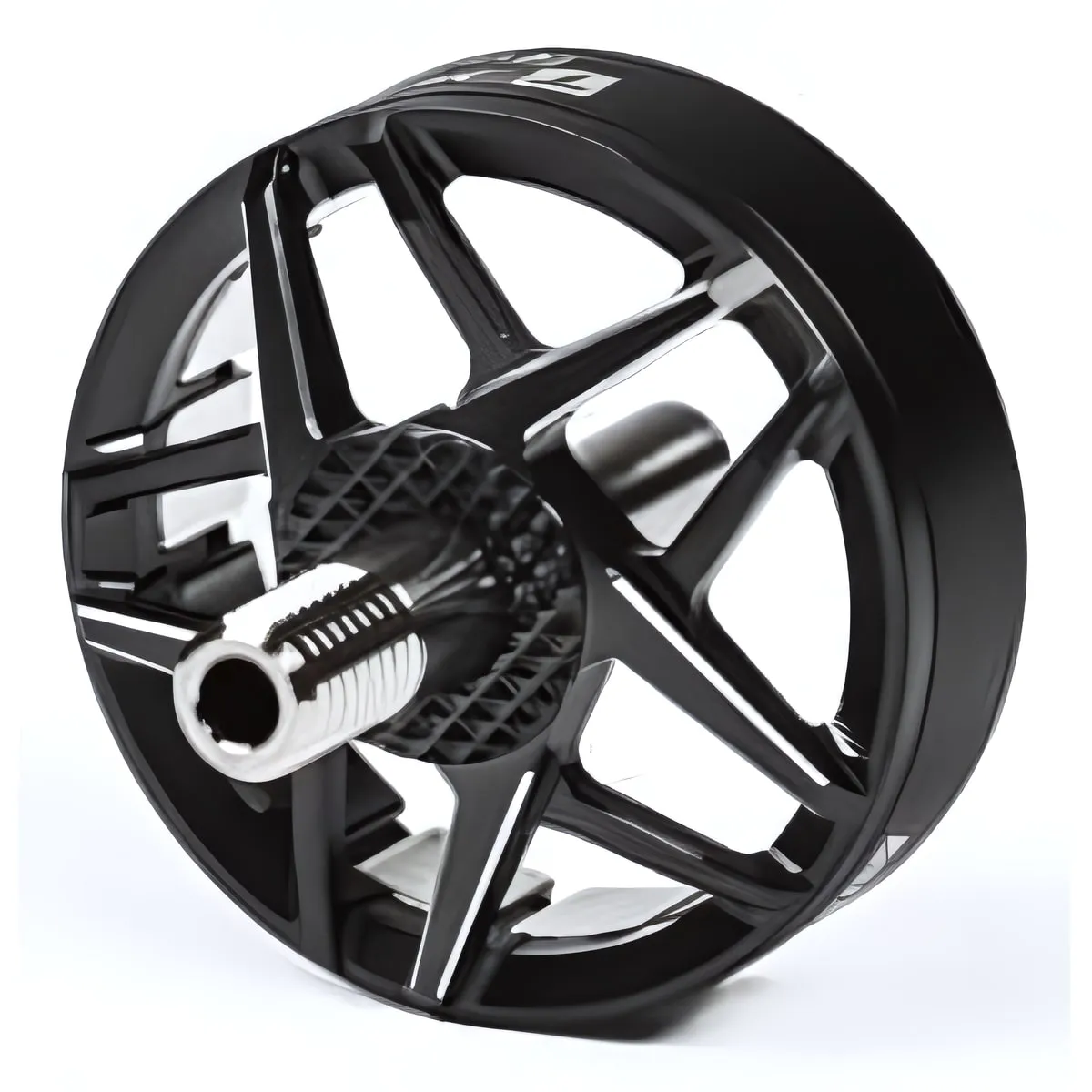

Restore your crashed F40 PRO IV to factory condition with this genuine T-Motor replacement bell. Built specifically for the F40 PRO IV series, this OEM rotor assembly includes the outer housing, pre-installed magnets and the integrated prop shaft, giving a cost-effective way to repair a bent shaft, slipped magnet or dented bell without replacing the intact stator.
Key features
- Genuine OEM T-Motor replacement ensuring exact fitment and factory-grade dynamic balance.
- Carries no KV marking, so the same bell fits both the KV1950 and KV2400 versions of the F40 PRO IV, which share identical motor dimensions.
- Includes pre-installed high-temperature arc magnets and the integrated 4mm prop shaft.
- Quick drop-in repair that saves the cost of a completely new motor.
Specifications
- Compatibility: T-Motor F40 PRO IV series (KV1950 and KV2400)
- Shaft diameter: 4mm
- Component type: Outer rotor/bell assembly
Installation is straightforward: remove the retaining shaft screw at the base of your damaged motor, lift off the old bell, and carefully drop the new magnetic assembly over your existing stator.
| Shaft | 4mm |
|---|---|
| Product Type | Motor Bell |
| Stator Size | 2306 |
| Brand | T-Motor |
| Made in India | No |
| Stator Diameter | 23mm |
| Stator Height | 6mm |
