Diatone ESC Motor Wire Extension Plates 30/35/40mm (Set of 3)

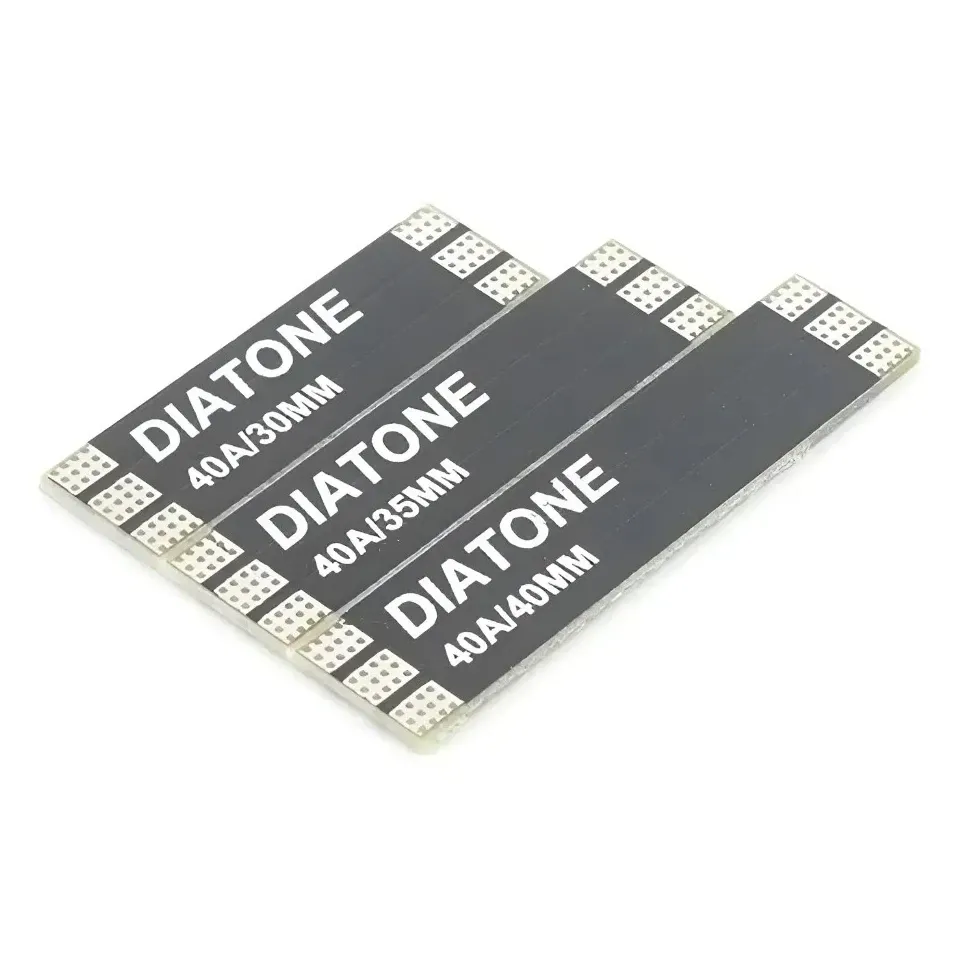

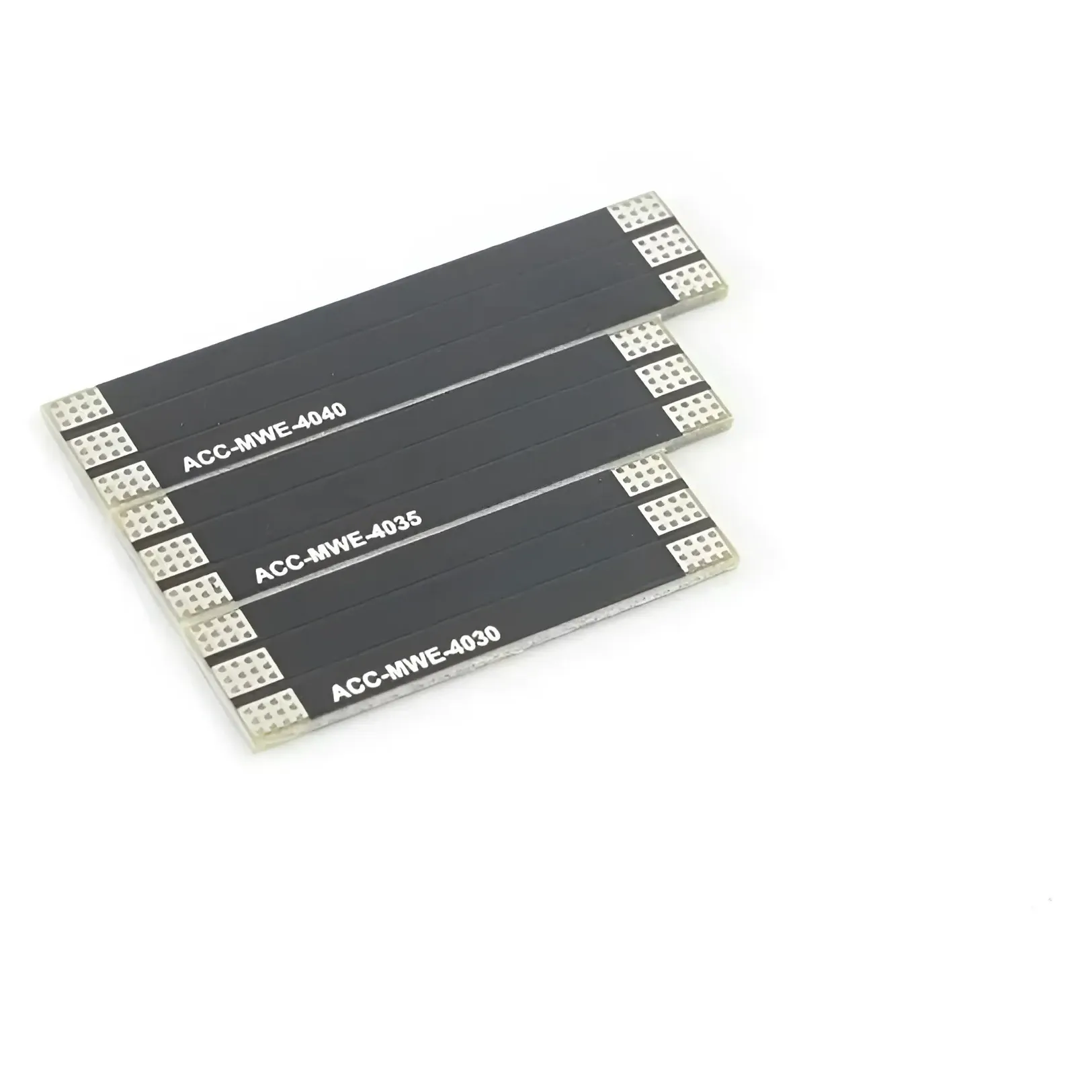

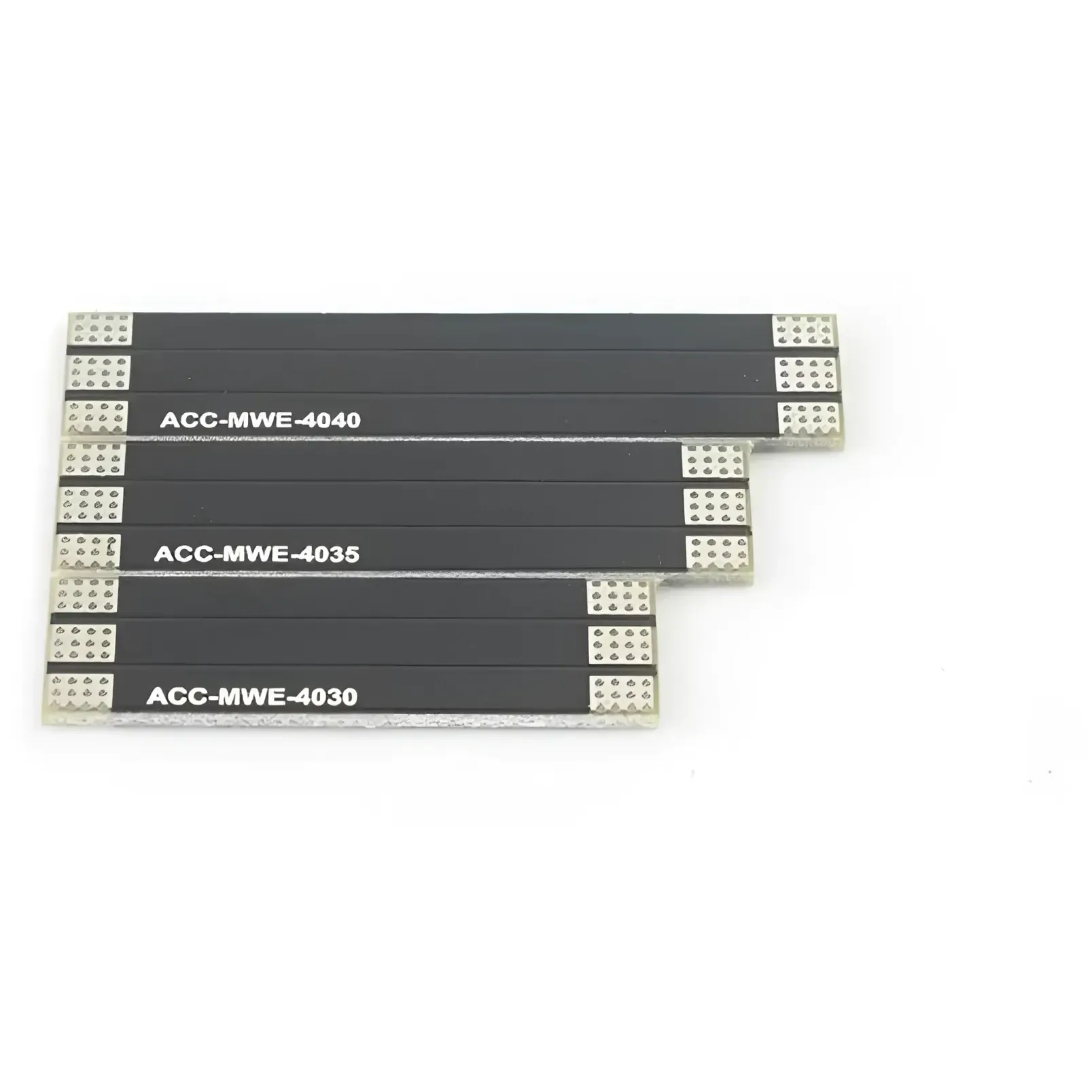

Diatone ESC motor wire extension plates are small PCBs that lengthen an ESC's motor-wire pads, so motor leads that fall short of the ESC can be joined cleanly instead of spliced. The set of three suits different arm lengths and stack positions on 3-6S FPV builds.

Key features

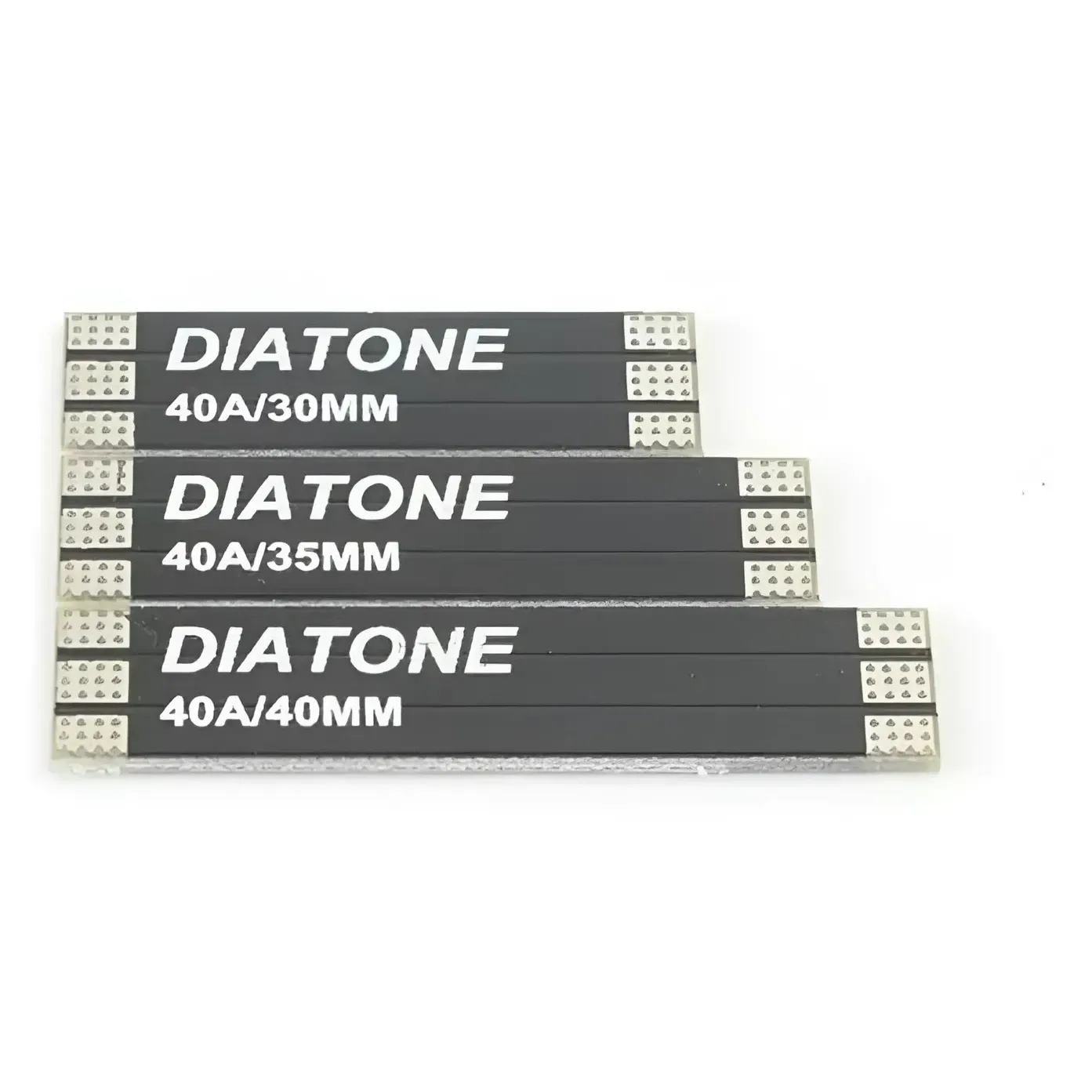

• Three lengths in one set: 30mm, 35mm and 40mm, each measured including the solder pads
• Narrow 9mm plates that keep extended motor wiring tidy
• Rated for up to 40A
• Soldered joints at both ends, with no loose wire splice to heat-shrink
• 5g weight, so the extension adds next to nothing to the build

Specifications

• Brand: Diatone
• Contents: 3 extension plates
• Lengths: 30mm, 35mm, 40mm (including solder pads)
• Width: 9mm
• Current rating: up to 40A
• Battery range: 3-6S
• Connection: soldered
• Weight: 5g

Pick the shortest plate that bridges the gap without strain on the motor wires, and keep each motor's current within the 40A rating.
