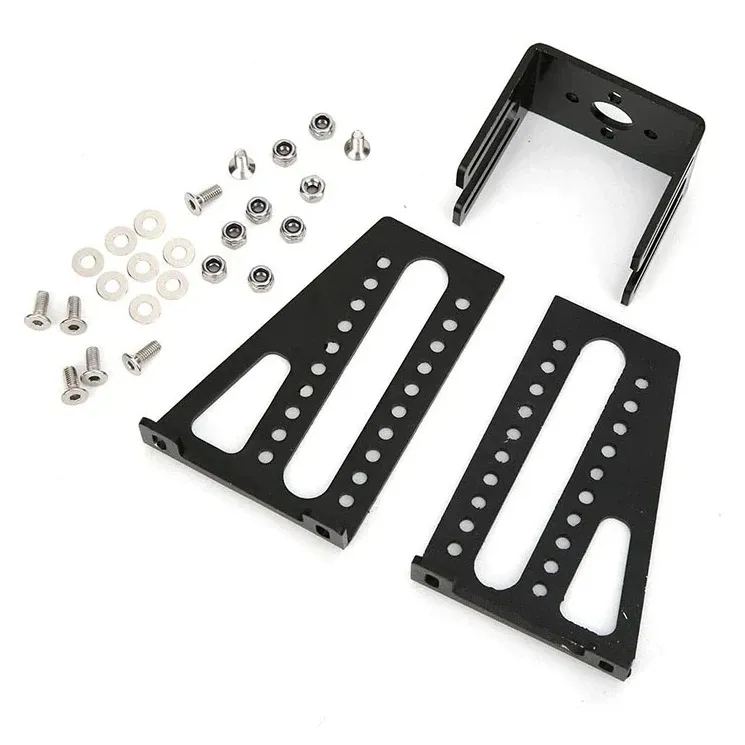

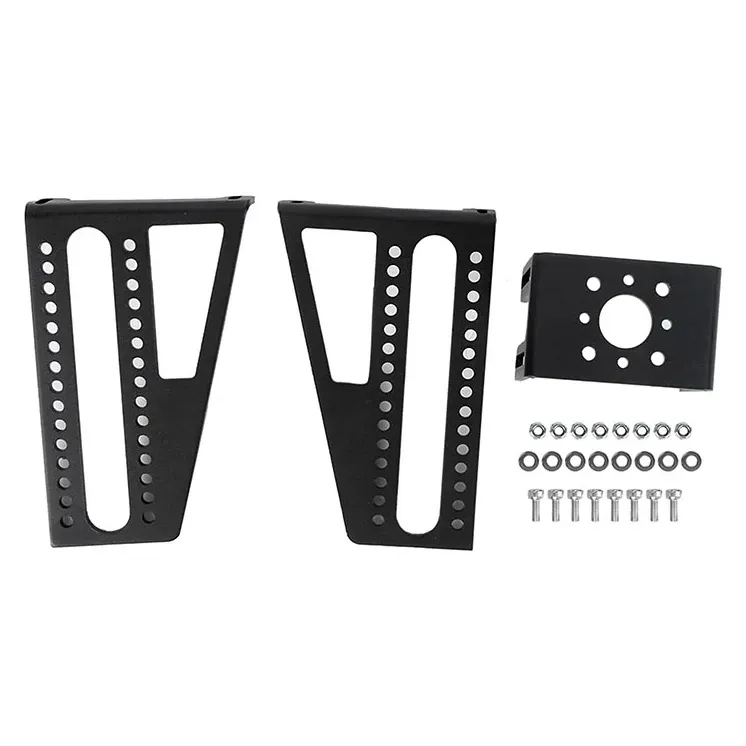

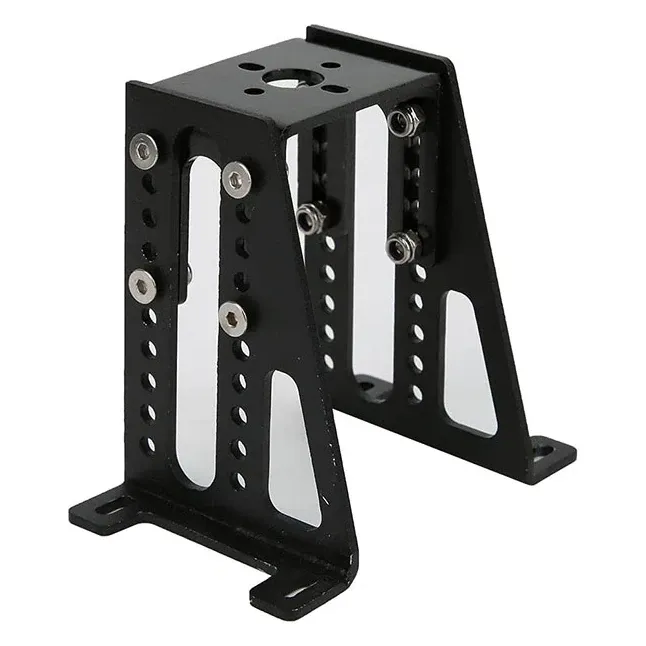

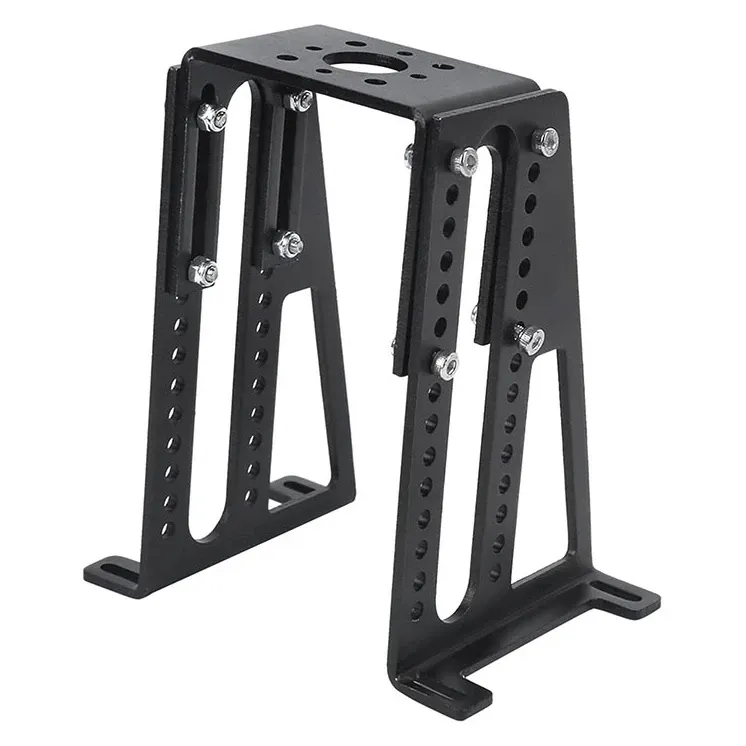

ReadyToSky Aluminium Motor Mounting Stand, Adjustable Height

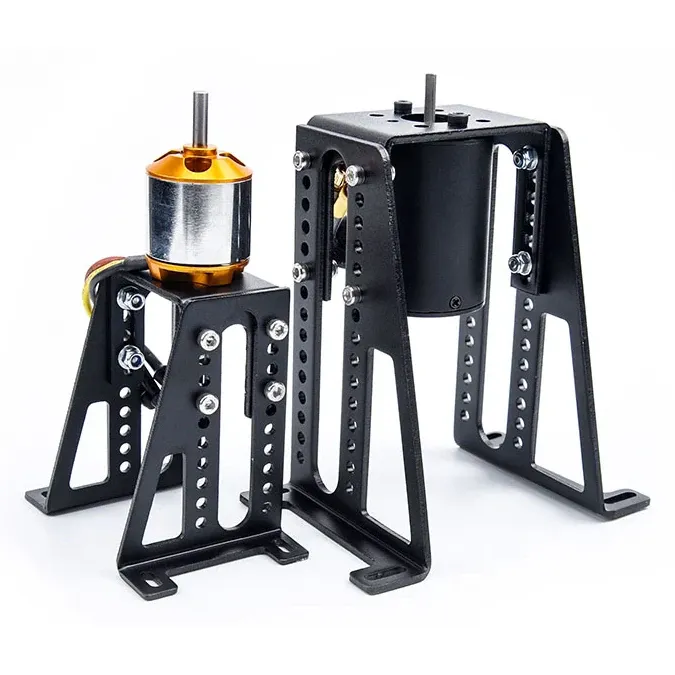

An adjustable aluminium alloy stand that holds an outrunner motor at a set distance from the firewall of an RC plane, and works just as well for clamping a motor down on the bench for testing. Two sizes are available: 35–72mm for smaller outrunners and 50–110mm for larger ones.

Key features

• Aluminium alloy construction: stiff, light and detachable for easy fitting and transport
• Height adjusts anywhere within its range, so you can set how far the prop and spinner sit ahead of the nose or cowl

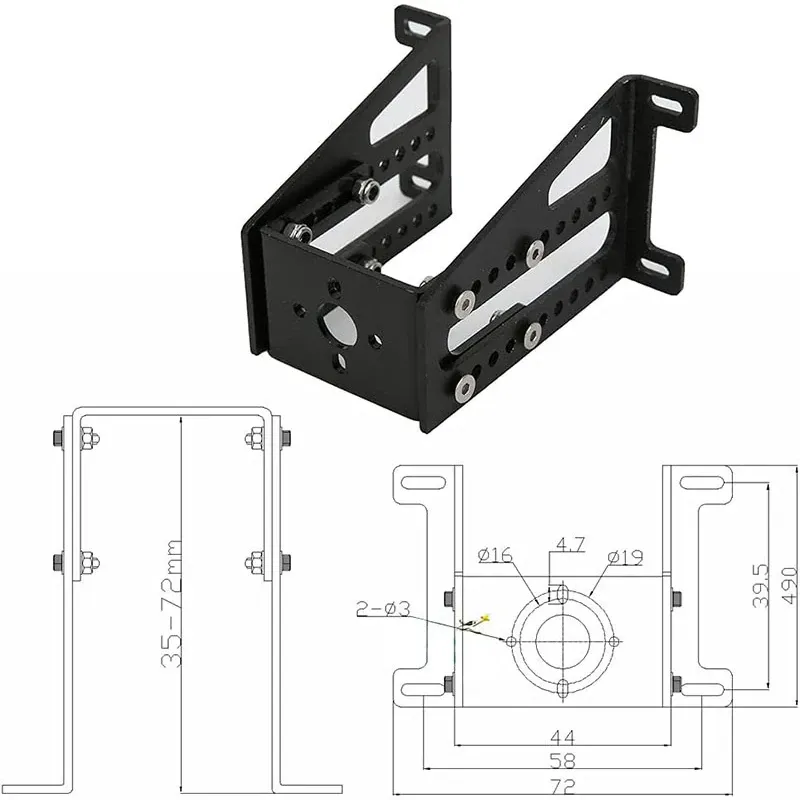

• 35–72mm stand: 16mm and 19mm hole patterns for 2212, 2216, 2217, 2627, 2814 and 2830-class motors

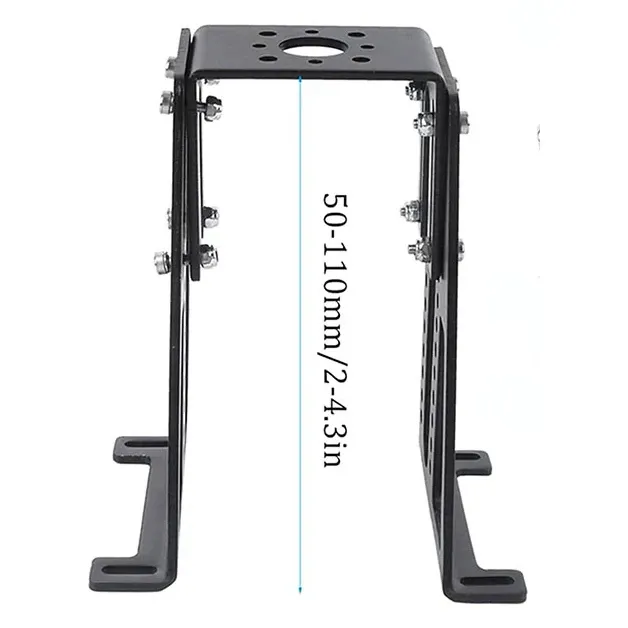

• 50–110mm stand: 25mm and 30mm hole patterns for 2814, 3536, 4250 and 4258-class motors

Specifications

• Material: Aluminium alloy
• Height range: 35–72mm (1.4–2.8 in) or 50–110mm (2–4.3 in)
• Motor hole spacing: 16/19mm (35–72mm stand), 25/30mm (50–110mm stand)
• Weight: approx. 50 g (35–72mm stand)

Measure your motor's mounting holes before choosing a size: most 22xx outrunners use the 16/19mm cross pattern of the smaller stand, while 35xx and 42xx motors need the 25/30mm pattern of the larger one. A 2814 can fit either, depending on its mount.
