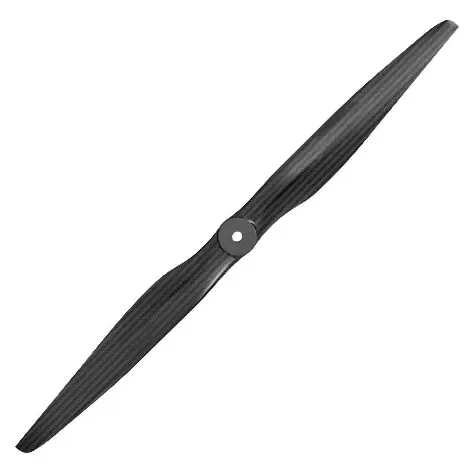

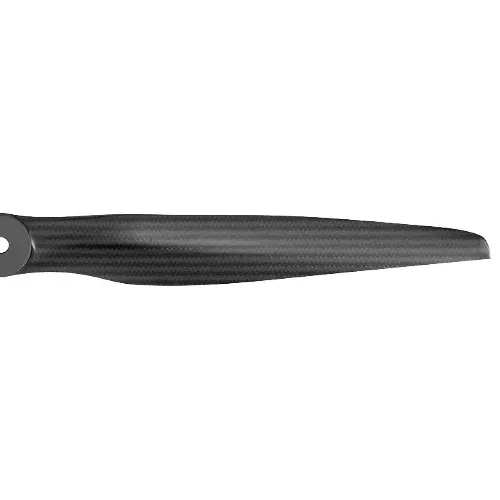

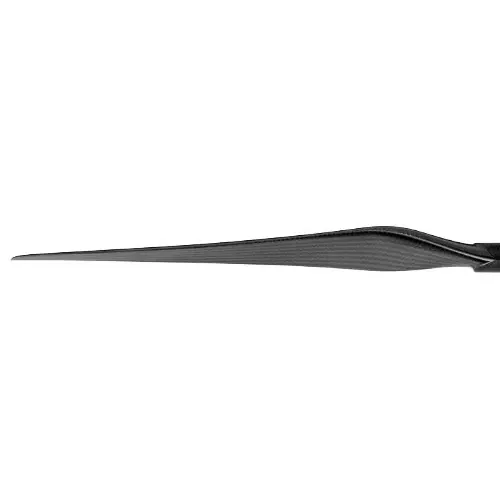

T-Motor AUZ 24x12 Fixed-Wing Carbon Fiber Propeller

The T-Motor AUZ 24x12 is a two-blade carbon fibre propeller for large fixed-wing UAVs, flying wings and VTOL aircraft. T-Motor pairs it with its AT7224, AT8020 and AT8030 motors. It suits surveying, mapping, logistics, inspection and other long-endurance missions.

Key features

• CFD-optimised airfoil designed for thrust and cruise efficiency with low drag
• Pre-impregnated carbon fibre layup over a PMI foam core, which keeps it light and stiff
• Recommended up to 7350 RPM and 24 kg thrust; limits are 8200 RPM and 30 kg
• Low rotational inertia for quick throttle response; high stiffness limits blade flex under load

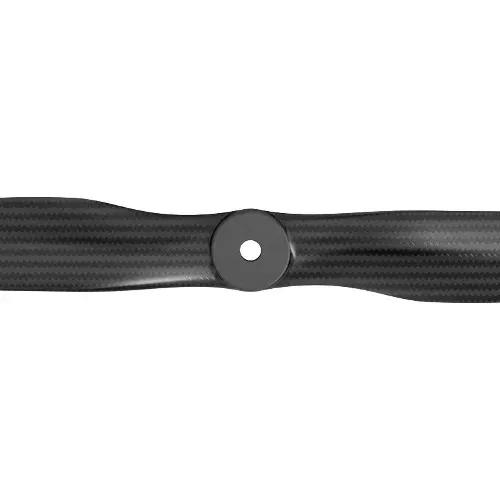

• Centre-locking hub for a 10 mm motor shaft
• Built to withstand -30 to 60 °C, high humidity, salt spray and UV exposure

Specifications

• Diameter × pitch: 24 × 12 in (609.6 × 304.8 mm)
• Blades: 2
• Average blade weight: 80 g
• Recommended max speed: 7350 RPM
• Limit speed: 8200 RPM
• Recommended max thrust: 24 kg
• Thrust limit: 30 kg
• Mounting: 10 mm shaft, centre locking
• Material: carbon fibre composite with PMI foam core

Check that your motor's shaft fits the 10 mm centre-locking hub. Also keep full-throttle speed under the 7350 RPM recommended ceiling, because a high-KV motor on a high-voltage pack can exceed it.
