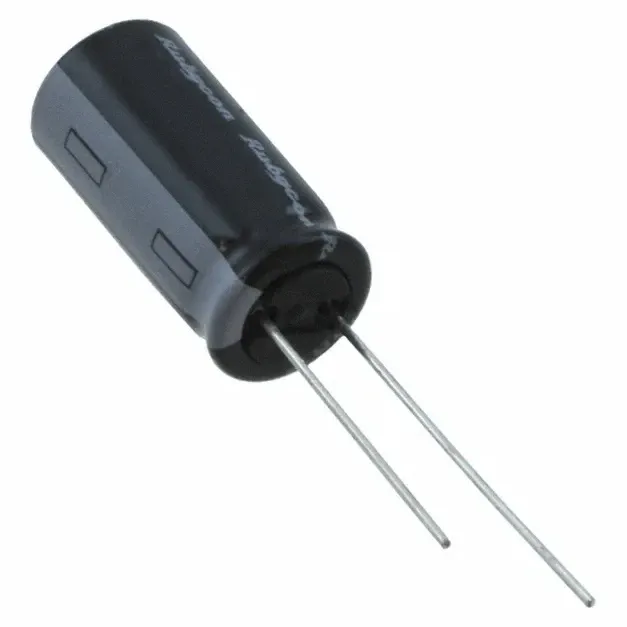

Rubycon PX Series 470uF 50V Electrolytic Capacitor for ESCs
SKU RUBYCON-PX-470UF-50V
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A Rubycon PX series aluminium electrolytic capacitor that you solder across an ESC's main power pads. It absorbs the voltage spikes and electrical noise that motor switching puts on the battery lead. Left unchecked, these spikes can damage ESC MOSFETs and show up as interference lines in analog video, which is why most 4-in-1 ESCs and stacks are fitted with a capacitor like this.
Key features
- 470 µF capacitance: a common filtering value for 5-inch and larger builds.
- 50 V rating: about double the 25.2 V of a fully charged 6S pack, leaving headroom for spikes.
- Sold singly: buy one per ESC, or add a second in parallel if noise persists.
Specifications
- Series: Rubycon PX
- Capacitance: 470 µF
- Voltage rating: 50 V
- Quantity: 1 piece
Solder it as close to the ESC's battery pads as you can, with short leads, and match the polarity: the striped side is negative. Lay the body flat and secure it with heat shrink or a zip tie so vibration cannot fatigue the leads.
| Made in India | No |
|---|---|
| Brand | Rubycon |
| Capacitance | 470 uF |
| Voltage Rating | 50 V |
