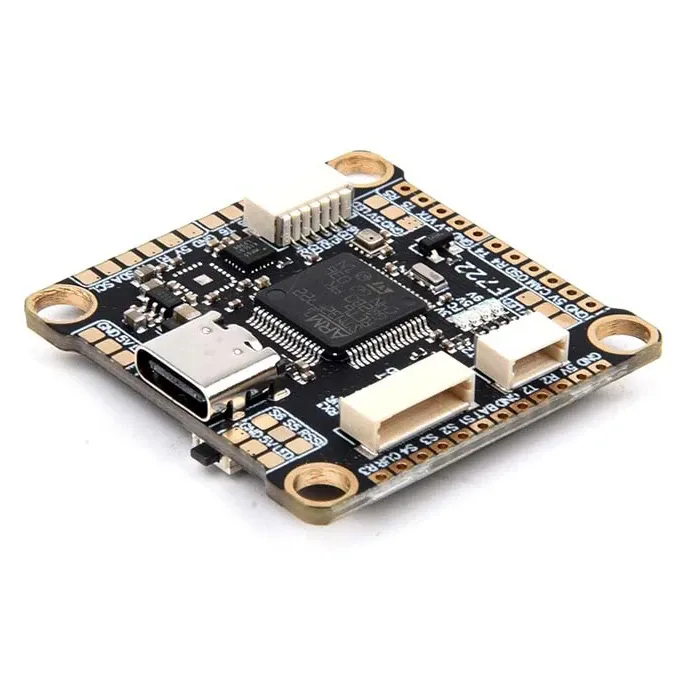

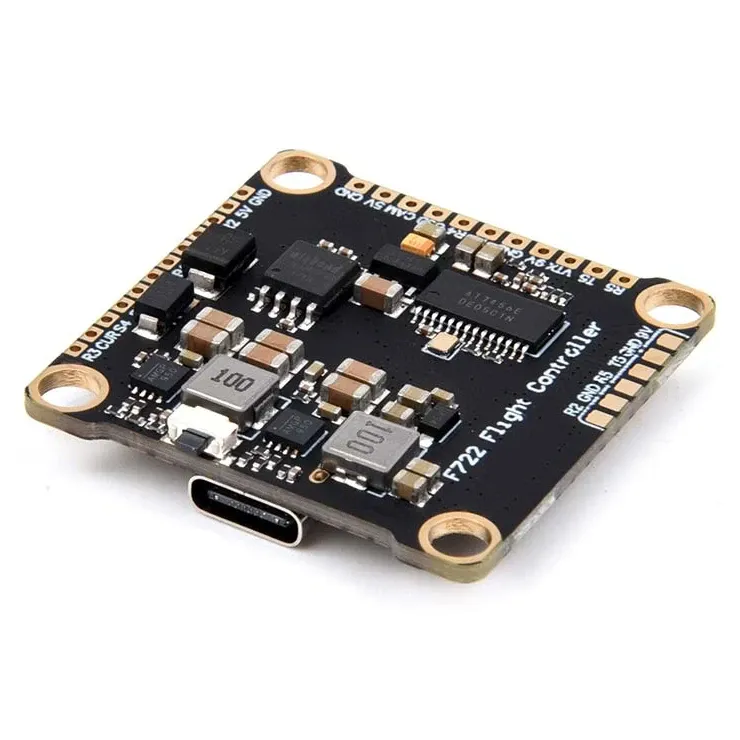

ReadyToSky F7 F722 Flight Controller

The ReadyToSky F7 is a full-size F722 flight controller for 3-6S multirotors, suited to 5-inch freestyle quads up to 10-inch long-range and hexacopter builds that need more than four motor outputs.

Key features

• STM32F722RET6 processor paired with an MPU6500 gyro for fast loop rates and a well-supported IMU

• AT7456E chip for character OSD overlay on analogue video

• 16M flash on board for blackbox logging and tuning

• Six motor outputs, so quad and hex layouts both work

• Pads for an LED strip and buzzer

Specifications

• MCU: STM32F722RET6

• Gyro: MPU6500

• OSD: AT7456E

• Blackbox: 16M flash

• Input voltage: 3-6S LiPo

• Motor outputs: 6

• Board size: 36 x 36 mm

• Mounting: 30.5 x 30.5 mm

• Weight: 6 g

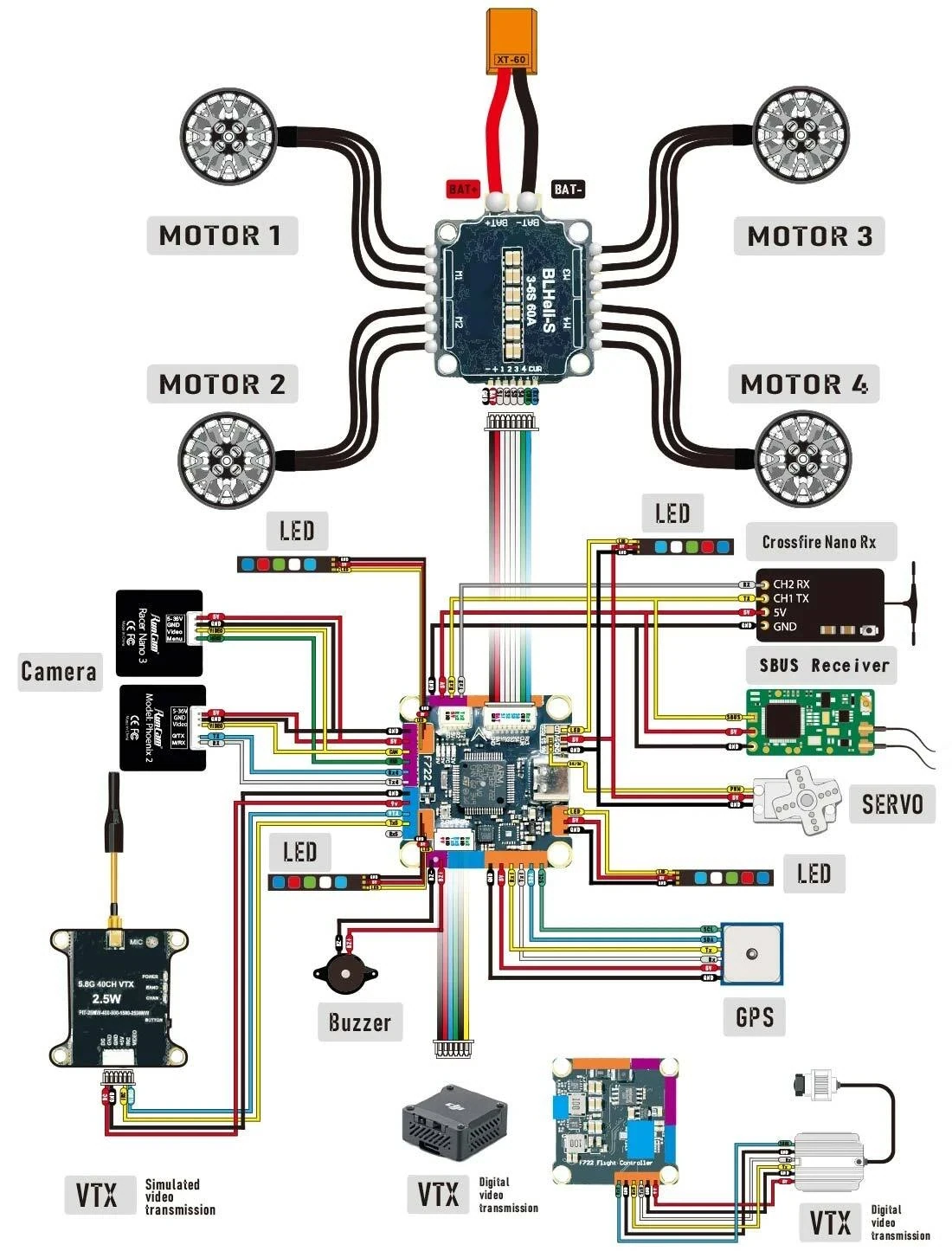

Pair it with a 30.5 mm 4-in-1 ESC or individual ESCs on a power distribution board. Check the pinout before wiring your receiver and VTX, and flash the matching firmware target before the first flight.
