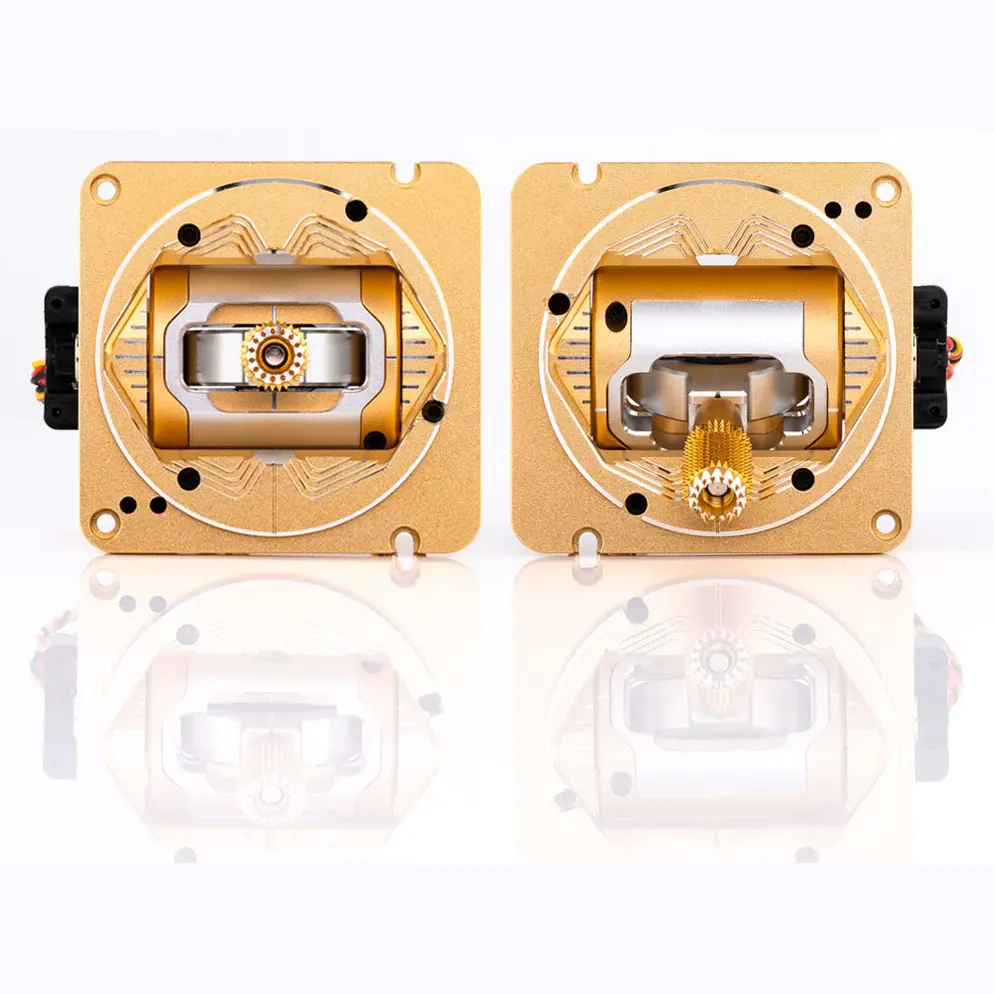

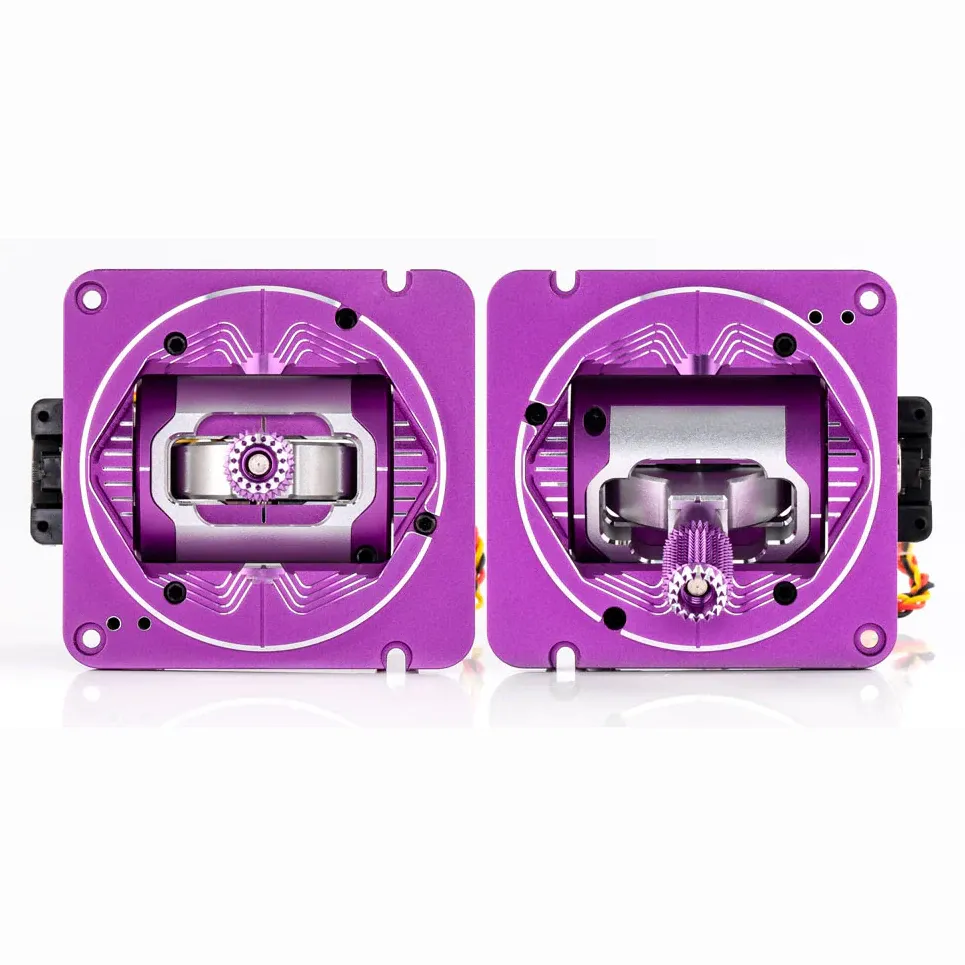

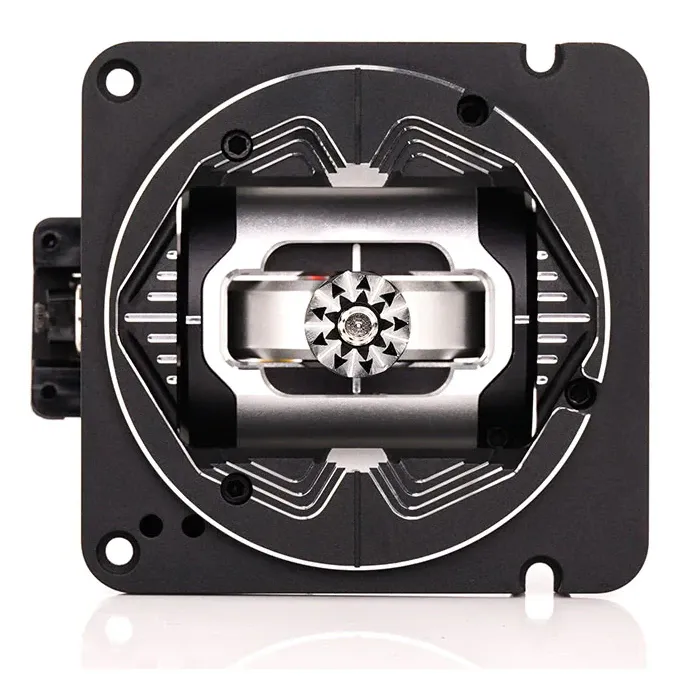

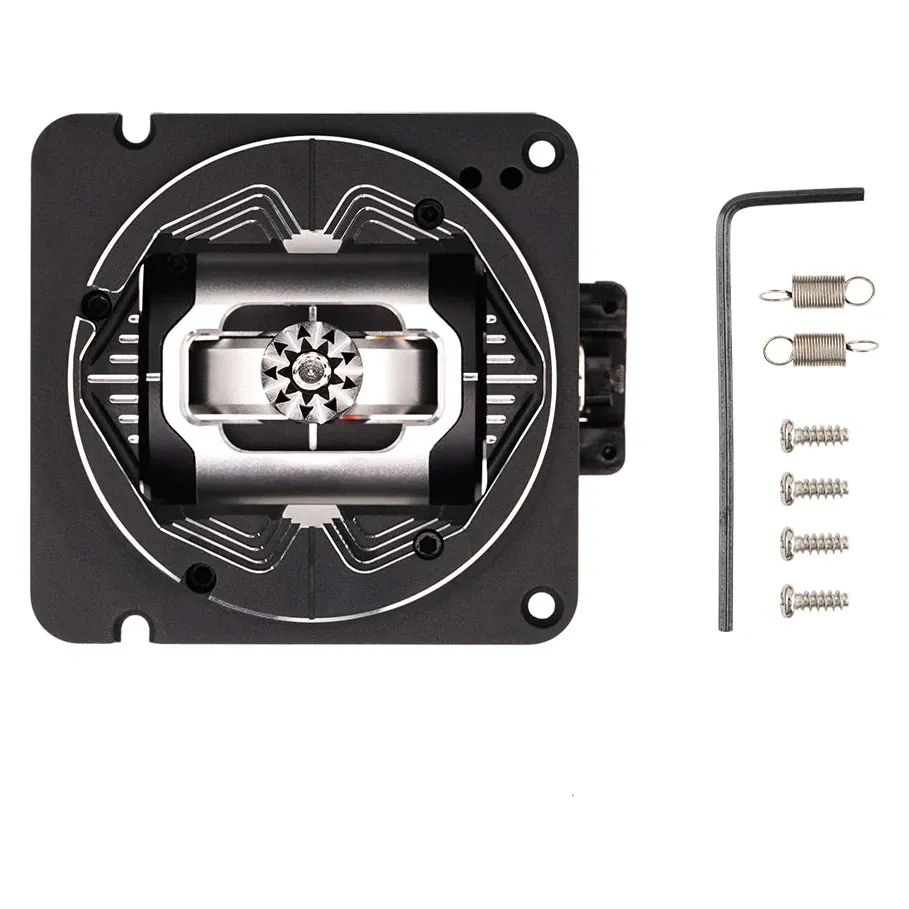

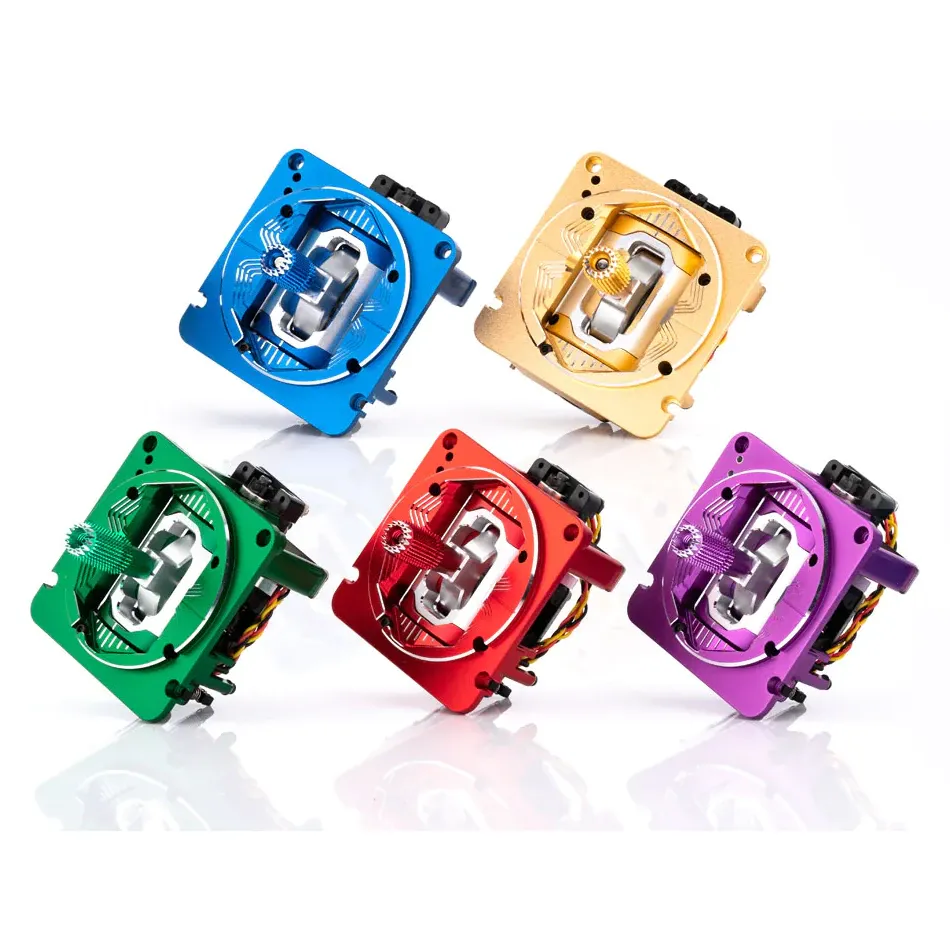

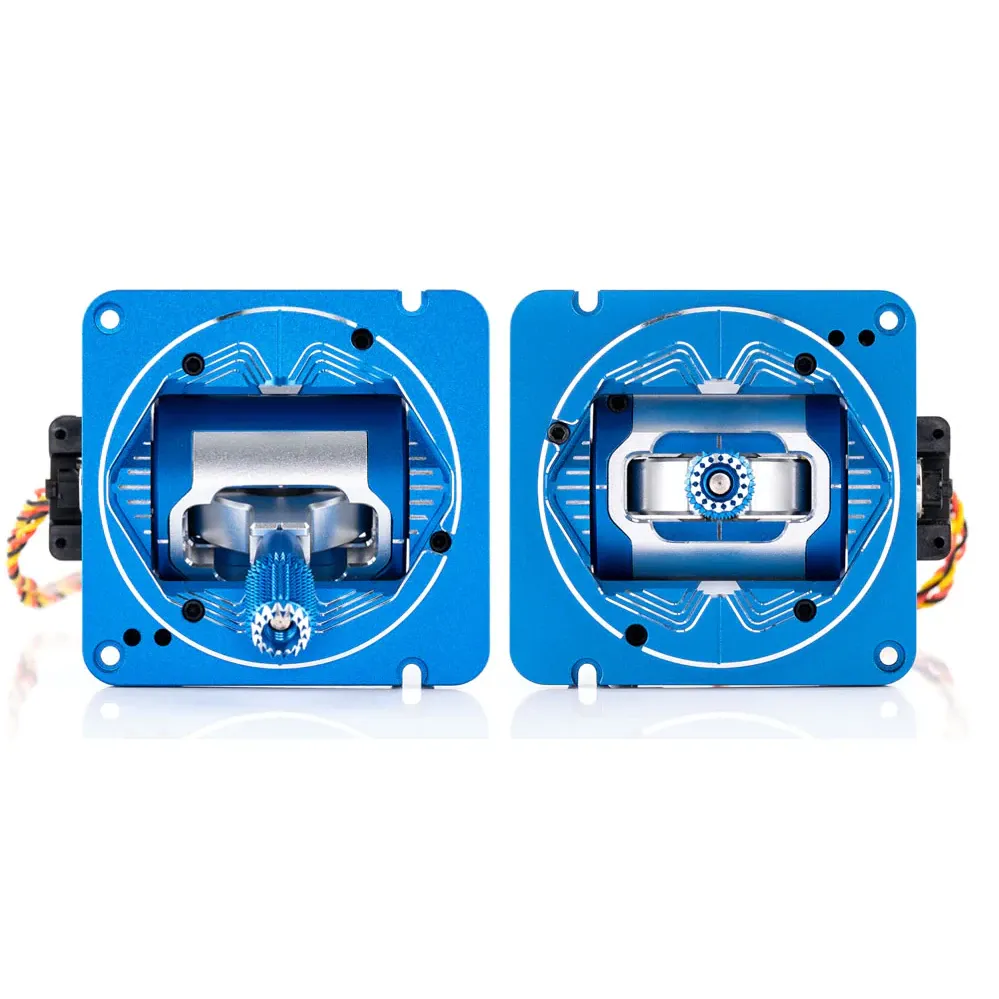

RadioMaster AG01 CNC Hall Gimbals for TX16S and Boxer

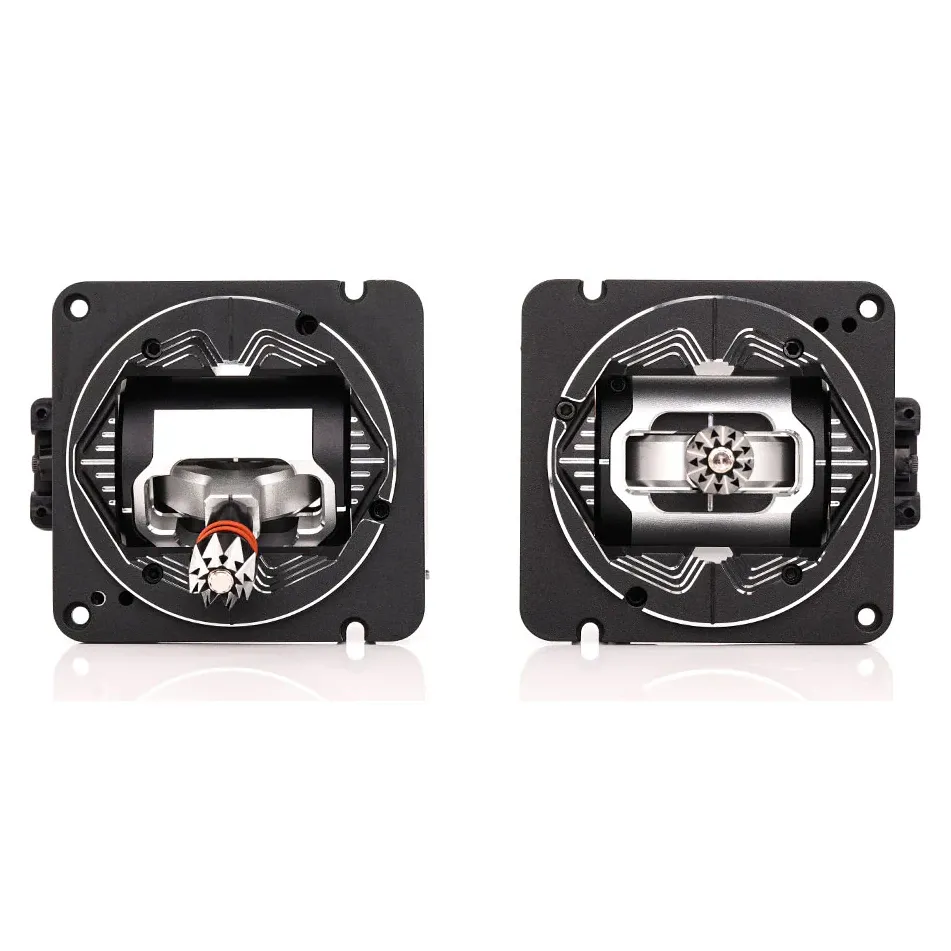

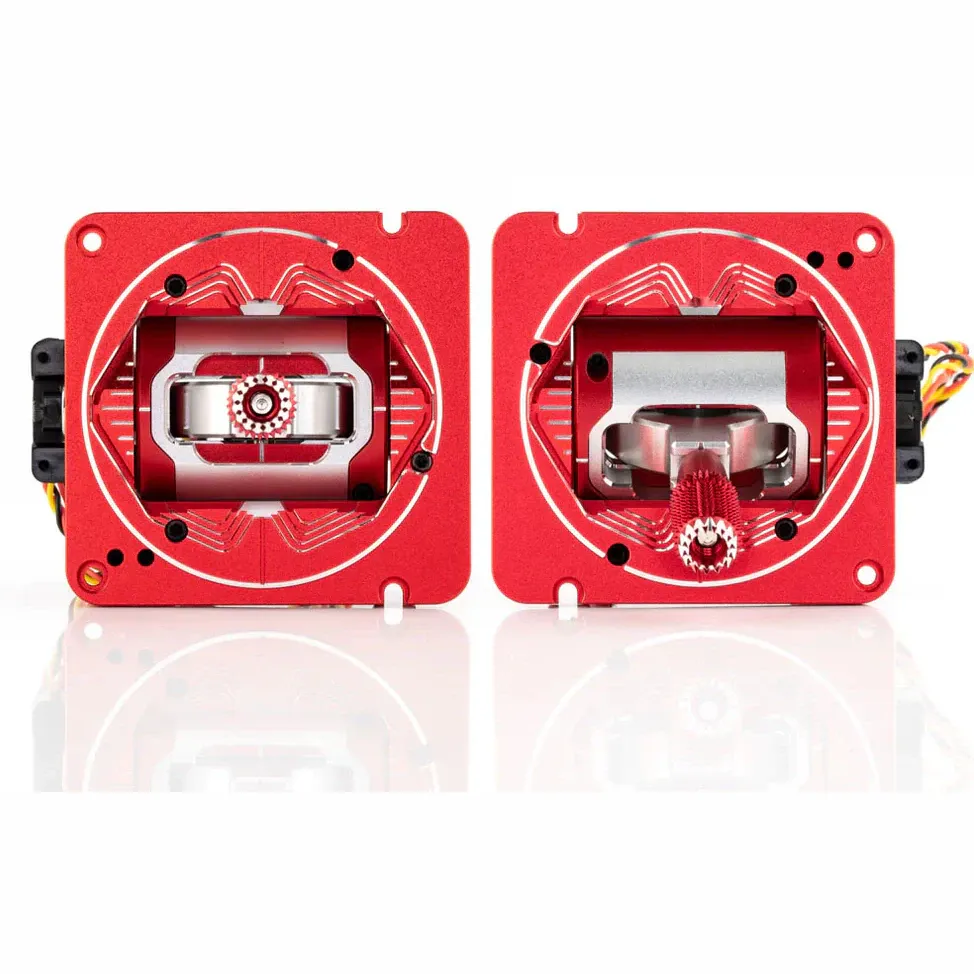

The RadioMaster AG01 is a full CNC-milled Hall effect gimbal set engineered as a drop-in precision upgrade for RadioMaster TX16S, TX16S MKII, and Boxer radio transmitters. Built from aviation-grade aluminium and supported by quad precision ball bearings, it eliminates stick deflection and delivers smooth, highly accurate stick response for FPV freestyle, racing, and technical line-of-sight pilots.

Key features

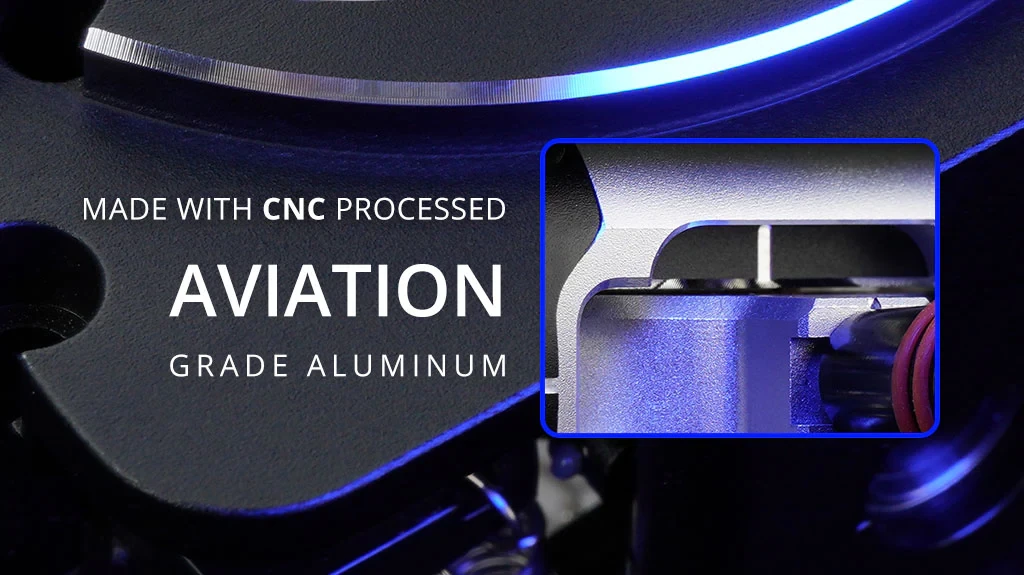

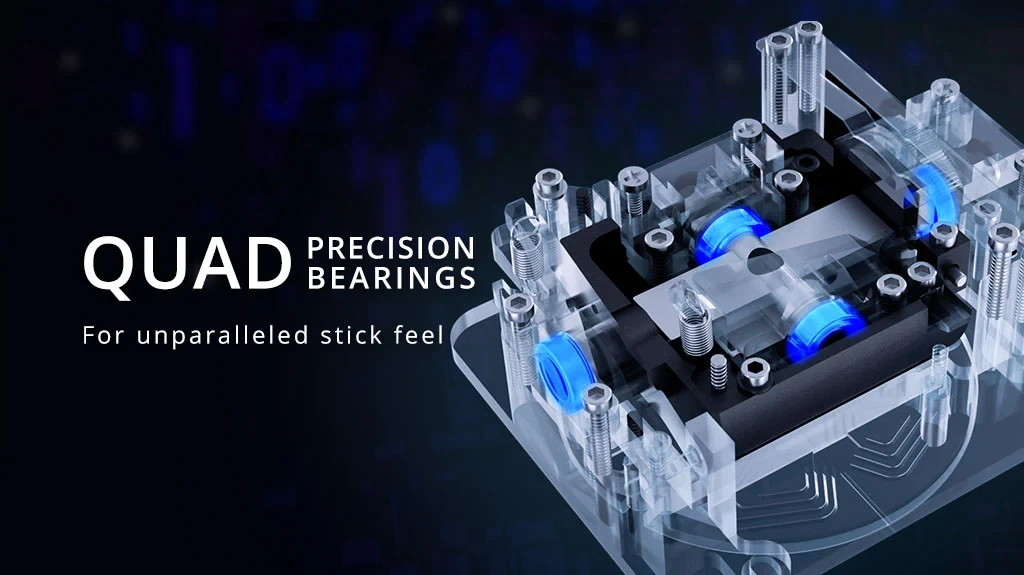

• Milled from aviation-grade CNC aluminium with quad precision ball bearings for zero-play stick movement

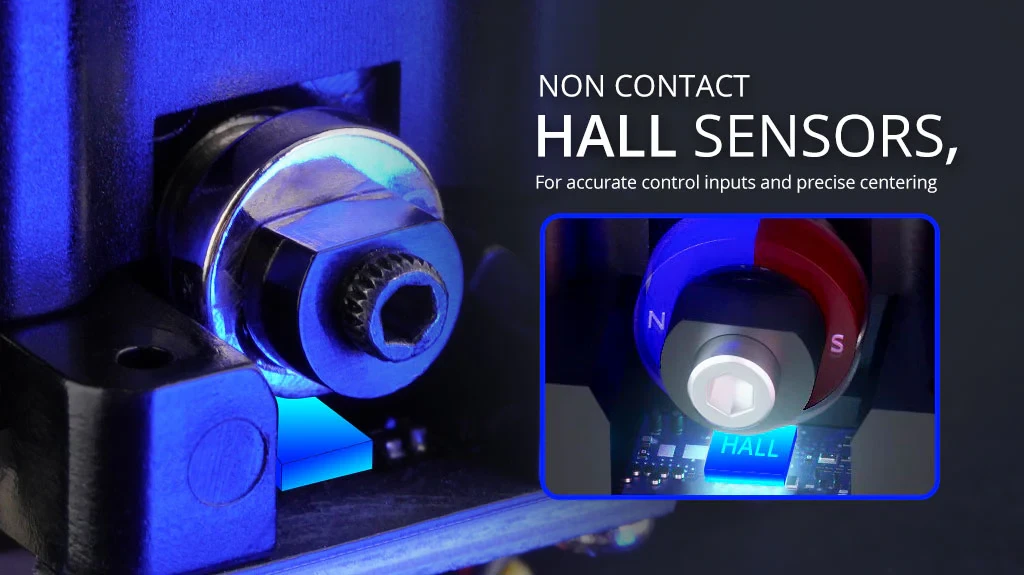

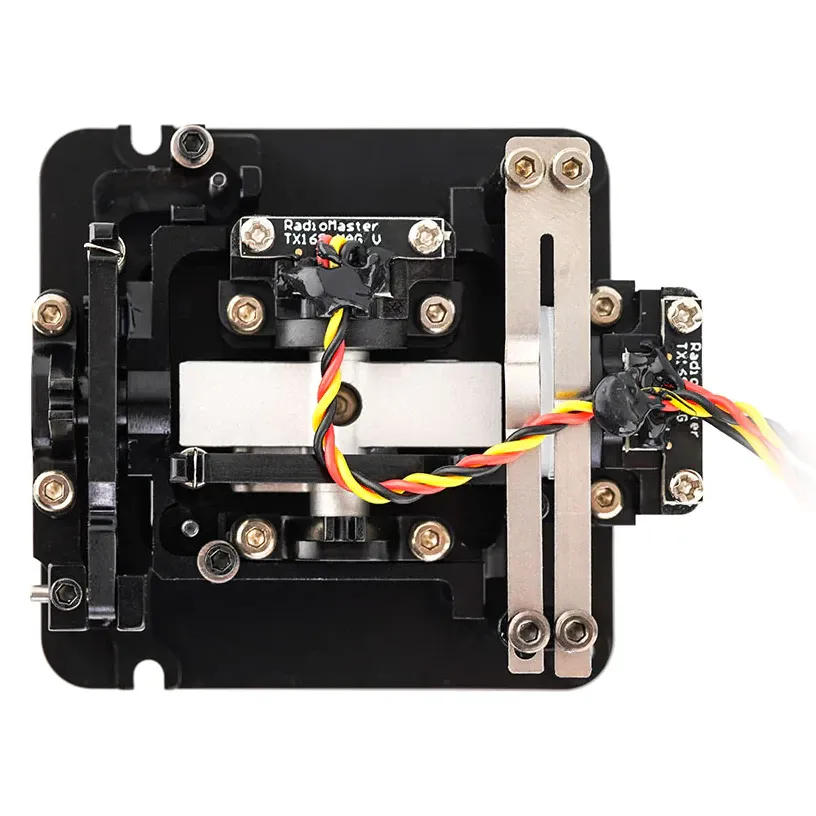

• Non-contact Hall effect sensors provide drift-free positional accuracy and resistance to physical wear

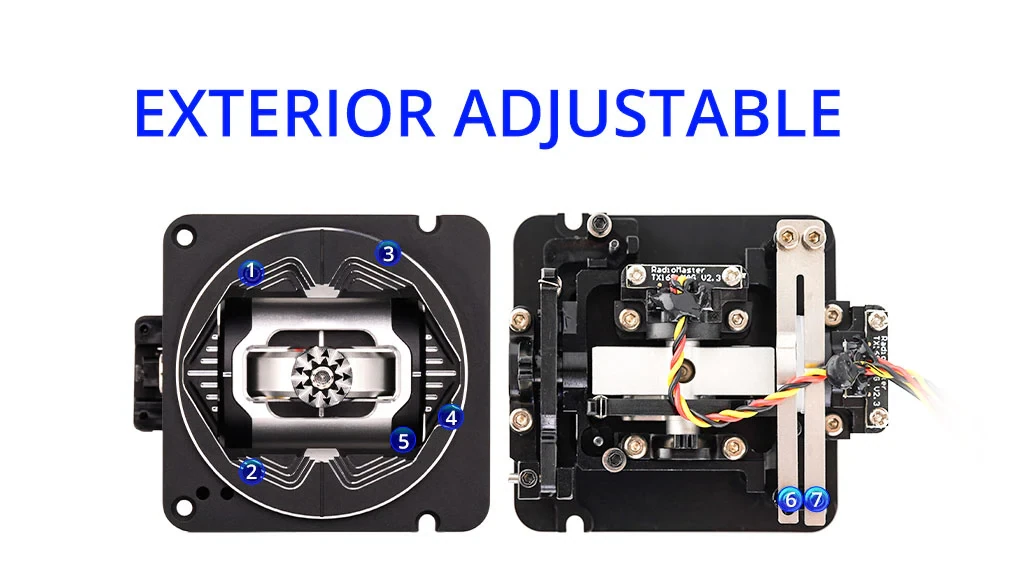

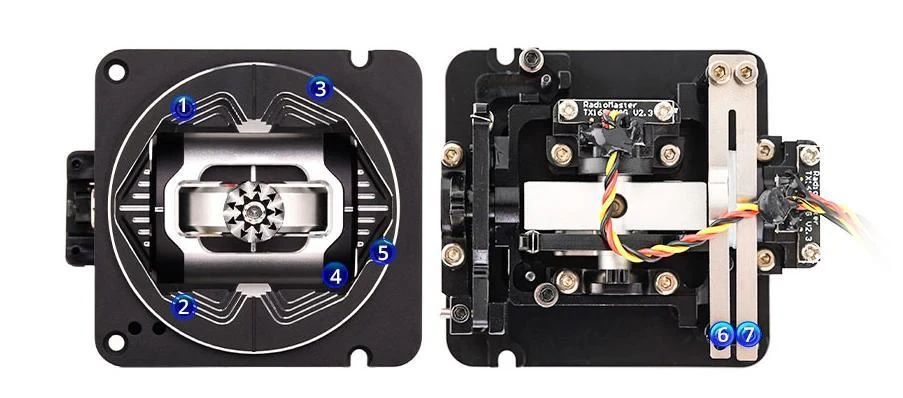

• Front-accessible adjustment screws for spring tension, throttle click/detent, and self-centring mode without opening the radio housing

• Adjustable vertical and horizontal stick travel range from 38° to 54° to suit both thumb and pinch grip styles

• Direct plug-and-play connection using standard internal gimbal harnesses

Specifications

• Material: Aviation-grade CNC aluminium

• Sensor type: Non-contact Hall effect

• Bearing type: Quad precision ball bearings

• Adjustable travel range: 38° to 54°

• Operating voltage: 3.3 V DC

• Weight: 82 g (per gimbal)

• Compatibility: RadioMaster TX16S, TX16S MKII, Boxer

Installation requires no soldering; swap the stock gimbals into the existing mounting points, plug in the original ribbon cables, and perform a full stick calibration in EdgeTX or OpenTX before your first flight.
