RadioMaster AG01 CNC Hall Gimbal (Hollow Shaft Version)

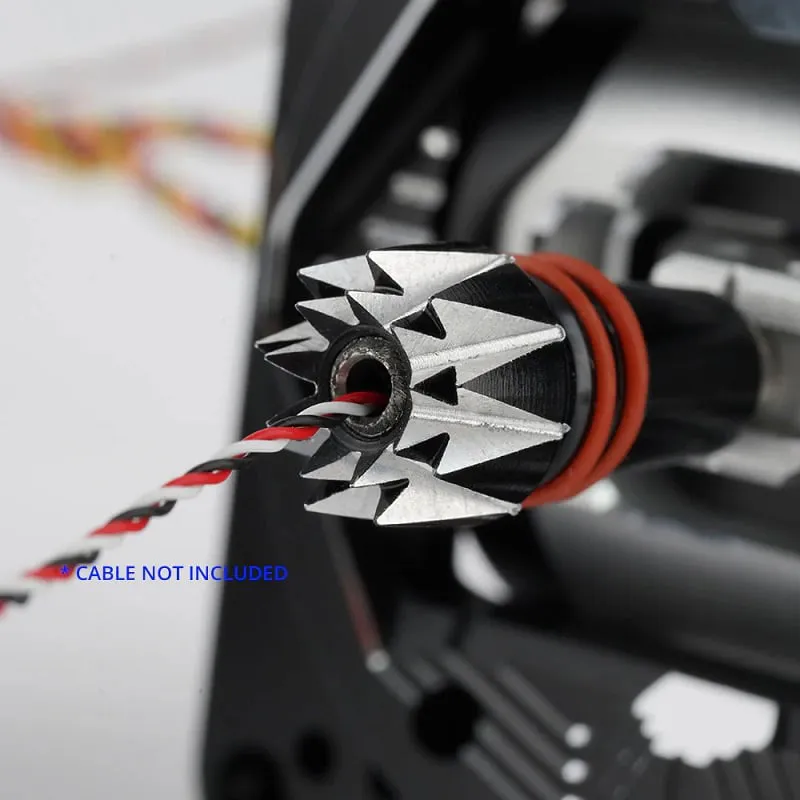

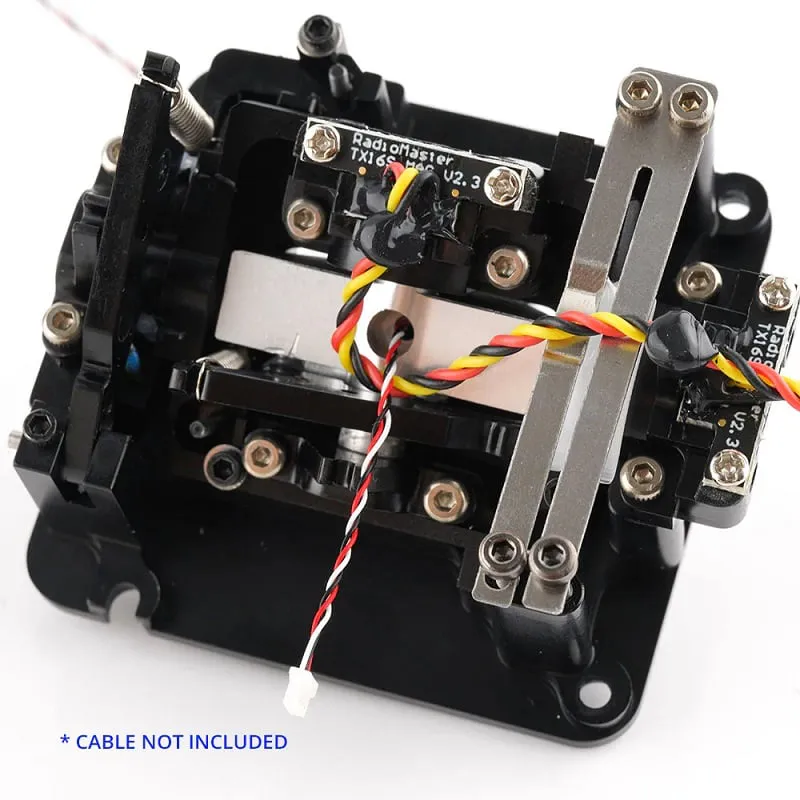

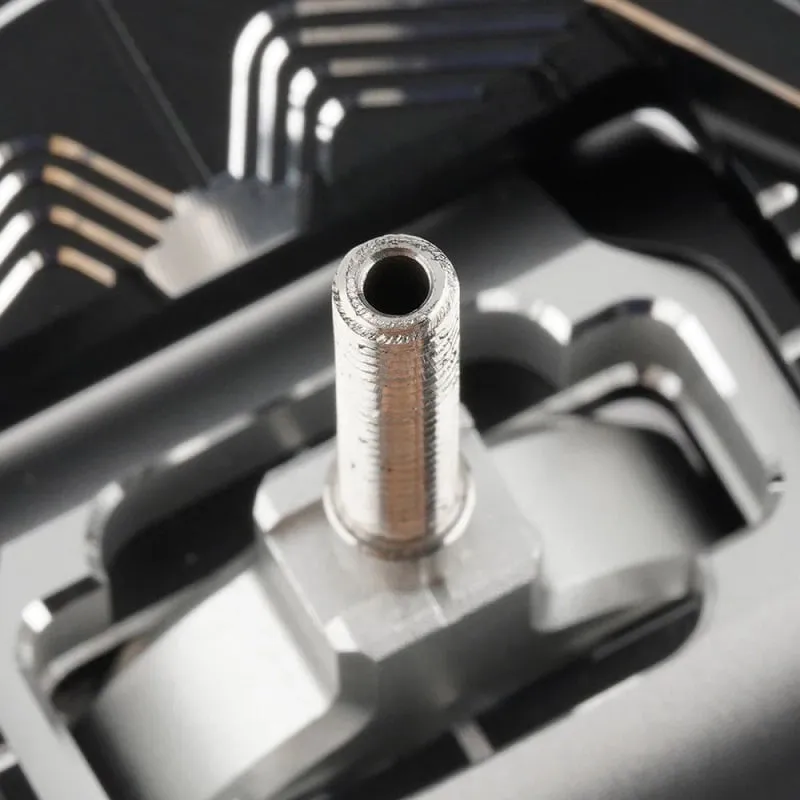

The hollow-shaft version of RadioMaster's AG01 CNC Hall gimbal has a hollow stick shaft that lets you route wiring to aftermarket 4 mm stick ends fitted with buttons or switches. It is a special-purpose upgrade: if you don't need wired stick ends, the standard AG01 is the one to choose.

Key features

• Hollow shaft carries wires through to 4 mm stick ends with built-in buttons or switches.
• CNC-machined aviation-grade aluminium body.
• Non-contact Hall sensors give real-time response and precise centring with no wiper wear.
• Quad precision bearings for a smooth stick feel.
• Adjustable travel from 38 to 54 degrees.

Specifications

• Sensor: Hall effect, non-contact
• Working voltage: 3.3 V DC
• Travel: adjustable, 38-54 degrees
• Operating temperature: -20 to 85 C
• Dimensions: 60 x 53 x 56 mm
• In the box: AG01 hollow-shaft gimbal (centering/throttle), TX16S softer tension spring set, hex driver, manual

The included softer spring set is made for the TX16S; check that your radio takes full-size AG01 gimbals before ordering, and plan the stick-end wiring to your radio's switch inputs.
