RadioMaster TX15 LED Gimbal Light Mod Set

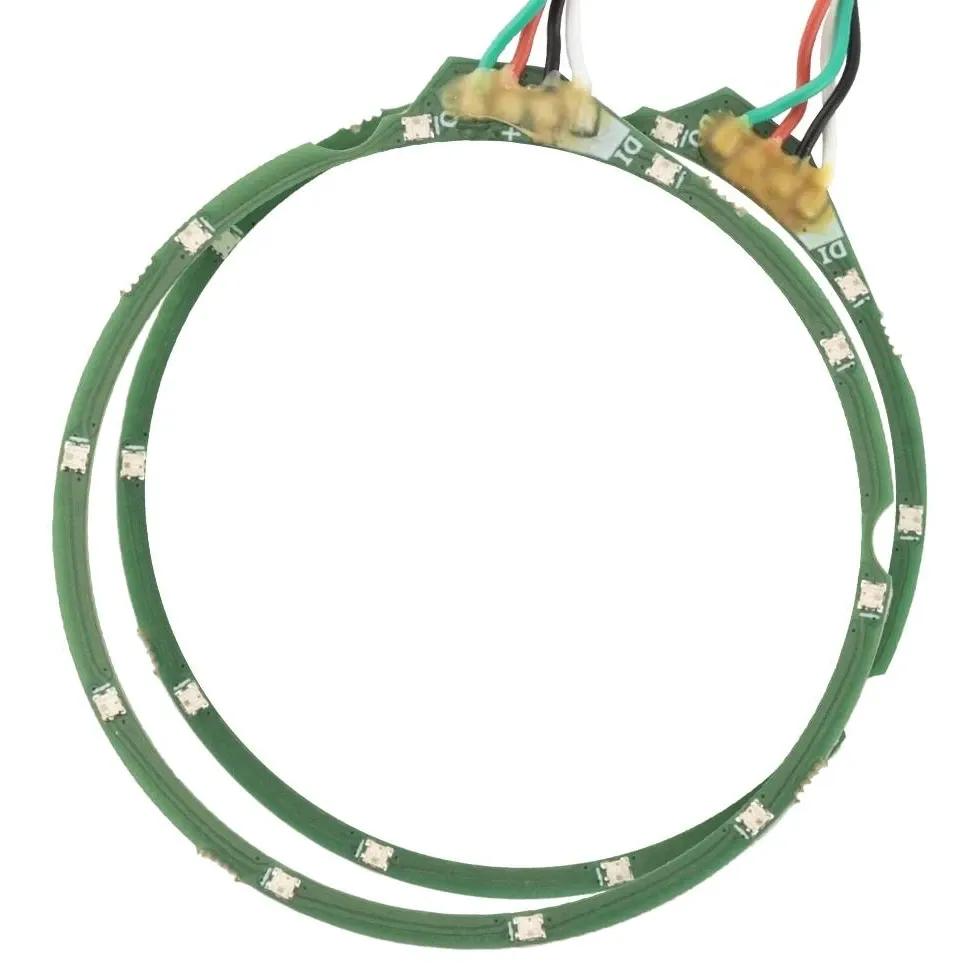

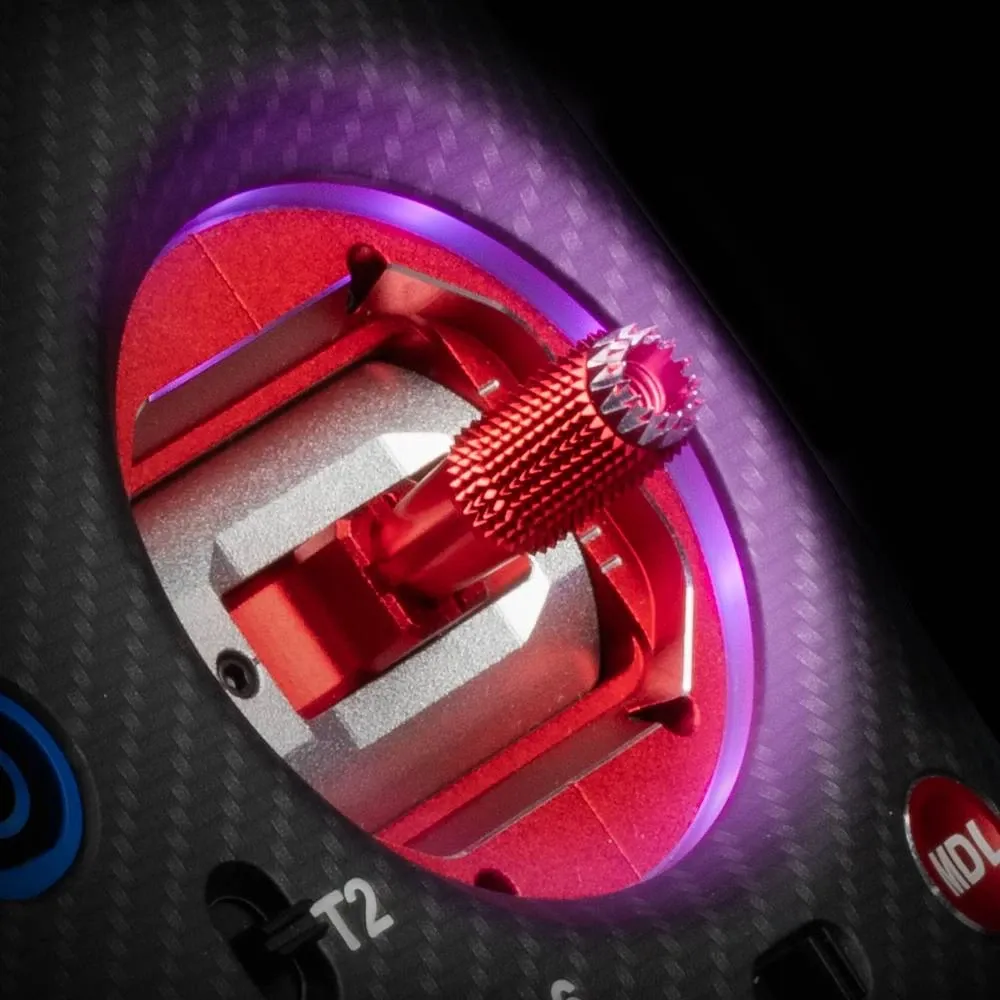

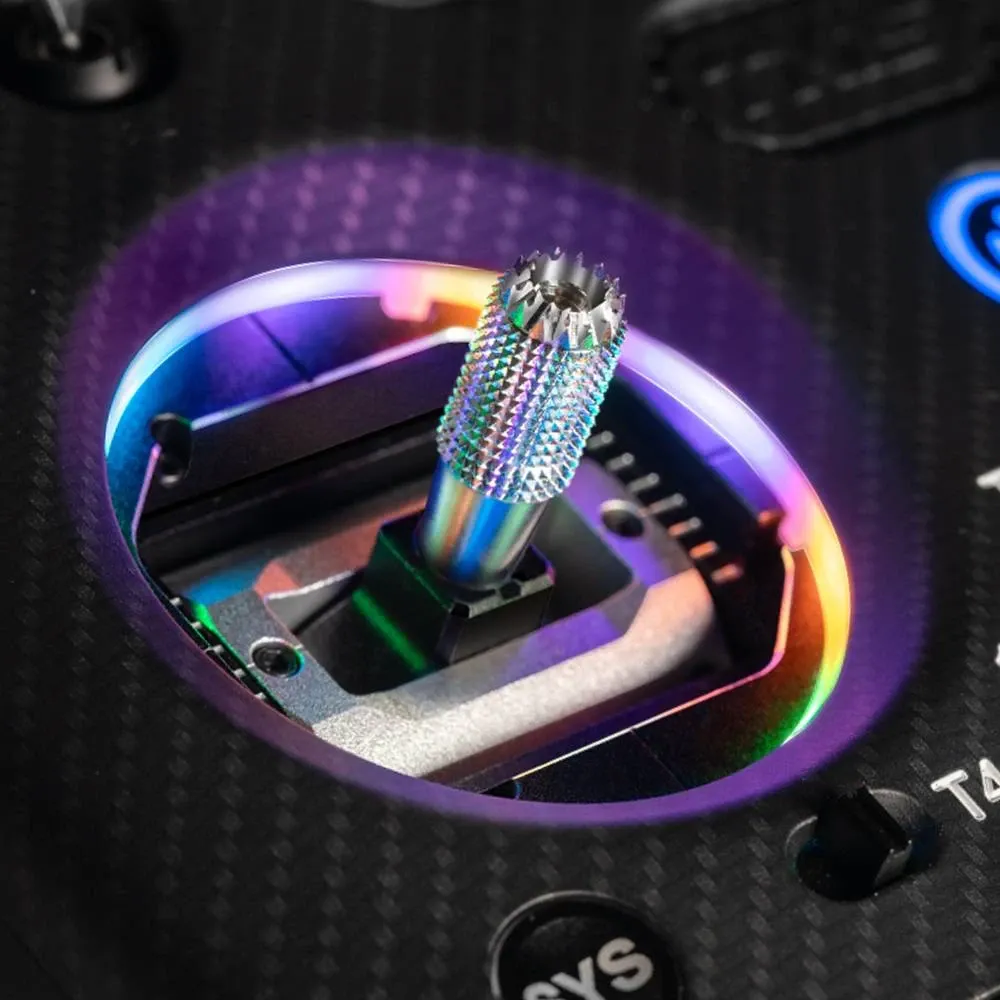

This LED gimbal ring set adds programmable RGB lighting to a RadioMaster TX15 Standard or Max transmitter fitted with AG02 gimbals, letting pilots set static colours or scripted lighting patterns instead of a single fixed glow.

Key features

• Ten individually addressable RGB LEDs per ring for full colour and pattern control.
• Supports both static colour and dynamic animated lighting effects.
• Fully customisable through a LUA script run on the radio.
• Designed specifically for AG02 CNC Hall gimbals, so fitment is exact rather than a generic retrofit.
• Included on the TX15 Max by default; sold separately to add to a TX15 Standard.

Specifications

• Operating voltage: 5.0 V
• Operating current: up to 200 mA (varies with effect)
• LED type: RGB, 10 LEDs per ring
• Compatibility: RadioMaster TX15 Standard and TX15 Max, AG02 gimbals

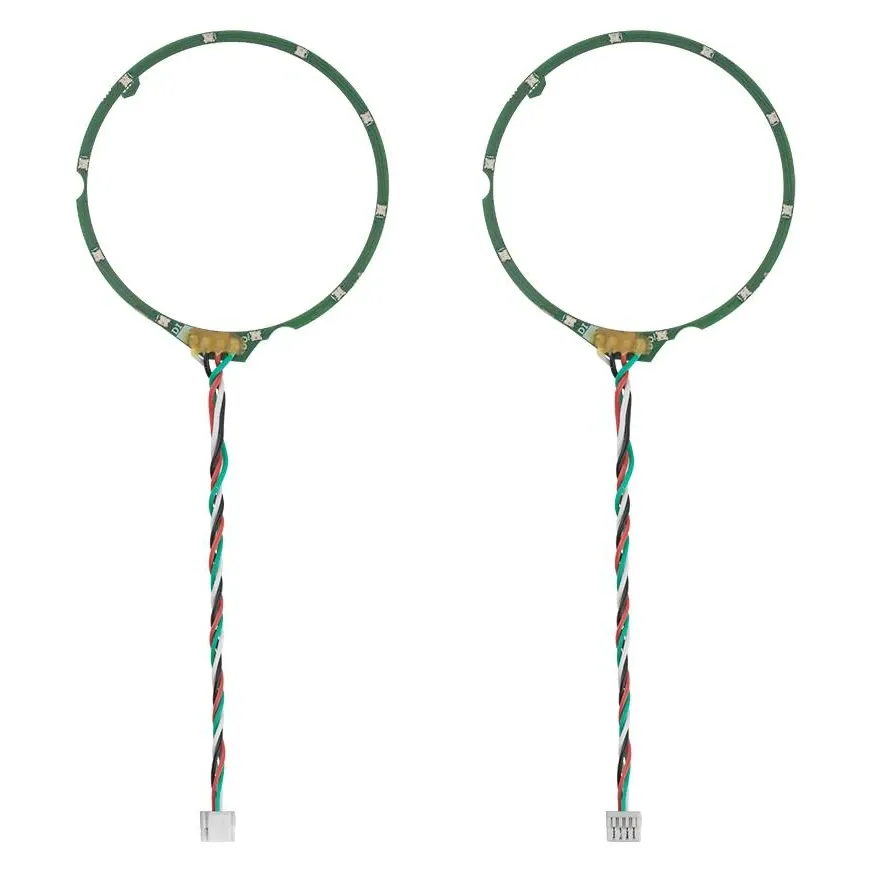

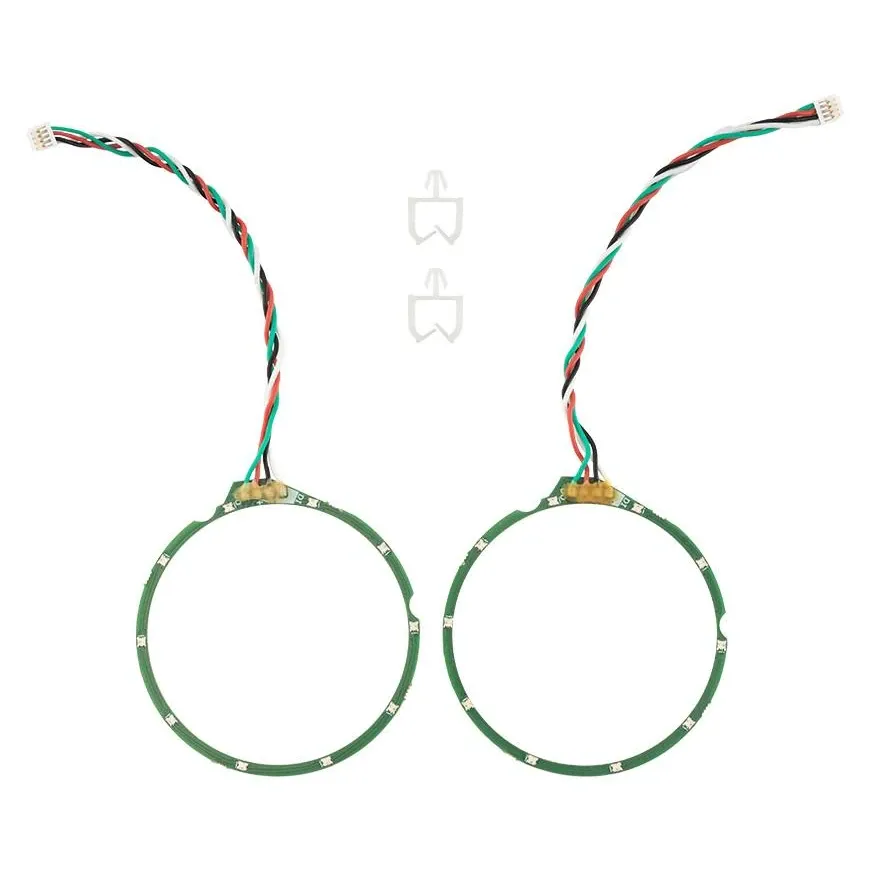

The set includes two LED gimbal rings and two mounting wire clips; it is not compatible with the TX16S or with AG01 Hall gimbals.
