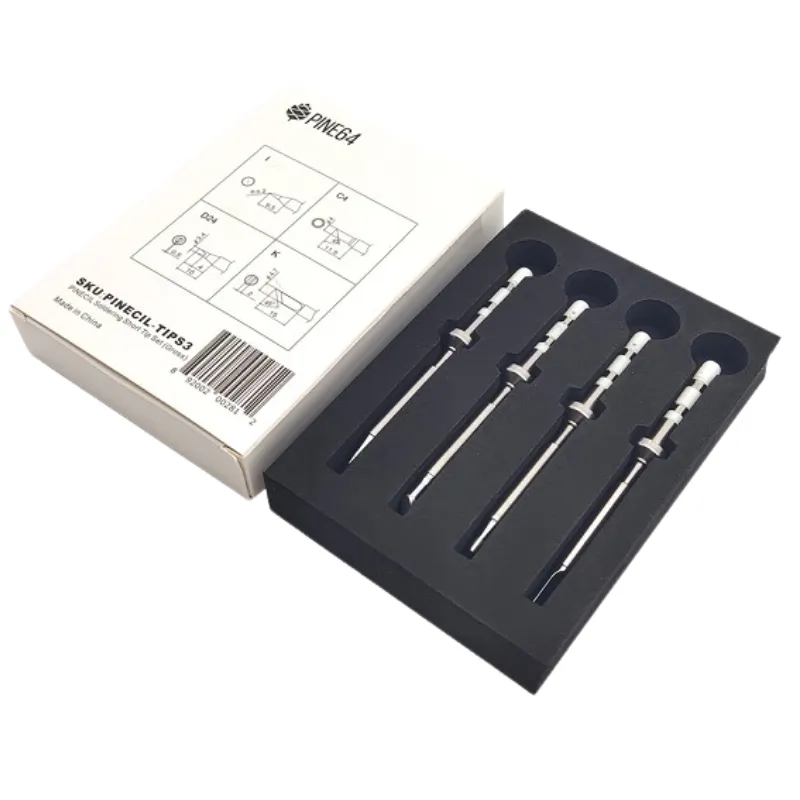

Pinecil Soldering Short Tip Set (Gross)

The Pinecil Short Tip Set (Gross) provides four heavy-duty tip profiles designed to handle massive thermal loads, making it the perfect upgrade for soldering XT60 connectors, heavy-gauge battery leads, and large ESC pads on your FPV builds. Measuring 86mm in total length, these tips are noticeably shorter than standard TS100-style iron tips. This reduced length brings your fingers closer to the workpiece, significantly improving ergonomics and reducing hand shake during precise soldering tasks.

Key features

• Enhanced ergonomics: Shorter 86mm profile reduces the working distance from grip to tip for superior control.
• High thermal mass: Gross-style tips sustain high heat transfer, preventing cold joints on thick copper pads and 12AWG wire.
• Lower resistance: Rated at 6.2Ω to allow faster heating and higher power delivery than standard 8Ω tips.
• Direct compatibility: Works perfectly out of the box with both Pinecil V1 and V2 smart soldering irons.

Specifications

• Compatibility: Pinecil V1, Pinecil V2
• Total length: 86mm
• Heating element resistance: 6.2Ω
• Included tip profiles: K (Knife), D24 (Chisel), BC3 (Bevel), C4 (Large Bevel)

If you are building large X-Class rigs, heavy-lift cinelifters, or just need reliable heat delivery for thick battery pigtails, this gross set ensures your iron will not bog down when tinning heavy copper.
