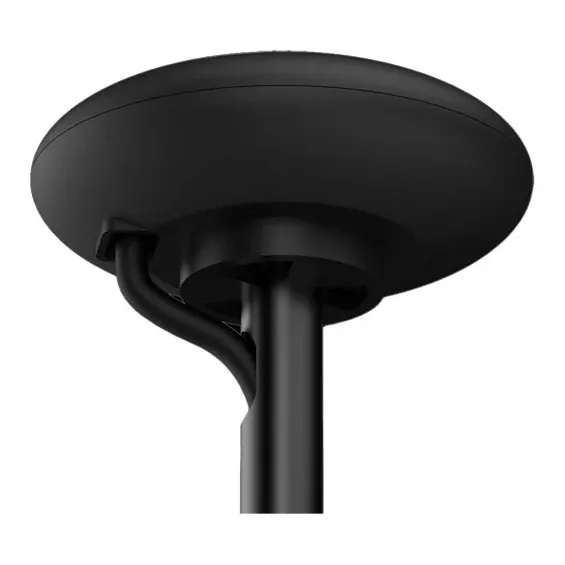

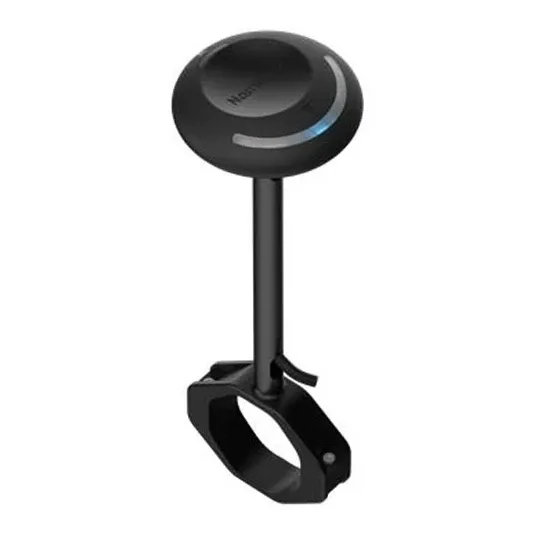

PDRL NamoAG Precision GNSS Module for Agriculture Drones

NamoAG (Navigation for Modern Agriculture) is PDRL's GNSS module for spraying, mapping and survey drones. A u-blox NEO-M9N receiver and an STM32F4 processor deliver position and heading over DroneCAN, so it plugs into CAN-equipped flight controllers such as PDRL's Ag++.

Key features

• Tracks GPS, Galileo, GLONASS and BeiDou at the same time, plus SBAS and QZSS, for a steadier fix over open farmland
• 1.5 m CEP positioning accuracy (1.5–3 m depending on conditions)
• Built-in high-sensitivity compass for stable heading
• SAW filters and a low-noise amplifier reduce interference on the RF path
• Integrated safety switch, buzzer and arming, power and notification LEDs

Specifications

• Receiver: u-blox NEO-M9N
• Constellations: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
• Processor: STM32F4 (ARM Cortex-M4)
• Accuracy: 1.5 m CEP
• Output protocol: DroneCAN
• Antenna: 35 x 35 mm
• Input voltage: 5 V DC
• Dimensions: 61.82 x 61.82 x 24.81 mm
• Weight: approx. 30 g

NamoAG is a standard-precision receiver, not RTK: it suits spraying and general navigation, while centimetre-level mapping needs an RTK GNSS setup.
