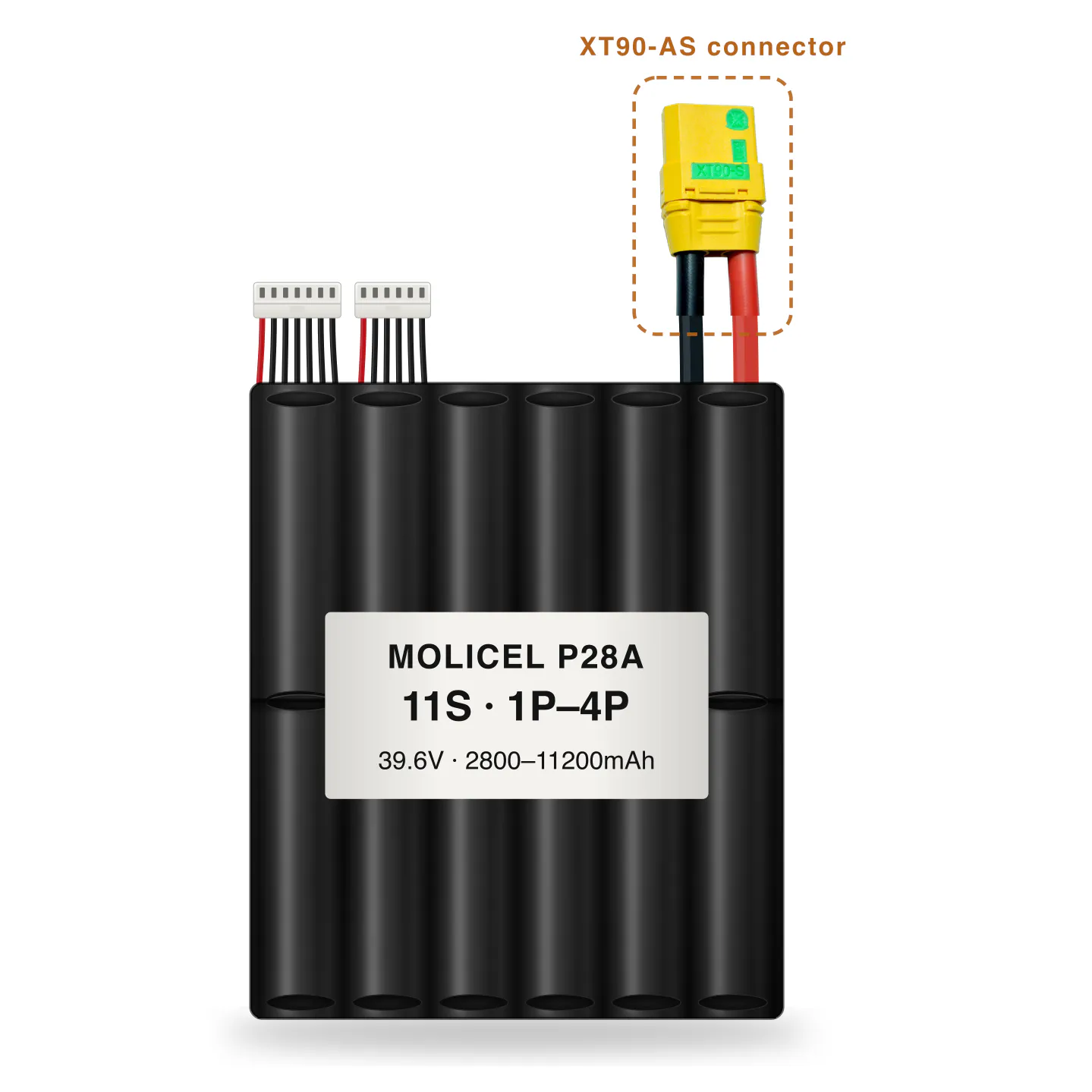

Molicel P28A 11S Li-Ion Battery Pack (2800/5600/8400/11200mAh)
SKU FP-P28A-11S1P-XT60
Pack: 1P · 2800mAh
Connector: XT-60
Free shipping. Pan India delivery from Gurugram, Haryana.
Assembled to order in Gurugram — dispatched within 3–4 business days
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A 11S lithium-ion pack assembled to order from genuine Molicel INR-18650-P28A cells, in your choice of 1P to 4P: 11 cell groups in series at 39.6V nominal, with 1 to 4 cells in parallel per group for 2800–11200mAh and 35–140A of continuous discharge. It suits heavy-lift, agricultural and industrial multirotors and large VTOL platforms.
Pick your pack
- 11S1P: 11 cells · 2800mAh · 110.9Wh · 35A continuous · approx. 590 g
- 11S2P: 22 cells · 5600mAh · 221.8Wh · 70A continuous · approx. 1160 g
- 11S3P: 33 cells · 8400mAh · 332.6Wh · 105A continuous · approx. 1731 g
- 11S4P: 44 cells · 11200mAh · 443.5Wh · 140A continuous · approx. 2301 g
Specifications
- Cells: Molicel P28A 18650, 2800mAh and 35A continuous each
- Voltage: 39.6V nominal · 46.2V fully charged · 27.5V cutoff
- Main connector: your choice of XT-60 / XT90-AS — pick it above
- Balance lead fitted for standard balance chargers
Build
Every pack is built in Gurugram from matched, capacity-tested cells with spot-welded nickel busbars, silicone main leads and a heat-shrink wrap, then load-tested before dispatch. Packs are assembled after payment and dispatch within 3–4 business days. Need a different connector, wire length or layout? Ask us on WhatsApp before ordering.
Charging and care
Charge in Li-Ion mode at 4.20V per cell (never LiHV) at up to 1C — 2.8A for 1P, 5.6A for 2P, 8.4A for 3P, 11.2A for 4P. Do not discharge below 2.5V per cell; land at around 3.3V per cell for the longest cycle life. Store at 3.6–3.7V per cell.
