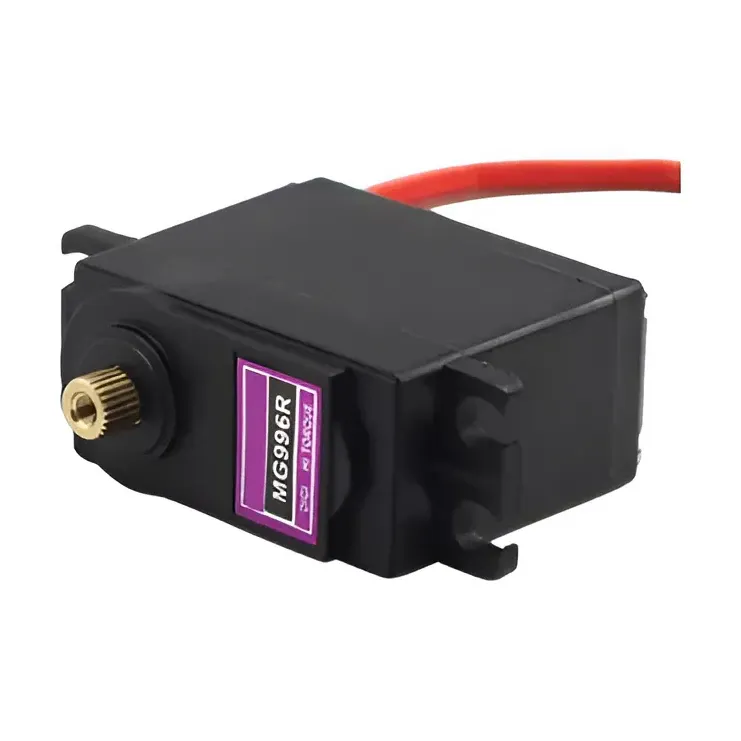

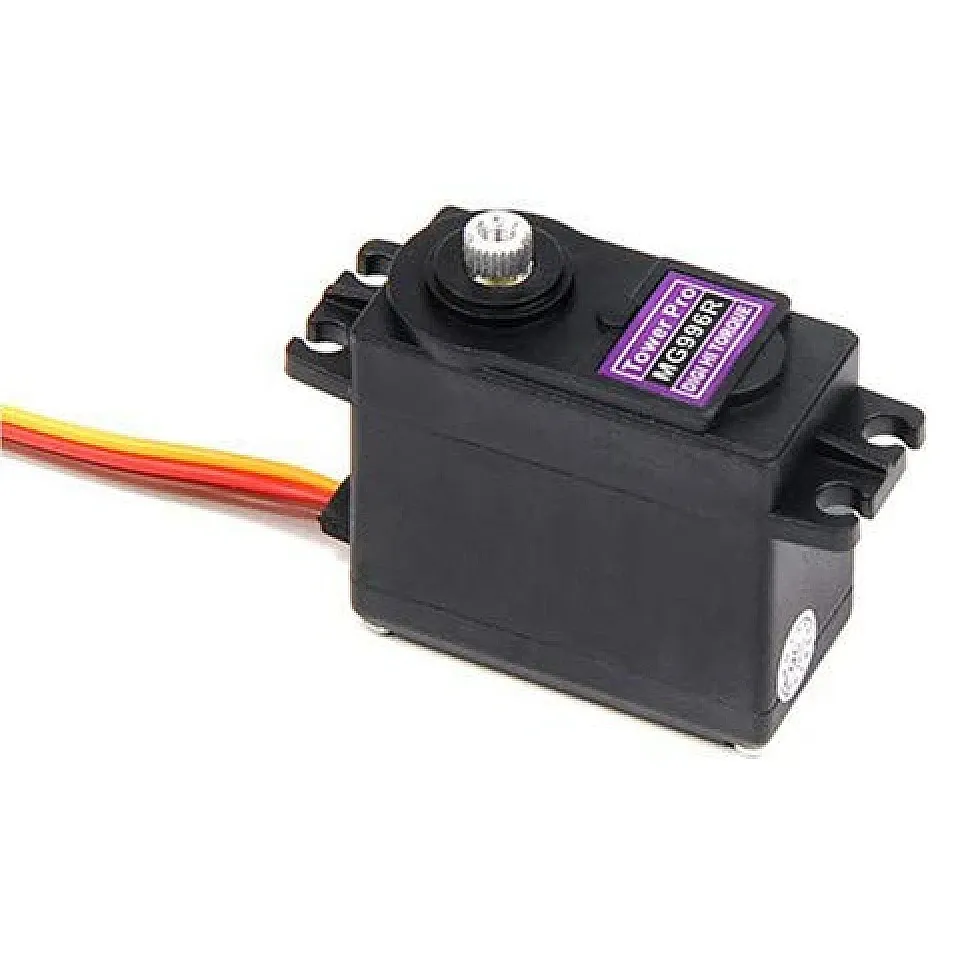

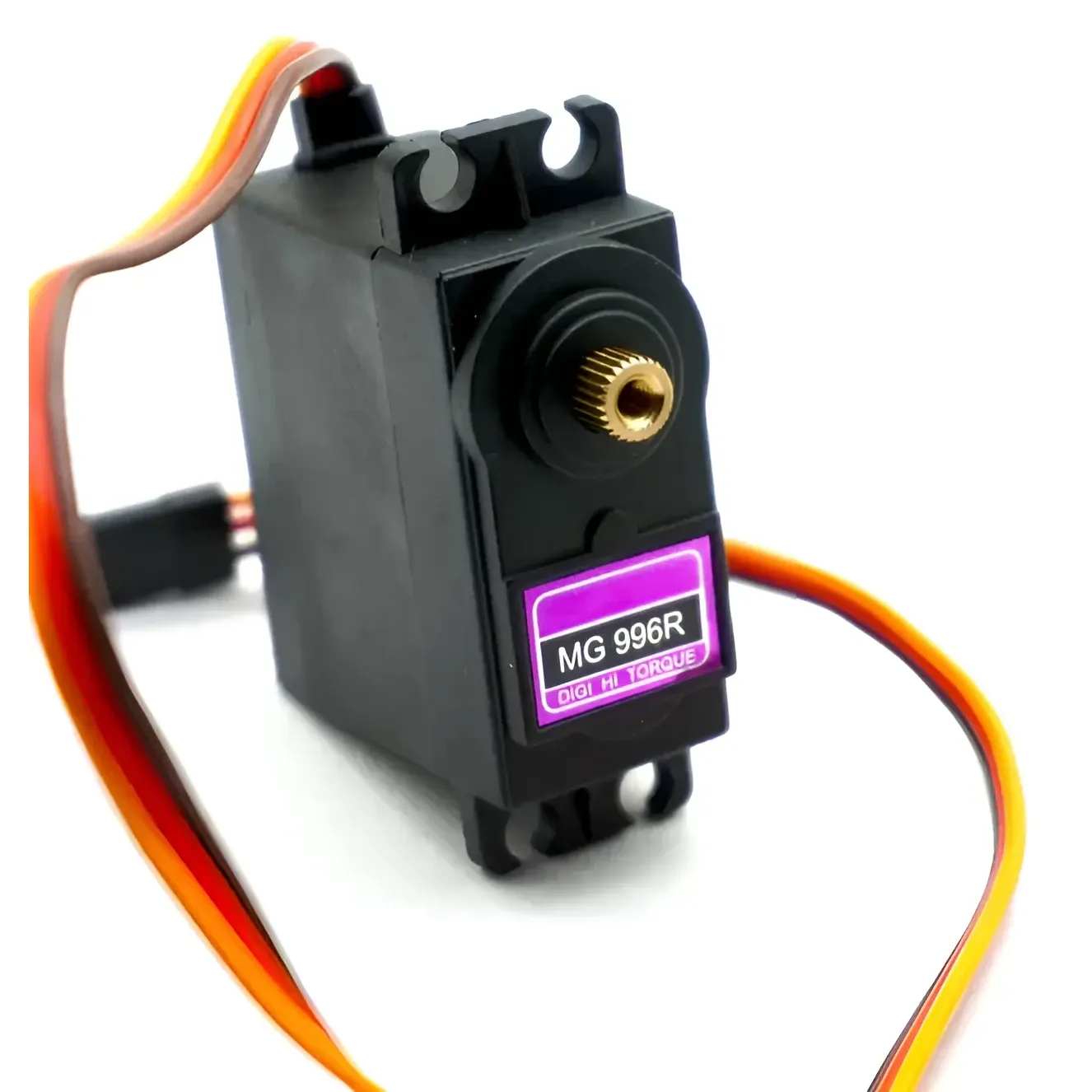

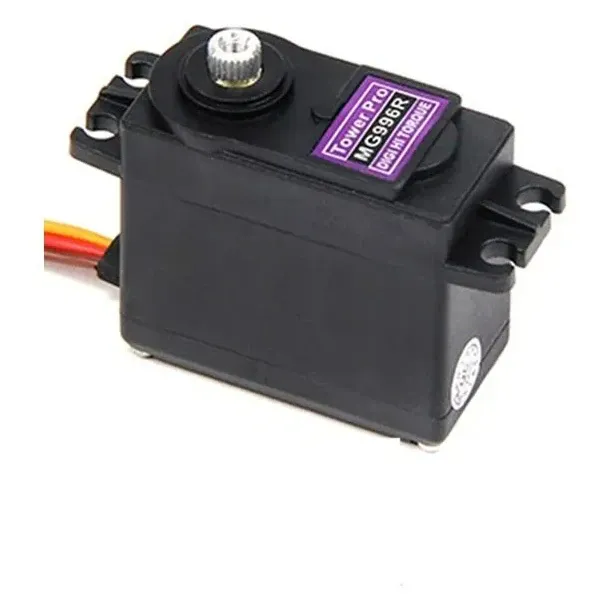

MG996R Metal Gear High Torque Servo

The MG996R is a standard-size digital servo with metal gears and up to 11 kg·cm of stall torque, an upgrade of the MG995 with revised gearing and motor for tighter centring and a smaller dead band. The 180° version suits control surfaces, payload releases and robot joints; the 360° continuous-rotation version drives wheels and winches.

Key features

• Stall torque of 9.4 kg·cm at 4.8 V and 11 kg·cm at 6 V
• Metal gears with a 25-tooth output spline that takes Futaba-pattern horns
• 1 µs dead band for precise centring
• Universal JR/S-type plug fits Futaba, JR, Hitec, Spektrum and most other receivers

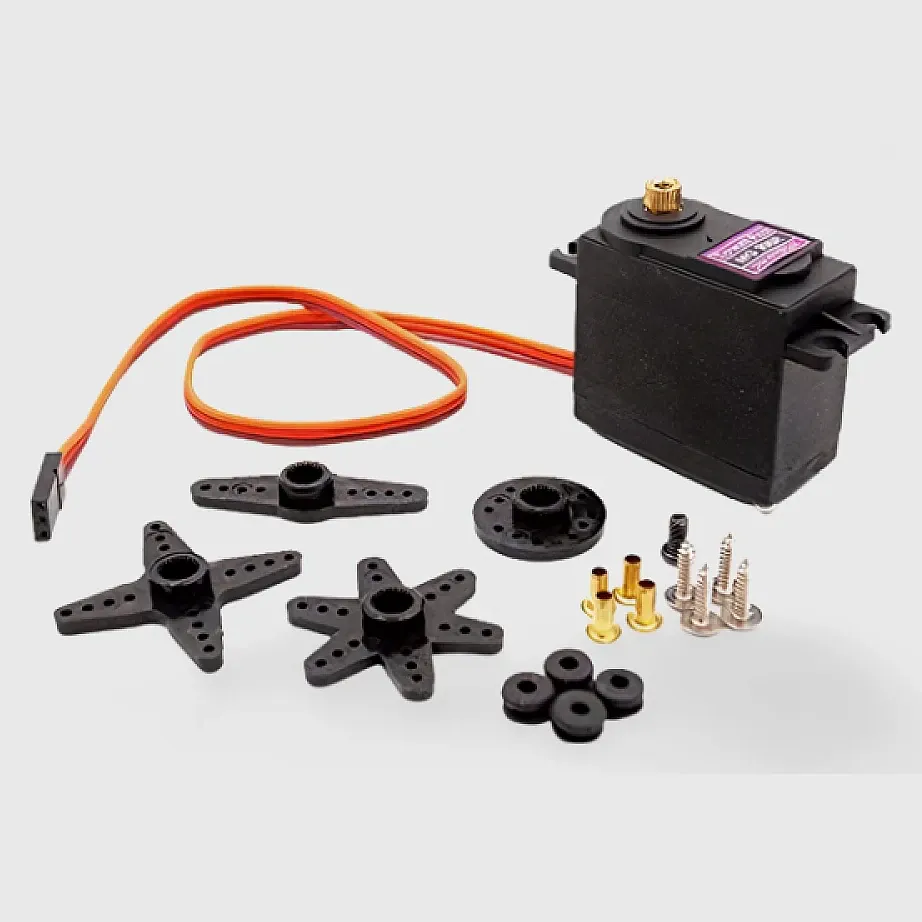

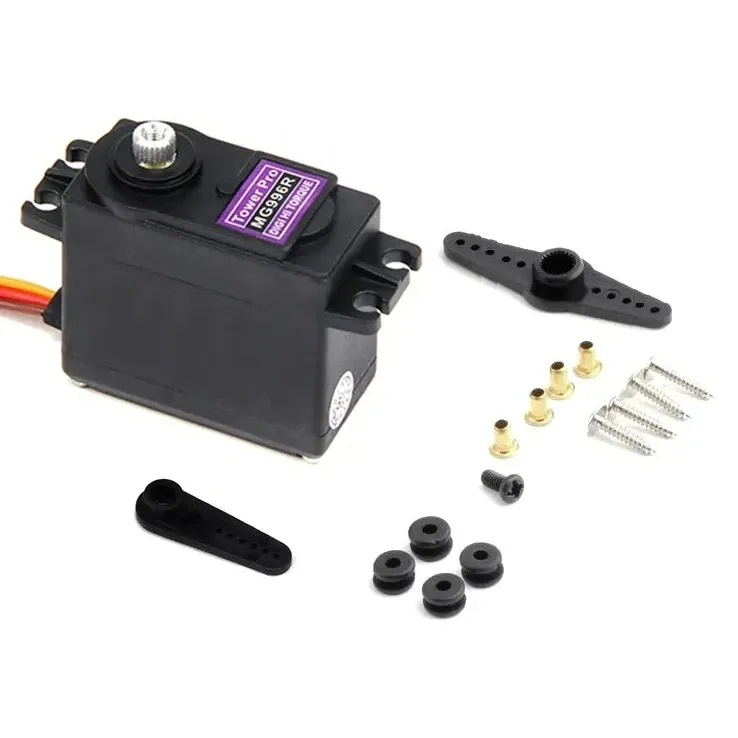

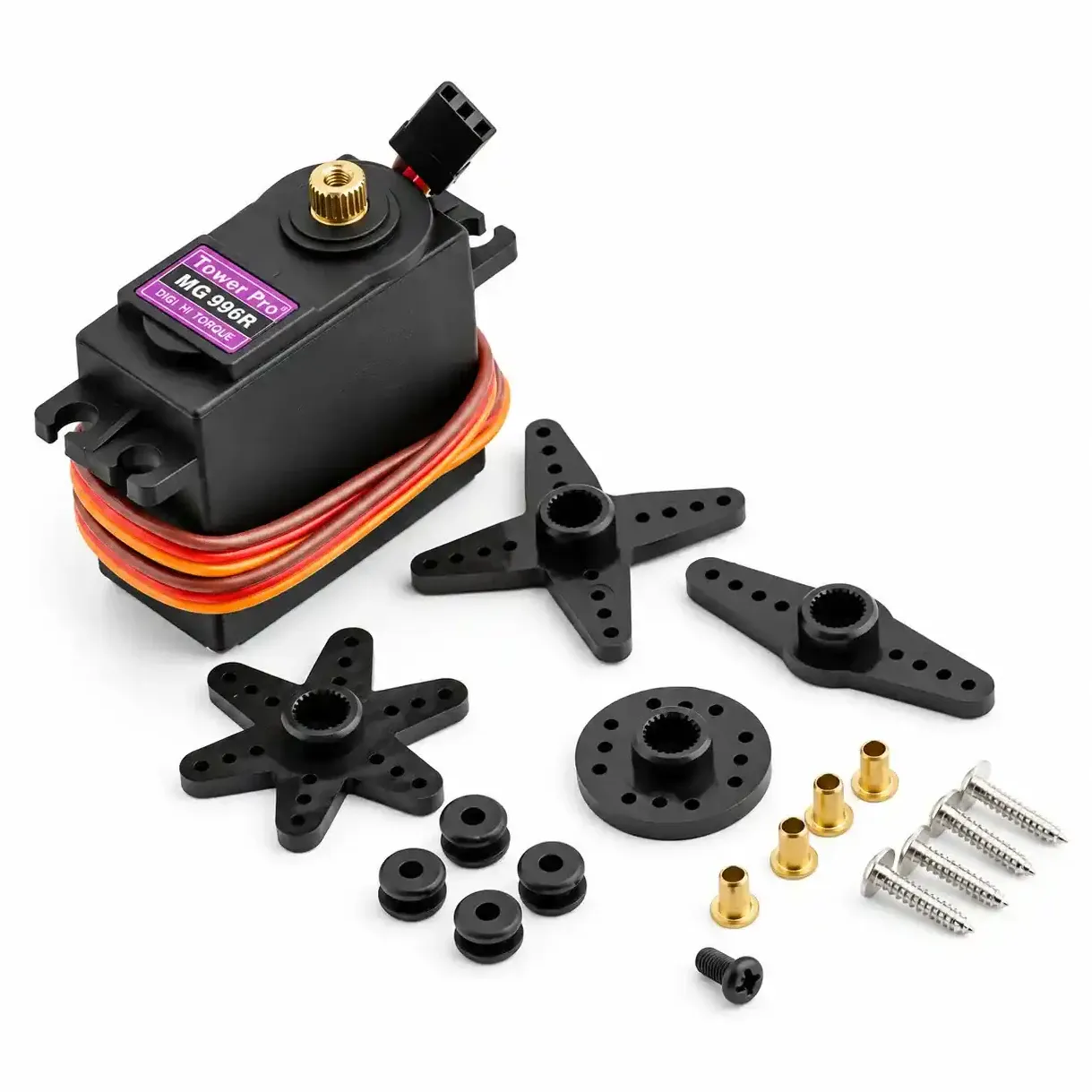

• Servo arms, screws and mounting hardware included

Specifications

• Weight: 55 g

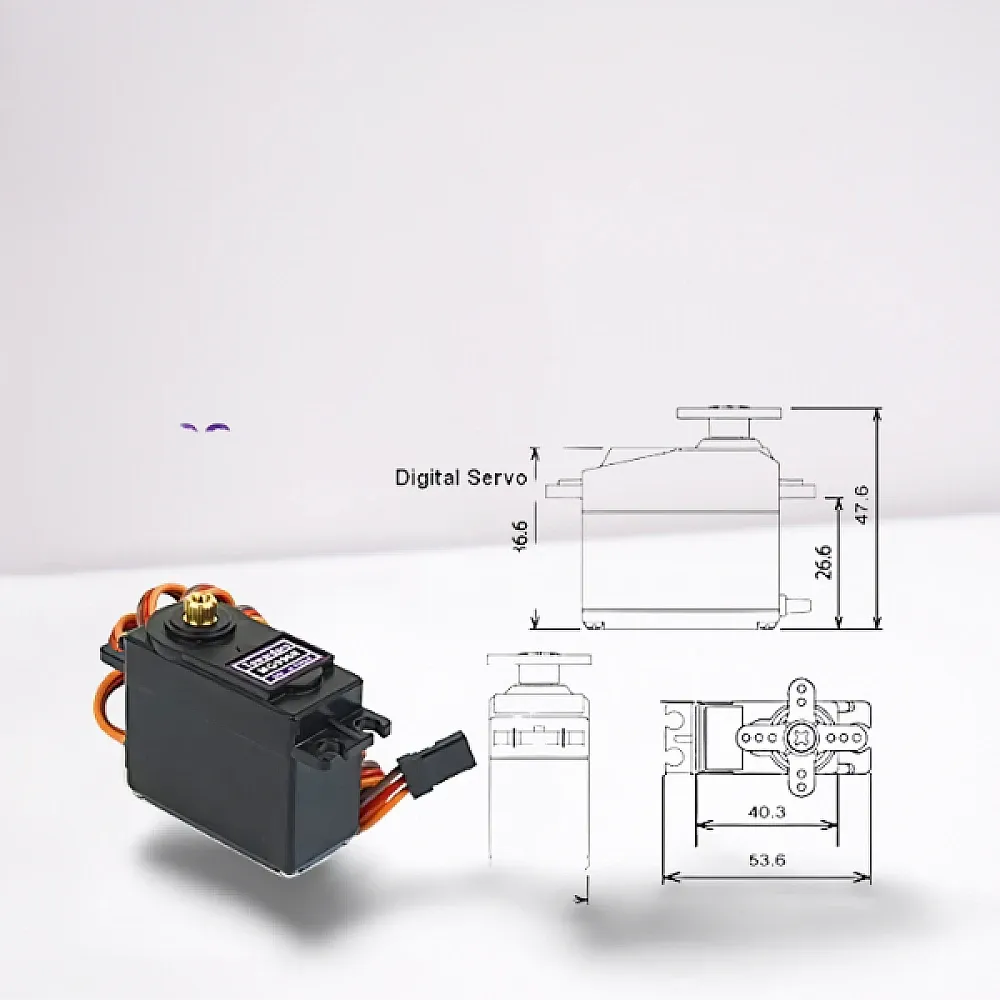

• Dimensions: 40.7 × 19.7 × 42.9 mm
• Operating voltage: 4.8–6.6 V
• Stall torque: 9.4 kg·cm (4.8 V), 11 kg·cm (6 V)
• Speed: 0.19 s/60° (4.8 V), 0.15 s/60° (6 V)
• Idle current: 10 mA
• Operating temperature: 0–55 °C
• Gears: metal, 25-tooth spline
• Plug: JR

Running current is 500–900 mA at 6 V, so feed it from a dedicated BEC rather than a receiver or flight controller 5 V pad. The 360° version trades angle control for continuous speed and direction control.
