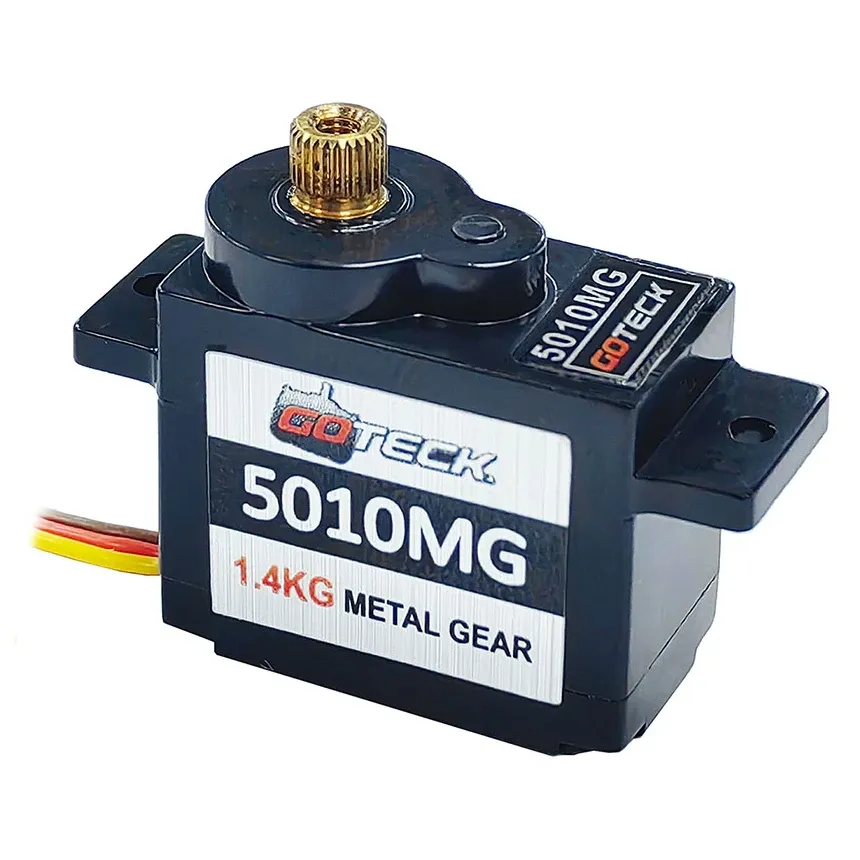

DYS GoTeck GS-5010MG 5g Metal Gear Digital Micro Servo

The DYS GoTeck GS-5010MG is a 5g-class digital micro servo with a full metal gear train, for small fixed-wing aircraft, helicopters, micro drones and robotics mechanisms that would strip plastic gears.

Key features

• Hard-anodised metal gears resist tooth wear for a longer service life than plastic
• 1.4 kg·cm at 6 V (1.2 kg·cm at 4.8 V) from a micro-size case
• Supports 333 Hz servo frame rates with a 1520 µs neutral
• Overload protection reduces current and cuts power if the output stays stalled
• 180° travel across a 500–2500 µs pulse range

Specifications

• Operating voltage: 4.8–6 V
• Torque: 1.2 kg·cm at 4.8 V, 1.4 kg·cm at 6 V
• Speed: 0.11 s/60° at 4.8 V
• Neutral / frame rate: 1520 µs, up to 333 Hz
• Travel: 180°
• Weight: 7.8 g (5g size class)
• Dimensions: 21.3 x 11.5 x 20.6 mm
• Gears: Metal
• Case: Plastic
• Lead: 200 mm, 28AWG (black negative, red positive, white signal)
• Operating temperature: -20 to 60 °C

When driving it from a flight controller, set the servo centre to 1520 µs and only select a 333 Hz update rate if that output supports it.
