MATEKSYS CANPDB w/ 4A BEC & JST-GH Splitter

The MATEKSYS CAN PDB combines a JST-GH CAN bus splitter with an integrated 4A BEC, streamlining DroneCAN wiring on advanced ArduPilot and PX4 builds. Fed from the main battery, it distributes CAN data and regulated 5.2 V power to daisy-chained peripherals on heavy-lift multicopters and autonomous fixed-wing UAVs.

Key features

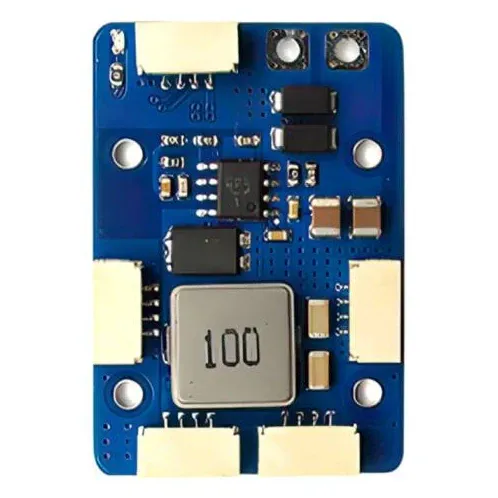

• Combines a CAN bus expansion hub with a 5.2 V BEC, so every port carries both data and power (1 A per port).

• Supplies up to 4A continuous current via the integrated BEC to comfortably power flight controllers, servos, or auxiliary sensors.

• Utilises the industry-standard JST-GH connector ecosystem for direct DroneCAN device integration.

• Minimises wiring clutter and mitigates signal interference across large, complex airframes.

Specifications

• Manufacturer: MATEKSYS

• BEC output: 4A

• Output voltage: 5.2 V on the 5V pins/pads

• Current per port: 1 A

• Input voltage: 6-55 V (2-12S)

• Port type: JST-GH

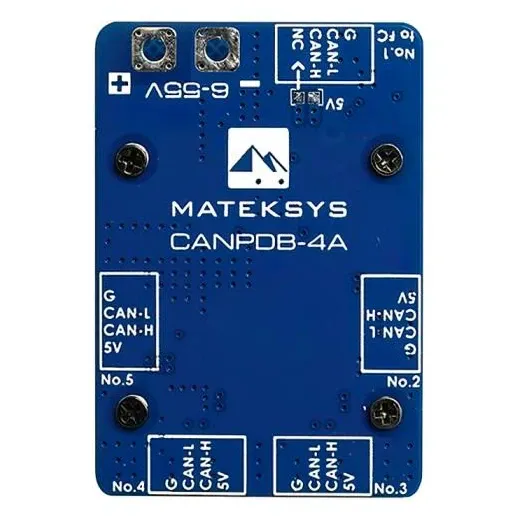

• CAN ports: 5x JST-GH 4-pin (CAN-H/CAN-L in parallel)

• Short-circuit tolerance: 3 seconds

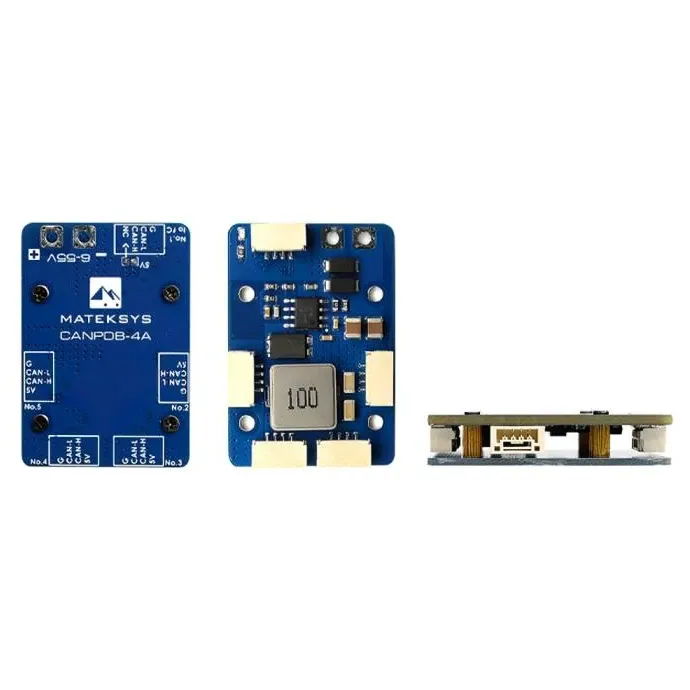

• Dimensions: 38 x 26 x 7.8 mm

• Weight: 12 g

• In the box: CAN PDB, 20 cm JST-GH 4-pin silicone cable

• Protocol compatibility: DroneCAN, UAVCAN

• Firmware ecosystems: ArduPilot, PX4

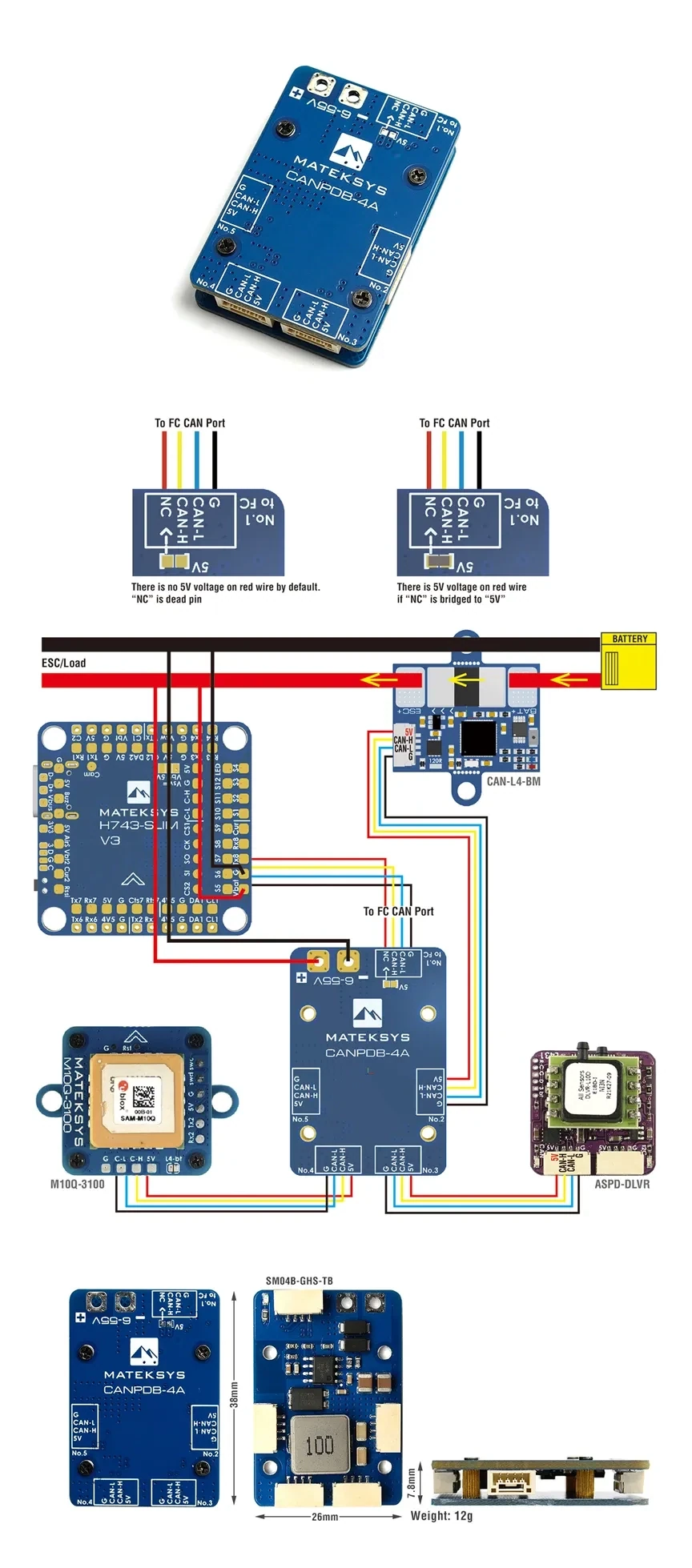

This combined board provides a clean integration path for builders expanding a CAN bus network, entirely eliminating the need for redundant step-down regulators or custom wire splices when adding multiple GPS units, compasses, or airspeed sensors.
