MATEKSYS Hubosd Eco X-Type W/XT60

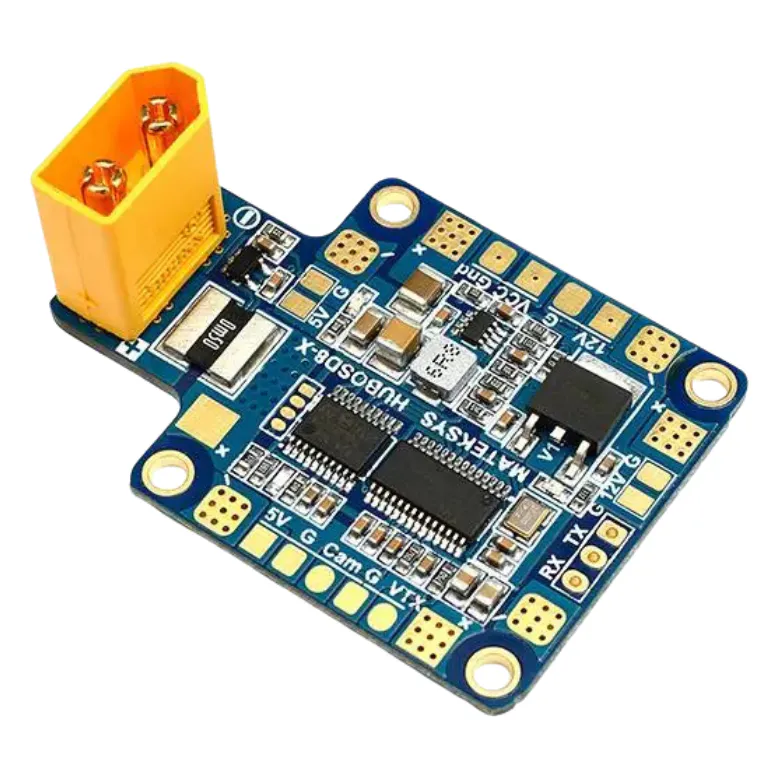

The Mateksys HUBOSD Eco X-Type integrates a high-capacity power distribution board, an STOSD8 On-Screen Display, a 140A current sensor, and dual BECs into a single, compact footprint. Tailored for classic analogue FPV racing and freestyle builds, this PDB features an X-shaped pad layout that routes ESC power directly to the corners of your frame for much cleaner wiring and shorter high-current draws.

Key features

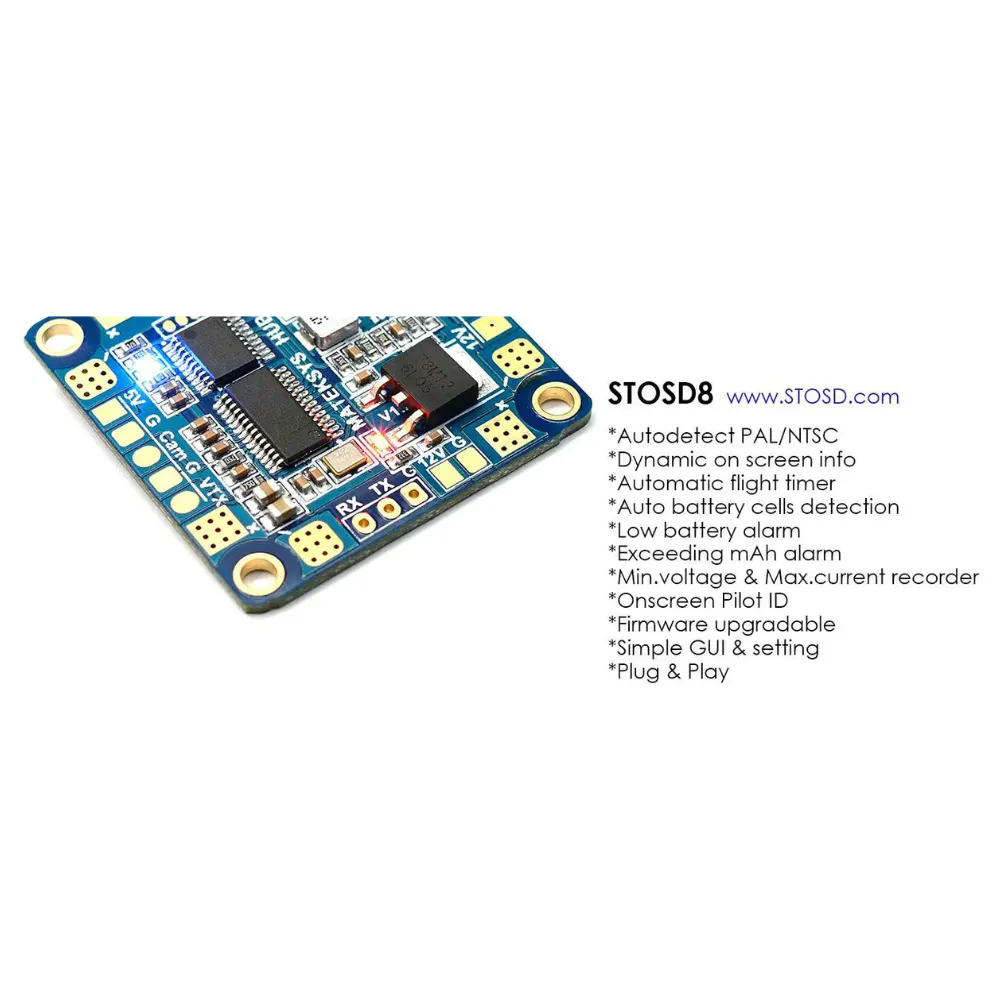

• Integrated STOSD8 delivers plug-and-play voltage, current, and capacity (mAh) data directly to your video feed without complex flight controller OSD configuration.
• True-X pad layout aligns perfectly with the arms of true-X mini quad frames to keep ESC power wires short and neat.
• Onboard 140A current sensor and dual step-down BECs (5V and 12V) reliably power your flight controller, video transmitter, and FPV camera.
• Handles 30A continuous current per ESC (35A peak) across a 3S to 5S LiPo input range.

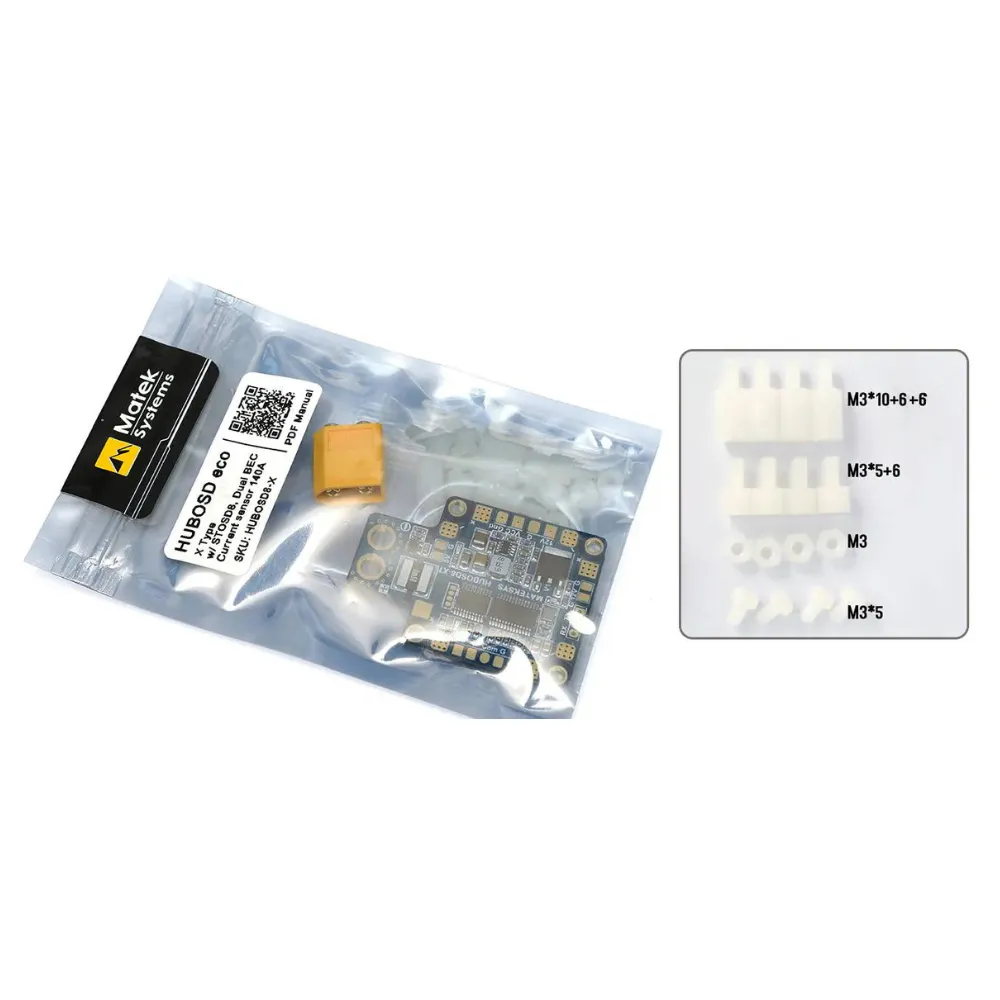

• Supplied with a genuine high-temperature XT60 connector for direct battery lead attachment.

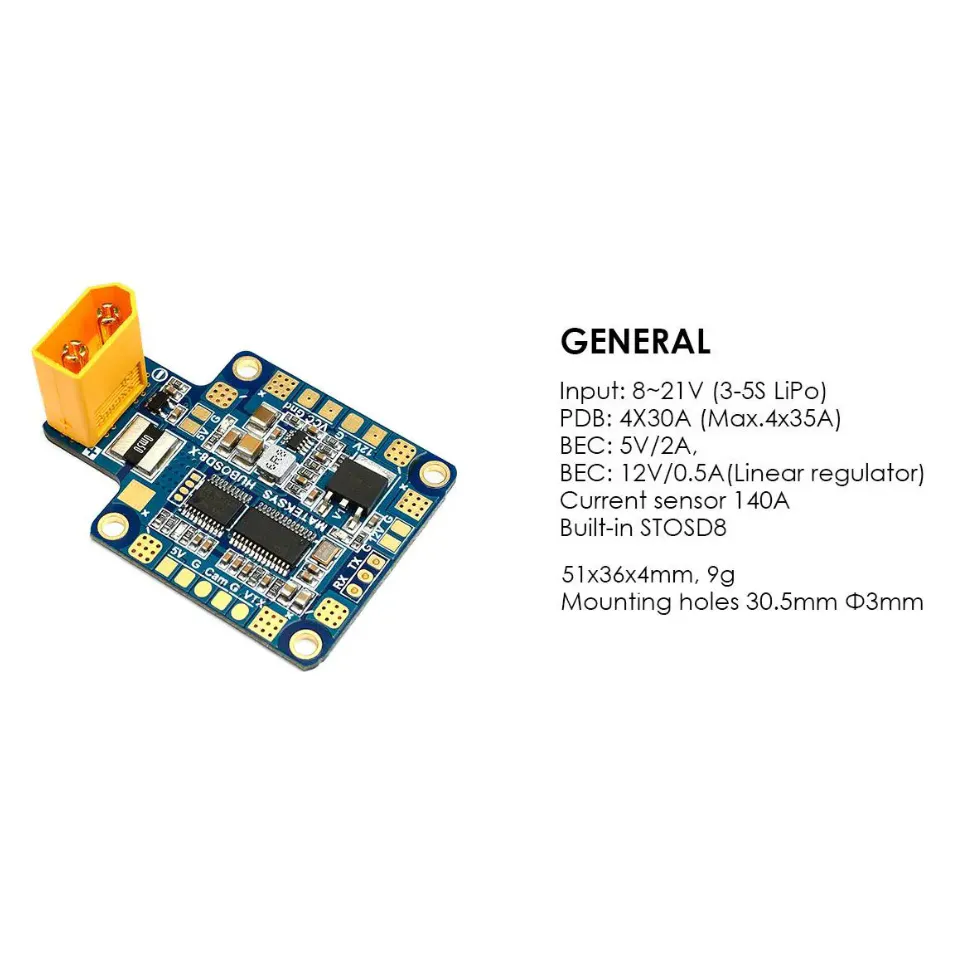

Specifications

• Input voltage: 3-5S
• Continuous current: 4x 30A
• Burst current: 4x 35A (10 seconds)

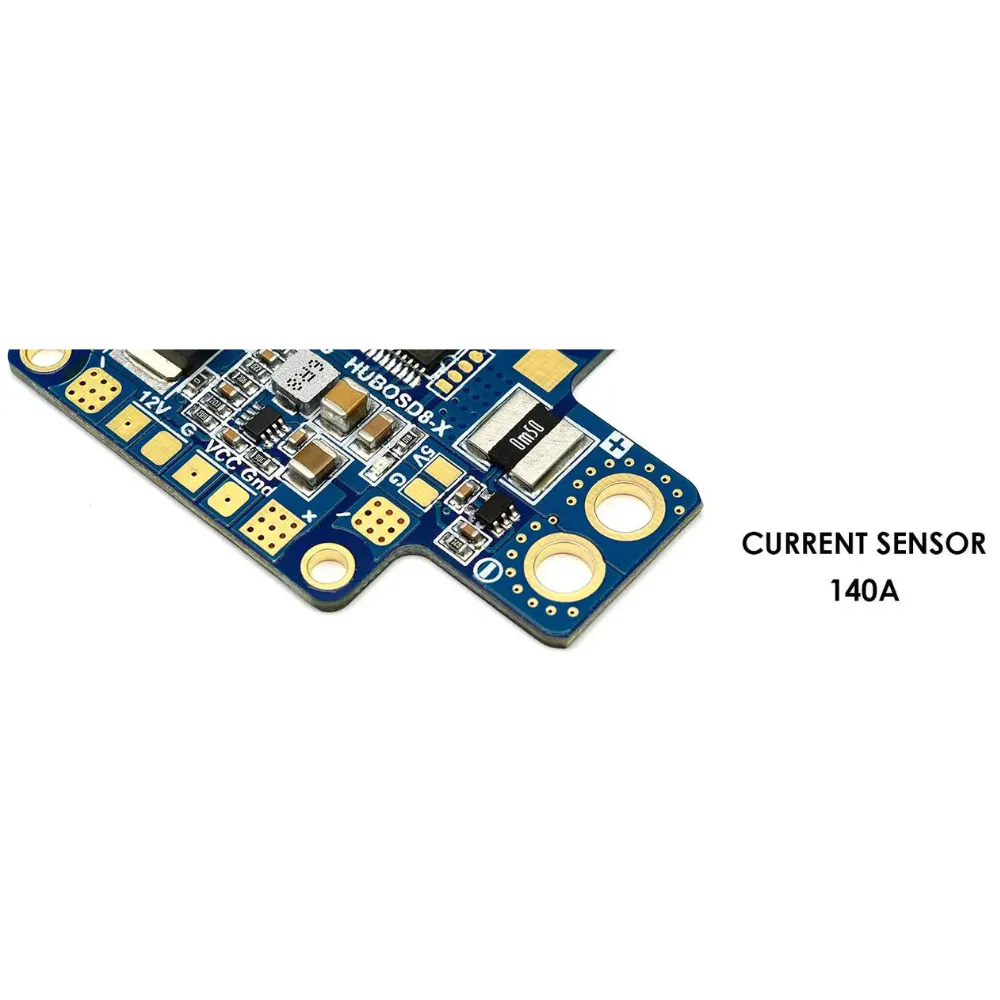

• Current sensor: 140A
• BEC outputs: 5V @ 2A, 12V @ 500mA
• Mounting size: 30.5x30.5
• Dimensions: 46x36x4 mm
• Weight: 8.5 g

Note that the 12V BEC requires at least a 4S LiPo input to function properly. When flying on 3S, you must power your 12V FPV equipment directly from the battery pad or use a separate boost converter.
