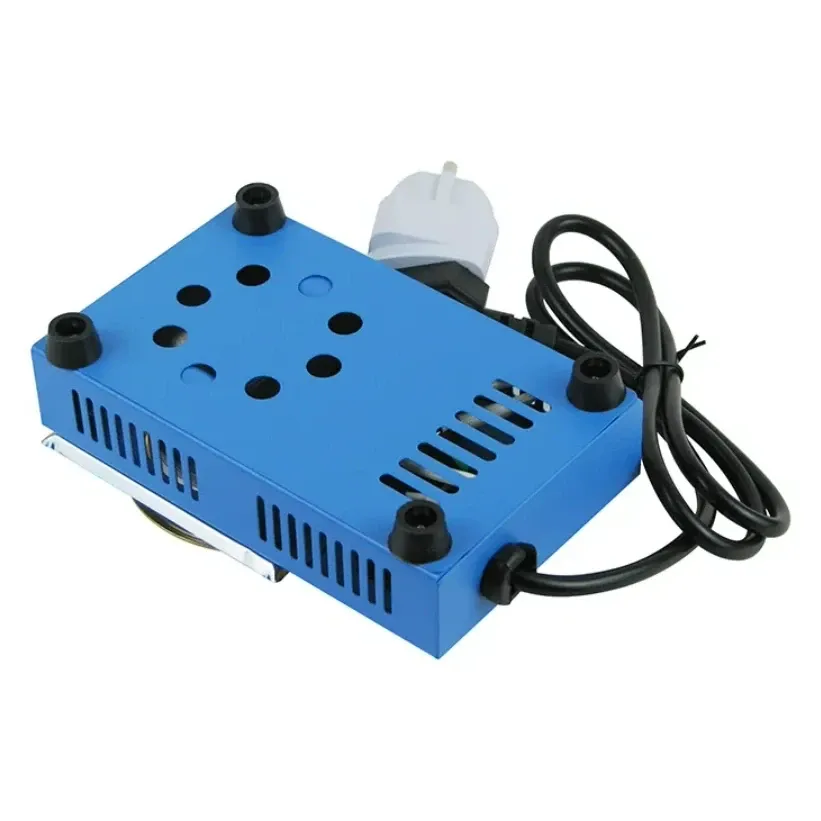

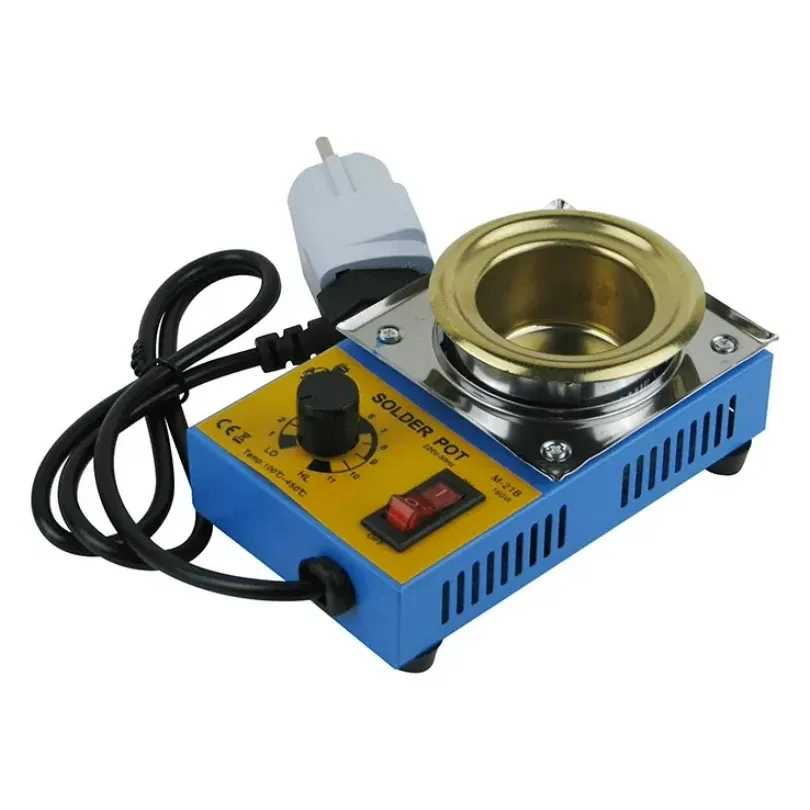

M-21B Temperature-Controlled Solder Pot, 50mm Titanium Bath, 160W

The M-21B is a compact temperature-controlled solder pot for tinning stripped wire ends and component leads in one dip, and for lifting through-hole parts off a board. On a drone bench it speeds up tinning silicone power leads, battery pigtails and motor wires before they go onto XT60 connectors or ESC pads.

Key features

• Adjustable from 100 °C to 450 °C with automatic constant-temperature control
• 50 mm titanium-plate bath with 30 mm of usable depth
• 160 W heater running on 220 V mains
• Heat-proof stainless steel body with a power switch and temperature knob

Specifications

• Power supply: 220 V AC
• Heater power: 160 W
• Temperature range: 100–450 °C
• Bath diameter: 50 mm
• Usable depth: 30 mm
• Power cord: 80 cm
• Dimensions: 155 × 90 × 60 mm
• Weight: 390 g

Only the pot is in the box, so add solder bar or wire to fill the bath. Set the temperature well above your solder's melting point (tin-lead solder melts at about 183 °C), and work on a heat-proof surface with ventilation, since the bath stays hot long after switch-off.
